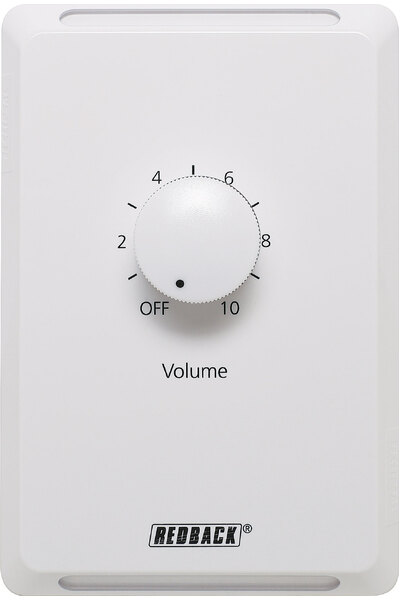

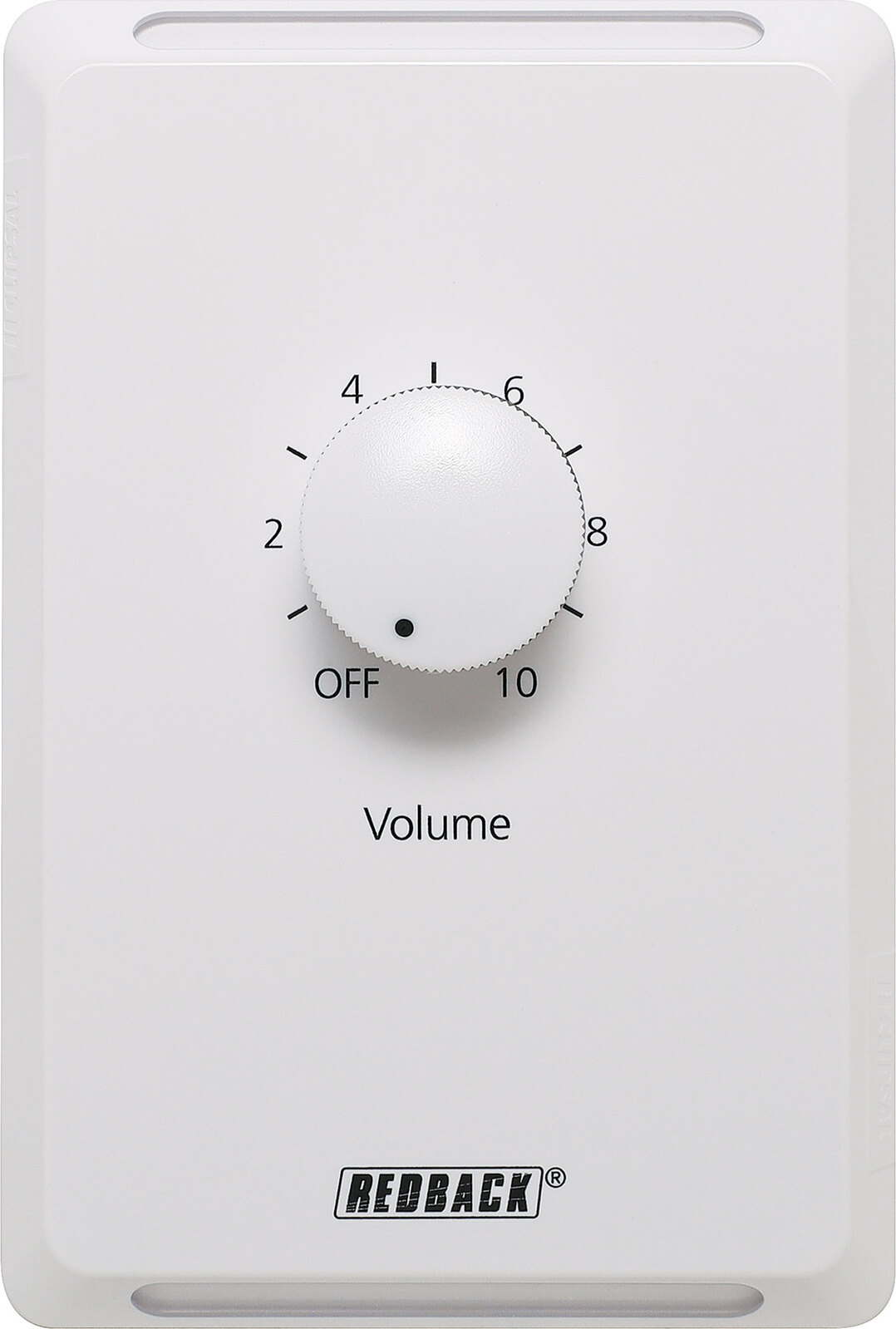

Redback Volume Control 10W 100V Line Clipsal Pro - Vertical White

Part of the series AV & PA Wallplates.

View all products in this series

---

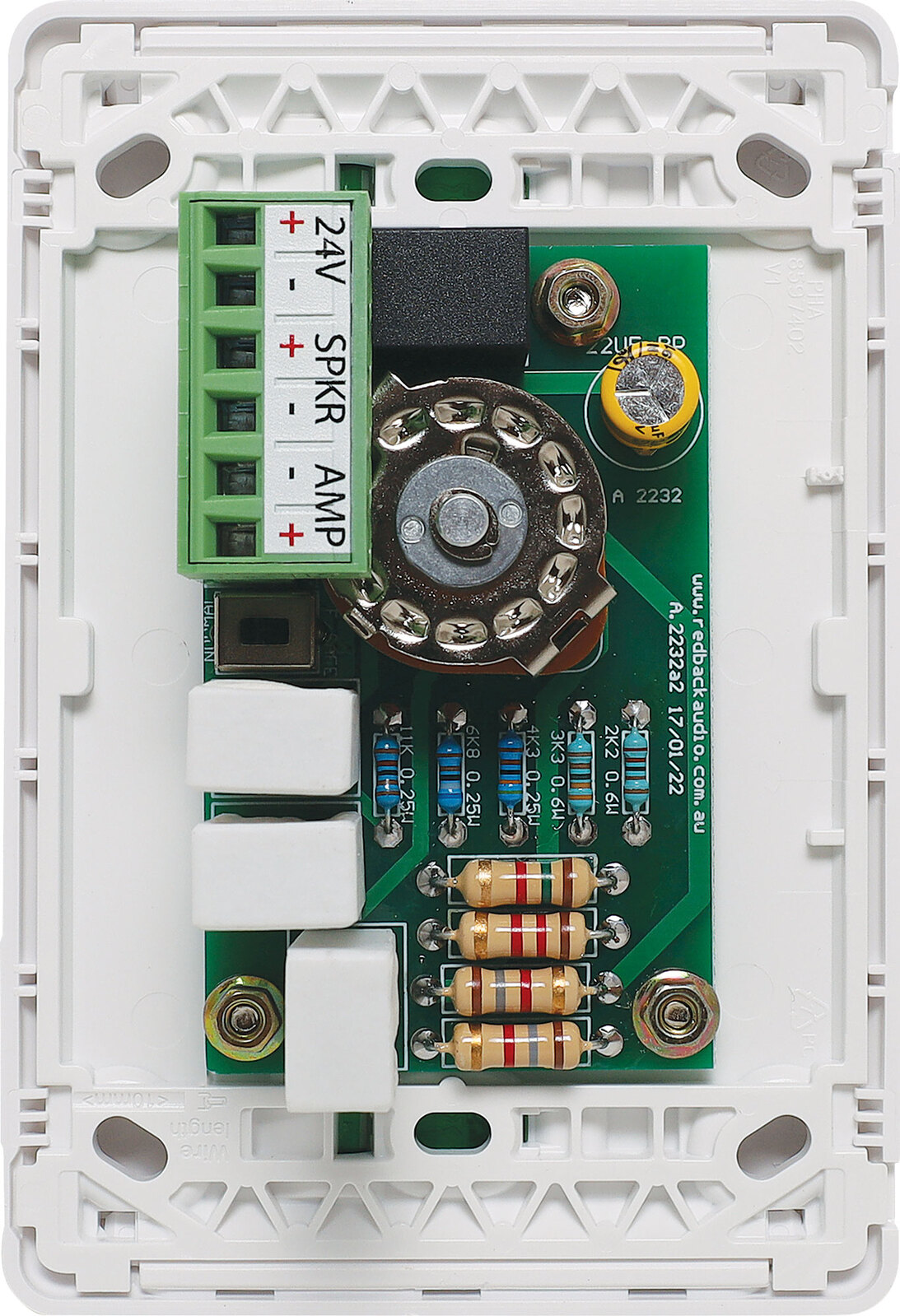

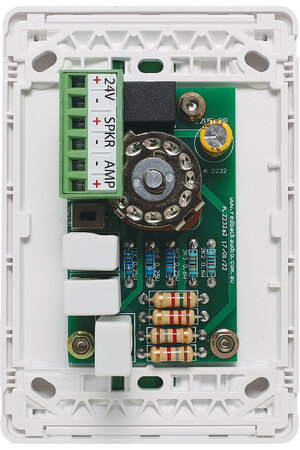

This 10W volume control is designed for 100V line speaker systems. The volume control is fitted to a white Clipsal Pro Series wall plate which has been specifically designed for commercial building installations. They feature 11 position switches for fine adjustment of sound level. All circuitry is housed on a PCB with screw terminals for easy installation. They include override relay for emergency paging applications & a 22µF bipolar capacitor for line monitoring purposes.

About Clipsal Pro Series Wallplates
The Clipsal Pro series has been specifically designed for commercial building installations and is the new standard for retail, offices, schools and public spaces. The secured fascia plate can only be removed with a tool preventing tampering and accidental removal due to impact etc. Available in white and black, the switches and sockets will blend into any commercial environment.



Wiring Diagram

Designed & manufactured in Australia.
Since 1976 Redback public address products have been manufactured in Perth, Western Australia by Altronics. With over 45 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.
