Redback Touchscreen Source Switching Wall Plate to suit A4480B

$459.95
Buy in bulk & save!
Buy 1 to 2: $459.95 each
Buy 3 to 5: $448.45 each
Buy 6 or more: $436.95 each


Available on orders $80 to $1000
Learn more


Available on orders $80 to $1000
Learn more



The A4495 wall plate allows remote selection of the A4480B zone input audio source and volume level (1 plate required per zone).

Availability: Available Usually Dispatched In: 2 - 5 Business Days Product Code: ALT-A4495 ISBN: 9321758247204 Brand/Publisher: Redback Categories: Professional Audio
Share

Part of the series AV & PA Wallplates.

View all products in this series

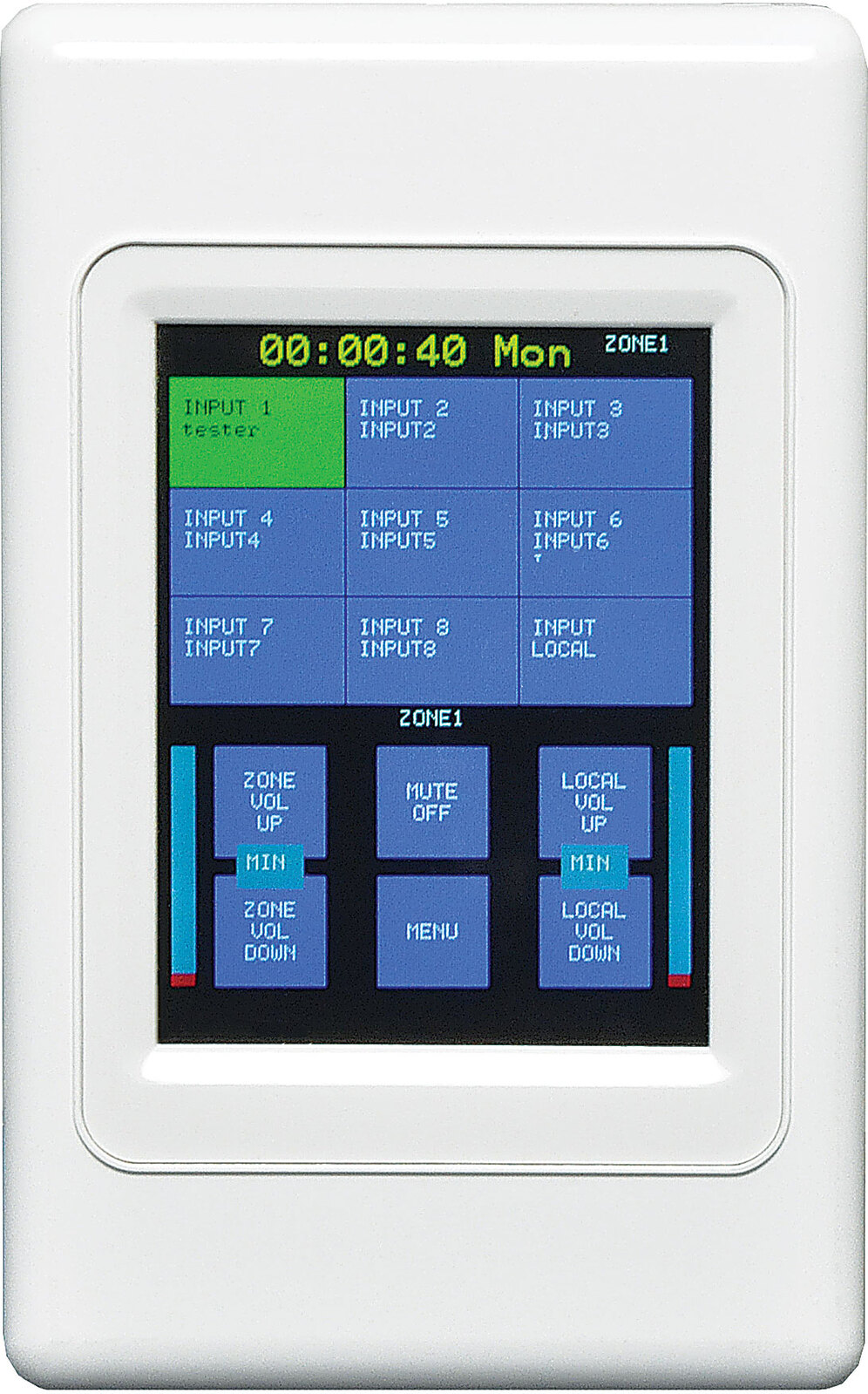

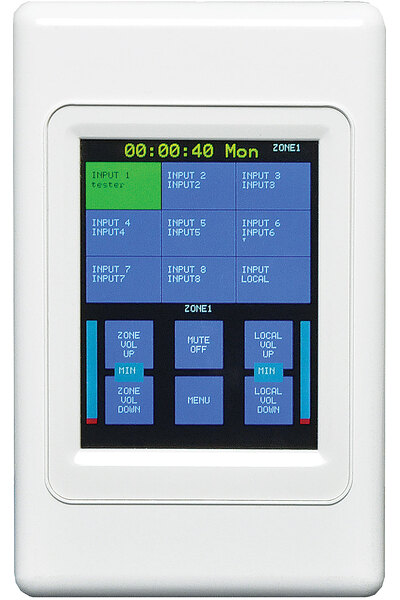

The A4495 wall plate allows remote selection of the A4480B zone input audio source and volume level (1 plate required per zone). In addition, when connected to the A4931 local zone input wall plate, it allows the use of a local signal source, such as a wired mic, radio mic or aux source such as a mobile device, which VOX mutes the selected input from the A4480B. The LCD displays the zone name, the input sources and zone and local input volume levels.

Note: The volume controls only adjust the volume of the 8 aux input sources, plus the local input (when used). General and emergency paging from the A4480B Audio Switcher will override these volume settings.

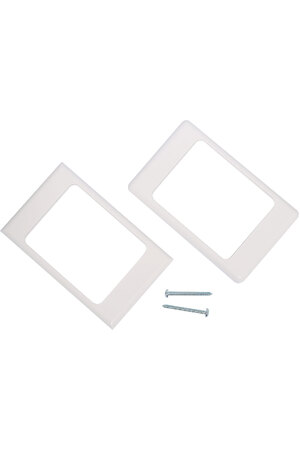

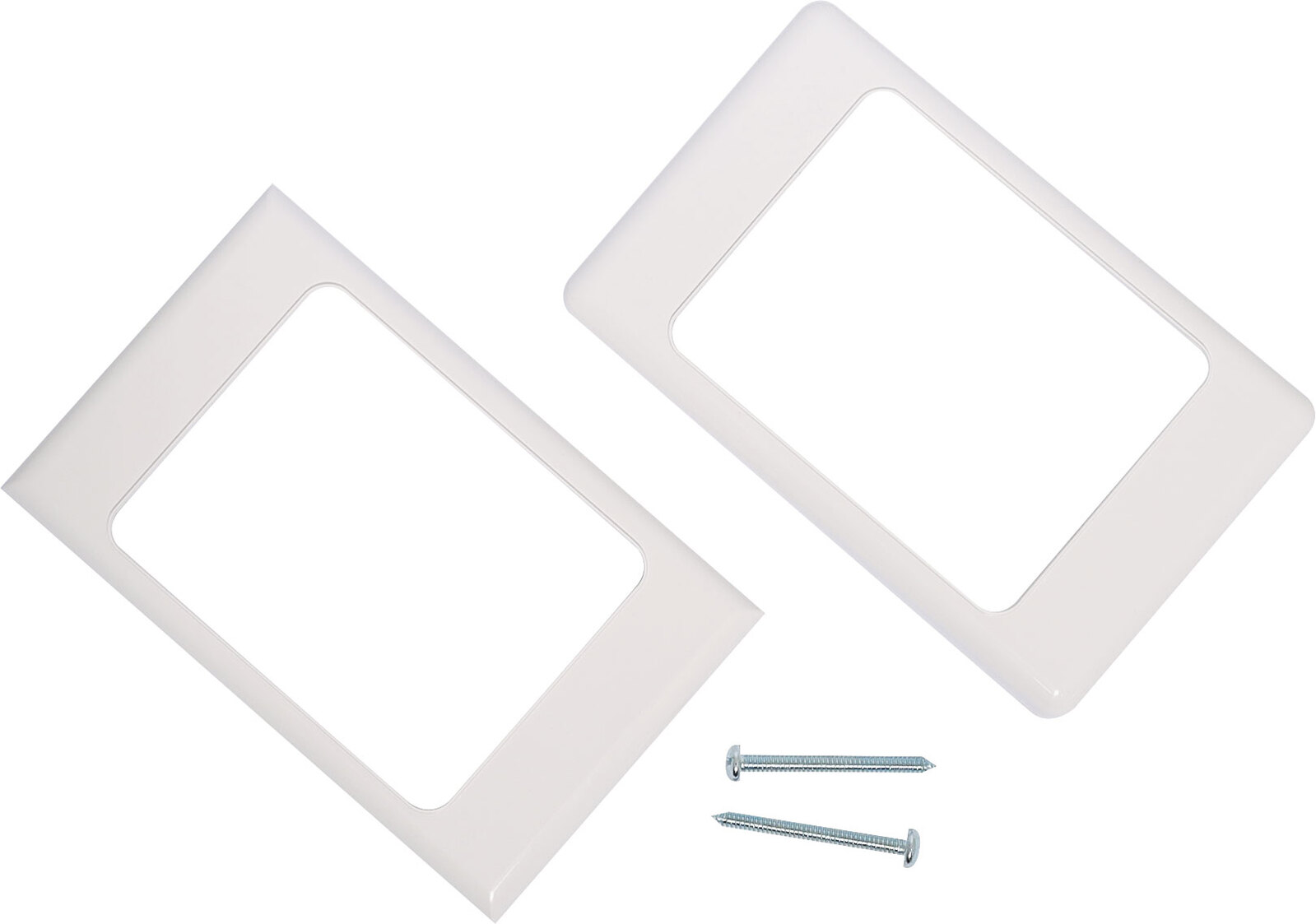

All wall plates assembled by Altronics are supplied with two facia clip on covers. These are designed to match your current decor. Simply clip on the desired cover after installation.

Part of the Redback UTP Solutions Range.
This product is part of the Redback UTP solutions range, a suite of interchangeable transmitters and receivers for connecting different types of audio signals between local zones and equipment racks. View the connection matrix for this product to see which items it will connect to in the Redback range.

Features

  • Remote selection of input audio source
  • Volume control of zone input
  • Volume control of local zone input
  • Mute function
  • Zone Lockout
  • Personal Identification Number (PIN) Menu Lockout Function
  • 2 stage wall plate functionality Lockout
  • Provision for input of local microphone or line level audio via A4931 or A4931V wall plates
  • Cat5e connection to A4480B
  • Powered from the A4480B


100% developed, designed & assembled in Australia.
Since 1976 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 45 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.


Backed by an industry leading 10 Year Manufacturer Warranty.
Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

Downloads

Connection Matrix
SKU ALT-A4495
ISBN 9321758247204
Publisher Redback
Product Type PA Equipment,
