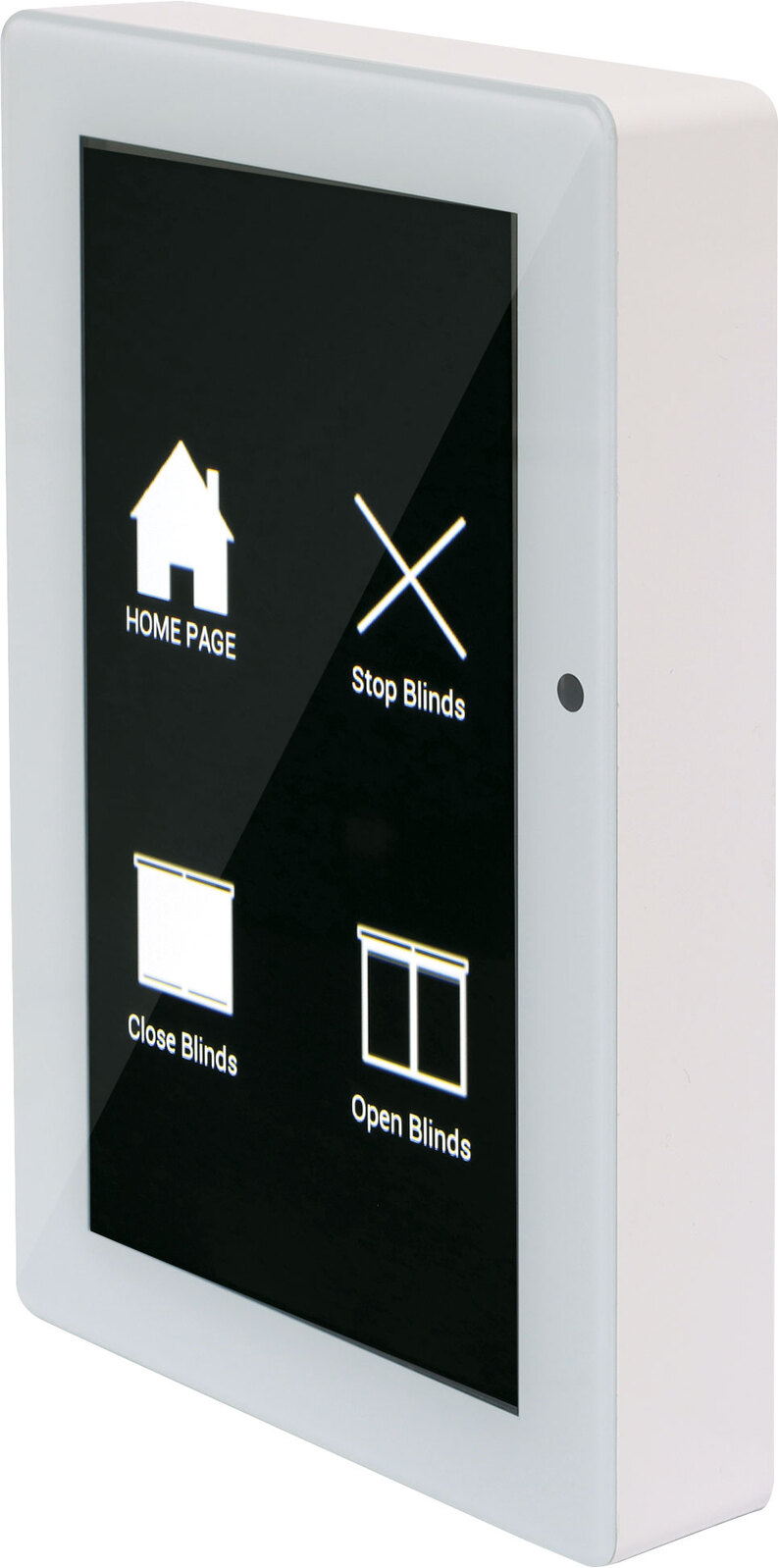

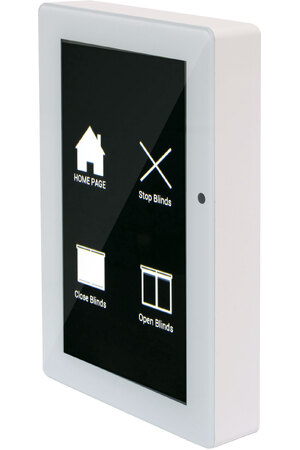

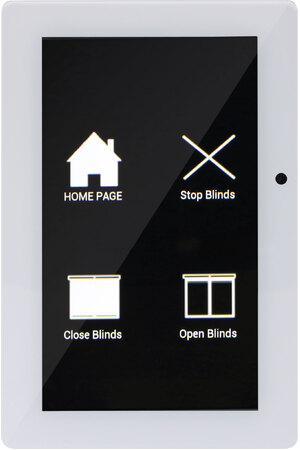

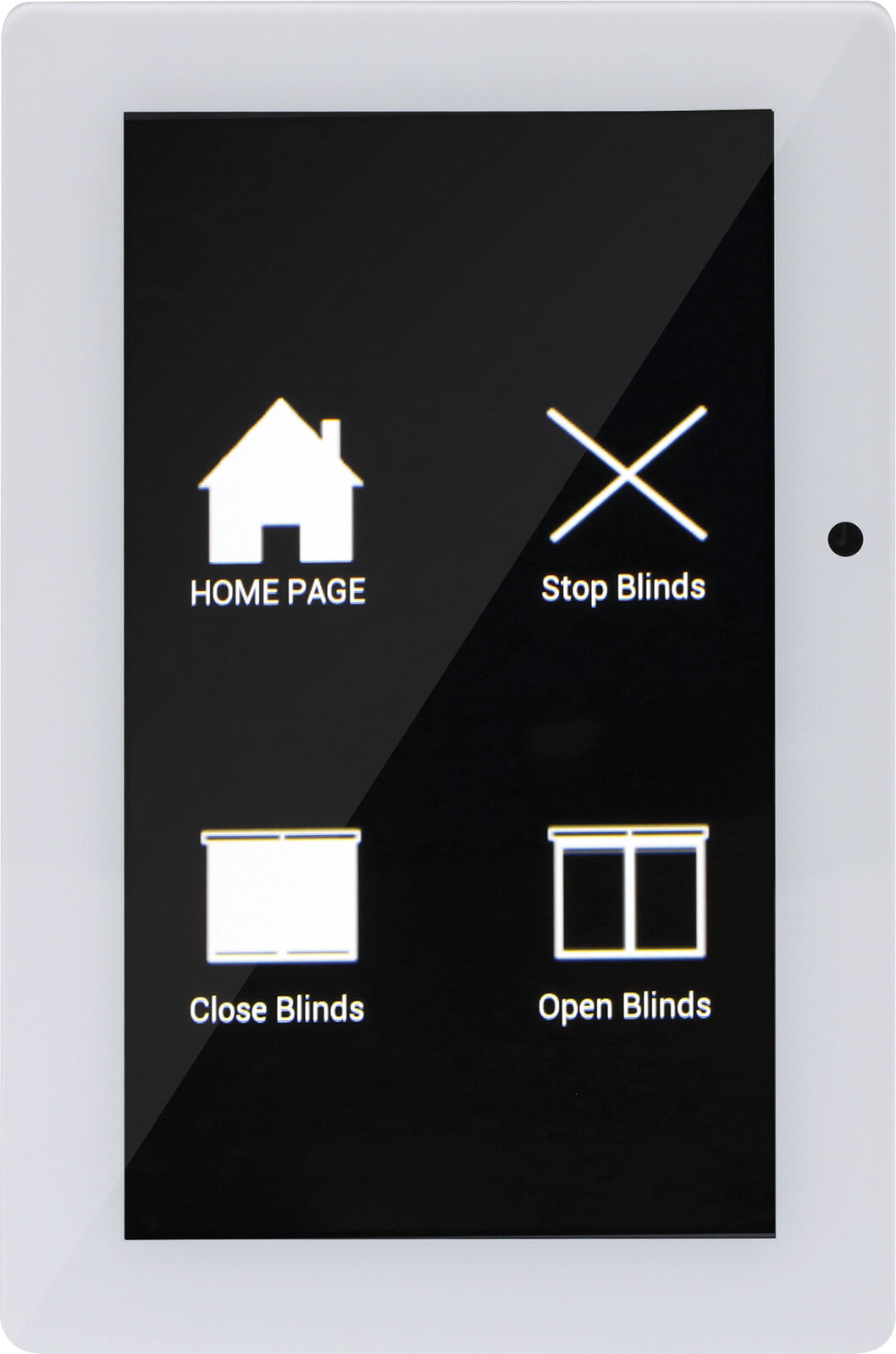

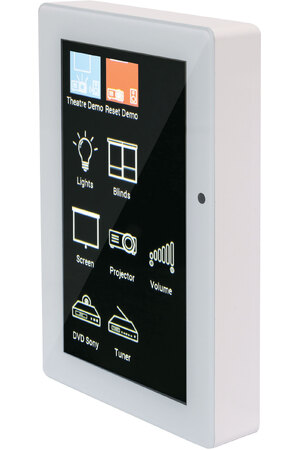

Redback Programmable Universal 4.3" Touchscreen Wallplate - White

Part of the series AV & PA Wallplates.

View all products in this series

---

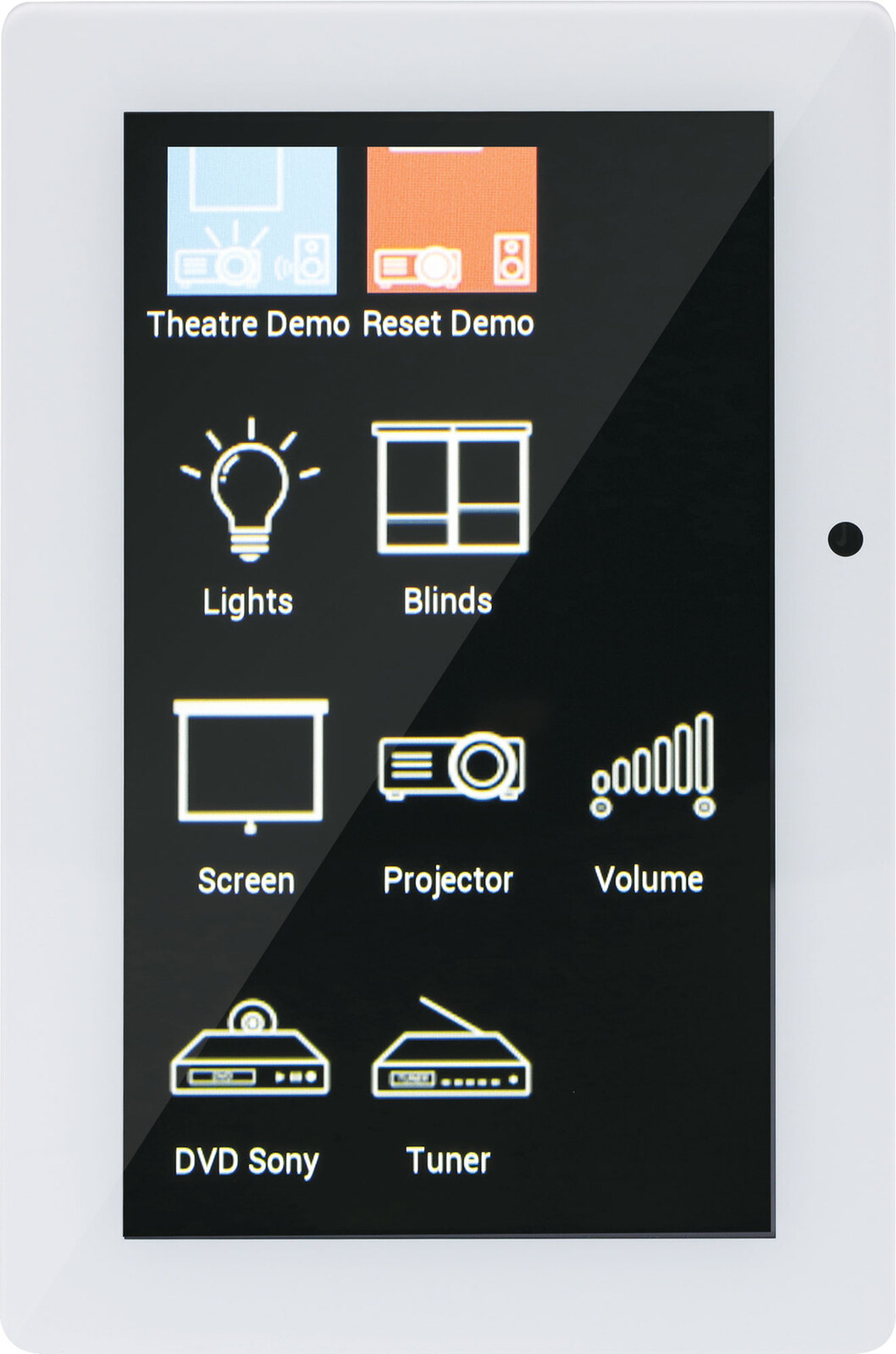

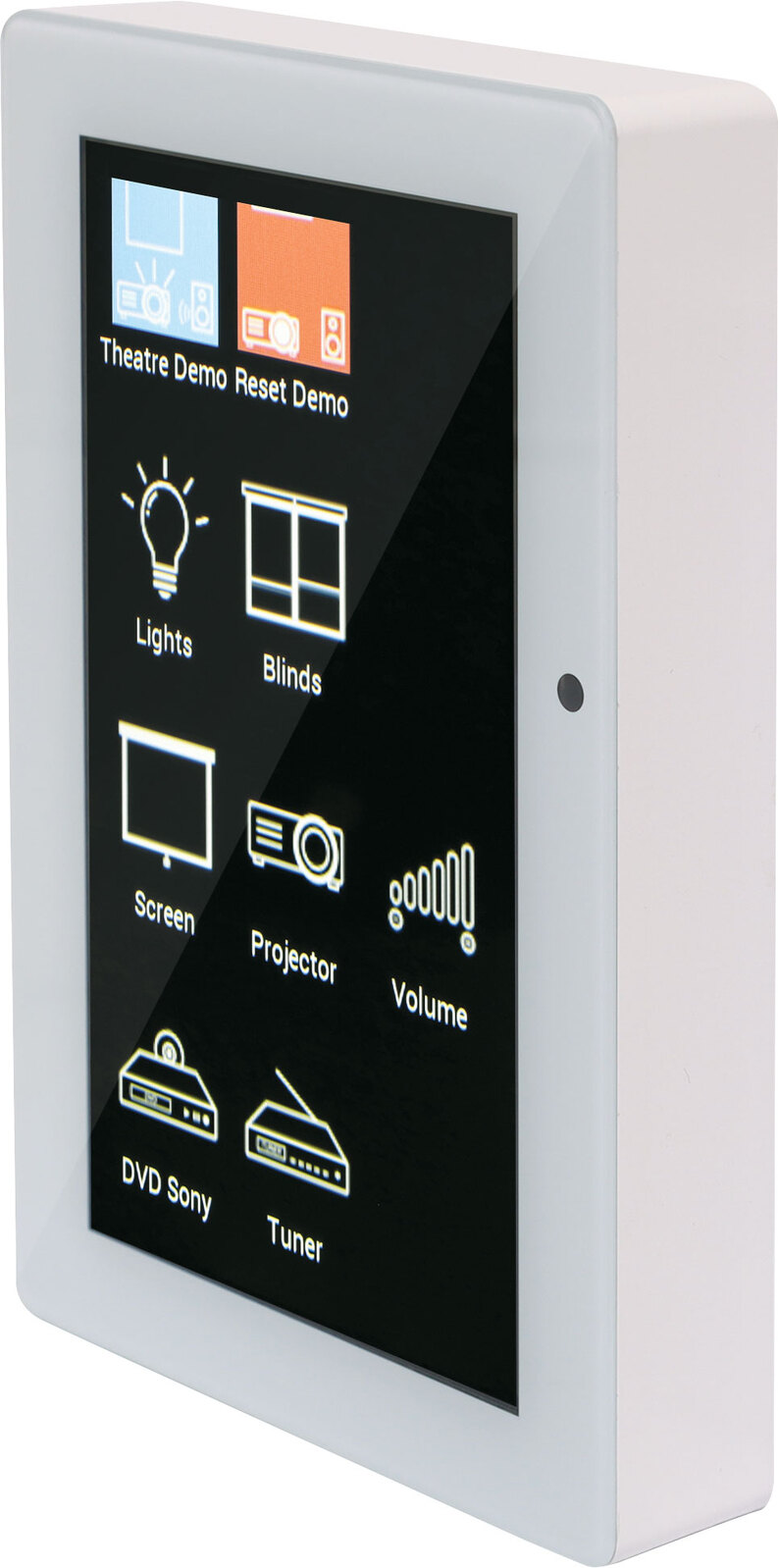

This universal 4.3" touchscreen wall plate is the perfect control system for commercial and domestic automation. Its stylish low profile design lends itself to installation in new modern homes, classrooms, lecture theatres or corporate boardrooms. The LCD panel can be configured from 1 to 12 buttons, which can be individually labelled. Configuration is performed using the supplied software, which is then transferred to the plate via SD card. A library of button icons is included. Icons can be customised by the user if required.  Each button can be programmed for either serial with hex code commands, IR, or relay control.

For IR applications the plate can learn and capture IR strings from almost any remote control. User generated macros can be created consisting of multiple commands in a single button press. This is ideal for performing multiple tasks at once ie: turn on projector, turn on amplifier, turn off lights, drop down projector screen etc. Wall plate fits into a standard electrical wall box for ease of installation.

Interfaces with a suite of Redback serial and relay control boxes (see accessories panel).

Features

• User programmable buttons & icons
• Multiple screen pages (12 max)
• Tandem operation
• Event splash screens
• Icon library for commonly used buttons
• Infra-red control output
• RS-232 or RS-485 serial outputs
• PIR motion trigger
• Haptic & audible button feedback options
• U/UTP Cat5 cable connection
• Multi-command macros
• IR learning facility

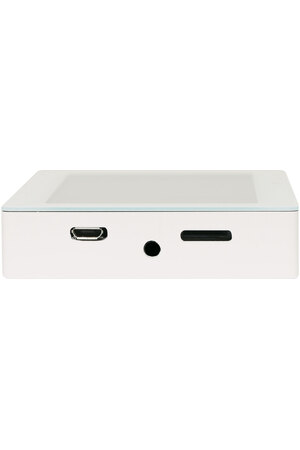

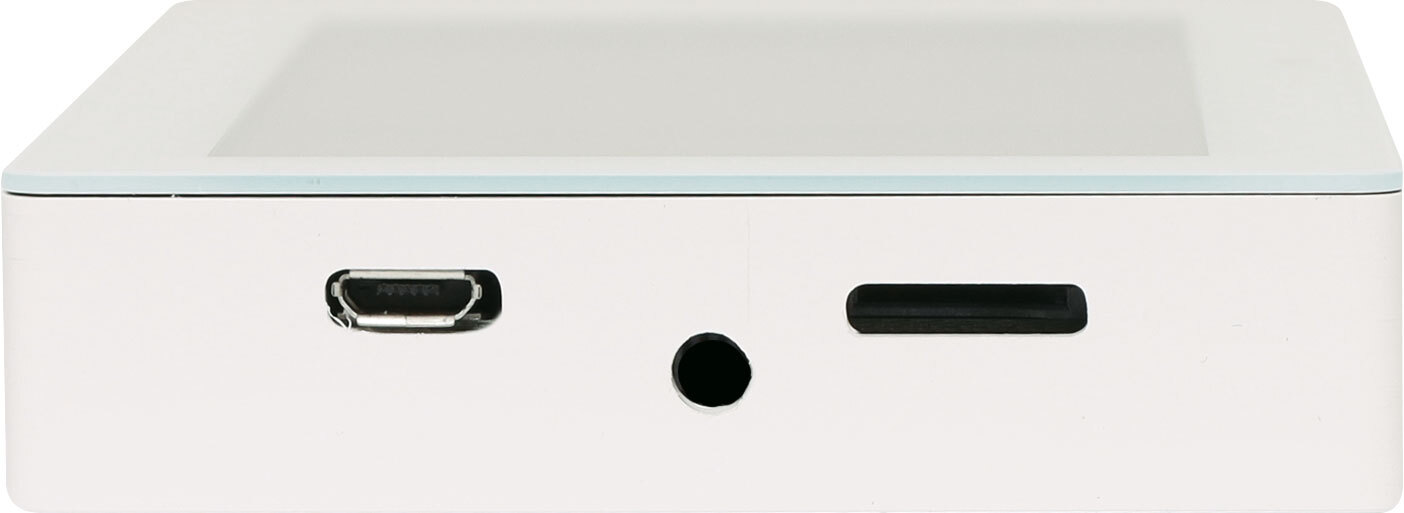

• SD card configuration upload
• Easy to program

100% developed, designed & assembled in Australia.
Since 1976 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 40 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Backed by an industry leading 10 Year Manufacturer Warranty.
Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.
