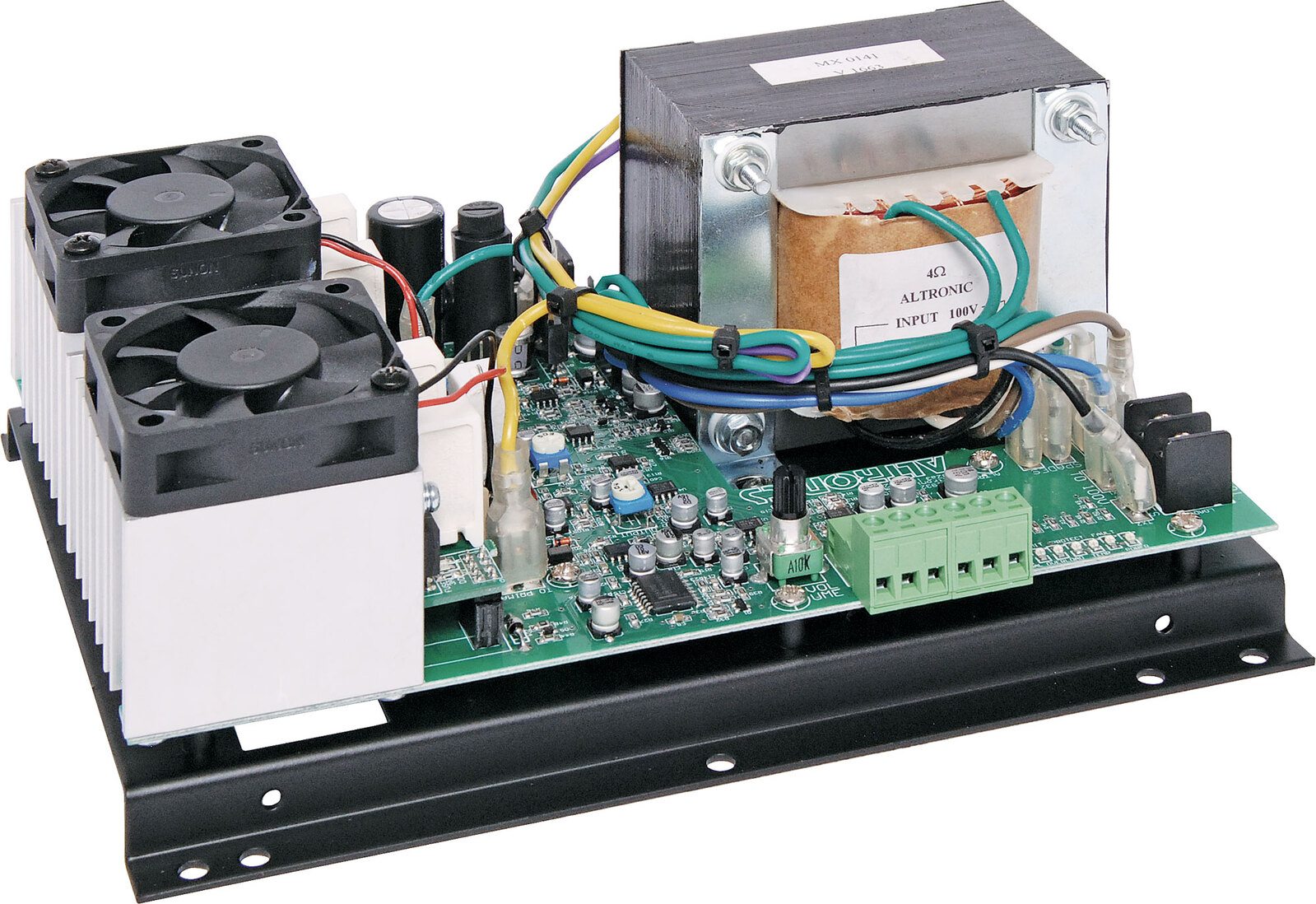

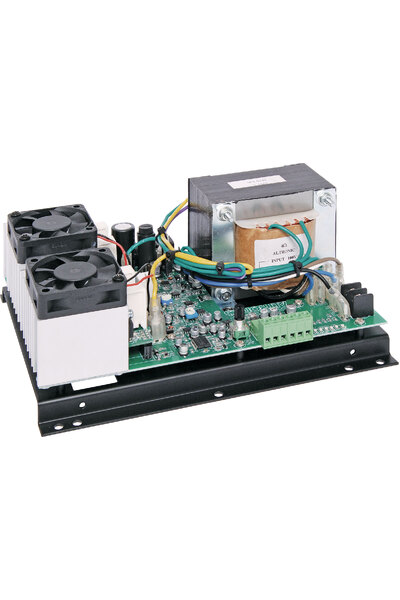

Redback PA Amplifier Module 60W

Part of the series PA Accessories.

View all products in this series

---

These modules are designed for use in emergency evacuation systems and are powered by an external 24V DC source. They accept a line level audio input and produce a 100V line output via a transformer. The modules feature short circuit, overload and thermal cutout protection, and are constructed on a steel chassis.

Features

• Powered by 24V DC
• 100V line audio output
• Line level audio input
• Short circuit, overload and thermal cutout protection
• Bolt-in chassis construction

100% developed, designed & assembled in Australia.
Since 1976 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 40 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Backed by an industry leading 10 Year Manufacturer Warranty.
Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

Specifications

• Output Power: 60W RMS
• Current Draw: 3.8A at full load (100mA quiescent)
• Frequency Response: 45Hz - 12kHz
• Distortion: <0.3%
• SNR: -94dB
• Sensitivity: 600mV RMS
• Protection: 4A
• Operating temperature: -10°C to +60°C
• Dimensions: 210W x 170D x 85H
• * Specifications subject to change without notice.

*Specifications are subject to change without notice.

Downloads

Instructions
