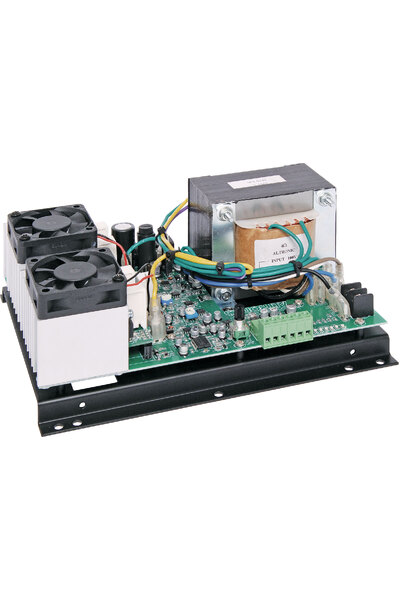

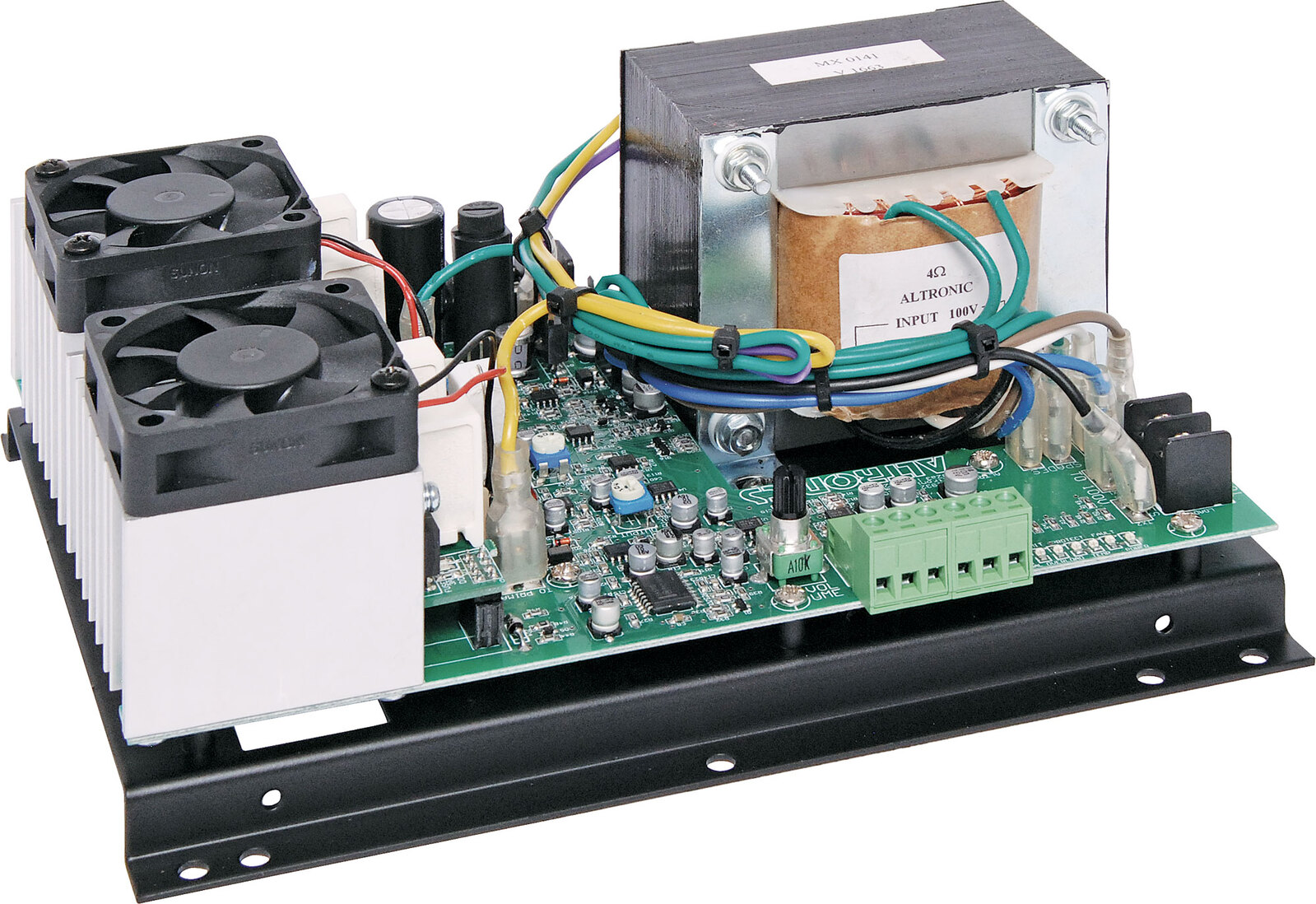

Redback PA Amplifier Module 120W

Part of the series PA Accessories.

View all products in this series

---

This module is designed for use in emergency evacuation systems and is powered by an external 24V DC source. It accepts a line level audio input and produces a 100V line output via a transformer. It also features short circuit, overload and thermal cutout protection, and is constructed on a steel chassis. Designed with reliability and robust performance in mind, it is the ideal audio power source for evacuation systems, or any application which requires a DC powered 100V line amplifier.

Features

• Powered by nominal 24V DC
• 100V line audio output
• Line level audio input - 600mV
• Short circuit, overload, and thermal cutout protection
• Bolt-in chassis construction
• Australian designed and assembled

100% developed, designed & assembled in Australia.
Since 1976 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 40 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Backed by an industry leading 10 Year Manufacturer Warranty.
Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

Specifications

• Output Power: 120W RMS
• Current Draw: 8A at full load, 220mA Quiescent
• Freq. Response: 50Hz - 12kHz
• Distortion: < 0.6%
• Signal to Noise Ratio: -91dB
• Sensitivity: 600mV RMS
• Fuse Rating and Type: 7.5A M205
• Dimensions: 210W x 170D x 87Hmm

*Specifications are subject to change without notice.
