Redback Microphone/Line Pre Amplifier Wallplate

$199.95
Buy in bulk & save!
Buy 1 to 2: $199.95 each
Buy 3 to 5: $194.95 each
Buy 6 or more: $189.95 each


Available on orders $80 to $1000
Learn more


Available on orders $80 to $1000
Learn more

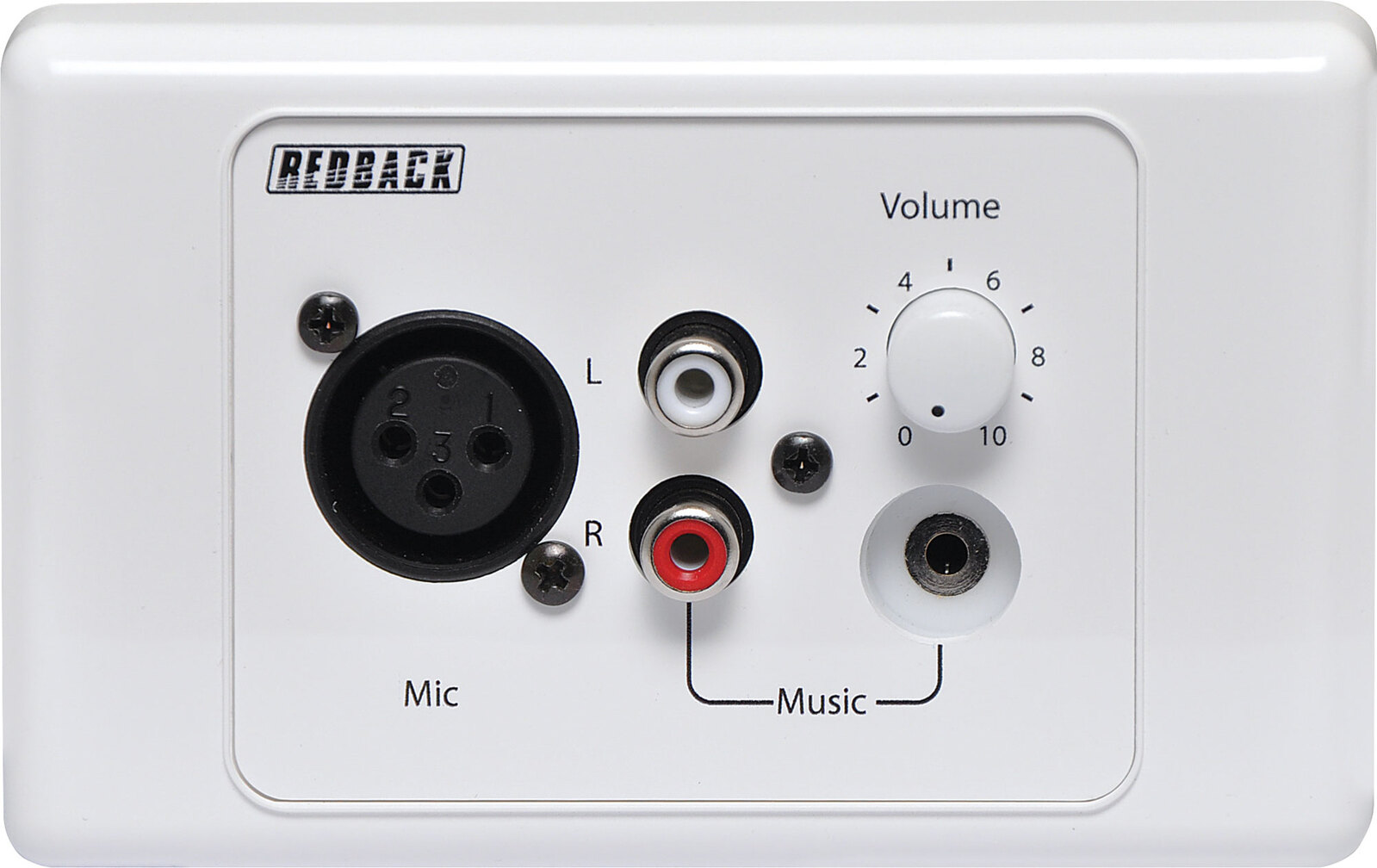

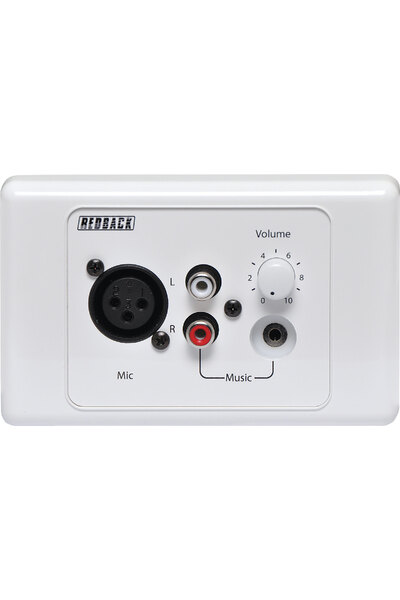

This mic/line pre-amplifier wall plate accepts either a microphone or line input and converts the signal to a balanced high level output.

Availability: Available Usually Dispatched In: 2 - 5 Business Days Product Code: ALT-A4931 ISBN: 9321758223505 Brand/Publisher: Redback Categories: Professional Audio
Share

Part of the series AV & PA Wallplates.

View all products in this series


This mic/line pre-amplifier wall plate accepts either a microphone or line input and converts the signal to a balanced high level output. The 3V output signal is carried via Cat5e cable, (suitable for distribution up to 300m without interference) back to a Redback compatible UTP receiver unit. Mic input is via a balanced XLR whilst the line input is via 2 x RCA sockets or 3.5mm audio jack for portable devices with a lower level line output. Power is supplied to the wall plate over the UTP cabling.

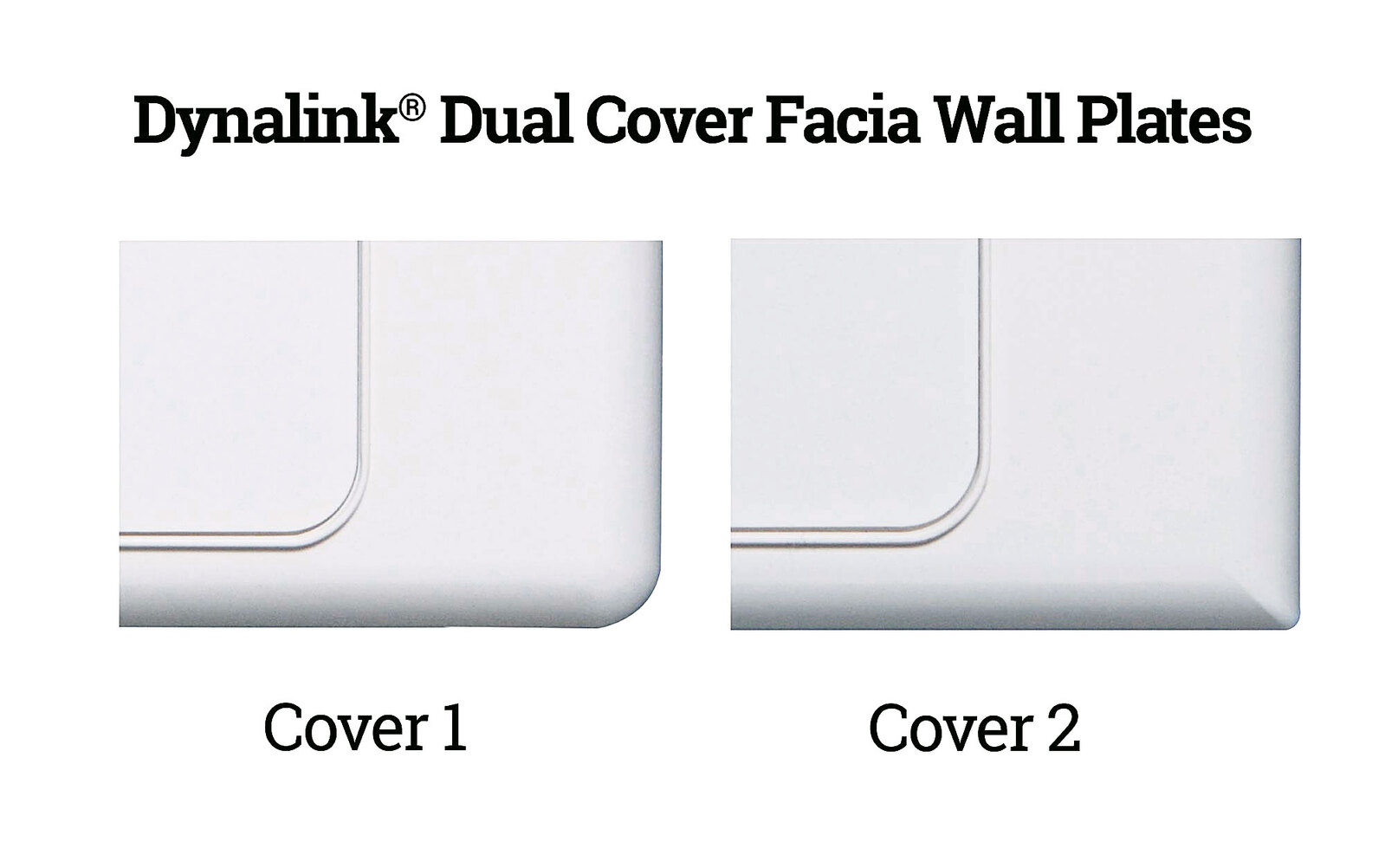

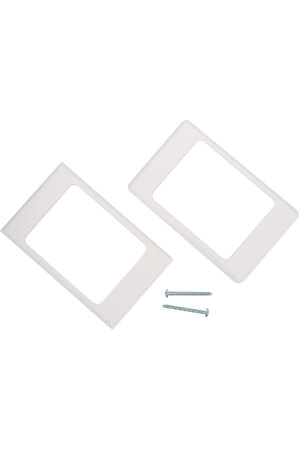

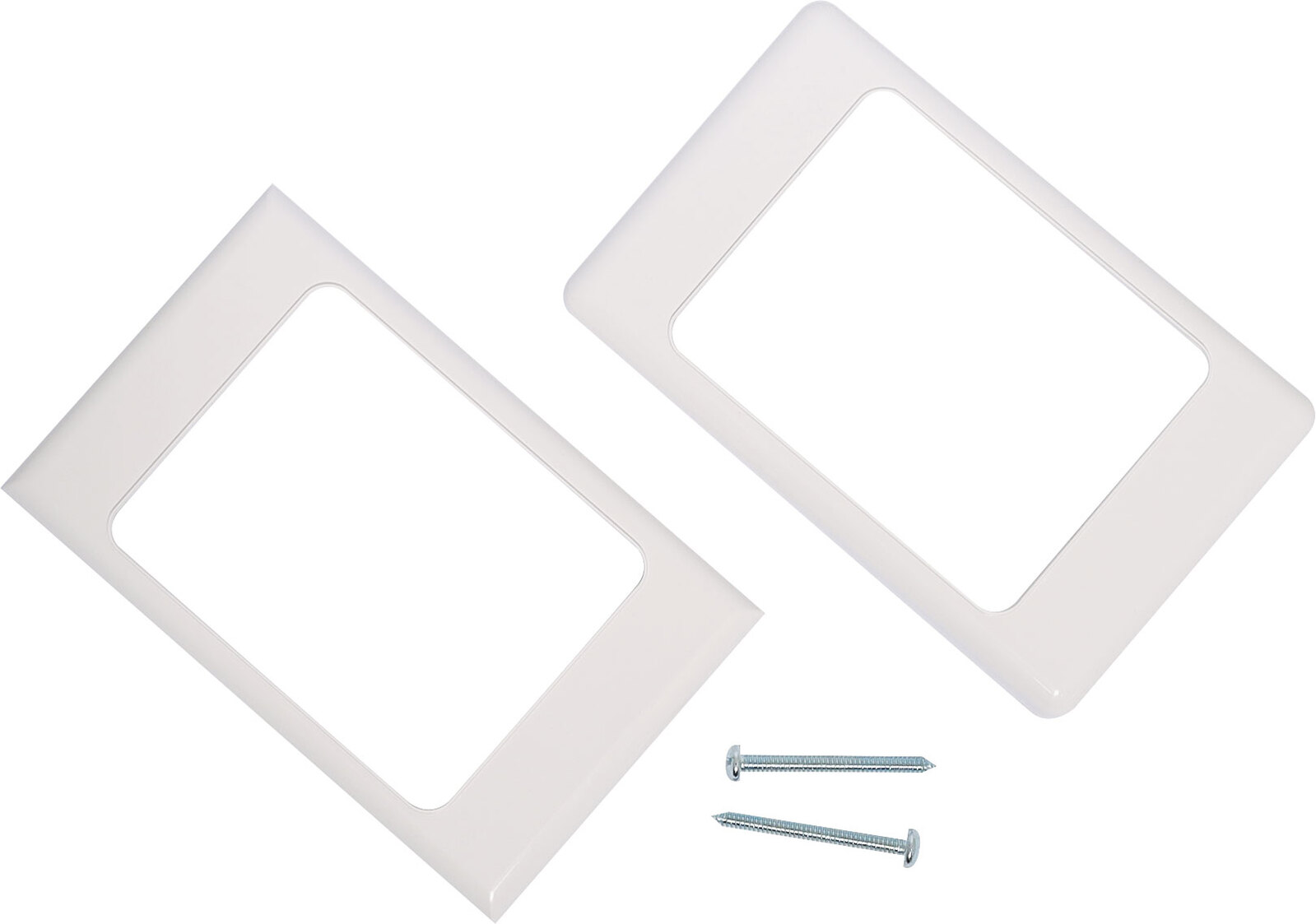

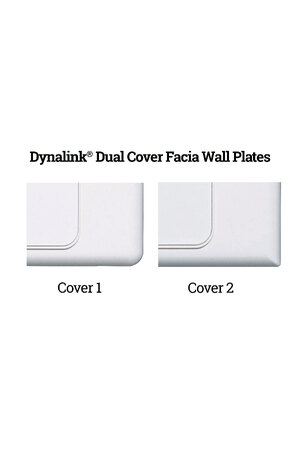

All wall plates assembled by Altronics are supplied with two facia clip on covers. These are designed to match your current decor. Simply clip on the desired cover after installation.

Use with Redback A4480B and A4432
The wall plate provides a means of overriding the input to a zone with a local input source located in that zone. An example may be a mobile phone for background music or a microphone for speeches at a wedding function.







Part of the Redback UTP Solutions Range.
This product is part of the Redback UTP solutions range, a suite of interchangeable transmitters and receivers for connecting different types of audio signals between local zones and equipment racks. View the connection matrix for this product to see which items it will connect to in the Redback range.


100% developed, designed & assembled in Australia.
Since 1976 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 45 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.


Backed by an industry leading 10 Year Manufacturer Warranty.
Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

Specifications

  • Input Mic Level Sensitivity: 3mV
  • Input Line Level Sensitivity: 1V
  • Music Input Level Sensitivity: 500mV
  • Output Connector: RJ45 8P8C
  • Input Connectors: Audio: 3 pin XLR balanced 2 x RCA, 3.5mm JACK

*Specifications are subject to change without notice.

Downloads

Connection Matrix
SKU ALT-A4931
ISBN 9321758223505
Publisher Redback
Product Type PA Equipment,
