Redback Lockdown/Chime/Fire/Cancel Remote Wall Plate

Part of the series AV & PA Wallplates.

View all products in this series

---

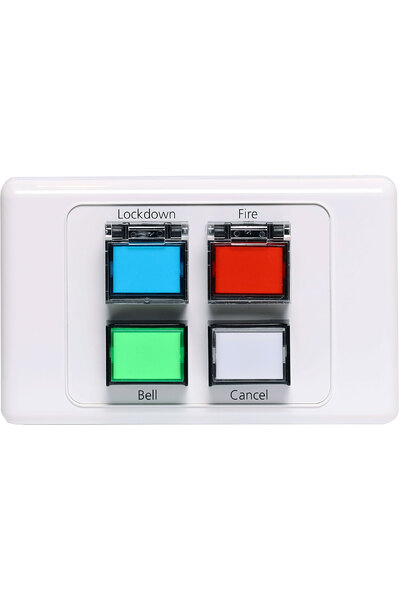

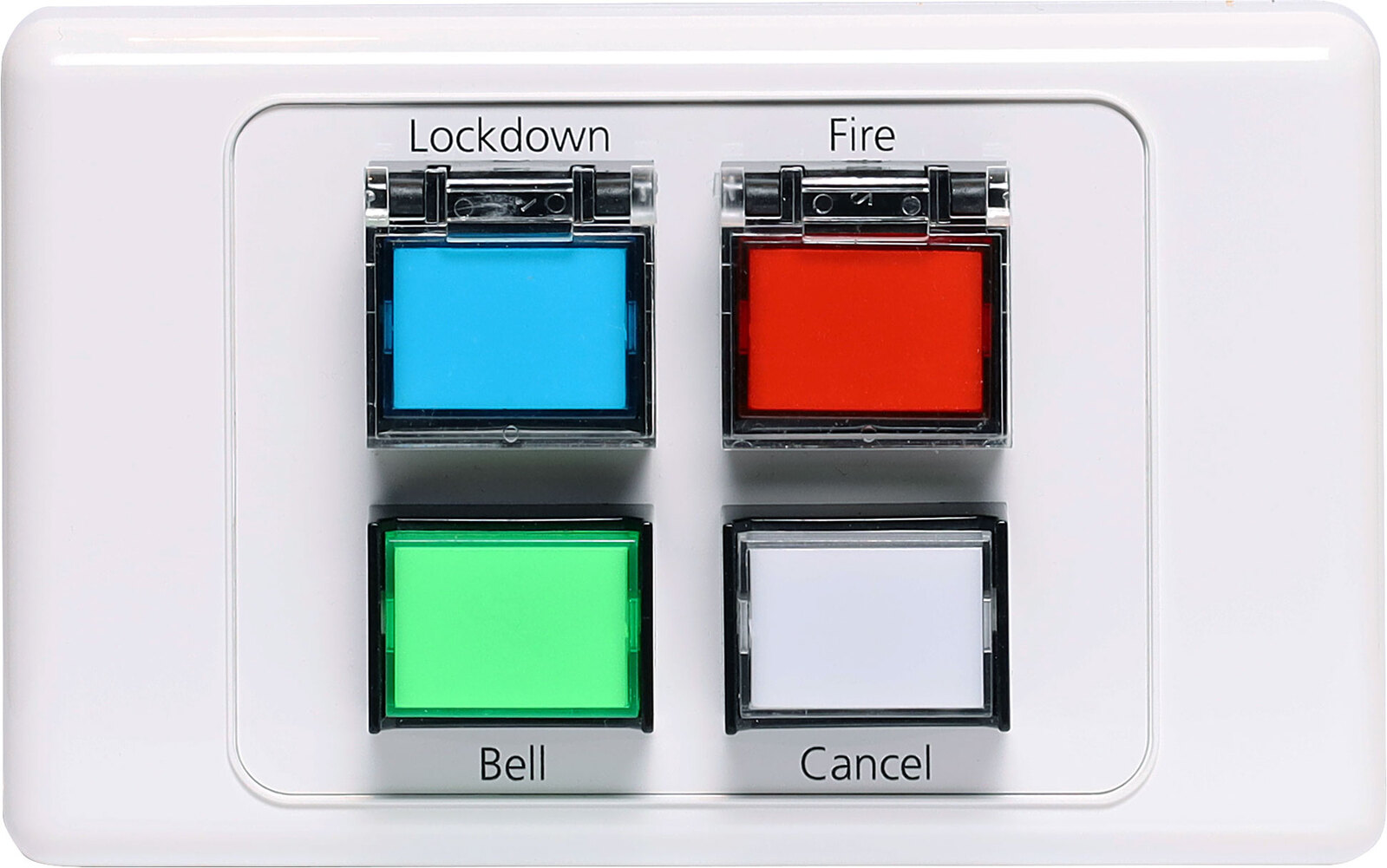

The Redback® A4599 wall plate allows the Redback® A4505 Lockdown Timer to be controlled remotely. With the remote function the user is able to trigger the Lockdown, Fire and Bell tones and the cancel function. The switches are momentary operation and must be pressed for up to 3 seconds to activate. The switches have protective “flip up" covers to prevent accidental operation. Connection is made to the Redback® A4505 via standard Cat5e cabling. There are two RJ45 ports on the rear of the wall plate, either of which can be used. Only one Redback® A4599 wall plate is allowed to be connected to the Redback® A4505 via the RJ45 port.

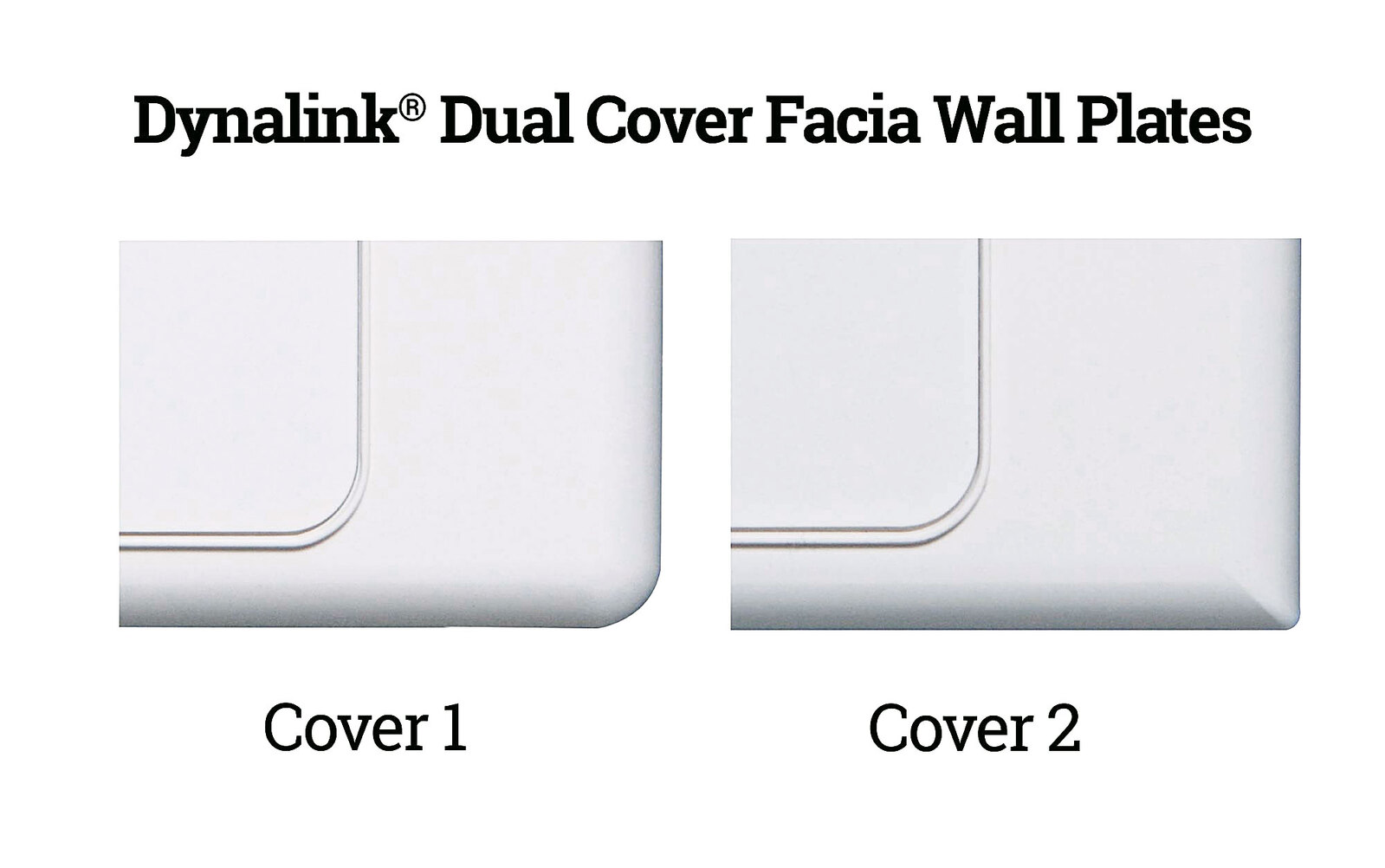

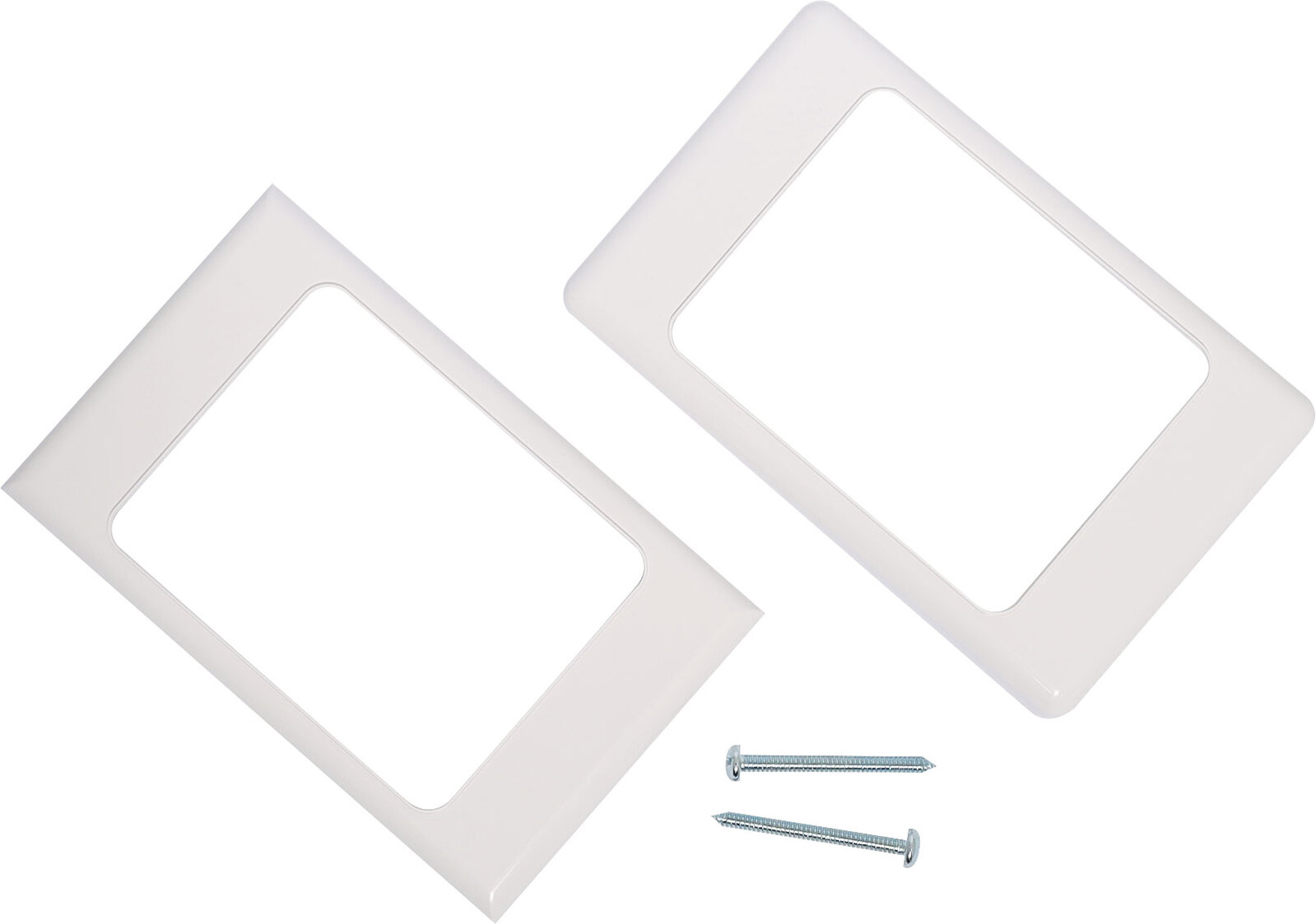

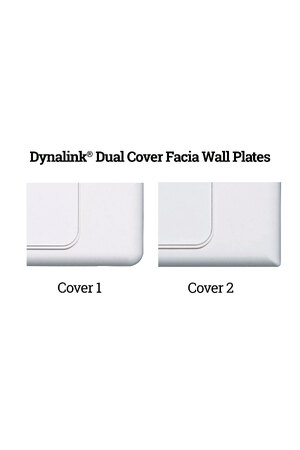

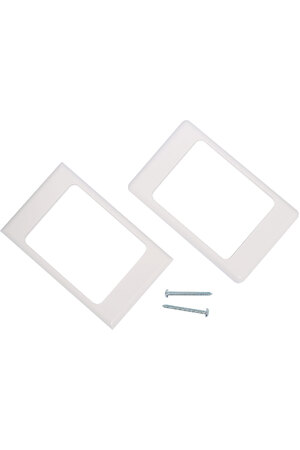

All wall plates assembled by Altronics are supplied with two facia clip on covers. These are designed to match your current decor. Simply clip on the desired cover after installation.

Features

• Allows remote activation of the A4505 Controller.
• Connection is made via Cat5e cable up to a maximum range of 300m.
• Protective “flip up" covers. to prevent accidental operation.
• Dual Facia covers included.
• Fits standard electrical wall boxes.

100% developed, designed & assembled in Australia.
Since 1976 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 40 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Backed by an industry leading 10 Year Manufacturer Warranty.
Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

Downloads

A4505B Instructions
