This microphone/line receiver hub is designed to accept audio from up to four A 4931 zone wallplates or other Redback UTP transmitter.

Availability: Available Usually Dispatched In: 2 - 5 Business Days Product Code: ALT-A4930 ISBN: 9321758218594 Brand/Publisher: Redback Categories: Professional Audio,

Part of the series PA Accessories.

View all products in this series

This microphone/line receiver hub is designed to accept audio from up to four A 4931 zone wallplates or other Redback UTP transmitter. The A 4931 wallplate accepts either a microphone or line input and converts the signal to a balanced high level output. The 3V output signal is carried via Cat5e cable, (suitable for distribution up to 300m without interference) back to the hub. Mic input is via a balanced XLR whilst the line input is via 2 x RCA sockets or 3.5mm audio jack for portable devices with a lower level line output.

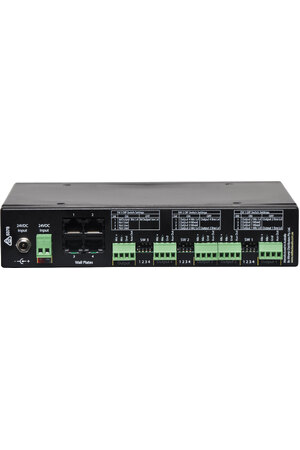

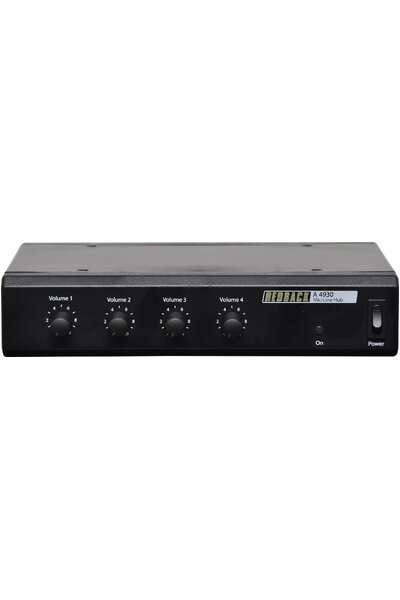

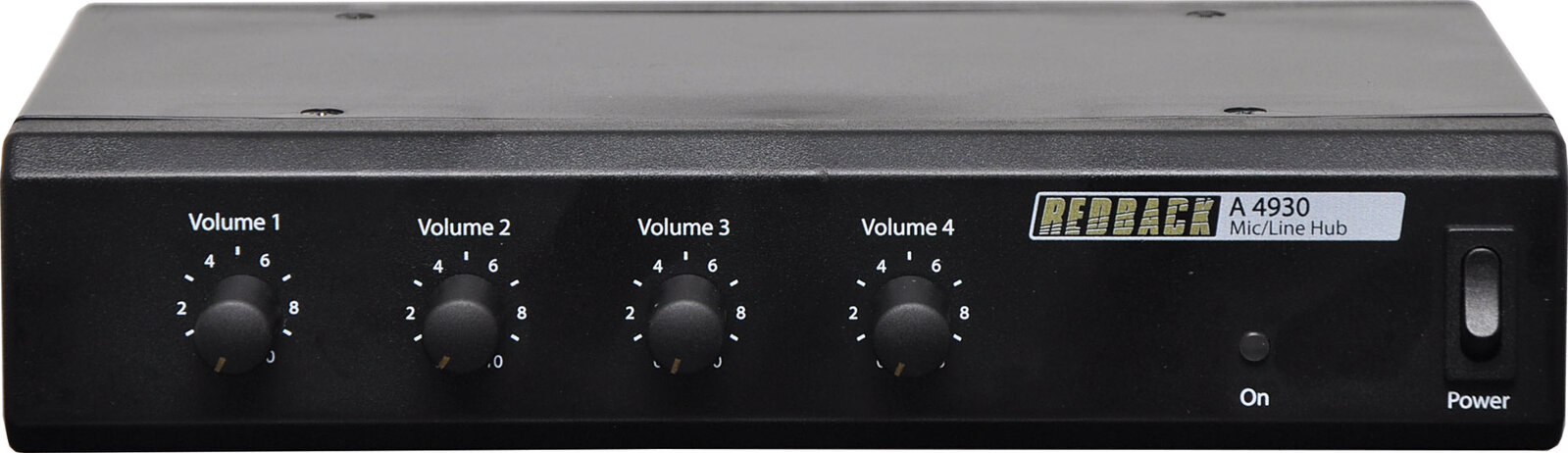

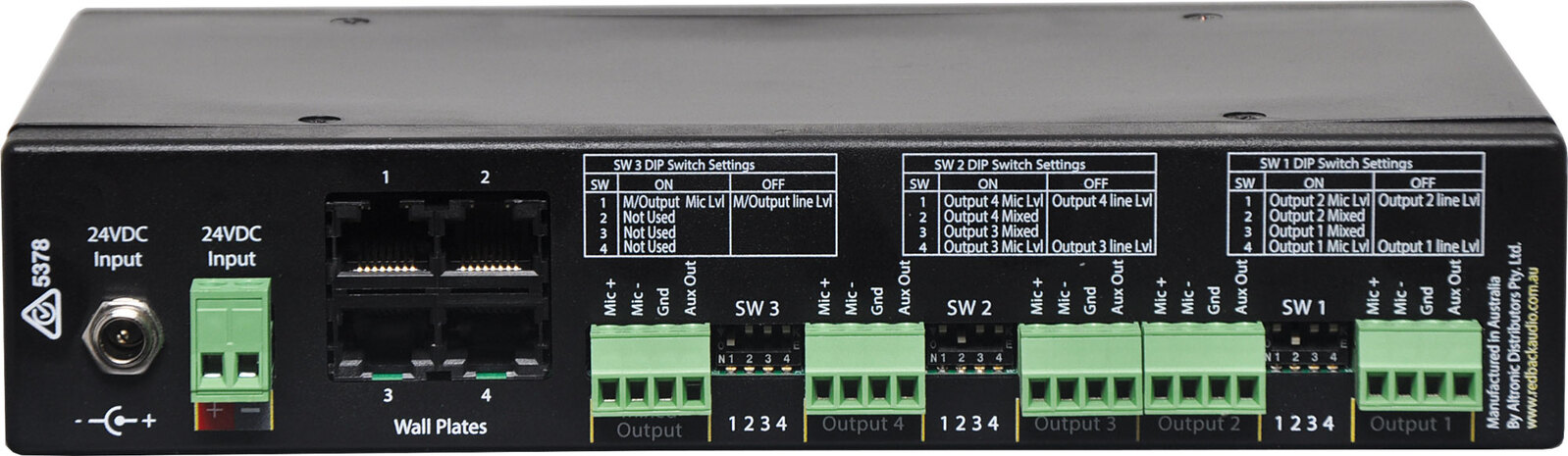

The receiver hub has a dedicated output for each transmitter, with front mounted volume controls for each output. Each output can be DIP switch selected to be fed to a dedicated mixed output. Each output including the mixed output has DIP switch selectable balanced mic/line, or unbalanced line level outputs which can be fed directly into amplifiers. The hub is powered by 24V DC from the supplied plugpack.

Part of the Redback UTP Solutions Range.
This product is part of the Redback UTP solutions range, a suite of interchangeable transmitters and receivers for connecting different types of audio signals between local zones and equipment racks. View the connection matrix for this product to see which items it will connect to in the Redback range.

Features

Connects to A 4931 transmitter wallplate or other Redback UTP transmitter (see connection matrix)
Connect up to four audio zones together.
Easy Cat5e/6 UTP data cabling connection.
Up to 300m cable runs out to zones.
Balanced Euro terminal block connections.
Balanced mic or line level operation.
24V DC operation.
Australian designed & assembled.

Rack Mounting
To mount any of the Redback half rack products into a 19" wide racking system, the H 4990 bracket is required. If a single product is mounted into the H 4990, then a metal (H 4992) or plastic (H 4993) infill panel can be fitted for a neater finish.

100% developed, designed & assembled in Australia.
Since 1976 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 45 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Backed by an industry leading 10 Year Manufacturer Warranty.
Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.
