Part of the series PA Accessories.
View all products in this series

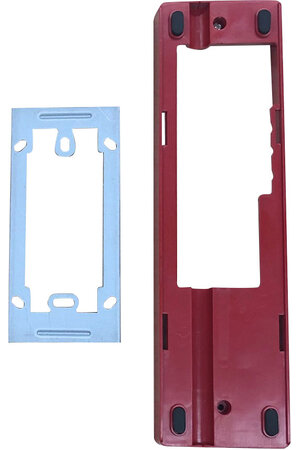

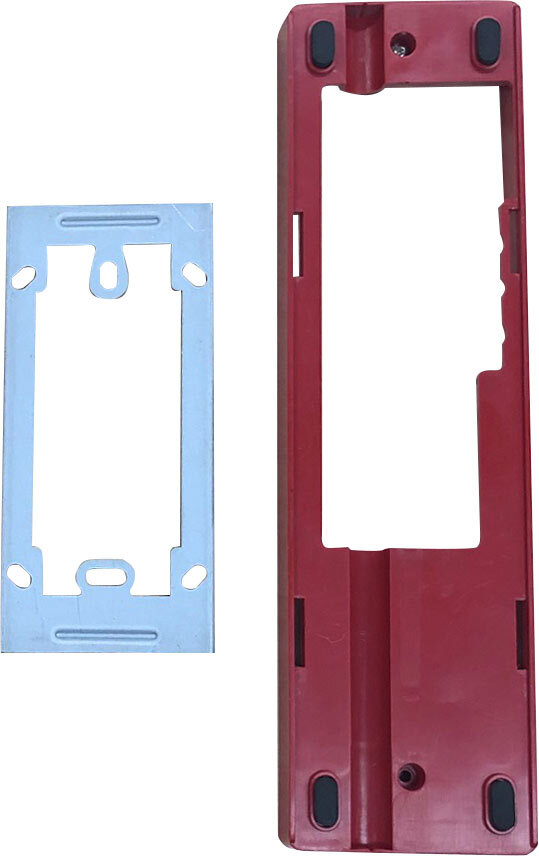

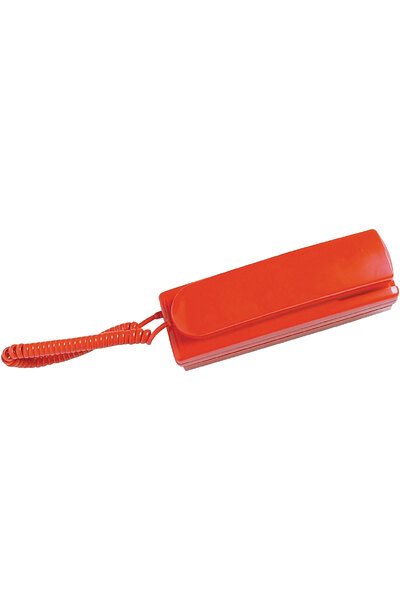

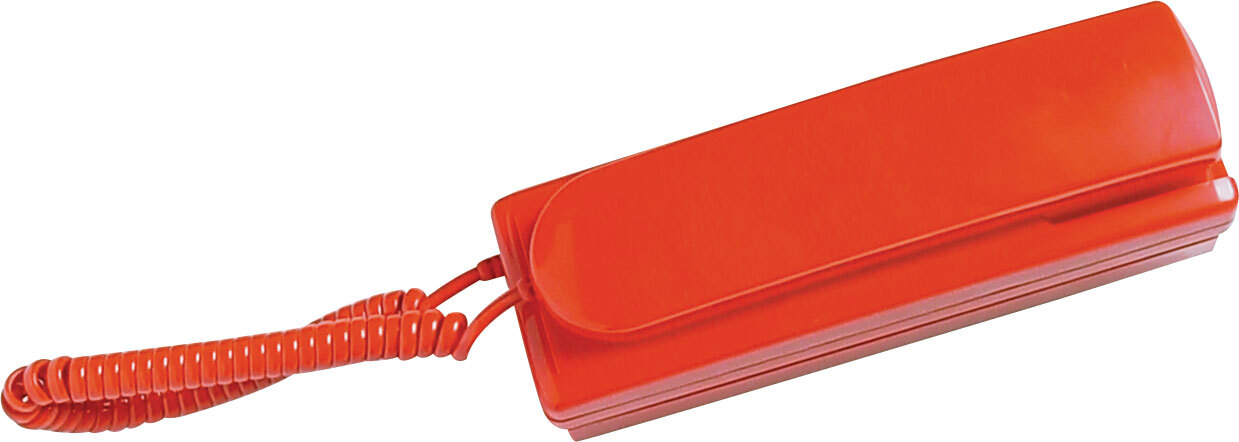

Designed specifically for use in emergency warning systems. Warden intercom points (WIPs) are used to communicate between floor wardens and the main emergency evacuation panel. When the handset is lifted the firephone automatically rings the emergency evacuation panel. When the emergency evacuation panel calls the WIP, the call tone sounds through the speaker in the body of the phone. When the handset is lifted, it automatically switches from the speaker in the body to the speaker in the handset. The firephone is manufactured from strong ABS and is fire engine red in colour. Simply hang the phone on the two keyholes of the bracket
Dimensions 214L x 70W x 78H (height is case only extra 3mm with bracket attached)
Features
- Selectable line impedance 600Ω or 4.7kΩ
- Separate speaker for call tone

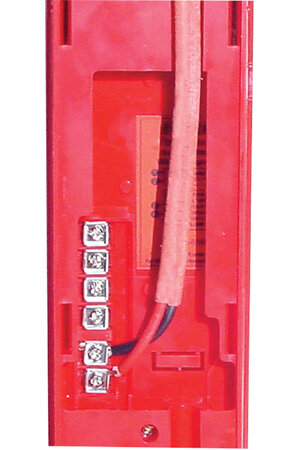

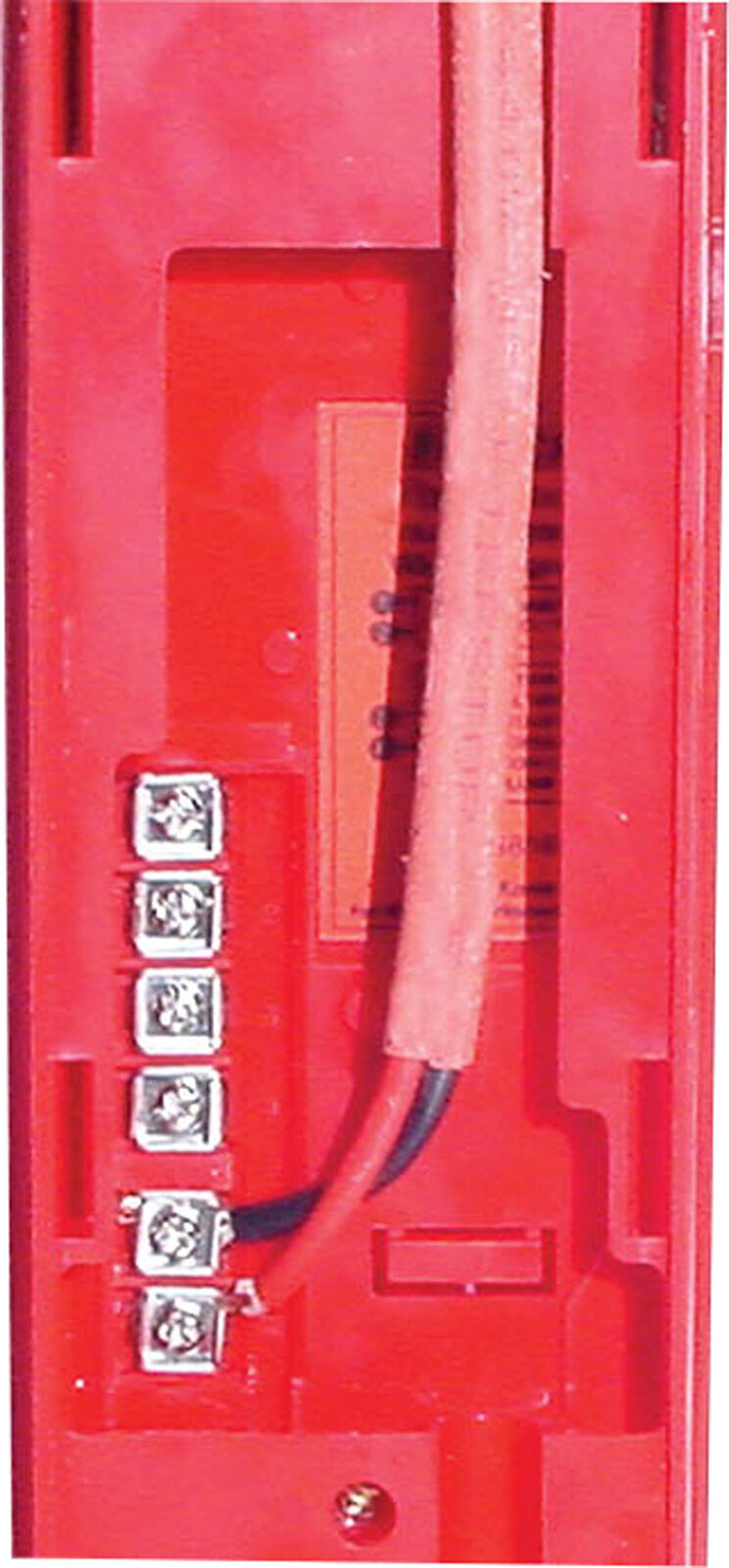

- Simple two wire connection
- Designed to comply with AS2220.1
- Includes wall mounting bracket
- 80db call tone
- 73mm overall height with the spacer and bracket removed
Specifications
- Call Tone: >80dB 1W/1m
- Frequency Response: 300Hz -3KHz
- Line Impedance: 600Ω/4.7kΩ Selectable
- Terminations: Screw Terminals
- Material: ABS
*Specifications are subject to change without notice.
Downloads
InstructionsSKU | ALT-A2096 |
ISBN | 9321758086018 |
Publisher | Redback |
Product Type | PA Equipment, |
