Part of the series PA Speakers.
View all products in this series

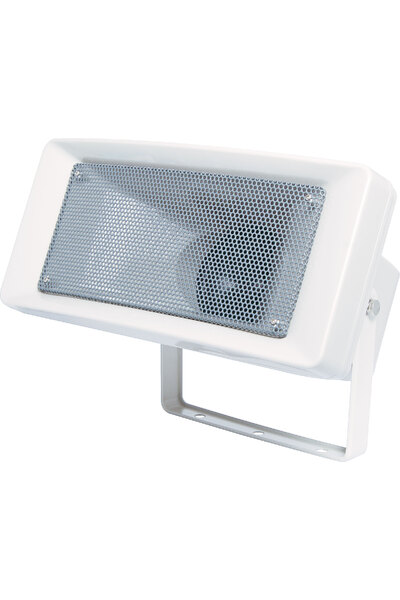

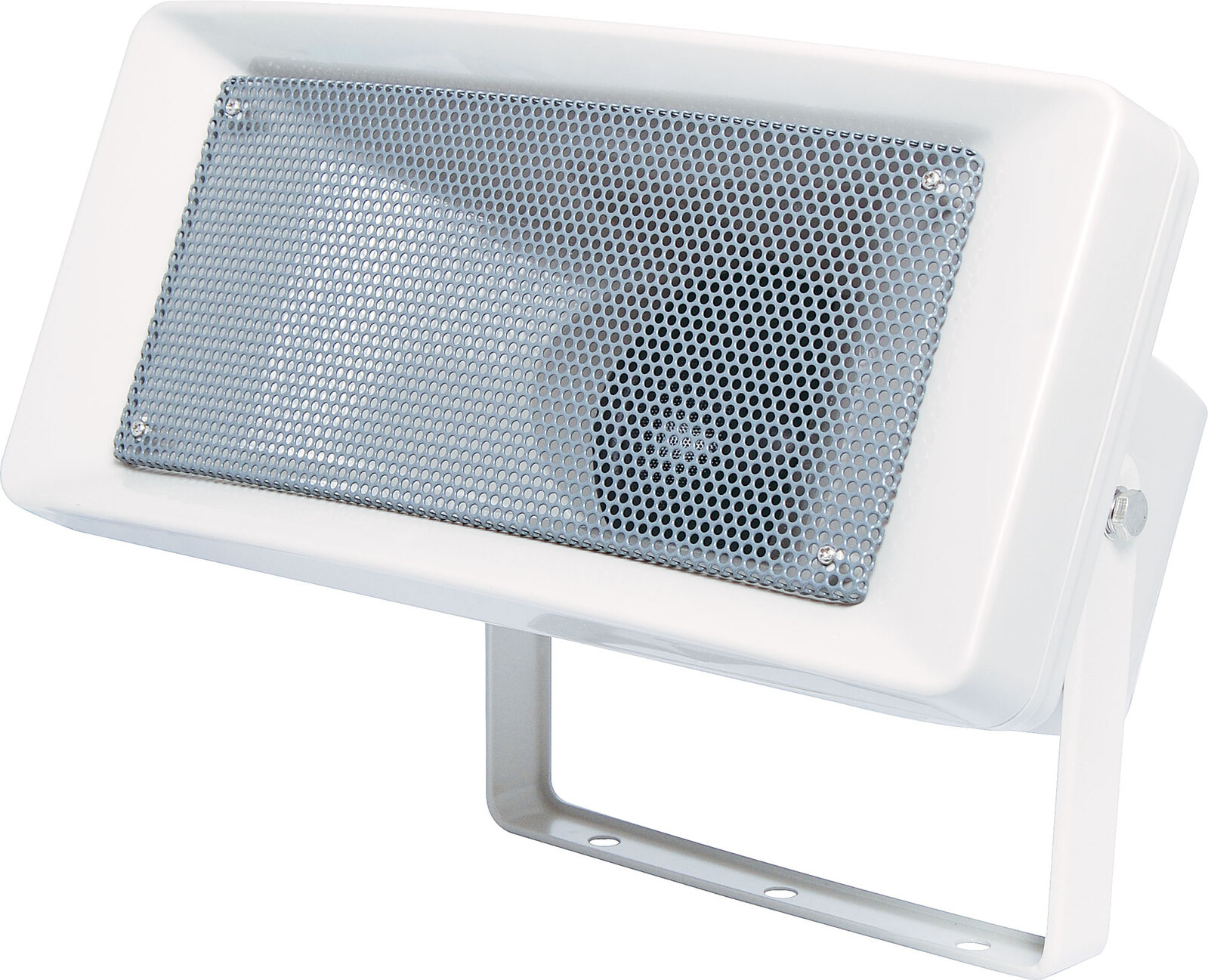

A high performance weatherproof music horn for use in installations requiring a high output speaker for BGM programming and paging playback. This high efficiency design produces an astonishing 115db at 1KHz whilst providing excellent clarity and music reproduction. It is eminently suited to outdoor applications where a high standard of speech and music reproduction is demanded eg: schools, gymnasiums, aquatic centres, sporting arenas, stadiums etc. The housing is IP56 weatherproof rated and is fitted with aluminium mounting bracket and stainless steel hardware.
Fitted with 22uf bipolar capacitor for line monitoring applications.
Backed by an industry leading 5 Year Speaker Performance Warranty.
This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.
Specifications
- Power rating: 30W RMS
- Power taps (100V): 15 & 30W
- SPL 1W @ 1m: 100dB
- SPL Max @ 1m: 115dB
- Frequency response: 130Hz - 18kHz
- Dimensions: ≈360W x 165H x 275D mm
- Colour: Grey
- Weight: ≈3.1kg
- Connection details:
- Black Common
- White 30W tap (330 ohms)
- Green 15W tap (670 ohms)
- *Specifications are subject to change without notice.
Downloads
BrochureSKU | ALT-C2070 |
ISBN | 9321758217788 |
Publisher | Redback |
Product Type | PA Equipment, |
