Redback Balanced Mic / Line Input Pre-Amp & Mixer

Part of the series PA Accessories.

View all products in this series

---

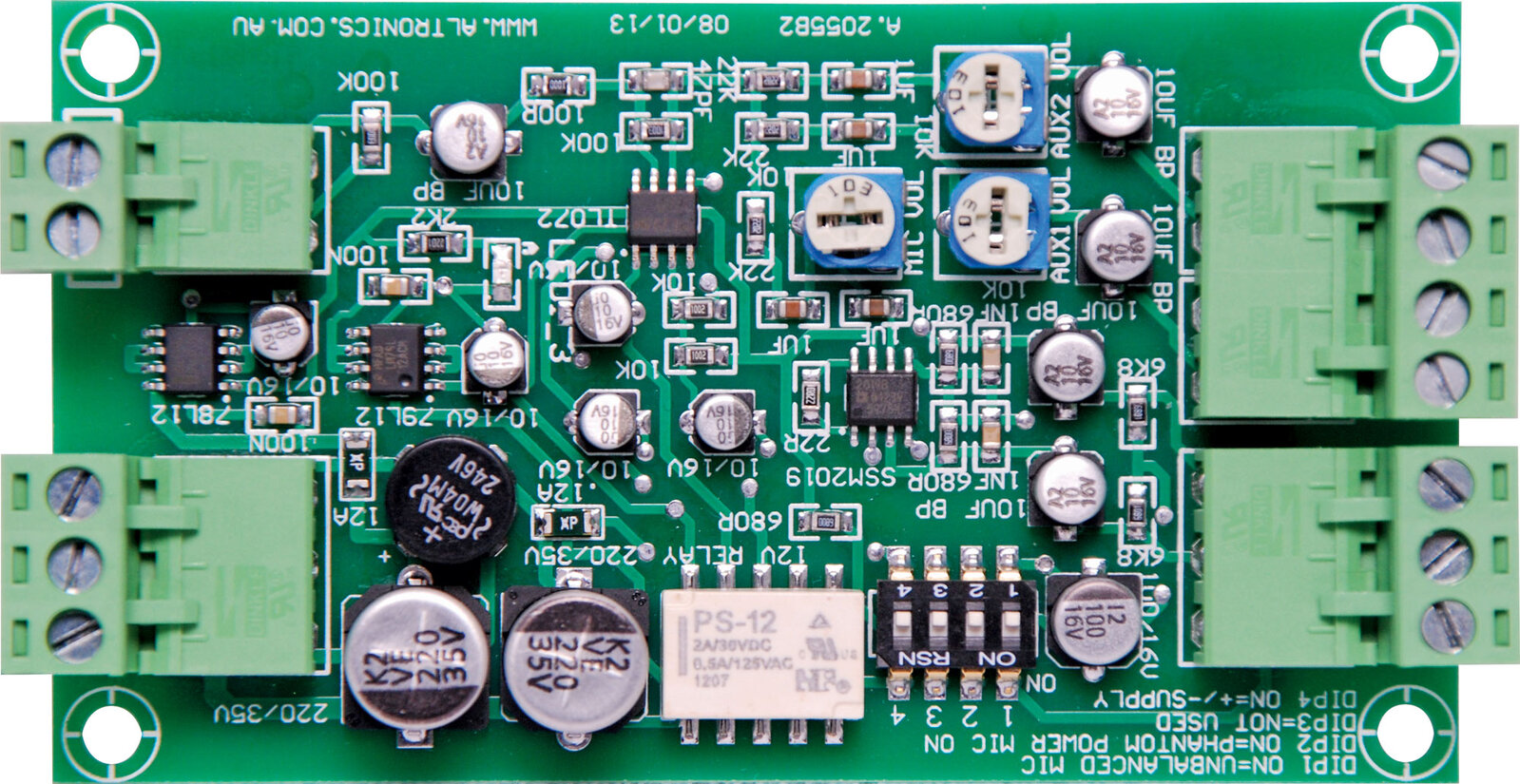

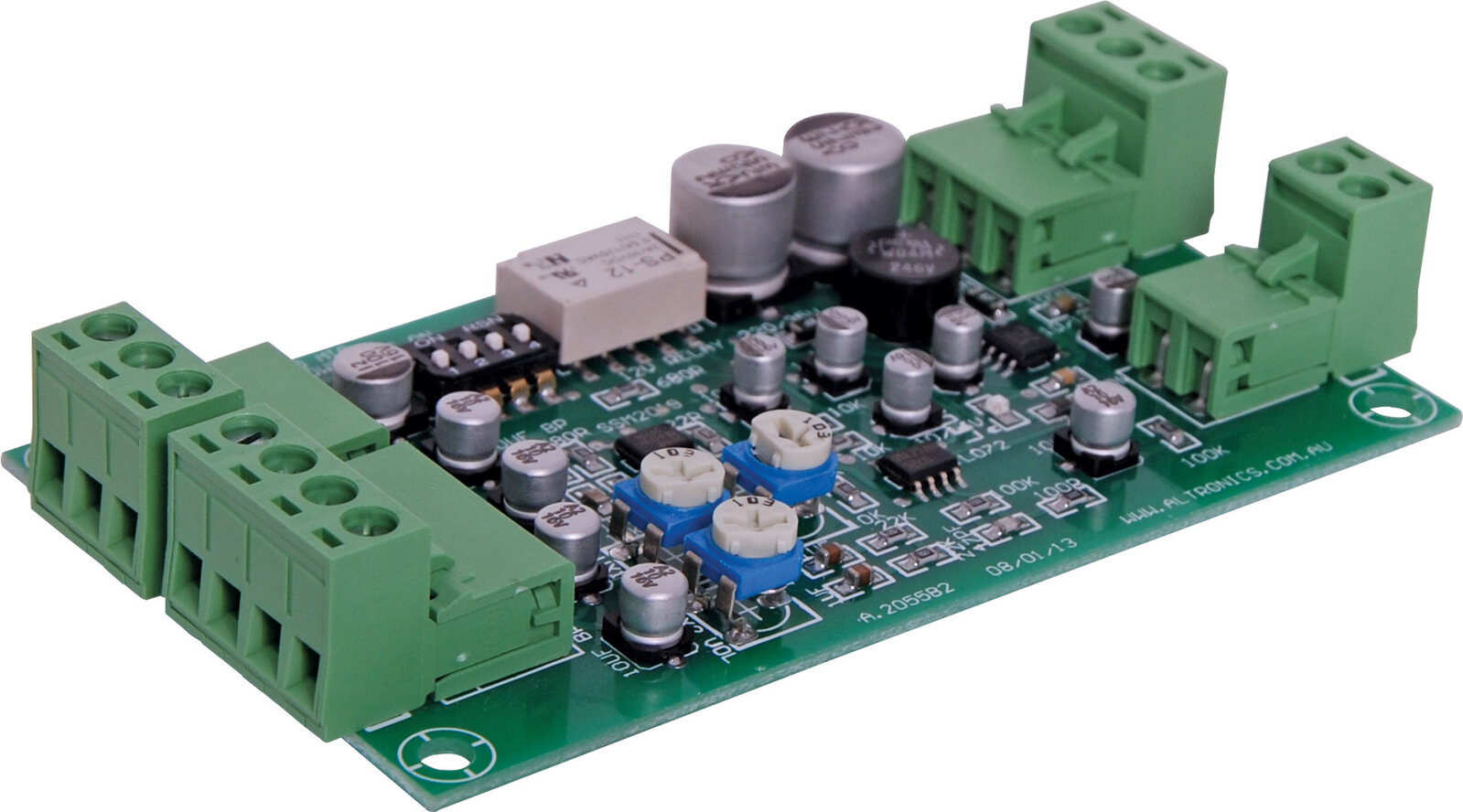

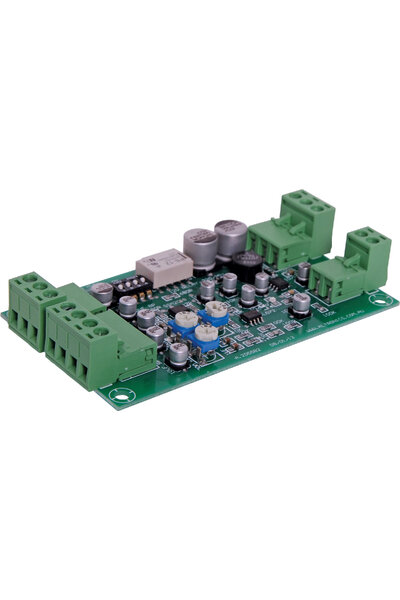

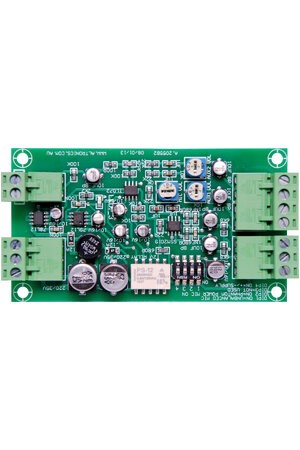

Features two line inputs and one mic input, each with its own level control. The mic input can be configured for either balanced or unbalanced operation. All inputs are mixed to a single line level output. It can be powered from either a single rail power supply (15V to 30V dc), or a dual rail power supply (±12V to ±30V dc).
PCB dimensions 100 x 57 mm.

100% developed, designed & assembled in Australia.
Since 1976 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 40 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Backed by an industry leading 10 Year Manufacturer Warranty.
Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

Specifications

• Microphone gain: 60 dB
• Mic input sensitivity: 0.7 mV rms
• S/N ratio: 10 mV input -74dB
• Frequency resp.: 150Hz to 20kHz , -3dB
• Line. gain: 14dB
• Line. input sensitivity: 200mV
• Line. S/N ratio: 500mV input -77dB
• Line. freq. resp.: 30Hz to 20kHz, -3dB

*Specifications are subject to change without notice.
