Redback 7" Master Touch Wallplate For Source Controllers - White

Part of the series PA Accessories.

View all products in this series

---

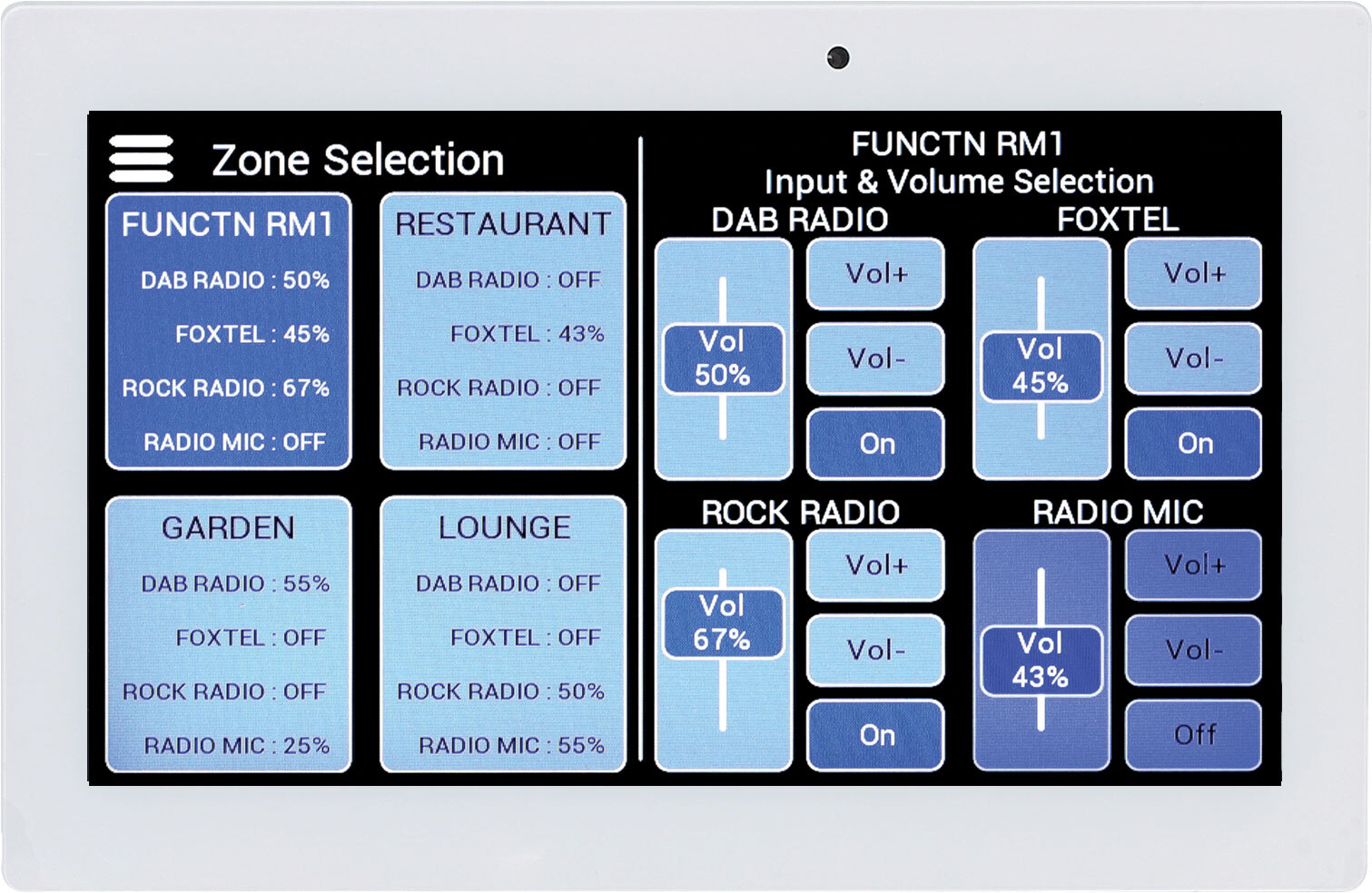

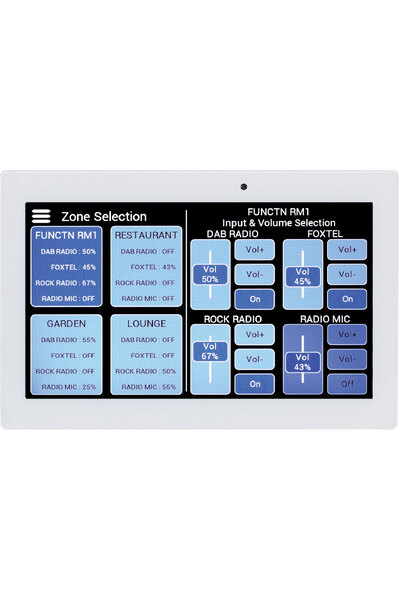

This 7″ touchscreen control wall plate allows for remote source selection and level control in Redback source control systems (currently compatible with A4450, A4460 and A4650 systems). This plate is a master level controller allowing selection of inputs and volume for all zones in the system. The settings menu allows for selection of button colour theme and renaming of zones and inputs in the system, plus various settings for haptic button feedback, screen sleep etc. For more information on how this plate operates with each system, see the relevant pages for A4450, A4460 and A4650.

Available with black (A4461) or white (A4463) bezel and housing.

Users can pair their compatible smart devices through with Bluetooth connection for audio streaming. Only available when used in conjunction with certain master units such as the A 4460.

Features

• Simple touchscreen control selection of zone inputs and level control.
• Changes in selections are reflected on the relevant zone wall plates & main Redback units.
• Adjust custom labelling of zones and inputs on screen.
• Choose button colour theme.

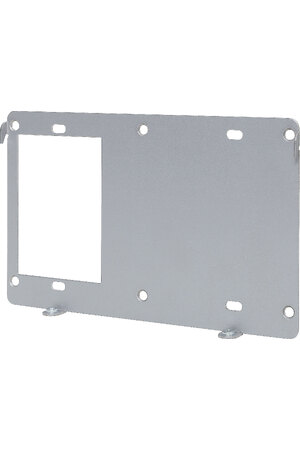

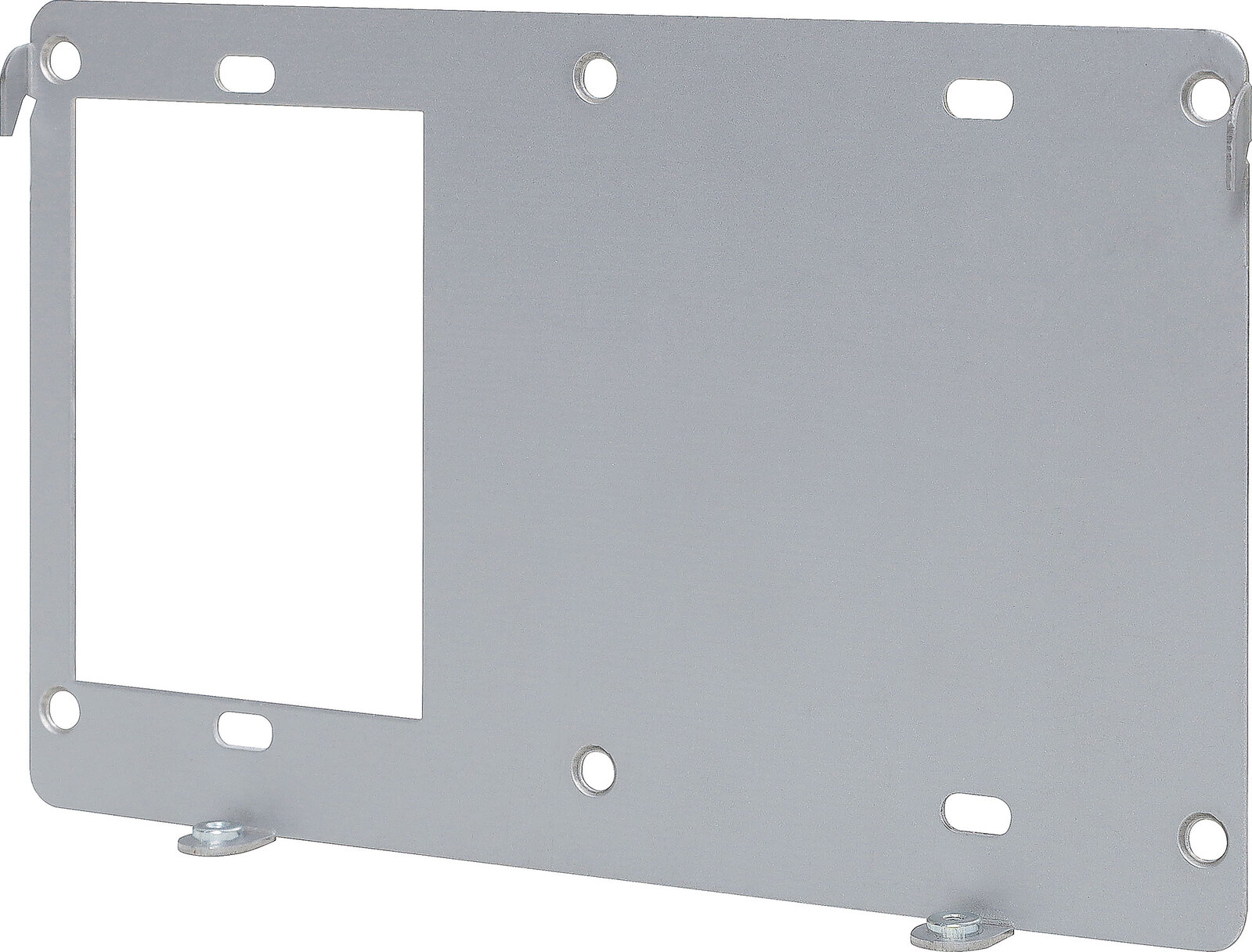

• Fits standard double gang electrical wall box with mounting plate included.
• All glass front bezel for a stylish finish for any room.
• Adjustable screen sleep mode.
• Connects via economical Cat5e UTP cabling.

100% developed, designed & assembled in Australia.
Since 1976 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 45 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Downloads

Instructions
