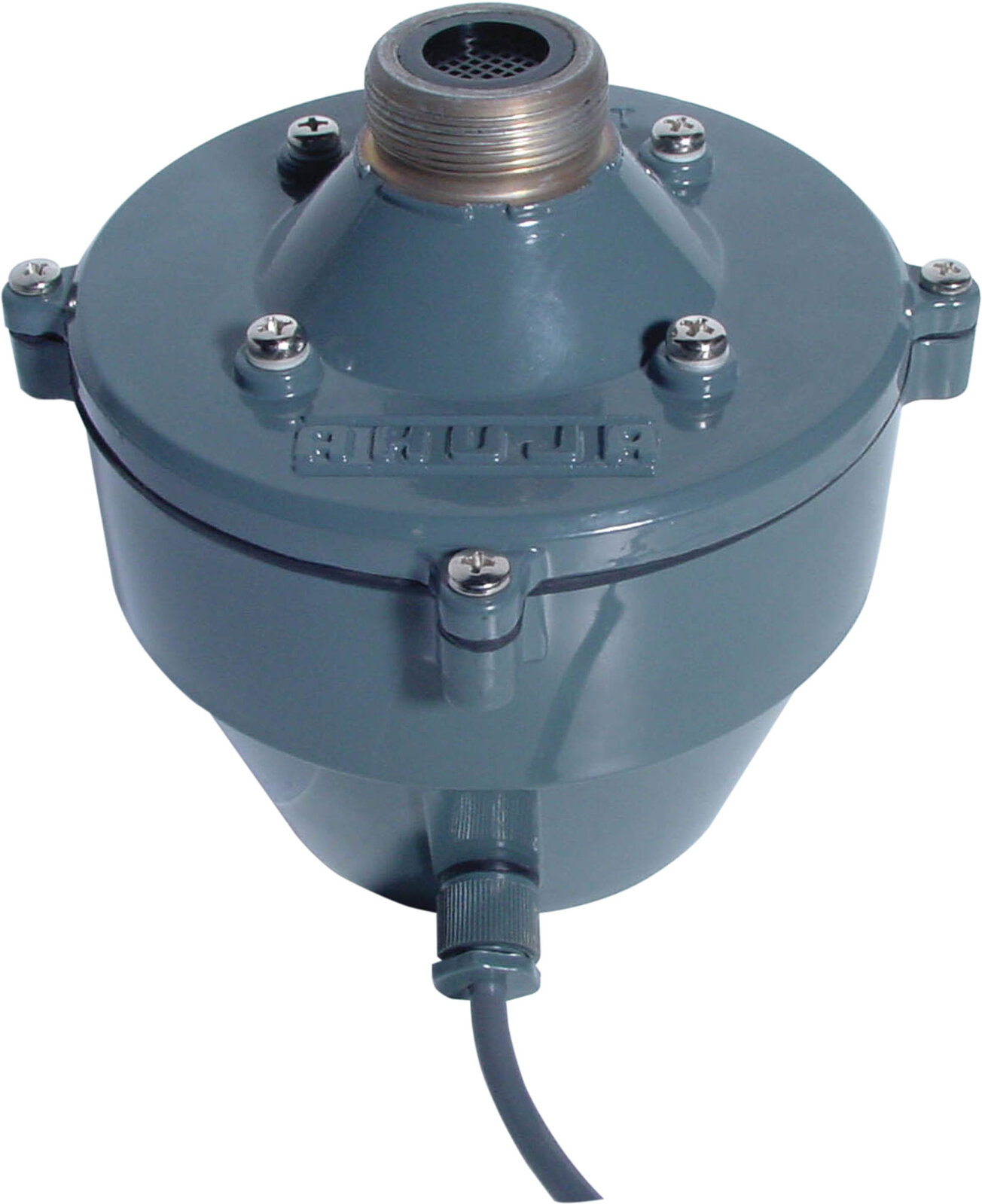

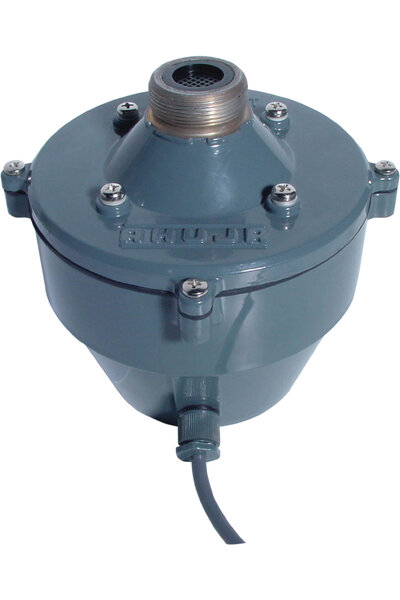

Redback 60W 100V Horn Driver Unit

Part of the series PA Speakers.

View all products in this series

---

Reflex horn speakers are ideally suited for open air paging applications where speech clarity is of prime importance. Typical uses include fairs, sporting venues, auctions, fetes etc. Constructed from spun aluminium, the massive 540mm flare is designed to be fitted with a compression driver. Rated to IP66 and supplied with stainless steel mounting bracket & fixings, making it suitable for permanent outdoor installations.

Features

• Weatherproof and rugged construction.
• High SPL, crisp penetrating sound.
• Voice coils precision-wound on an aluminium bobbin for efficient heat dissipation.
• Built-in 100V transformer with easily selectable power taps/impedance by changing the position of the rotary switch at the rear.
• Degree of protection IP 66 provided, when mounted on a reflex horn, against foreign particles such as dust and jets of water thus making them ideal for outdoor use.

Specifications

• Power taps: 10, 20, 30, 40, 50 & 60W
• Frequency response: 160Hz - 7kHz
• Impedance: On 100V Line 165Ω/60W, 200Ω/50W, 250Ω/40W, 330Ω/30W 500Ω/20W, 1kΩ/10W
• SPL at 1kHz(dB): 113.5(1W/1m)
• Maximum SPL at 1kHz (dB): 132(60W/1m)
• Throat coupling: 1-3/8" 18TPI Throat couple No.1
• Dimensions: Ø125 x 100mm
• Weight: 2.92kg
• *Specifications are subject to change without notice.
