Redback 6 Zone Universal Remote Alarm Wallplate (ALT-A4577) Educational Resources and Supplies

Buy in bulk & save!
Buy 1 to 2:	$154.95 each
Buy 3 to 5:	$151.10 each
Buy 6 or more:	$147.20 each

Available on orders $80 to $1000
Learn more

Designed to operate on 12 to 30V DC.

Availability: Available Usually Dispatched In: 2 - 5 Business Days Product Code: ALT-A4577 ISBN: 9321758193648 Brand/Publisher: Redback Categories: Professional Audio,

Part of the series AV & PA Wallplates.

View all products in this series

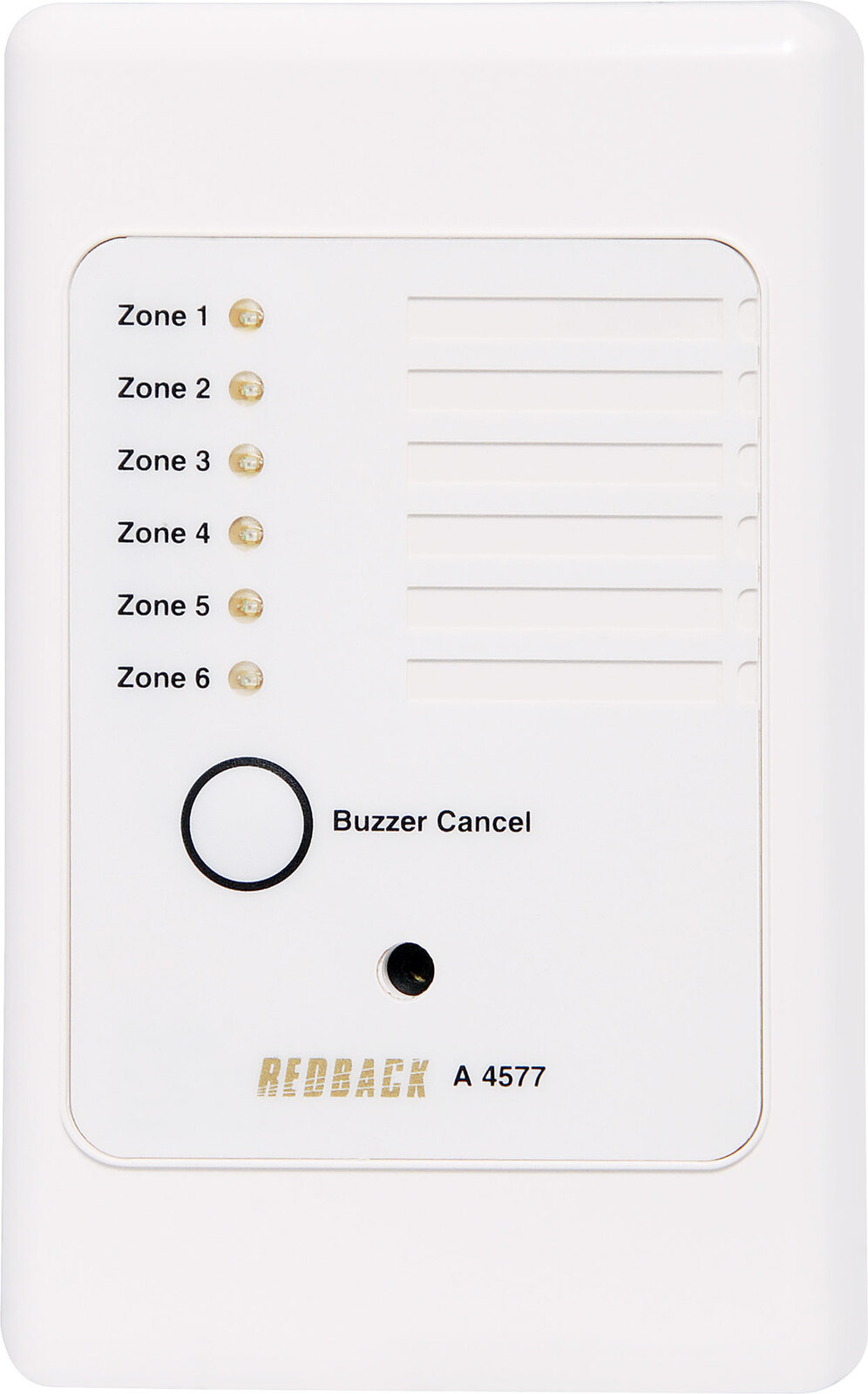

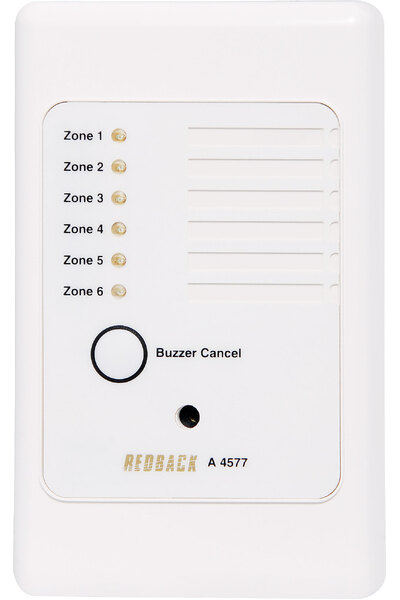

Designed to operate on 12 to 30V DC. This six input wall plate will sound a buzzer and illuminate a specific LED when an input is activated/triggered by a closing contact. A Cancel button allows the buzzer to be switched off whilst the LED indicator remains on until the trigger is removed. The unit will Sound the buzzer anytime a new trigger is activated or a previous trigger is re-activated. May be used in numerous situations including security, fire alarm and access control systems.

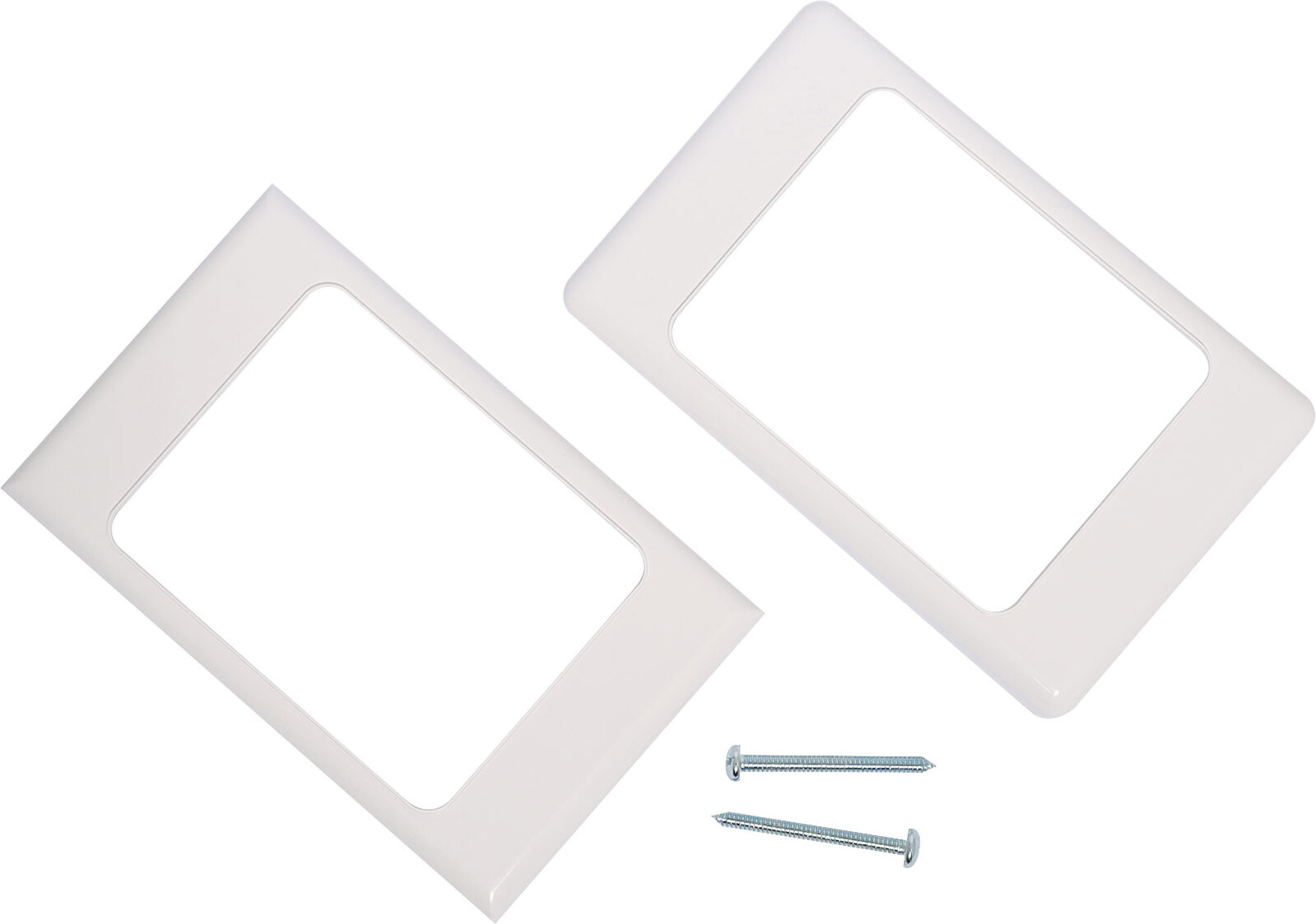

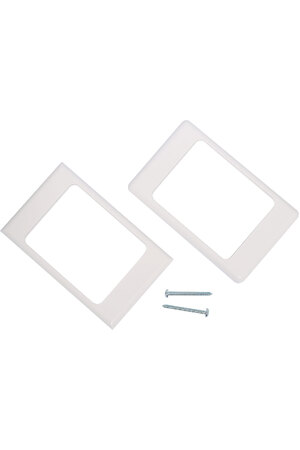

All wall plates assembled by Altronics are supplied with two facia clip on covers. These are designed to match your current decor. Simply clip on the desired cover after installation.

Features

Six monitored Inputs/triggers.
12 to 30V DC powered.
Audible alert by buzzer.
Visual alert by LED (individual LED per trigger).
LEDs stay illuminated until trigger is deactivated.
Cancel switch to stop audible alert.
Pluggable terminal block for Triggers and DC in.

Designed & manufactured in Australia.
Since 1976 Redback public address products have been manufactured in Perth, Western Australia by Altronics. With over 40 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

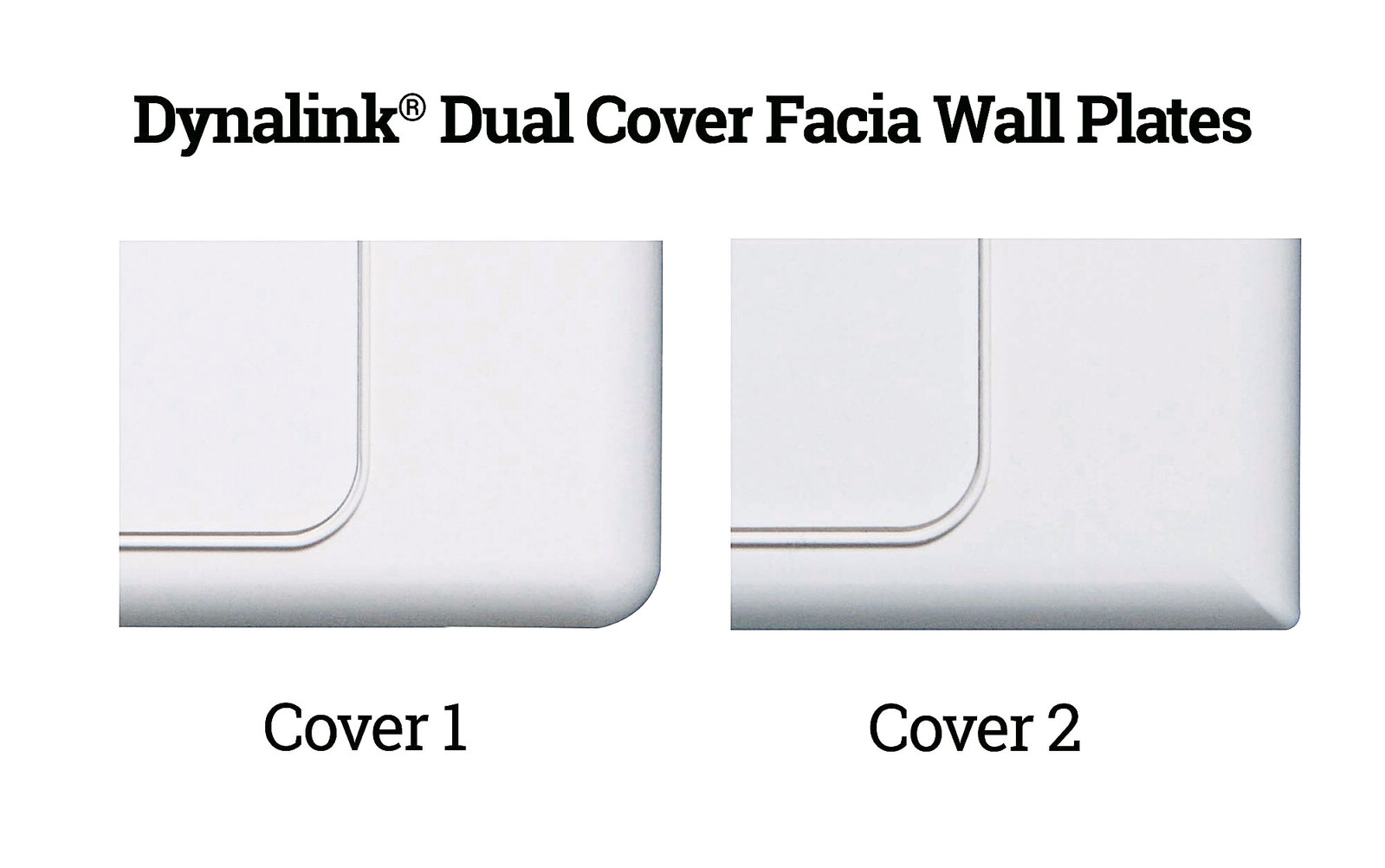

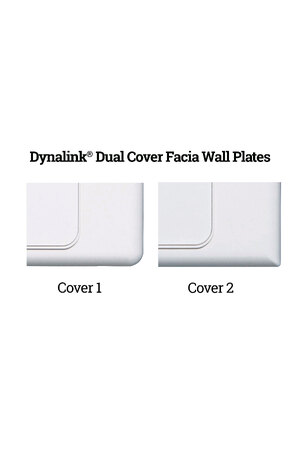

What are dual cover wall plates?
All wallplates assembled by Altronics are supplied with two facia clip on covers. These are designed to match your current decor. Simply clip on the desired cover after installation.
