Redback 6 Channel Mixing Desk With USB Playback

Part of the series PA Accessories.

View all products in this series

---

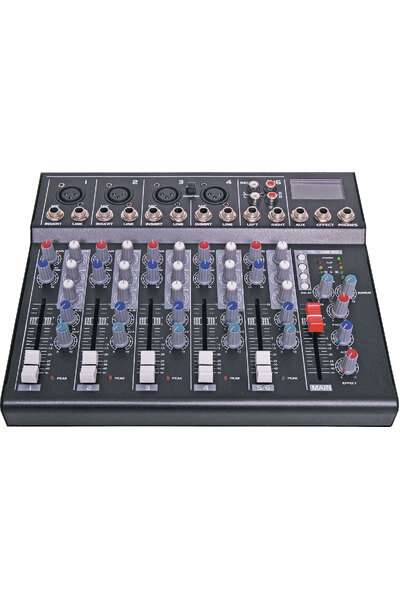

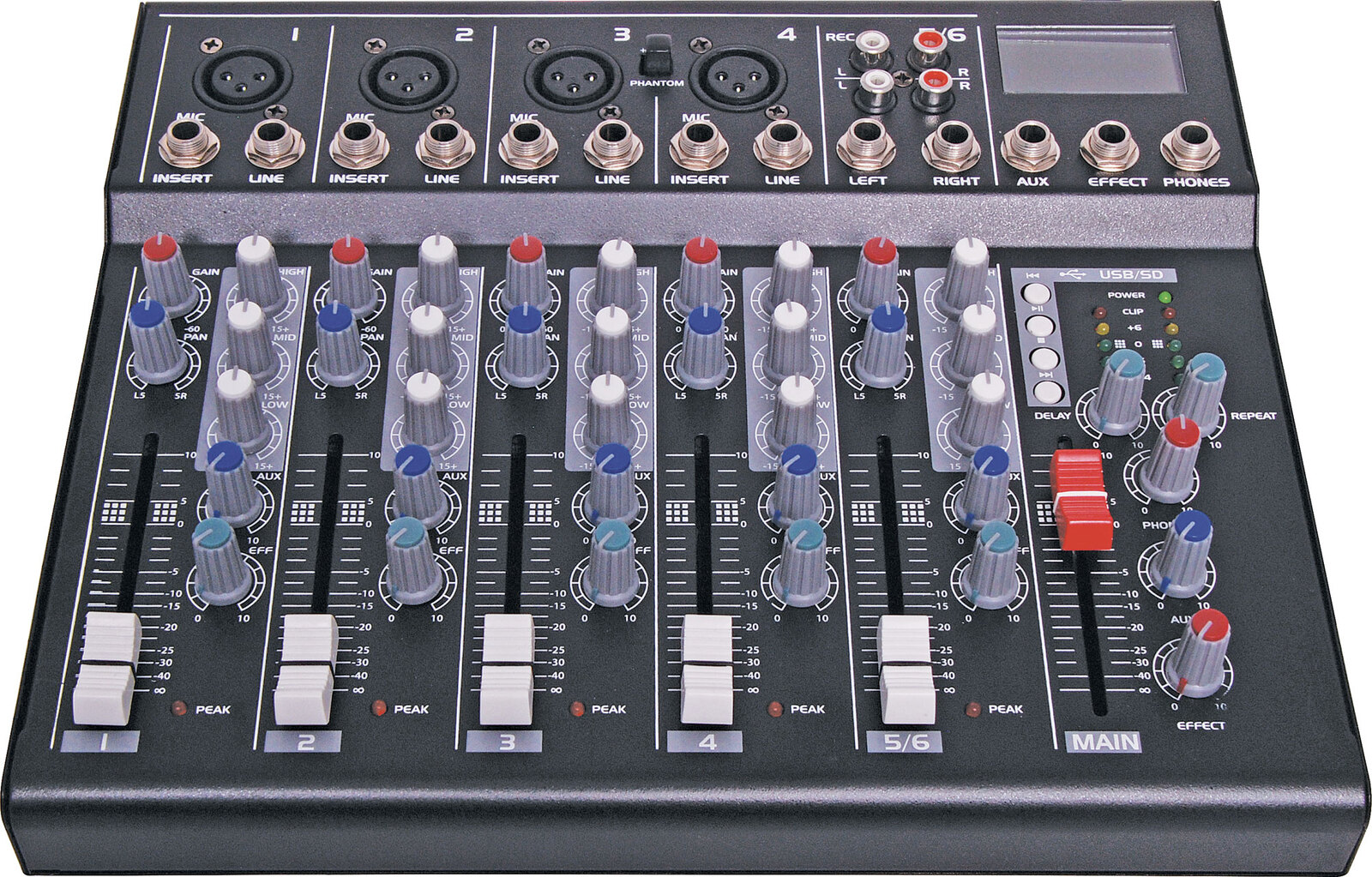

This compact high performance desk mixer is ideal for live/stage sound mixing in small applications such as theatre, bands, function centres and venues. It offers added flexibility for audio playback with a USB and SD card input on the rear panel. Playback is controlled via the transport controls located next to the dual VU meters.
Channels 1 to 4 are identical and feature:
- balanced XLR, unbalanced 6.35mm and insert input for external effects
- separate high, mid, low frequency controls
- gain, effects level and left/right pan.

Channels 5 and 6 are combined on the single fader and feature the same adjustments. Dual 6.35mm outputs (L & R) are provided for connection to amplifier. Includes power supply

Important: USB/SD & channel 5/6 are a combined input, if used simultaneously, this will result in a mixed output

Features

• All inputs top mounted for easy access
• Dual 6.35mm TRS outputs
• LED VU meters
• USB/SD card MP3 playback with transport controls
• Repeat and delay effects
• External effects send & return
• Phones/monitor output & level
• Selectable phantom power
• Gain, monitor, effect, pan, high, mid & low levels controls on all channels
• Record RCA output
• LCD readout for USB playback

Specifications

• Mic: +14dB to +60dB (120dB SNR)
• Line: -6dB to +38dB (95dB SNR)
• Stereo: -8dB to 15dB (96dB SNR)
• Equalisation
• Low: 50Hz ±15dB
• Mid: 700Hz ±15dB
• High: 10KHz ±dB
• Main outputs: +28dB bal / +22dB unbal.
• Frequency response: 20Hz - 20KHz
• Power: 12V ac
• Dimensions: 270W x 235D x 68Hmm
• Weight: 2kg

*Specifications are subject to change without notice.
