Redback 500W Mixer Amplifier

Part of the series PA Amplifiers.

View all products in this series

---

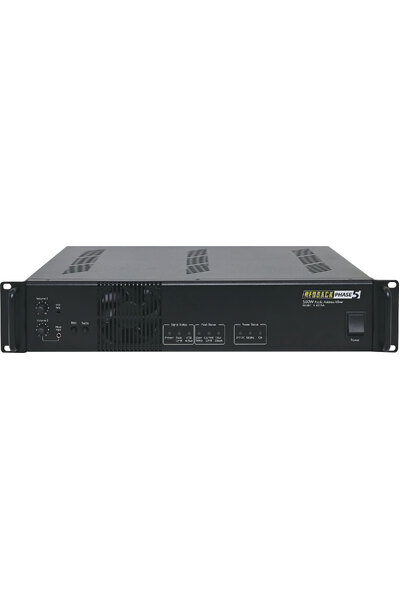

The Redback A 4395A is a 500 Watt Mixer amplifier for installations requiring a high power zone amplifier. Ideally suited for use in shopping centres, pedestrian precincts, public transport facilities and convention centres.

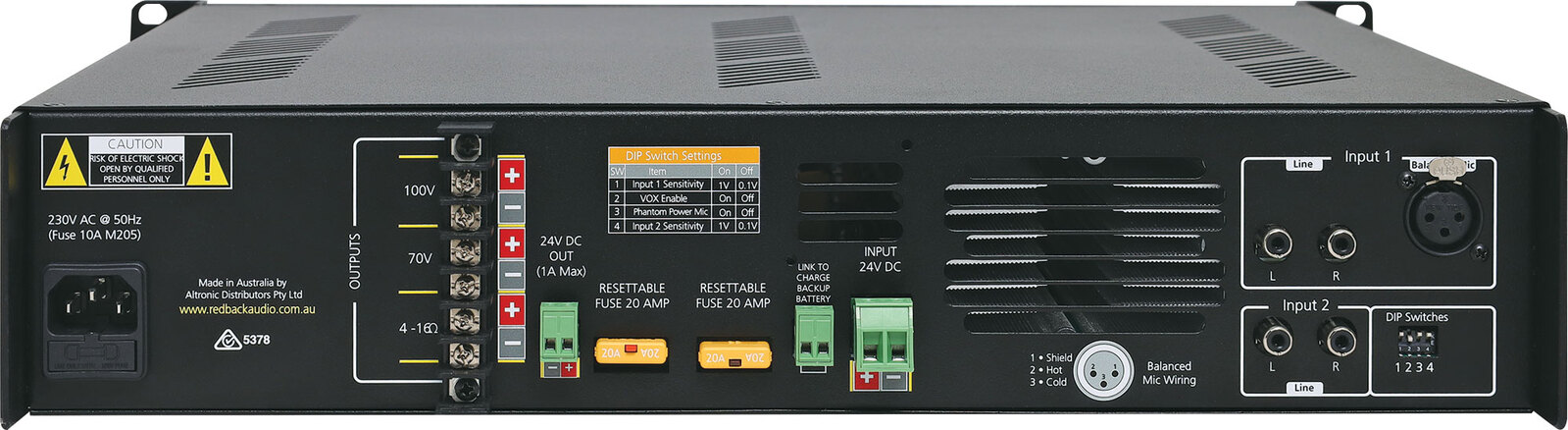

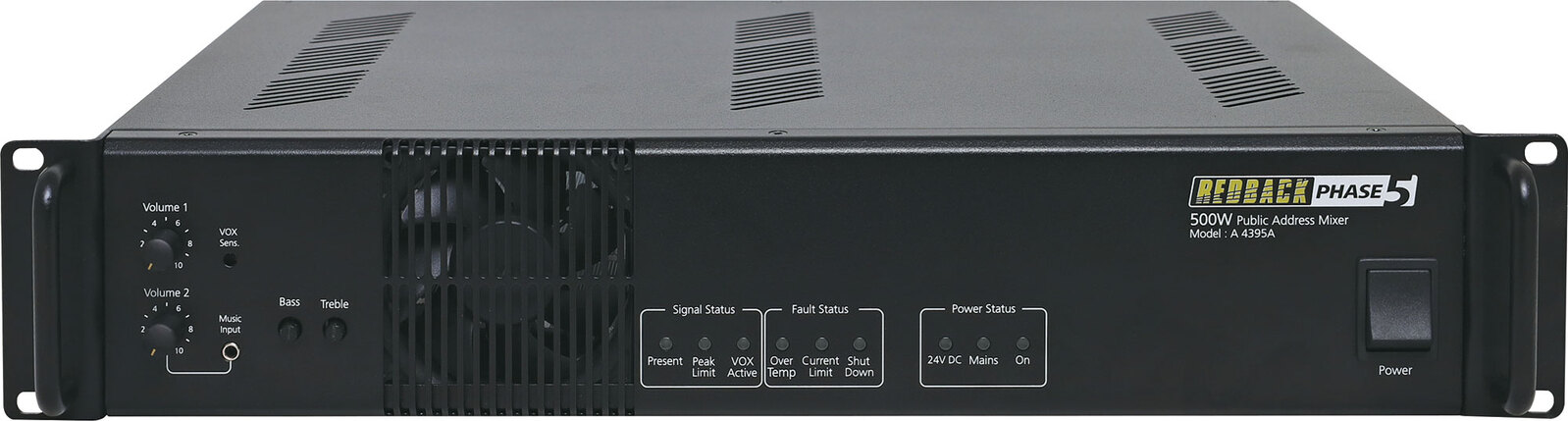

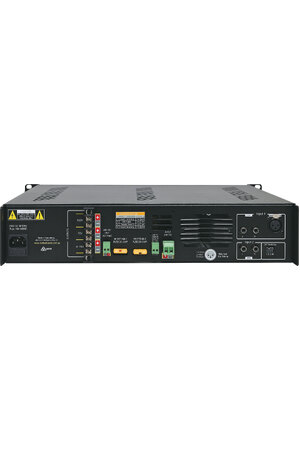

The amplifier has two audio inputs, with input 1 either a balanced XLR Mic input or dual RCA line input, and input 2 a dual RCA. There is also a music input on the front of the amplifier for connection of portable devices. This input when connected, over-rides the rear input 2 audio source and is adjusted via the volume 2 level control.

A VOX circuit with front panel sensitivity adjustment, allows input 1 to mute input 2. Phantom power (15 volts) is available at the 3 pin Mic XLR on input 1, and both RCA inputs 1 and 2 have adjustable input sensitives. The amplifier has a host of protection circuitry including over current, over voltage and short circuit protection.

Features

• Robust design incorporating latest Mosfet technology
• Very Low noise and distortion
• 70V, 100V and 4-16Ω outputs
• 240V AC or 24V DC operation
• 24V DC @ 1 Amp output for external devices
• 300mA battery trickle charge
• Adjustable input level sensitivities
• Bass and Treble controls
• Phantom power on microphone input (XLR Input 1)
• Multi stage thermally cued fan cooling
• Output Peak Limited
• Thermal Overload protected
• Signal Presence Indicators
• Fault Indicators
• Power Status Indicators
• Rack Mountable (suits 19 inch racks)

100% developed, designed & assembled in Australia.
Since 1976 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 45 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Backed by an industry leading 10 Year Manufacturer Warranty.
Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

Specifications

• Power outputs
• A 4395A:  500 watts RMS
• Distortion:  < 0.5%, @ 1kHz
• Output line:  70V, 100V or 4 - 16Ω
• Frequency response
• Mic input:  50Hz - 12kHz, -3dB
• Line inputs:  50Hz - 15kHz, -3dB
• Sensitivity
• Mic input: 2mV
• Line inputs: 100mV or 1V
• Signal to noise ratio
• Mic inputs:  > 75dB below rated output
• Line inputs:  > 81dB below rated output
• Output connectors
• Speakers:  Screw terminals
• Input connectors
• Inputs:  3 pin XLR balanced or 2 x RCA
• 24V DC power:  Screw terminals
• 240V AC power: IEC power connector
•
• Controls
• Mic inputs:  Volume
• Line inputs:  Volume
• Bass:  ±10dB @ 100Hz
• Treble:  ±10dB @ 10kHz
• Power:  On/off switch
• Indicators:  Power, signal present, output peak limiting, overtemp, current limit, shutdown, VOX active, 24V DC, Mains
• Power Supply:  240V AC or 24V DC
• Fuse protection
• A 4395A:  10A AC , 20A DC
• Dimensions
• 483W x 410D x 88H

*Specifications are subject to change without notice.
