Redback 5 Pin XLR PTT Microphone Wallplate UTP Transmitter

Part of the series AV & PA Wallplates.

View all products in this series

---

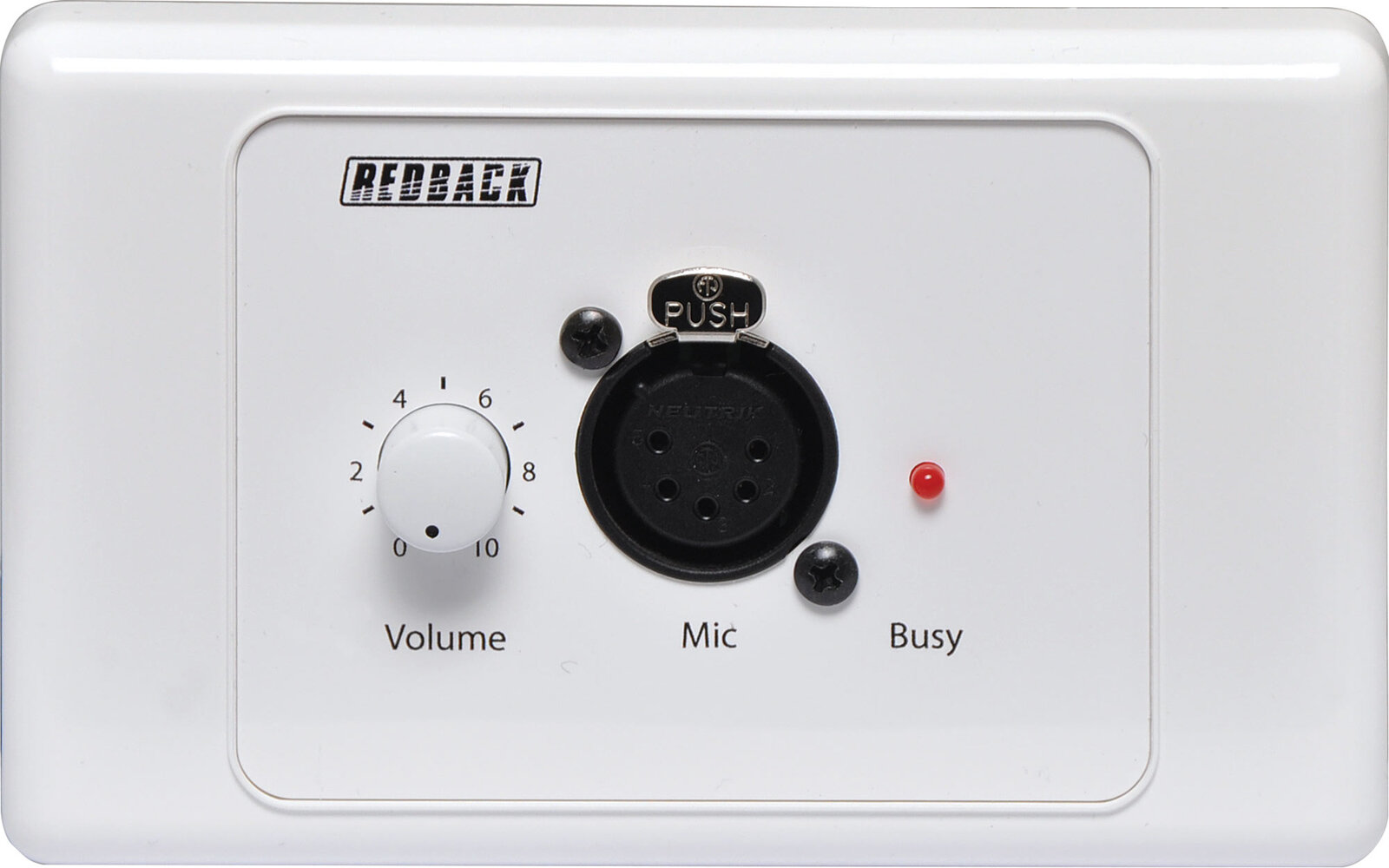

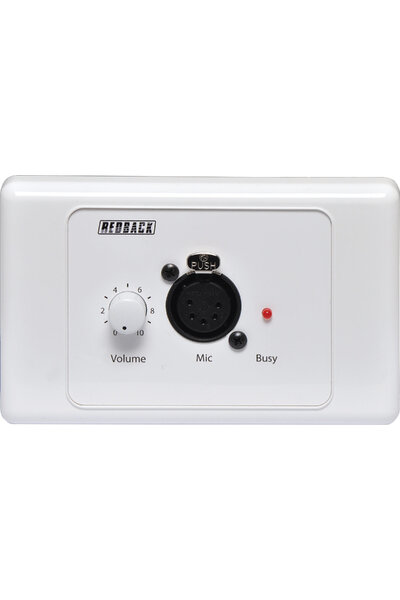

This UTP transmitter wall plate has a standard 5 Pin XLR connector for connection of microphones with PTT switches. This connection is ideal for typical supermarket microphones such as Redback C 0325 or C 0327. The low output level of the microphone is converted to a high level output which is fed down the Cat5 UTP cabling. The output level can be adjusted by the volume control.

---

---

Part of the Redback UTP Solutions Range.
This product is part of the Redback UTP solutions range, a suite of interchangeable transmitters and receivers for connecting different types of audio signals between local zones and equipment racks. View the connection matrix for this product to see which items it will connect to in the Redback range.

100% developed, designed & assembled in Australia.
Since 1976 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 40 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Backed by an industry leading 10 Year Manufacturer Warranty.
Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

Specifications

• Input Mic Level Sensitivity: 3mV
• Output Connector: RJ45 8P8C
• Input Connector: 5 pin XLR balanced

*Specifications are subject to change without notice.

Downloads

Instructions
