Redback 4 Input Microphone Hub (ALT-A5135) Educational Resources and Supplies

Buy in bulk & save!
Buy 1 to 2:	$434.95 each
Buy 3 to 5:	$424.10 each
Buy 6 or more:	$413.20 each

Available on orders $80 to $1000
Learn more

This microphone hub has been designed with small supermarkets in mind.

Availability: Available Usually Dispatched In: 2 - 5 Business Days Product Code: ALT-A5135 ISBN: 9321758221624 Brand/Publisher: Redback Categories: Professional Audio,

Part of the series PA Accessories.

View all products in this series

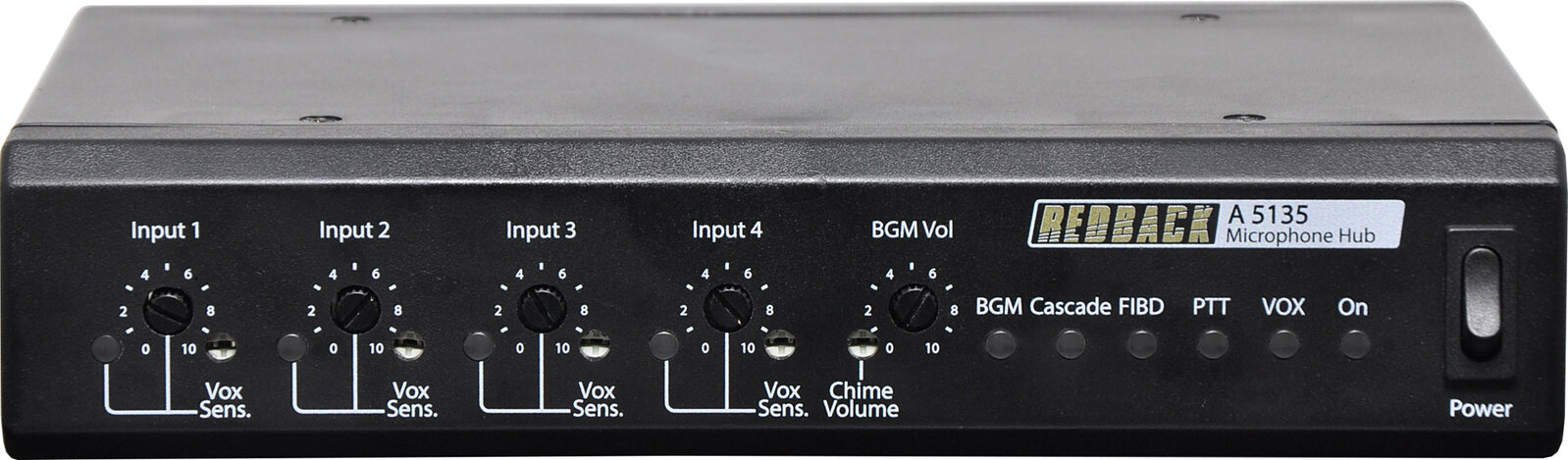

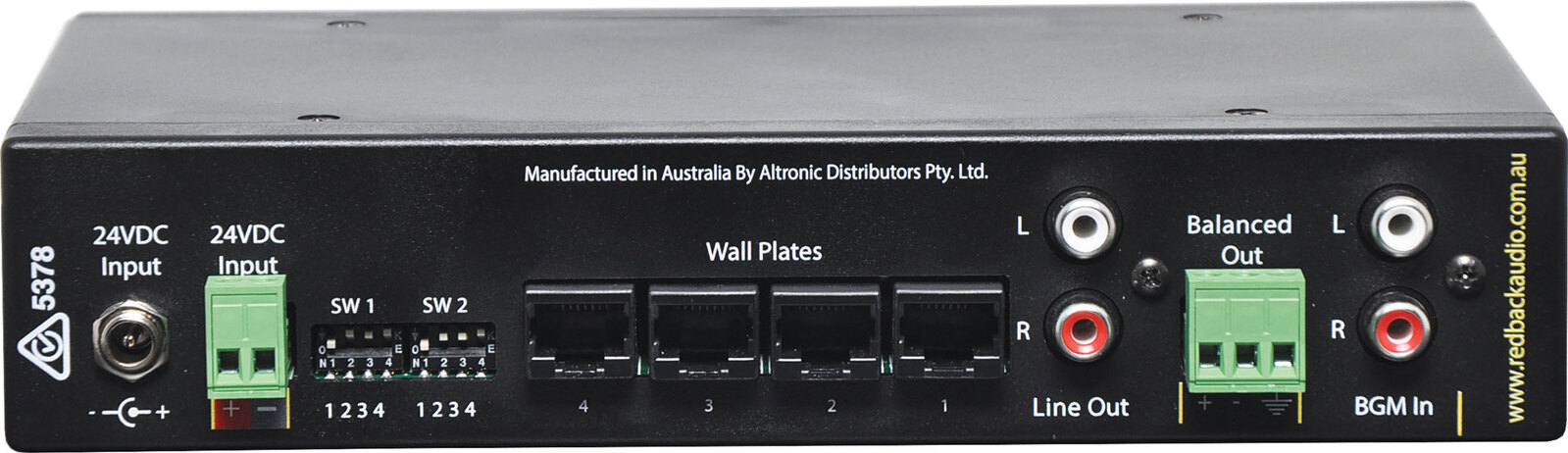

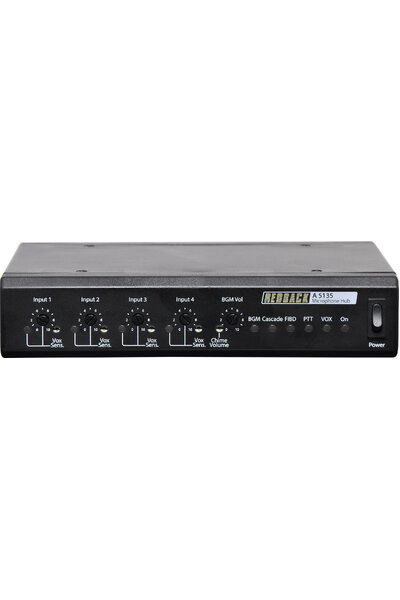

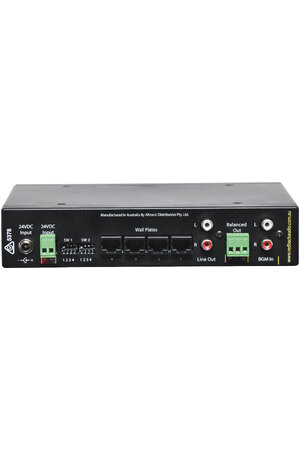

This microphone hub has been designed with small supermarkets in mind. We’ve designed the hub to cater for industry standard supermarket 5 pin XLR microphones which connects to a local wallplate (A 5138) or other Redback UTP transmitter over Cat5/6 cable. This greatly simplifies the install cabling process for multiple microphone systems. Up to four microphones can be connected to one hub with each input configurable to either VOX or PTT muting. Three levels of priority are provided: FIBD, 1 over 2-4, 2 over 3-4, 3 over 4 or mixed options. System busy LED’s are included on each wallplate.

Part of the Redback UTP Solutions Range.
This product is part of the Redback UTP solutions range, a suite of interchangeable transmitters and receivers for connecting different types of audio signals between local zones and equipment racks. View the connection matrix for this product to see which items it will connect to in the Redback range.

Features

Connects to four paging microphones via A 5138 wallplates or other Redback UTP transmitter at each location
Built for supermarkets, food outlets or anywhere multiple paging microphones are in use
Easy Cat5e/6 cabling back to hub
Adjustable VOX sensitivity
PTT muting
24V DC operation
BGM input
Balanced & line outputs
Australian designed & assembled.

Rack Mounting:
To mount any of the Redback half rack products into a 19" wide racking system, the H 4990 bracket is required. If a single product is mounted into the H 4990, then a metal (H 4992) or plastic (H 4993) infill panel can be fitted for a neater finish.

100% developed, designed & assembled in Australia.
Since 1976 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 40 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Backed by an industry leading 10 Year Manufacturer Warranty.
Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.
