Redback 4 Channel Public Address (PA) Mixer With MP3 Message Player

Part of the series PA Mixers & Controllers.

View all products in this series

---

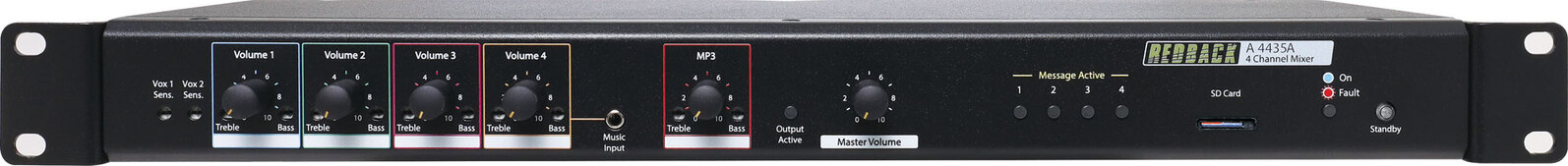

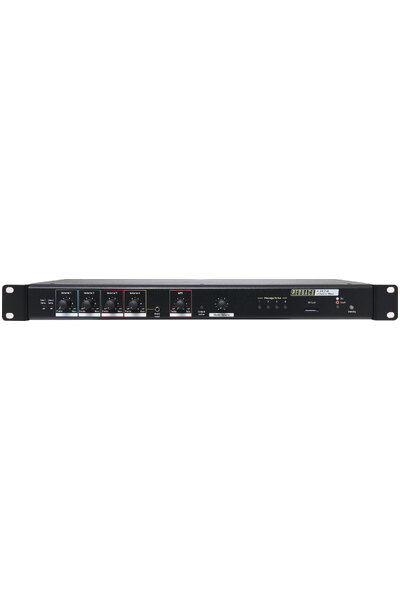

The A4435A is a unique Redback PA mixer features four input channels which are user selectable for either balanced mic, line or auxiliary use. In addition it incorporates a four channel micro SD card based message player making it an excellent choice for retail, supermarkets, hardware stores and more. The mixer could be used for general paging and BGM applications; and the message player for customer service applications, in-store advertising or for pre-recorded commentary at galleries, display stands etc.

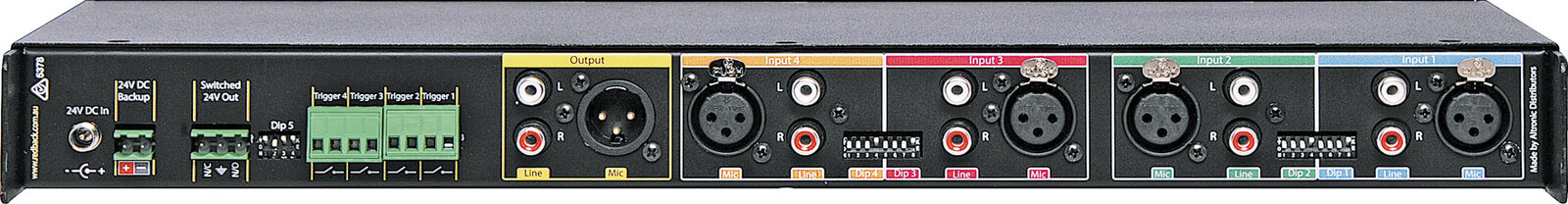

The message player and each input all have individual level, treble and bass controls. Vox muting is provided for channels one and two with front panel adjustable sensitivity. The message player has priority and slots in between input one and two. Custom messages, tones and music may be loaded onto the message player micro SD card. The messages are activated by a closing set of contacts. If input one is active when a message contact is closed, the message is queued and played once input one is no longer in use. Messages are played on a first in, best dressed (FIBD) basis, and will also be queued if one message is playing and another is activated. Input four is also fitted with a 3.5mm jack input for connection to a smartphone/tablet as an audio source. When connected, this overrides any source connected to input 4 on the rear panel. Each input has a 3 pin XLR (2mV) and stereo RCA socket with adjustable sensitivity settings. These can be set 100mV or 1V for the stereo RCAs. Message player contacts are provided via pluggable screw terminals. 24V DC operation from the included power supply or battery backup.

Features

• Four input channels
• SD card message player for audio announcements
• Individual level, bass and treble control on all inputs
• 3.5mm music input
• Adjustable input sensitivity on mic or line
• 24V DC battery back up terminals
• Four sets of closing contacts for message triggering
• 24V DC switched output
• Message active indicators
• Adjustable Vox sensitivity

100% developed, designed & assembled in Australia.
Since 1976 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 45 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Backed by an industry leading 10 Year Manufacturer Warranty.
Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

Specifications

• Audio
• Inputs: 4 x mic balanced 600Ω, 4 x Line Stereo 10KΩ
• Output (stereo): 600Ω balanced 0dBm
• Distortion: Less than 0.3%
• Frequency Response Mic: 30Hz-15kHz
• Frequency ResponseLine: 18Hz-23kHz
• S/N ratio: All controls min. -98dB
• Sensitivity: Mic 2mV, line 100mV/1V
• Phantom power: Nominal 12V DC
• Output connectors: 3 pin XLR balanced, Stereo RCA
• Controls
• Mic/line/message inputs: Bass, treble & volume + master
• Bass/Treble: ±10dB @ 100Hz
• Input Connectors
• Mic inputs: 3 pin XLR balanced
• Line inputs: RCA sockets ­
• Indicators: Message active, output active, power, fault
• General
• Power supply: 24V DC
• Dimensions: 482W x 175D x 44H mm
• Weight: ≈2.1kg

*Specifications are subject to change without notice.
