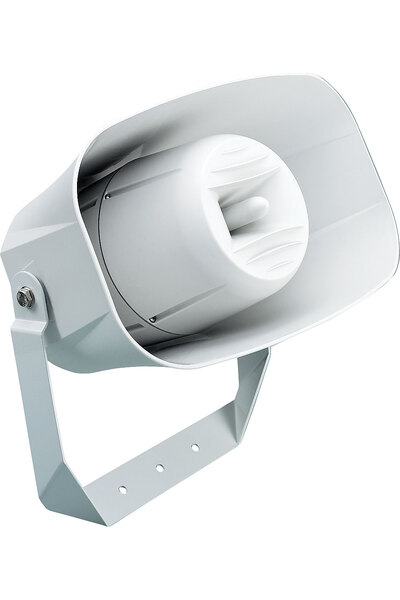

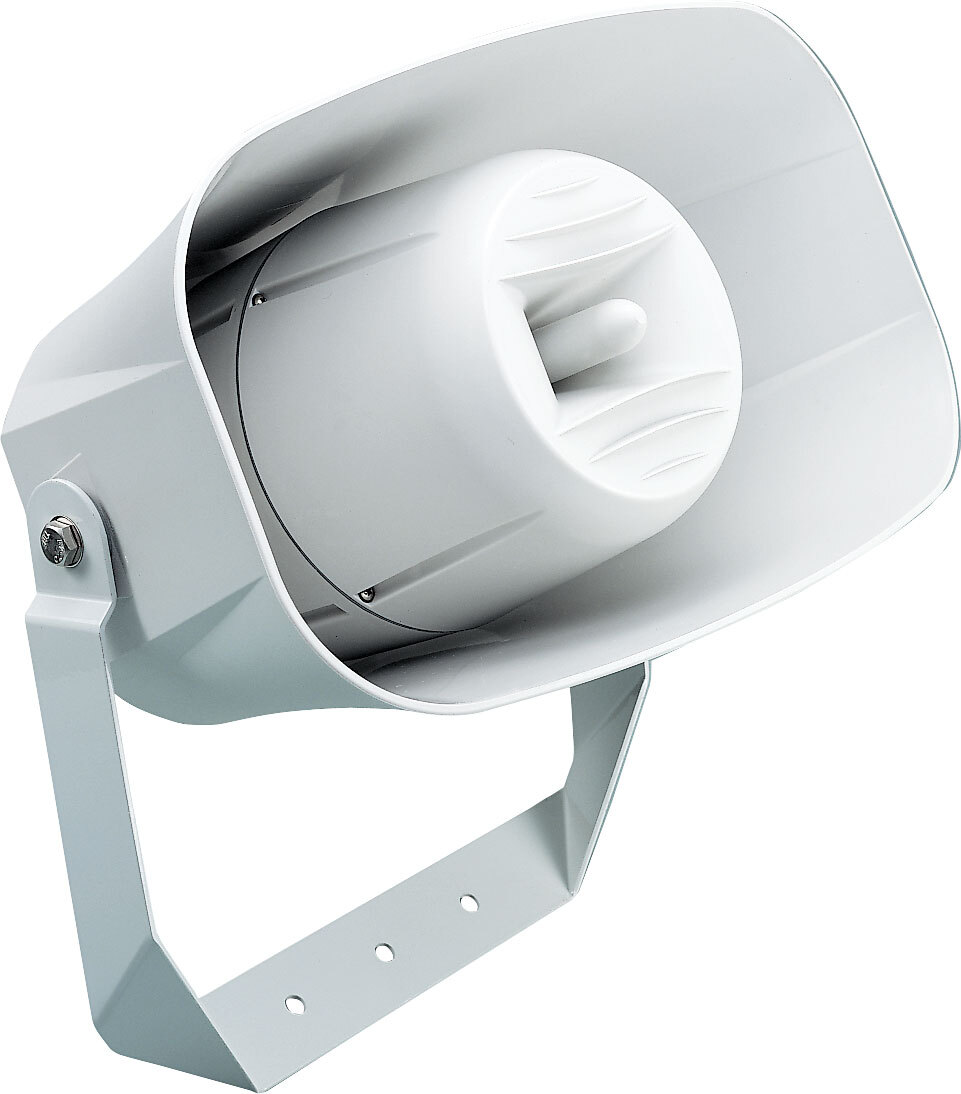

Redback 30W 100V IP65 Weather Proof Music Horn Speaker

Part of the series PA Speakers.

View all products in this series

---

A unique innovation in PA horn speakers for music reproduction. A combination of re-entrant low/mid driver with a high frequency loaded horn culminates in breath taking clarity and sound pressure level for relatively wide range reproduction. It is eminently suited to outdoor applications where a very high standard of speech and music reproduction is demanded eg: schools gymnasiums, aquatic centres, sporting arenas, stadiums, railway stations etc. Adjustable power setting is included. The speaker is weather resistant, incorporates an aluminum mounting bracket and has an IP65 rating. Manufactured from high impact ABS plastic.

Features

• Unique combination re-entrant horn and high frequency driver
• Tough ABS construction
• Aluminium mounting bracket
• IP65 Weatherproof Construction
• Selectable 100V line power taps 3.75, 7.5W, 15W & 30W
• High efficiency drivers and transformer

---

Backed by an industry leading 5 Year Speaker Performance Warranty.
This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.

Specifications

• Power Rating: 30W RMS
• Power Taps (100V): 30/15/7.5/3.75
• SPL 1W @ 1m: 98dB
• Freq. Response: 65Hz - 16.5kHz
• Dimensions: 442W x 260H x 288D mm
• Colour: Grey
• Weight: 6kg
• *Specifications are subject to change without notice.

Downloads

Brochure Architect Specifications
