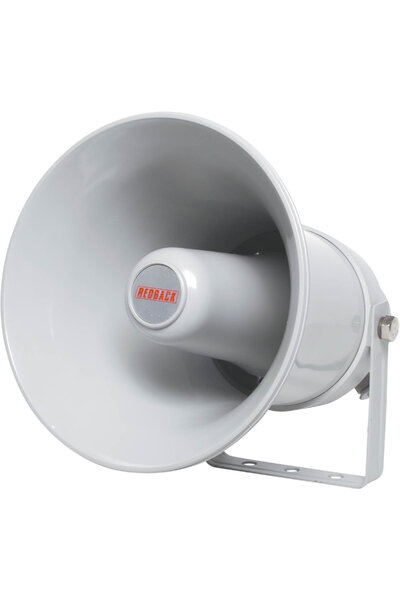

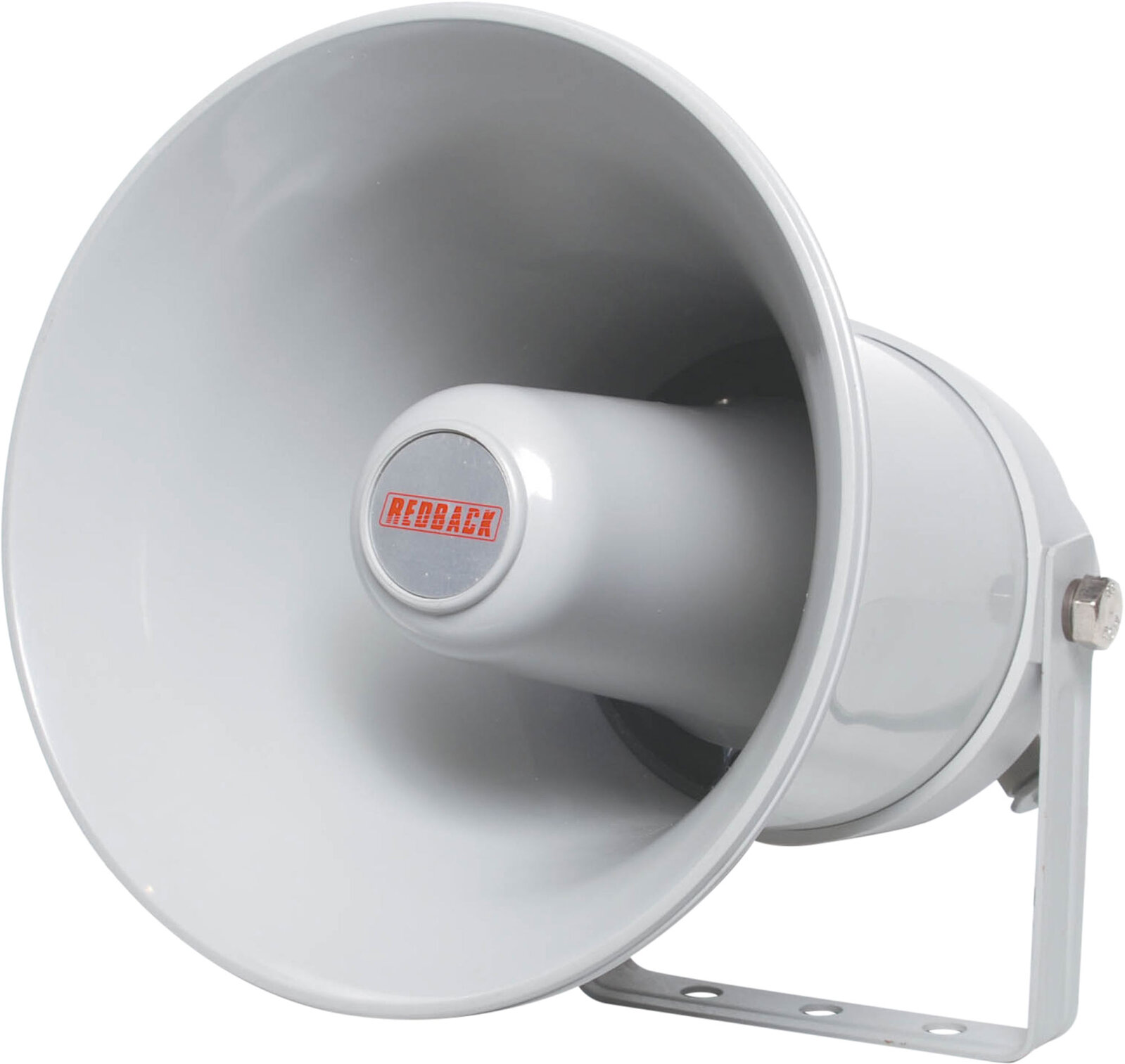

Redback 30W 100V EWIS IP66 Plastic PA Horn Speaker

Part of the series PA Speakers.

View all products in this series

---

High power 30 watt model.
Primarily used for distributed paging systems where a high degree of speech articulation and program clarity is paramount. Typical applications include schools, train and bus stations, airports, car parks and plant rooms, factories, industrial estates. Power taps selectable via rear switch. Fitted with 22uf bipolar isolation capacitor to permit line monitoring function when employed with EWIS installations. A four core loop through lead is provided.

Features

• Weather resistant
• UV stabilised plastic for long life even full sun
• Superb speech reproduction
• Excellent frequency response
• Emergency PA and EWIS compatible

---

Backed by an industry leading 5 Year Speaker Performance Warranty.
This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.

Specifications

• Power taps: 5, 10, 15, 20, 25, 30W
• SPL 1W@1m: 108dB
• SPL Max Tap @1m: 123dB
• Frequency response: 275Hz - 10kHz
• Dispersion angle: 70°
• Dimensions (mm): ≈212Ø x 285
• Weight: ≈2.2kg
• *Specifications are subject to change without notice.
