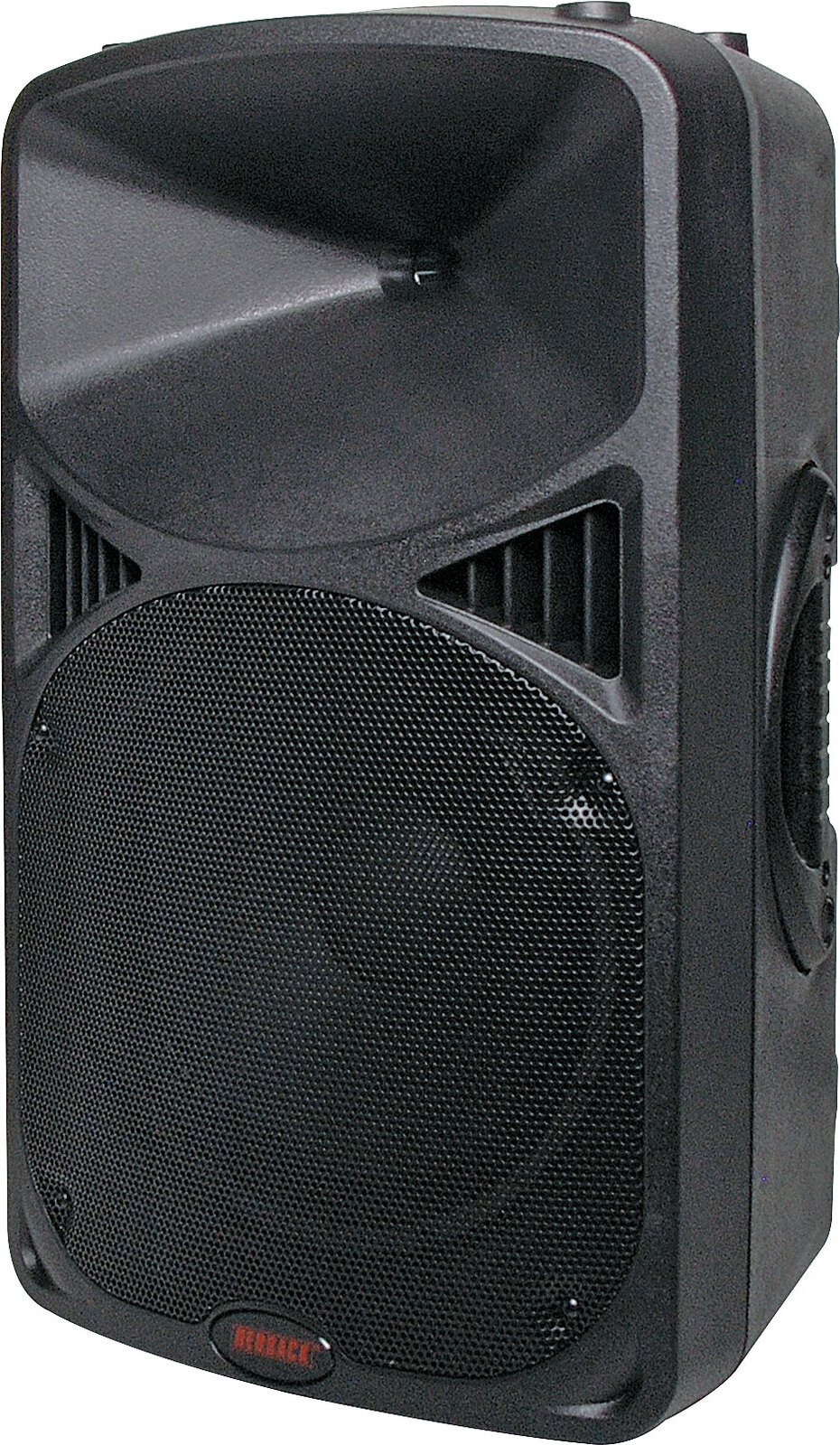

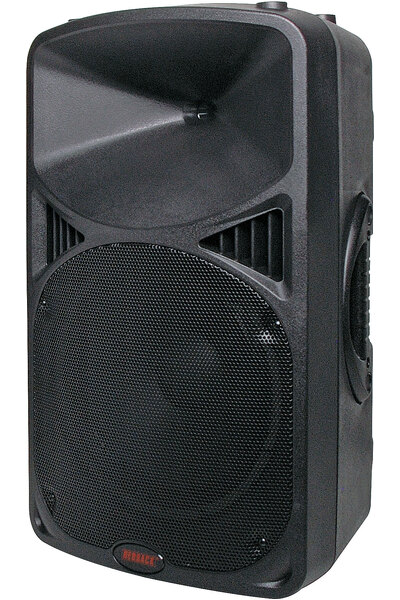

Redback 300mm 12 Inch 2 Way Powered PA Speaker With MP3/USB

Part of the series PA Speakers.

View all products in this series

---

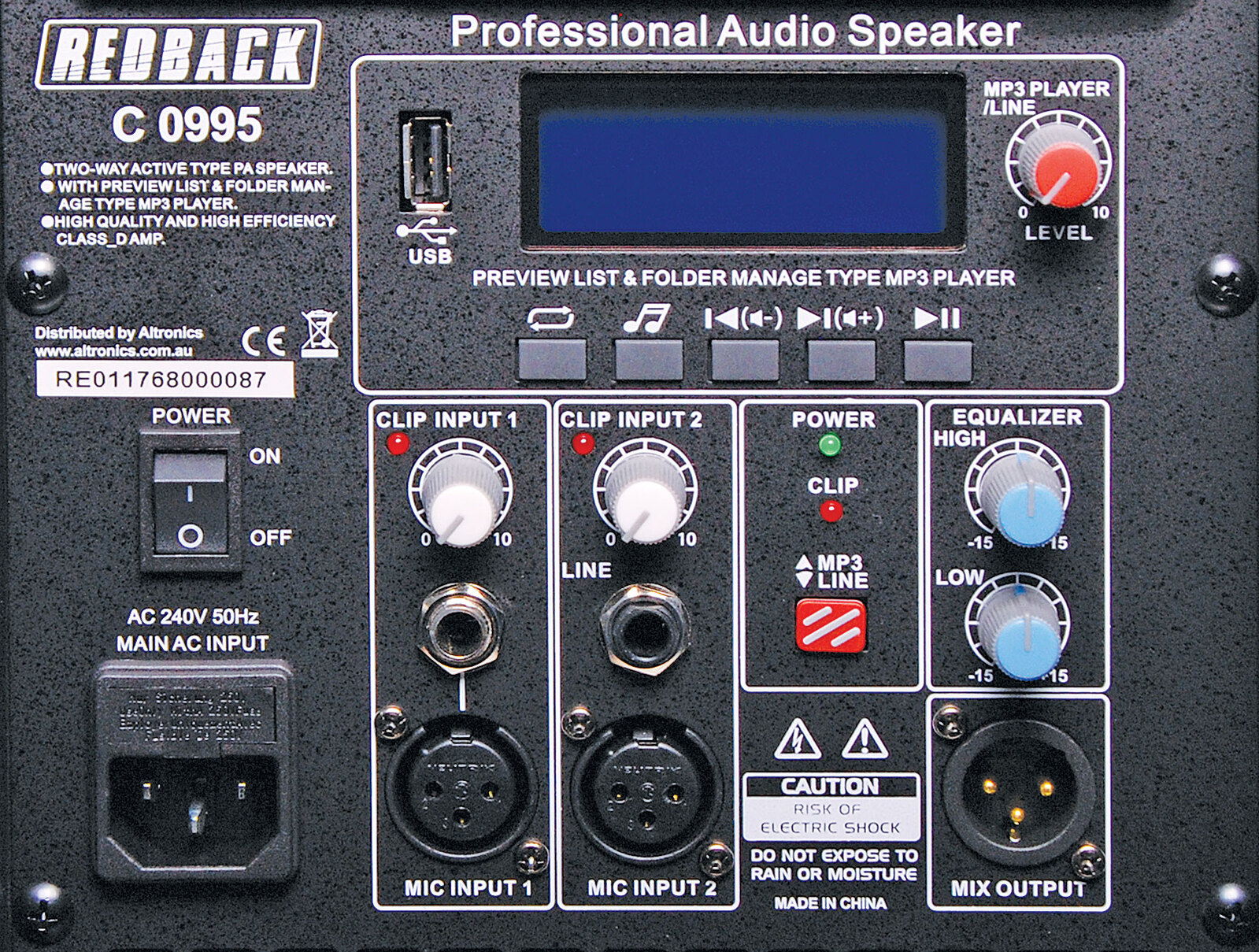

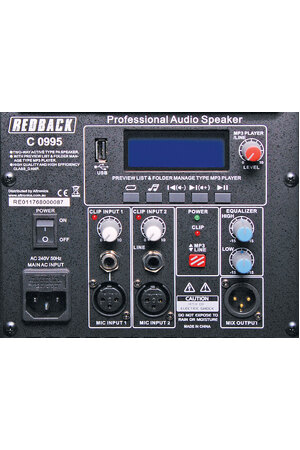

A high powered active speakers series identical in performance and construction to the unpowered units, each include a self-contained power amplifier. Simply connect 240VAC power and an input source such as a CD player, tape deck or microphone and you have a crystal clear, high powered PA system! It features 2 x XLR microphone inputs. Microphone one input can be either balanced XLR or balanced 6.35mm. A single 6.35mm line input which can be swithced between the USB/MP3 player is also available. It also has an XLR line out connector, allowing multiple powered speakers to be ‘daisy chained’ from a single input source. Using two of these units connected together to one microphone, you could easily address a crowd of 1000 people! The power amp has separate volume controls for mic input, line input and master output, plus bass and treble controls.

This model also features a built-in USB MP3 player module with a digital LCD display for track information.

Features

• 2 x Balanced XLR mic input
• 1 x Balanced 6.35mm jack mic input
• TRS 6.35mm stereo jack line input
• USB input for digital audio playback
• Rugged moulded ABS construction
• Aluminium diecast framed neodymium woofer for light weight and low distortion
• Inbuilt top hat mount and carry handle
• Wide frequency response
• Titanium diaphragm compression driver
• Built-in MP3, WAV, WMA file player with USB input

Specifications

• System: Equipped with MP3,EQ,Multi-channel microphone and line input, digital Rating: 300W RMS>
• amplifier, active 2-way speaker
• Drivers: 1 x 12” Woofer, 1 x 34mm Tweeter
• Frequency response: 53Hz - 18kHz ±3dB, 45Hz - 20kHz ±10dB
• SPL 1W @ 1m: 96dB
• Maximum sound level (SPL): 120dB @ 1W/1m
• Maximum output power: 500W Bass, 200W Treble
• Level adjustment range: ±15dB (80Hz) - Bass, ±15dB (12KHz) - Treble
• Distortion: (Line) 0.02%, (Microphone) 0.04%
• Load impedance: Woofer 8Ω, Tweeter 8Ω
• Input impedance: (Line) 14kΩ, (Microphone) 14kΩ
• Audio connectors: XLR, 6.35mm TRS
• Digital connectors: USB type A
• Files system: FAT16, FAT32
• Formats: MP3, WAV, WMA
• Bit Rates: 32-320kbps
• Sample rates: 32kHz, 44.1kHz, 48kHz
• Dimensions: 651H x 390W x 374D mm
• Fuse: 10A/250V M205
• *Specifications are subject to change without notice.
