Redback 3 Pin XLR Cat5 Extender (Transmitter)

Part of the series PA Accessories.

View all products in this series

---

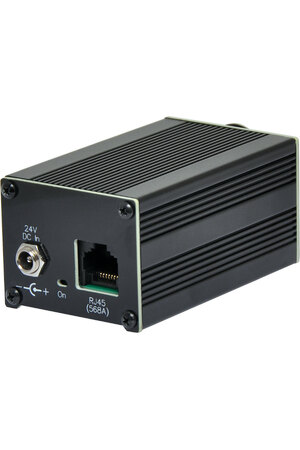

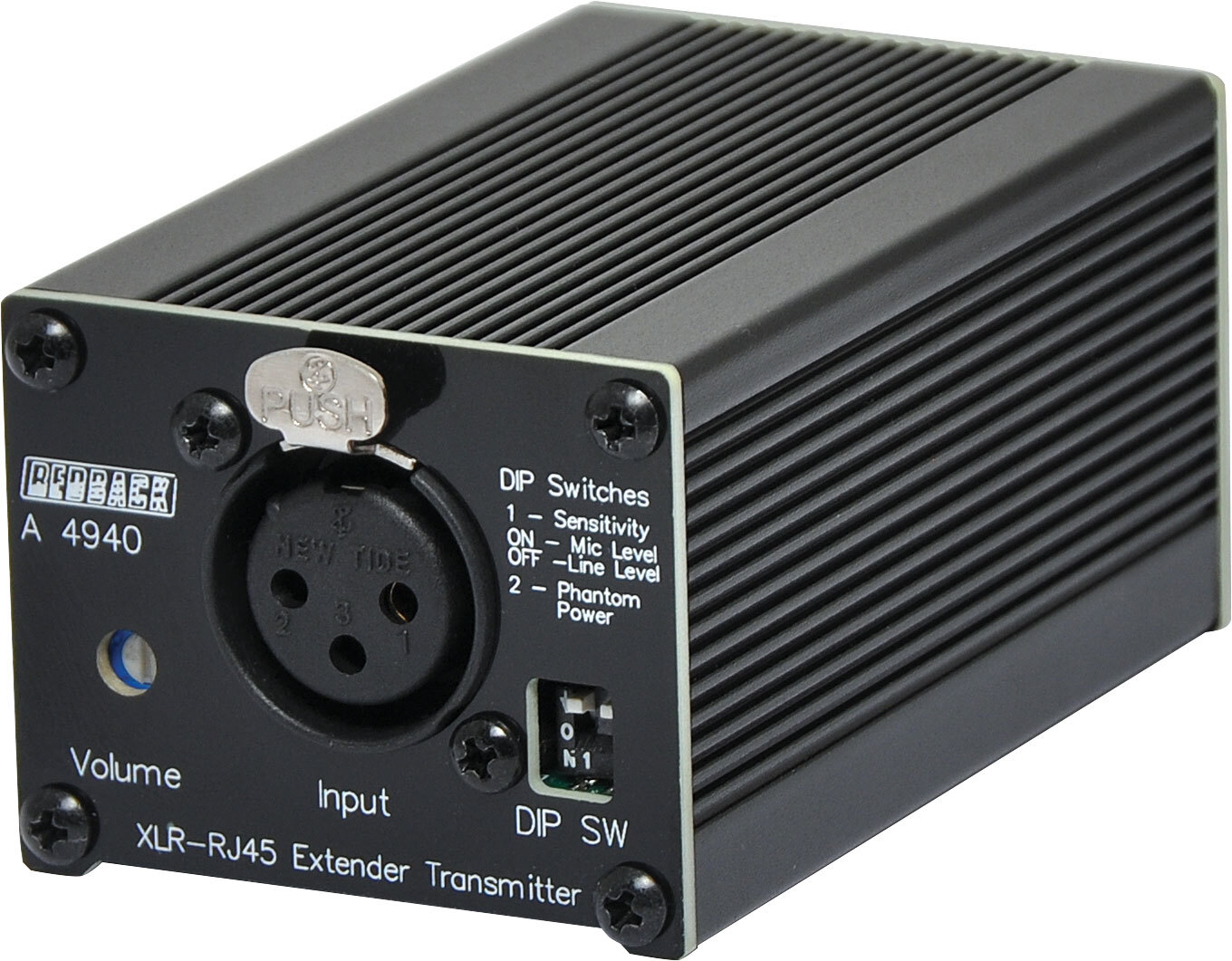

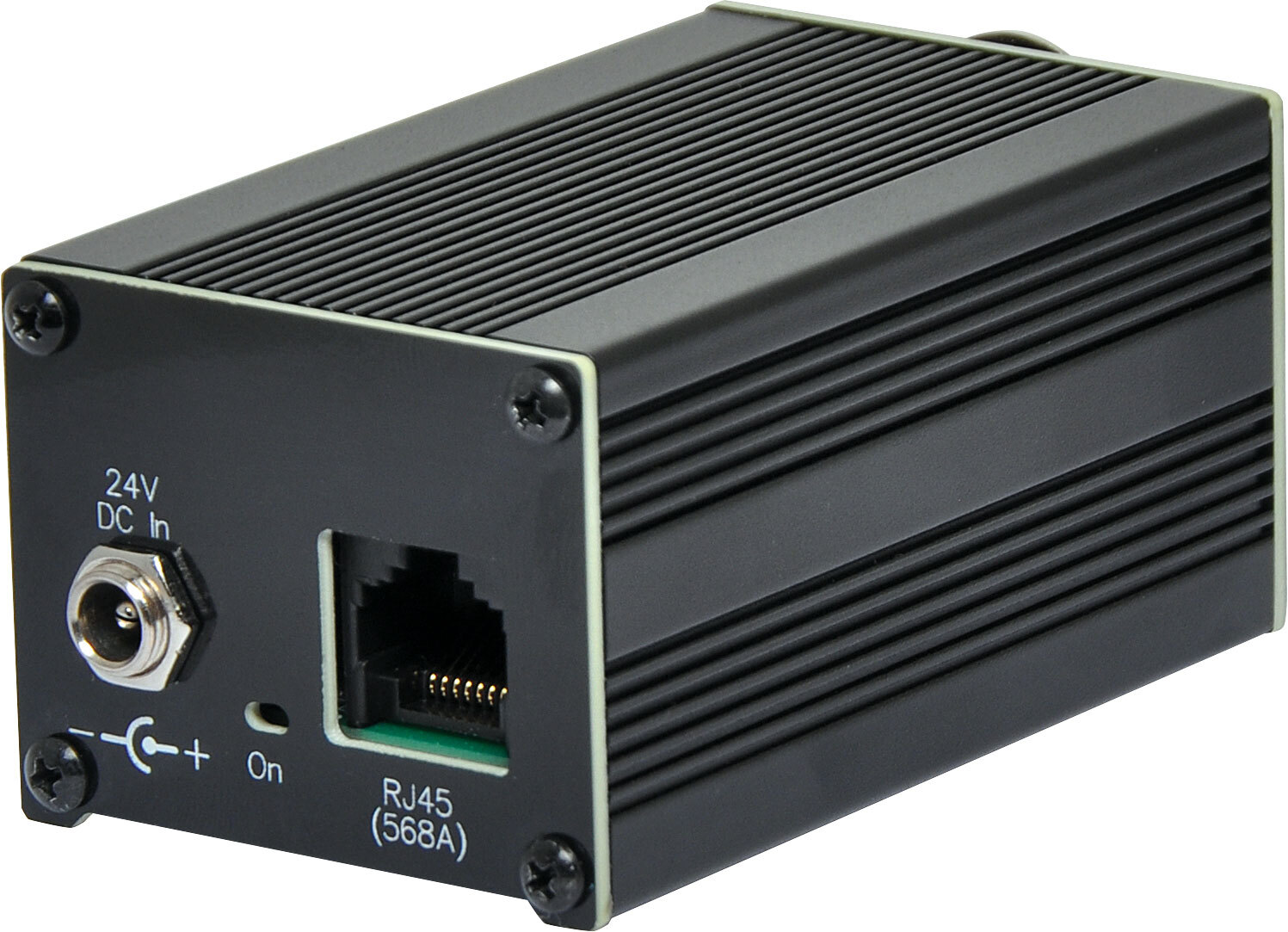

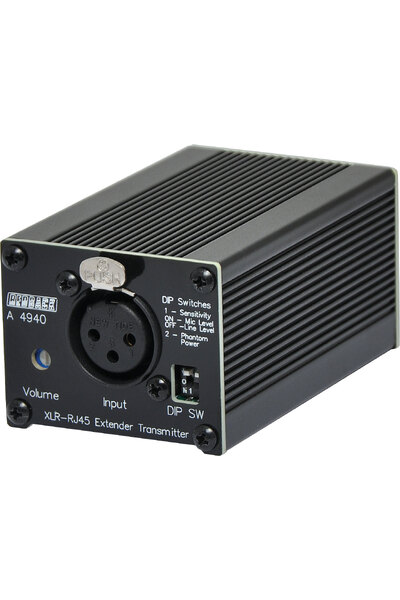

This 3 pin XLR UTP transmitter sends signals to compatible Redback UTP solutions receivers. It converts a balanced XLR signal to an RJ45 connection suitable for transmission over Cat5/6 UTP cabling. The input level is DIP switch selectable, and the input volume is screwdriver adjusted via the trimpot on the front of the unit. The unit is powered from 24V DC, which can be connected to the DC socket on the rear, or it can be supplied through the Cat5/6 cabling from other compatible Redback products (see connection matrix).

The A 4940 can be connected to compatible Redback products such as the A 4942.

---

---

Part of the Redback UTP Solutions Range.
This product is part of the Redback UTP solutions range, a suite of interchangeable transmitters and receivers for connecting different types of audio signals between local zones and equipment racks. View the connection matrix for this product to see which items it will connect to in the Redback range.

Features

• Connects via RJ45 UTP cabling
• Point to point connection
• 3 pin models allow mic or line level connection
• DIP switch selectable sensitivity
• Level control
• 24V DC input

100% developed, designed & assembled in Australia.
Since 1976 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 45 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Backed by an industry leading 10 Year Manufacturer Warranty.
Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.
