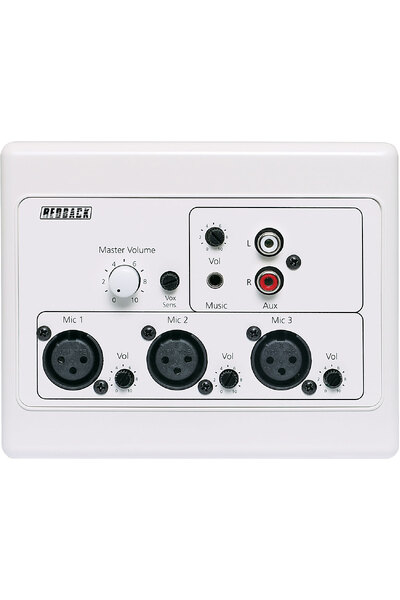

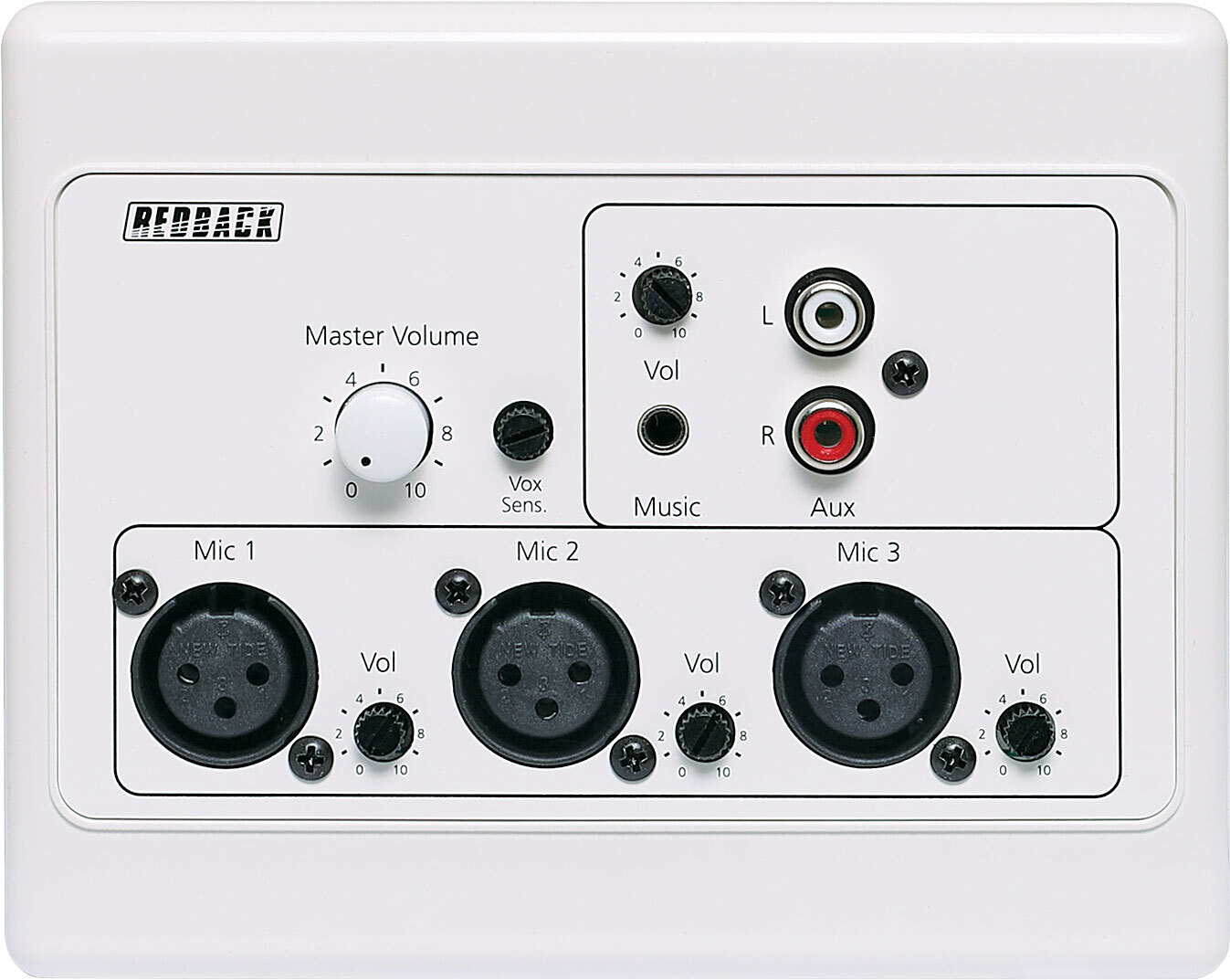

Redback 3 Input XLR Mic/Line Pre-Amplifier Wallplate

Part of the series AV & PA Wallplates.

View all products in this series

---

These local zone input wallplates allow for multiple mic/line inputs to be sent over UTP cabling back to a single UTP receiver for connection to a zone amplifier. It also connects to the Redback A 4480B directly allowing multiple microphones to be connected to a single zone input. All audio inputs are mixed with individual level controls.

---

---

Part of the Redback UTP Solutions Range.
This product is part of the Redback UTP solutions range, a suite of interchangeable transmitters and receivers for connecting different types of audio signals between local zones and equipment racks. View the connection matrix for this product to see which items it will connect to in the Redback range.

100% developed, designed & assembled in Australia.
Since 1976 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 45 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Backed by an industry leading 10 Year Manufacturer Warranty.
Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

Specifications

• Standard dual gang wallplate
• Connects via RJ45 UTP cabling
• Mixed audio output
• Connects to A 4942 balanced UTP receiver or other Redback UTP compatible products.
• Individual & master level controls
• Stereo RCA input
• 24V DC input via Cat5 UTP cable from connected equipment
• 3 pin XLR mic/line level inputs

*Specifications are subject to change without notice.
