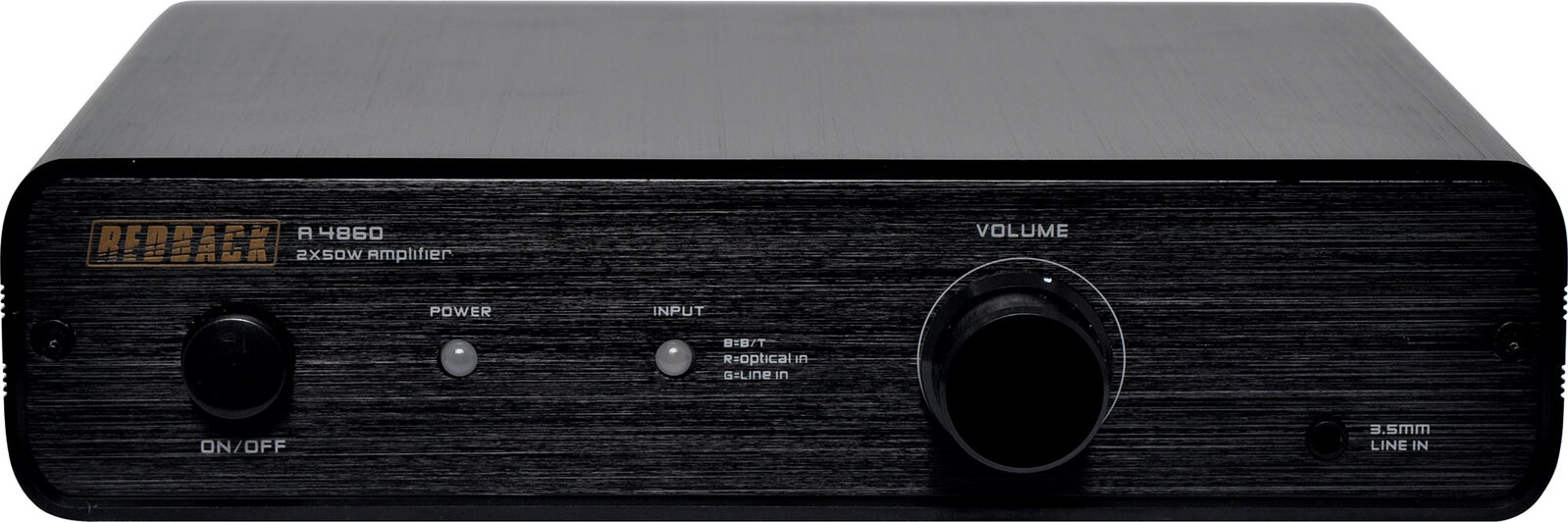

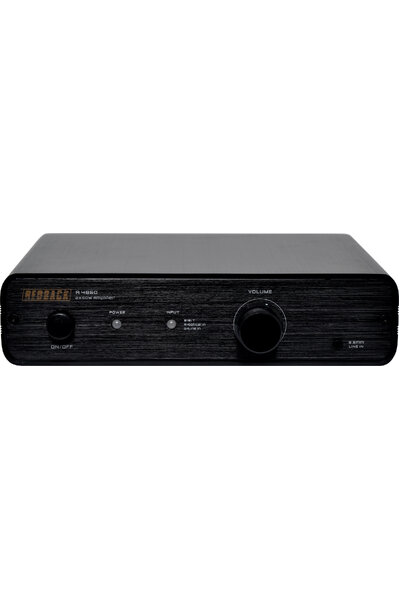

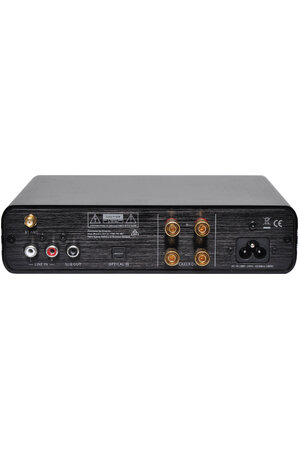

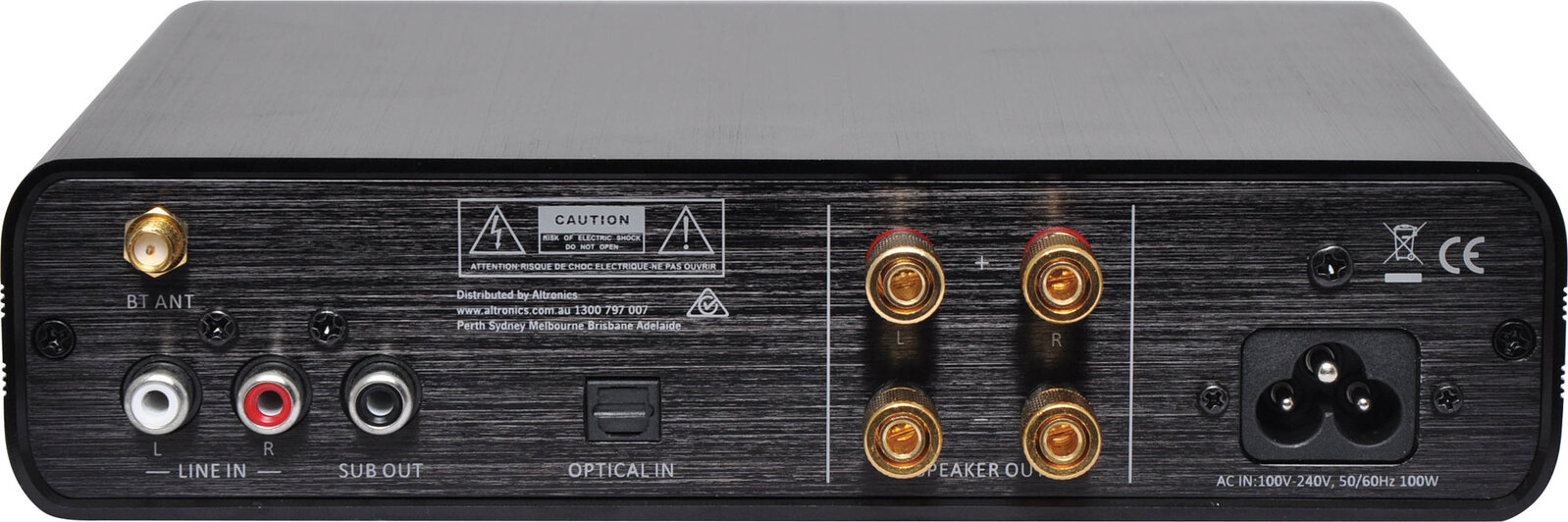

This compact stereo class-D amplifier features Bluetooth 4.2 streaming with in-built optical input for digital audio sources. The amplifier is also fitted with 3.5mm stereo jack and stereo RCA inputs for connection to external audio sources. Bluetooth takes priority over all other inputs, providing easy wireless streaming when you need it. The 2 x 50W RMS output is ideal for small retail environments. It is perfectly paired with the A 4861 subwoofer amplifier and C 1065 ceiling mount subwoofer for added musical performance.
Features
- Class-D 2 x 50W amplifier
- Bluetooth 4.2 wireless streaming
- Stereo RCA & 3.5mm jack inputs
- Optical input with high performance DAC
- Automatic signal switching with priority for Bluetooth audio source
- 240V AC operation
Connection Diagram
Specifications
- Power output: 25W x 2 (RMS @ 8Ω)
- 50W x 2 (RMS @ 4Ω)
- Distortion: <1%( Rated power: 50W @ 4Ω) Output: 4-8Ω Signal to noise ratio: >92 dB A WTD
- Frequency response: 20Hz – 20KHz +0/-2dB@ -3dB
- Sub out frequency: 100Hz/1V
- Line level input sensitivity: 700mV
- Channel separation: 50dB
- Bluetooth: 4.2
- Protection: Overload, speaker short circuit
- Dimensions: 200W x 125D x 48H mm
- Weight: ≈0.6kg
*Specifications are subject to change without notice.
