Redback 2 Relay (High Current) Control Box For Redback Touch System

Part of the series PA Accessories.

View all products in this series

---

Designed to be used in conjunction with Redback Touch programmable touchscreen wallplates, as a standalone system or as an expansion hub for the A 6505A, this control hub consists of 2 high current (16A) relays with isolated sets of voltage free contacts that close on operation.

When used with a Redback Touch wallplate, the connection to the wallplate is via Cat5/6 cable up to 50m away. All commands from the programmed plate are then transported to this hub and the appropriate RS232/485 command signal is then output to the corresponding pluggable terminals. This could be used for controlling an AV system in a classroom, lecture theatre, board room etc. The serial outputs could be used to control a projector and amplifier. Requires 24V DC power which in turn powers the connected wallplate.

Size: 75W x 133D x 47Hmm.

The relay hub can be used in three ways:
1. Direct connection via Cat5/6 UTP cable to a Redback Touch wallplate, which is programmed to control relay activation.
2. As an expansion to the A 6505A hub, increasing the total number of relay contacts from 3 to 15. In this configuration, one of the serial outputs of the A 6505A would be used to control the A 6510. These hubs should be located as close together as possible.
3. As a standalone serial controlled relay hub for use with any third party system utilising RS232/485.

Features

• Compatible with Redback Touch wallplates or third party serial control systems.
• RS232/485 input.
• Two high current 16 Amp relay outputs.
• Operation indicators on all relay outputs.
• Wallplate connection via standard UTP cabling.
• Powered by 24V DC input (passes power to wallplate – power supply sold separately)

100% developed, designed & assembled in Australia.
Since 1976 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 45 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Backed by an industry leading 10 Year Manufacturer Warranty.
Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

Specifications

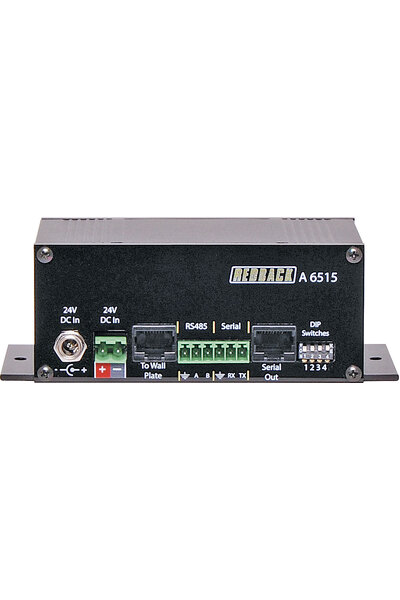

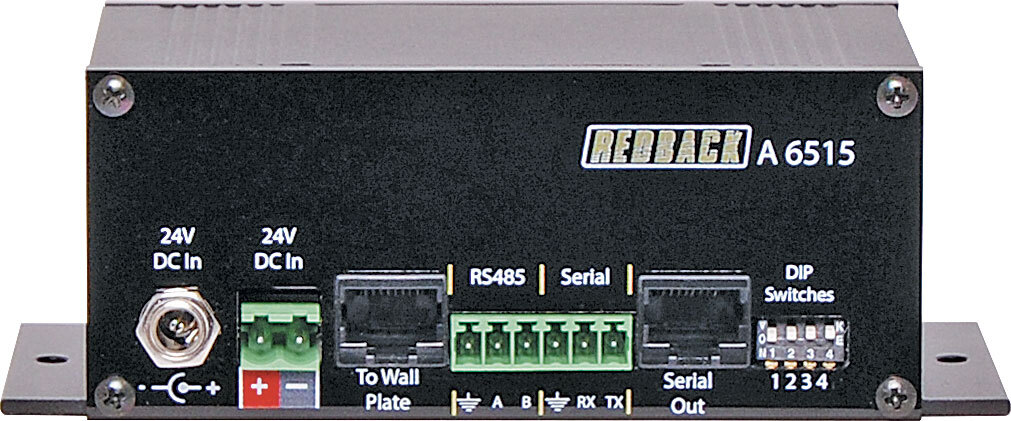

• Input Connectors
• Power connection (24V DC): 2.1mm DC socket, Euroblock terminal
• Data: RJ45 8P8C
• Output Connectors

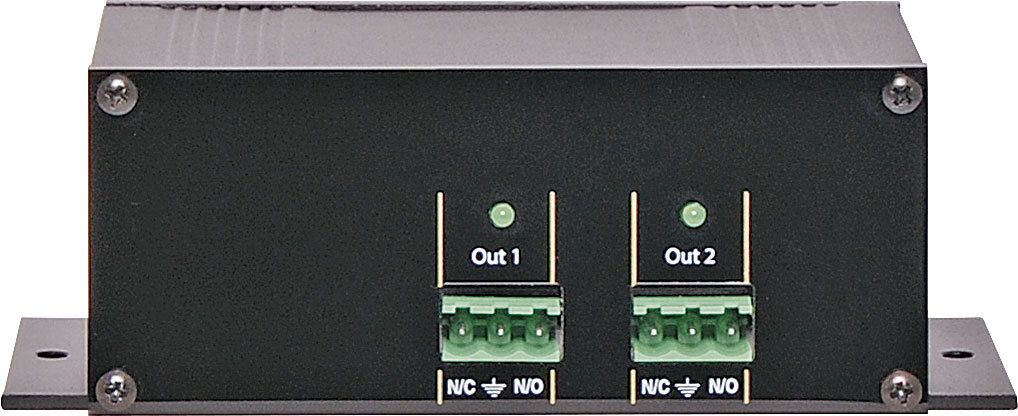

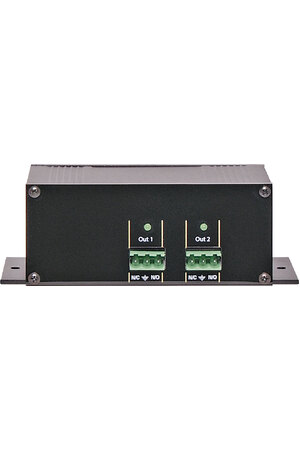

• Relay (1-2) Switched Out: Screw Terminals
• NOTE: Relays rated for low power, typical 24V DC switching
• Mechanical
• Dimensions: 75W x 133D x 47H.
• Current Draw: 30mA (idle) 80mA (Max)
• Weight:0.19kg

*Specifications are subject to change without notice.
