Redback 2 Input Mini Mixer With Vox Muting (XLR)

Part of the series PA Mixers & Controllers.

View all products in this series

---

This compact 2 input mixer accepts either a line level signal or balanced microphone signal for each input. The output signal is suitable for feeding an amplifier with either a line level input or balanced microphone input. Input one will vox mute input 2. Line level inputs and outputs are via stereo RCA sockets. Balanced microphone inputs and outputs are via 3 pin XLR. Any signal applied to input 1 will vox mute any signal applied to input 2. This is regardless of the type of signal, ie line input signal feeding input 1 will vox mute a mic input signal feeding input 2.  Volume controls are provided for inputs 1 & 2  plus vox sensitivity. When vox is active a switched 24V DC is provided via a 2 way euro block for controlling external devices ie: volume control override relays. Requires 24V DC power supply (sold separately).

Features

• 2 inputs to 1 output
• Suitable for mic or line signals
• Input 1 vox mutes input 2
• Separate controls for volume and vox sensitivity
• Vox operated 24V DC output for control of external devices
• Compact design
• 24V DC operation via 2.1mm DC jack (plugpack sold separately)
• Australian designed and manufactured

100% developed, designed & assembled in Australia.
Since 1976 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 40 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Backed by an industry leading 10 Year Manufacturer Warranty.
Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

Specifications

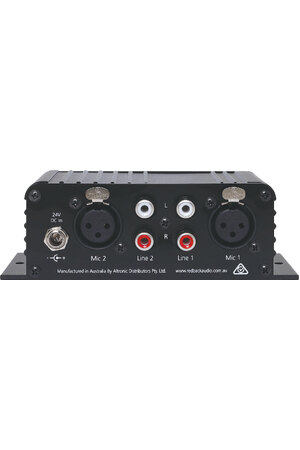

• Inputs: 3 pin XLR balanced line, stereo RCA line level

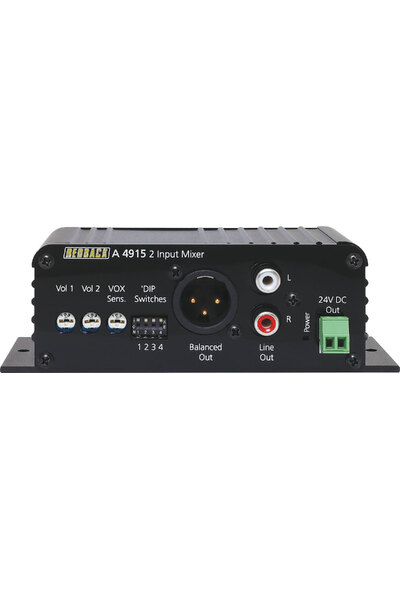

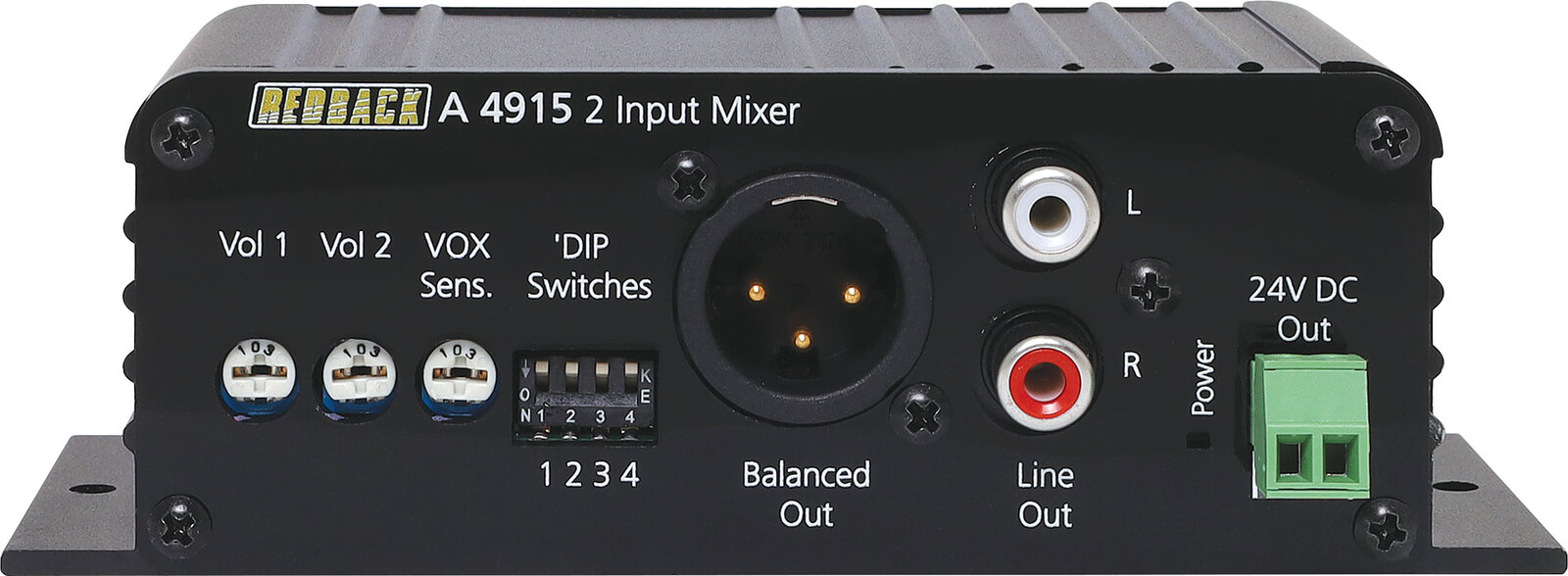

• Outputs: 3 pin XLR balanced line, stereo RCA line level
• Controls: Volume 1, Volume 2, Vox Sensitivity
• Power: 24V DC (power supply sold separately)
• Dimensions: 25H x 105W x 81D mm

*Specifications are subject to change without notice.
