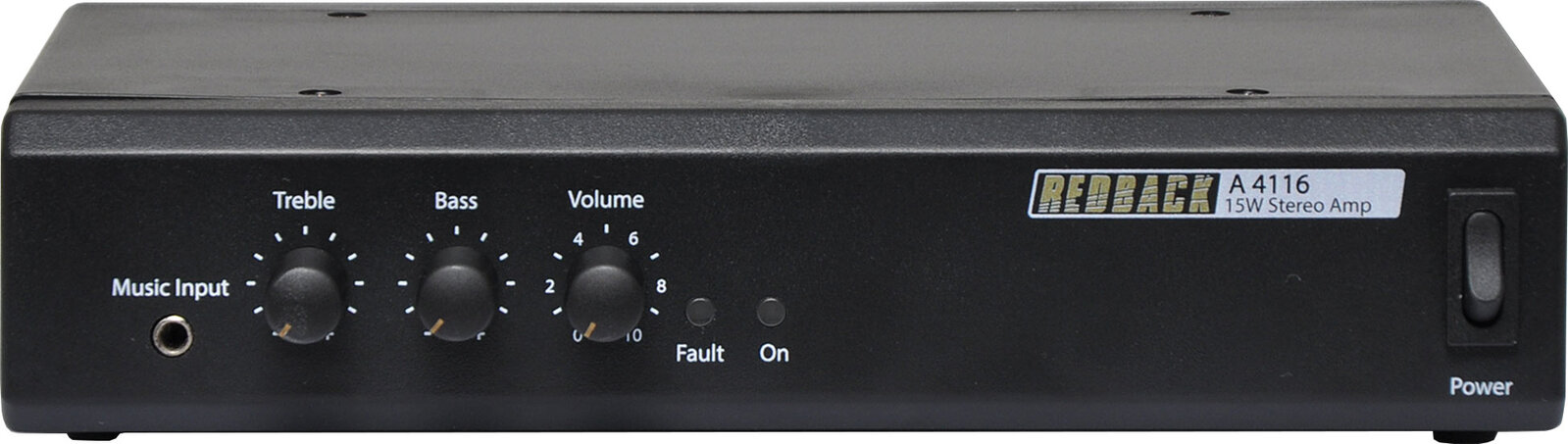

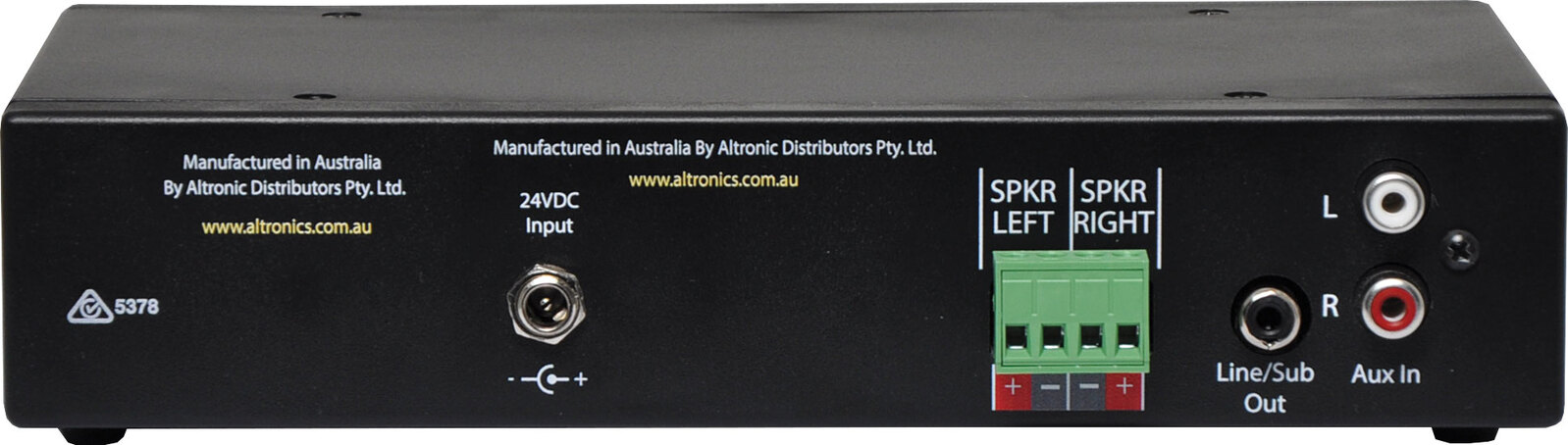

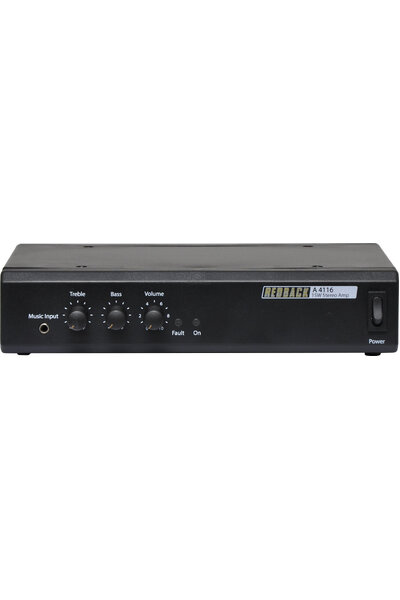

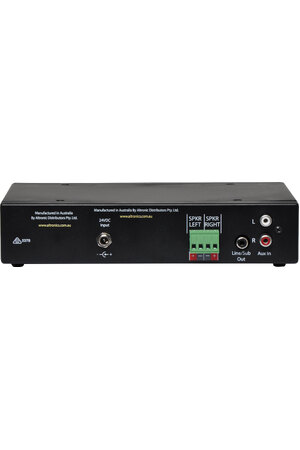

Redback 15W 8 Ohm Stereo Public Address (PA) Amplifier

Part of the series PA Amplifiers.

View all products in this series

---

This super compact stereo amp is ideally suited to classrooms, boardrooms, boutiques, reception areas or anywhere a small functional stereo system is required. Offering outstanding stereo performance and featuring both stereo RCA aux and a 3.5mm front panel input, plus a 3.5mm headphone jack. For ease of use, inputs are included on both the front and rear panels.Dual RCAs are provided on the rear panel, whilst a 3.5mm jack is provided on the front panel (ideal for MP3 player, phone or Bluetooth transmitter connection). When a source is connected to the 3.5mm input on the front panel the auxillary input is muted. 240V AC operation. Suits 4 to 16 ohm speakers.

Features

• 15W RMS per channel
• 1 music input (3.5mm)
• 1 auxiliary input
• 4-16Ω output
• 240V ac operation
• Includes Power Supply

Rack Mounting
To mount any of the Redback half rack products into a 19" wide racking system, the H 4990 bracket is required. If a single product is mounted into the H 4990, then a metal (H 4992) or plastic (H 4993) infill panel can be fitted for a neater finish.

100% developed, designed & assembled in Australia.
Since 1976 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 45 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Backed by an industry leading 10 Year Manufacturer Warranty.
Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

Specifications

• Power output: 15 watts RMS into 8Ω
• Distortion: < 3% @ 1kHz
• Output line: 4 - 16Ω
• Signal to noise ratio Typically 75dB below rated output.
• Frequency response: 60Hz - 15kHz, -3dB
• Line inputs sensitivity: 1V
• 240V AC power: IEC C8 power connector
• Power supply: 240V AC
• Indicators: Fault, Power
• Controls: Volume, Bass: ±10dB @ 100Hz, Treble: ±13dB @ 10kHz
• Dimensions: 210W x 140D x 44H mm
• Weight: ≈0.5kg

*Specifications are subject to change without notice.
