Part of the series PA Speakers.
View all products in this series

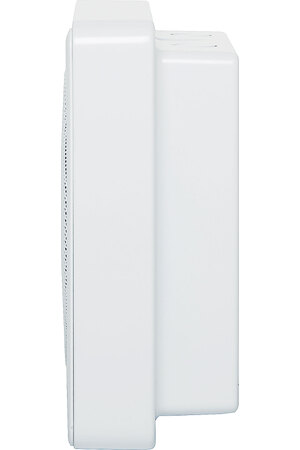

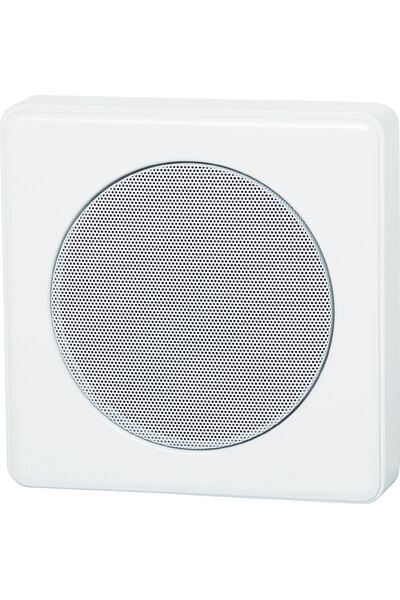

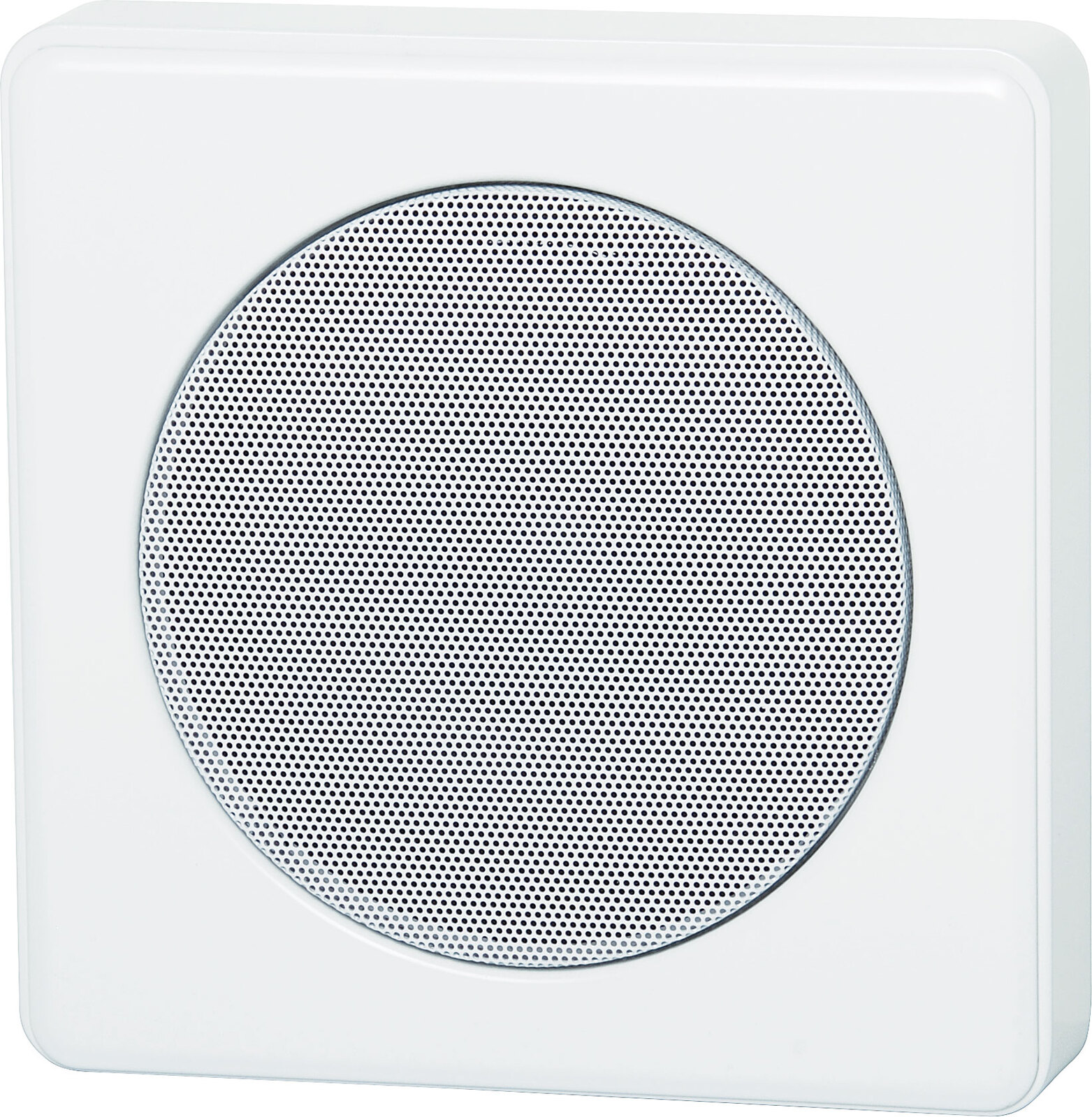

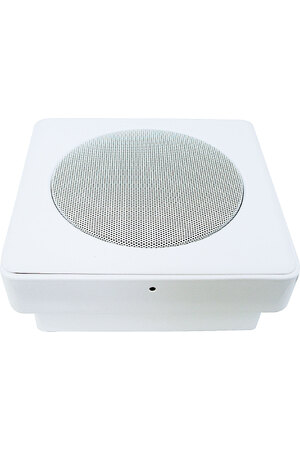

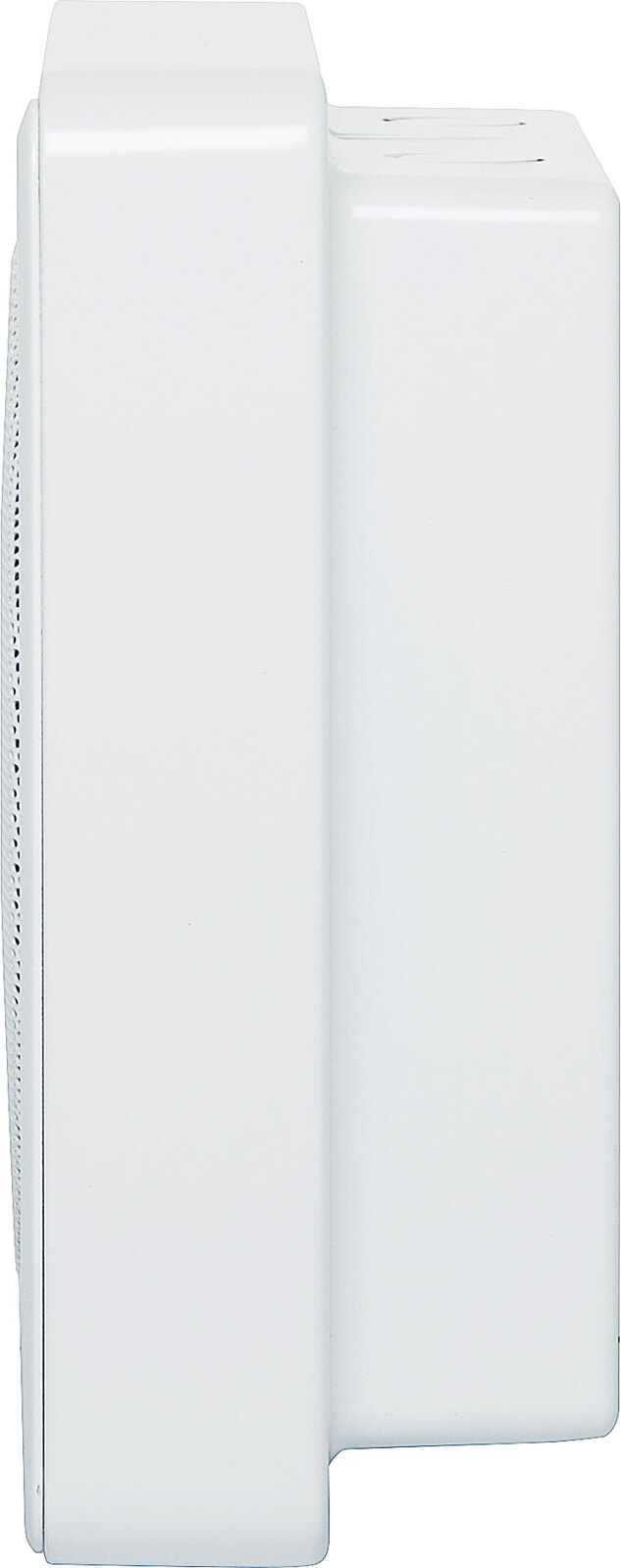

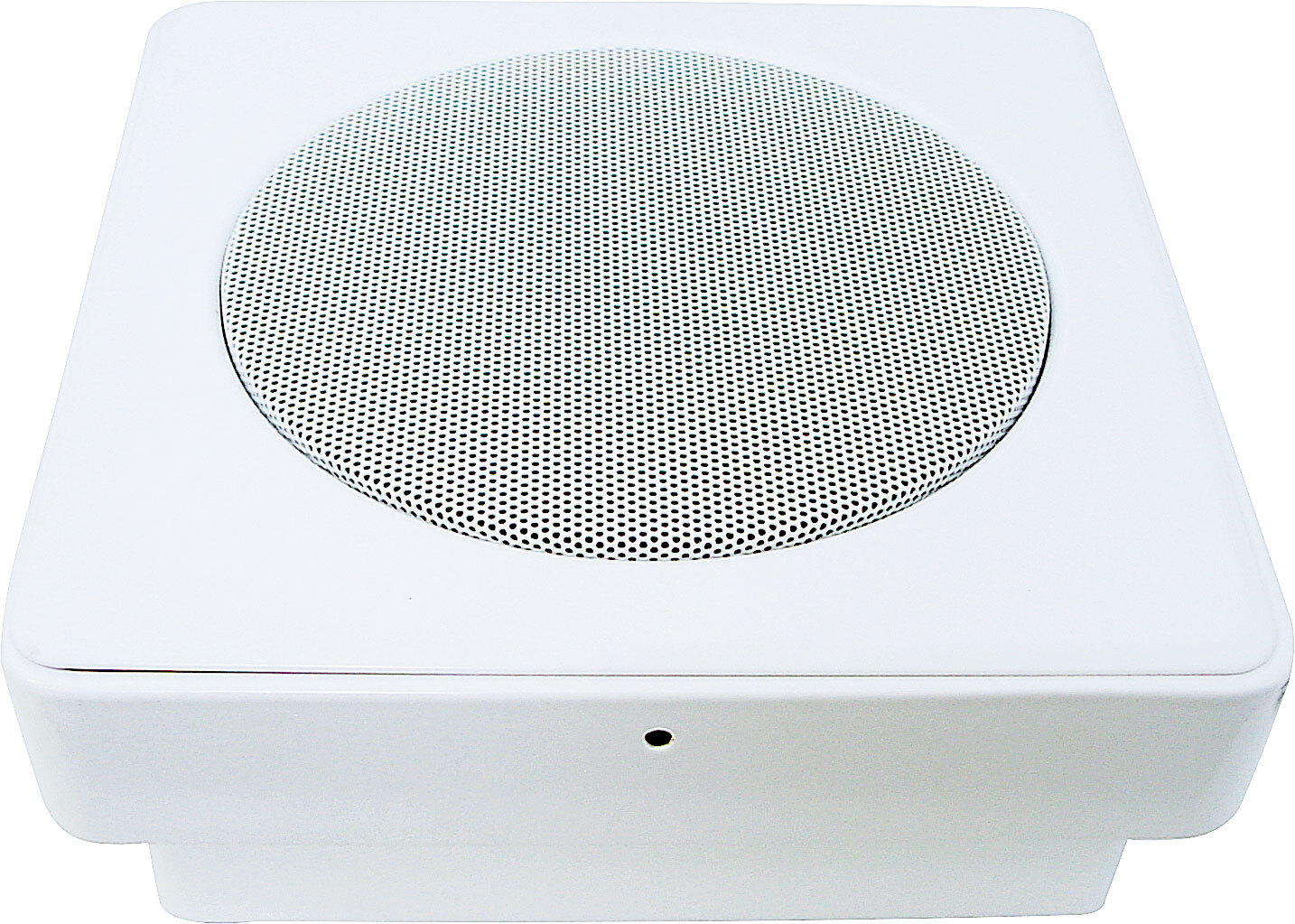

This cabinet is designed to withstand the physical abuse of vandals. Access to the 130mm dual cone speaker requires the use of an allen key, minimising unauthorised tampering and/or theft. Features multiple conduit entries. Suitable for use in prisons, train stations, bus stations, pedestrian malls, etc.
Backed by an industry leading 5 Year Speaker Performance Warranty.
This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.
Specifications
- Electrical
- Power Taps: 0.25, 0.75, 1.5, 3, 6W
- SPL 1W @ 1m: 93dB @ 1kHz (+/- 2dB)
- SPL Max: 99dB @ Full power octave bandwidth
- Frequency Response: 180Hz - 18kHz
- Dispersion (1kHz/2kHz): 170  / 120 
- Directivity Q Factor (1kHz): 4.2
- Connection: 4 way terminal block + 22uF bipolar capacitor
- Mechanical
- Grille Material: Steel mesh grille
- Outer Construction: Steel front, die cast aluminium back box
- Driver Construction: Polypropylene woofer, mylar dome tweeter
- Overall Weight: 1.8kg
- Colour: White powder-coat (RAL 9016)
- Environmental
- Operating Temperature: -15 C to +60 C
- IP Rating: IP52
- *Specifications are subject to change without notice.
Downloads
EASE Data Files BrochureSKU | ALT-C0886 |
