Part of the series PA Speakers.
View all products in this series

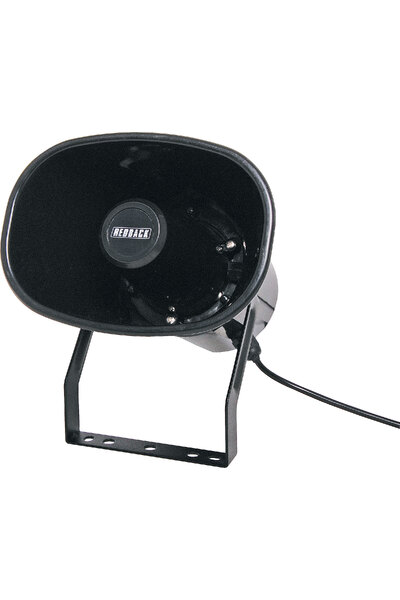

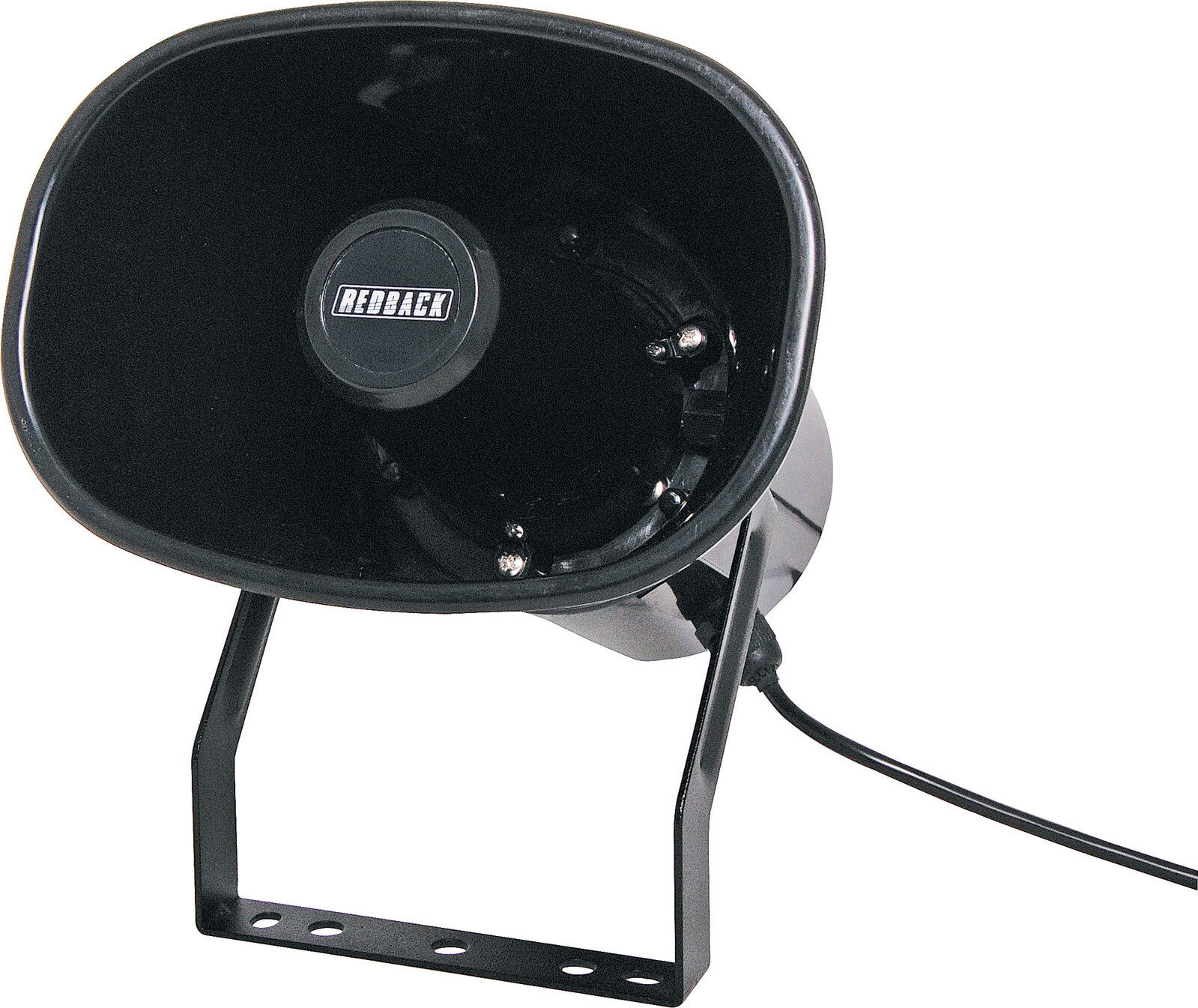

A black 100V line horn speaker designed for commercial PA installations. Exclusive design incorporates a dog leg mounting bracket which eliminates the need to separate the horn from the bracket during installation.
A real time & money saver! Traditional horn speaker brackets have to be removed, screwed to the wall surface, and then bolted back onto the horn speaker. The ‘dog leg’ bracket on these units eliminates all of that labour, allowing enough clearance to fit a drill under the horn speaker body. Primarily used for distributed paging systems where a high degree of speech intelligibility and program clarity is paramount.
Typical applications include schools, train and bus stations, airports, car parks and plant rooms. Power taps selectable via rear switch. Fitted with 22uf bipolar isolation capacitor to permit line monitoring function when employed with EWIS installations. A four core loop through lead is provided. Fitted with nickel plated chrome hardware.
This design is protected by patent and design registrations and is only available from Redback®.
Features
- Exclusive bracket design for fast installation
- Weather resistant
- UV stabilised ABS construction for long life, even in full sun
- Superb speech & music reproduction
- Excellent sound dispersion & response
- EWIS line monitoring system compatible
- 5 year warranty
Backed by an industry leading 5 Year Speaker Performance Warranty.
This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.
Specifications
- Power taps: 1.25, 2.5, 5, 7.5, 10W
- SPL 1W @ 1m: 104dB @ 1kHz (+/- 2dB)
- SPL Max Tap @ 1m: 114dB @ 1kHz (+/- 2dB)
- Frequency response: 340Hz-10kHz
- Connection: 4 core fly lead
- EWIS line monitoring: 22uF bipolar capacitor fitted
- Dispersion angle @ 1kHz: 160° vertical, 130° horizontal
- Driver construction: Aluminium voice coil former
- Mounting depth: 255mm
- Overall weight: 1.2kg
- Operating temperature: -20°C to +55°C
- Relative humidity: < 95%
- *Specifications are subject to change without notice.
Downloads
BrochureSKU | ALT-C2060 |
ISBN | 9321758194744 |
Publisher | Redback |
Product Type | PA Equipment, |
