Redback 100V Line to Low Level Adapter

Part of the series PA Mixers & Controllers.

View all products in this series

---

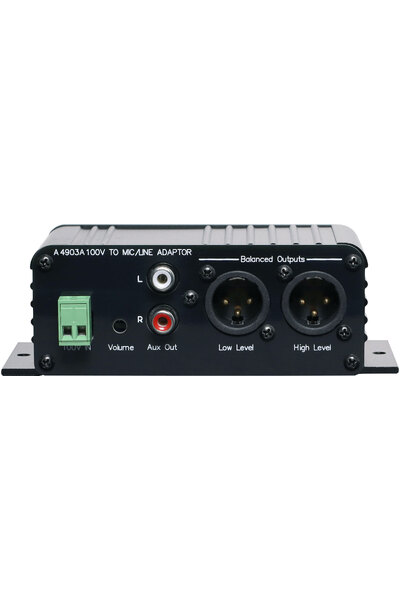

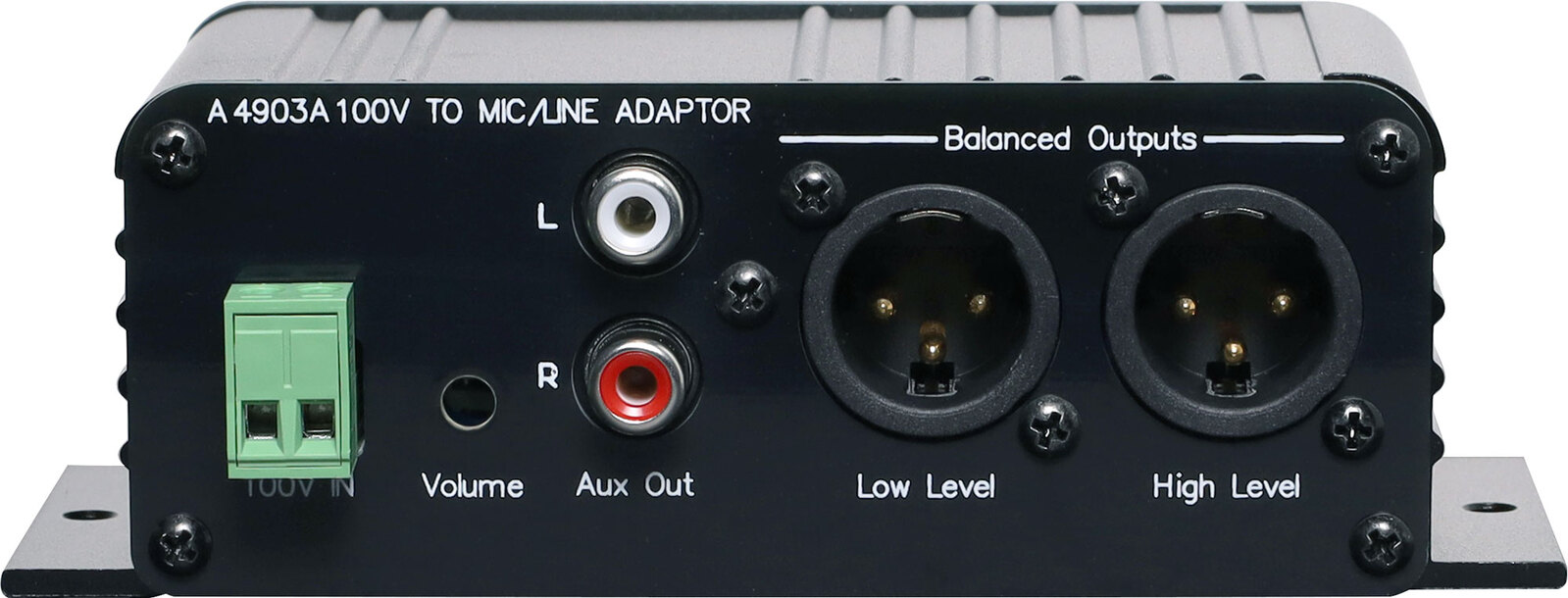

This useful adaptor receives a 100V signal from one amplifier and reduces the level down to either balanced mic level or line level to feed into the input of a second amplifier. Especially useful for expanding existing systems where additional amplifiers are being installed away from the signal source. This revised version adds an additional XLR output socket with a high level output.

Features

• Screw terminals for 100V input
• Microphone or line level balanced outputs (3 pin XLR)
• Line level unbalanced output (2 x RCA)
• Recessed volume control to prevent tampering
• Requires no power
• Minimal loading or signal loss
• Dimensions 133W x 45H x 55D mm.

Connection Diagram

100% developed, designed & assembled in Australia.
Since 1976 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 40 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Backed by an industry leading 10 Year Manufacturer Warranty.
Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.
