Redback 1 In to 4 Out Audio Distributor

Part of the series PA Mixers & Controllers.

View all products in this series

---

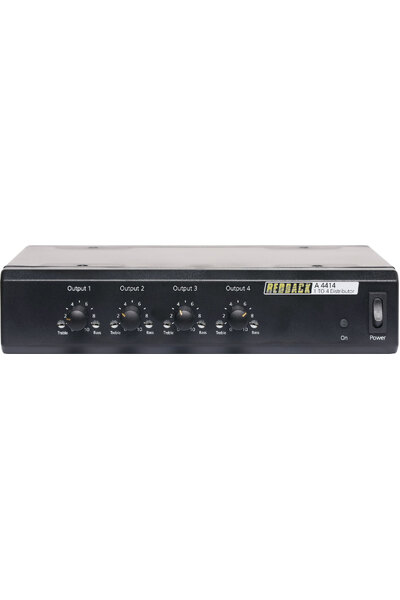

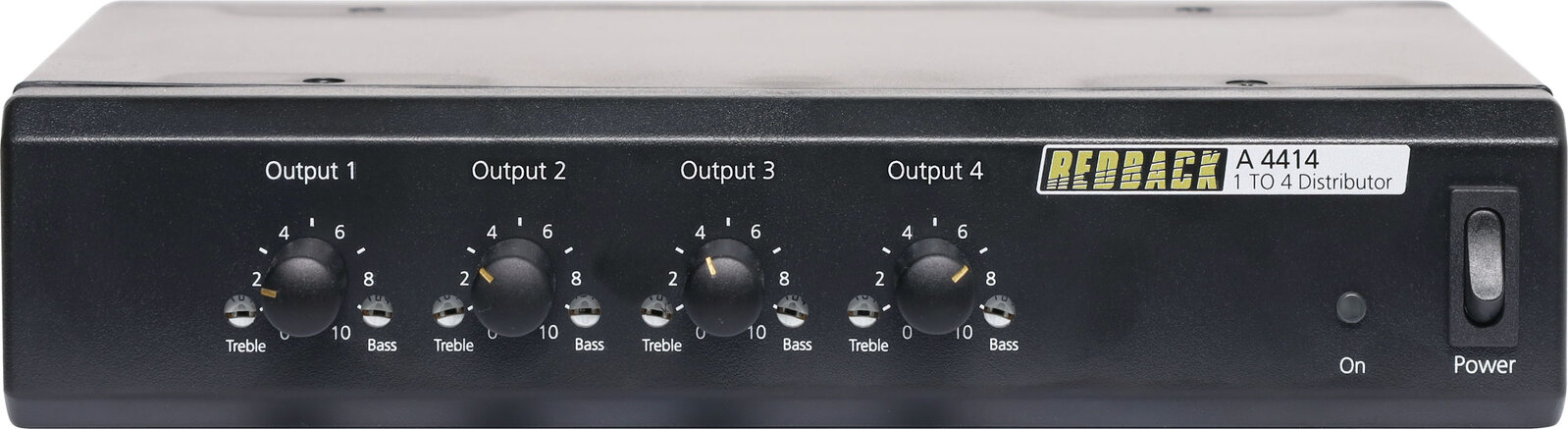

This compact half rack distributor comprises of a single 3 pin balanced XLR input to four 3 pin balanced XLR outputs. Great for splitting a single audio source out to multiple zones without interference between channels.  The input and all outputs can be configured individually for either mic or line level operation. Front panel volume and recessed treble and bass controls are provided for each output. A “loop" output 3 pin XLR socket is provided to connect additional units to increase the total number of outputs as required. It is housed in a half rack 1RU cabinet and powered by 24V DC power source (power supply included).

Features

• Balanced input and outputs
• 3 pin XLR connections
• Mic or line level operation for individual input/outputs
• Loop output for connection to multiple distributors
• Compact half rack 1RU cabinet
• 24V DC operation
• Australian designed and manufactured

100% developed, designed & assembled in Australia.
Since 1976 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 45 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Backed by an industry leading 10 Year Manufacturer Warranty.
Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

Specifications

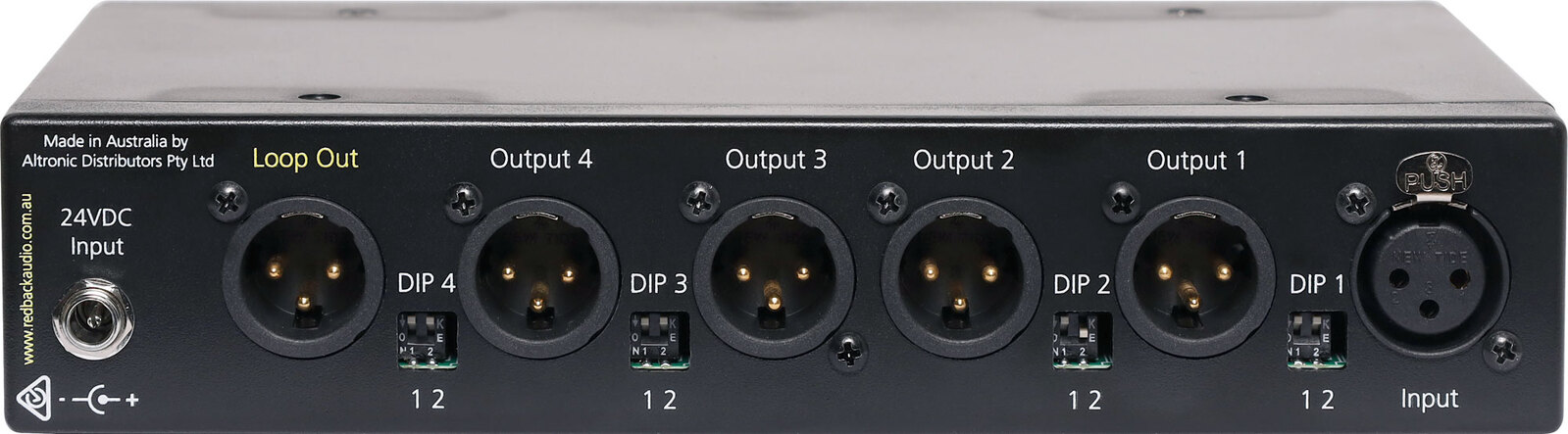

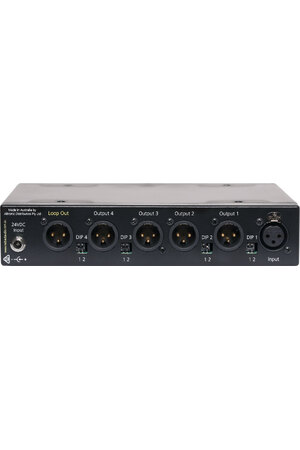

• Connections:
• Inputs: 1 x 3 pin XLR balanced female
• Outputs: 4 x 3 pin XLR balanced male
• Loop Output: 1 x 3 pin XLR balanced male
• Controls:
• Power switch
• Volume (outputs 1 to 4)
• Bass & treble adjustment
• Sensitivity selectors (rear mounted DIP switch)
• General:
• Power Supply: 24V DC @ 1 Amp
• Dimensions: 210W x 122D x 44H
• Weight: 0.4 kg

*Specifications are subject to change without notice.
