Raspberry Pi Zero 2 W Essentials Kit

Part of the series Raspberry Pi & Accessories.

View all products in this series

---

Raspberry Pi Zero 2 W is the latest product in our most affordable range of single-board computers. The successor to the breakthrough Raspberry Pi Zero W, Raspberry Pi Zero 2 W is a form factor–compatible drop-in replacement for the original board.

The board incorporates a quad-core 64-bit Arm Cortex-A53 CPU, clocked at 1GHz. At its heart is a Raspberry Pi RP3A0 system-in-package (SiP), integrating a Broadcom BCM2710A1 die with 512MB of LPDDR2 SDRAM. The upgraded processor provides Raspberry Pi Zero 2 W with 40% more single-threaded performance, and five times more multi-threaded performance, than the original single-core Raspberry Pi Zero.

Raspberry Pi Zero 2 W offers 2.4GHz 802.11 b/g/n wireless LAN and Bluetooth 4.2, along with support for Bluetooth Low Energy (BLE), and modular compliance certification. The board has a microSD card slot, a CSI-2 camera connector, a USB On-The-Go (OTG) port, and an unpopulated footprint for a HAT-compatible 40-pin GPIO header. It is powered via a micro USB socket. Video output is via a mini HDMI port; composite video output can easily be made available via test points if needed.

Sharing the same form factor as the original Raspberry Pi Zero, Raspberry Pi Zero 2 W fits inside most existing Raspberry Pi Zero cases.

Official case includes three lids - a solid lid, a square cut out lid for GPIO pin access and a lid to suit the Raspberry Pi camera module.

MAXIMUM ORDER QUANTITY: 2pcs

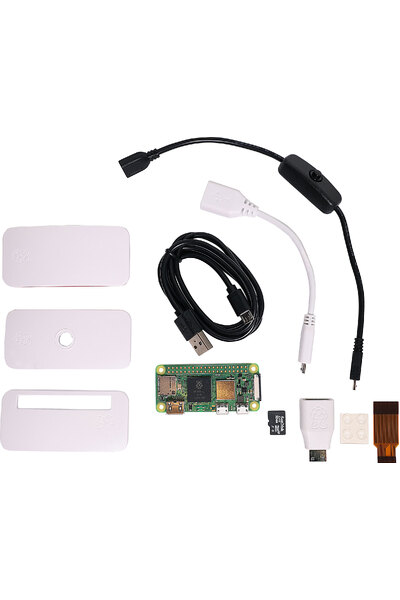

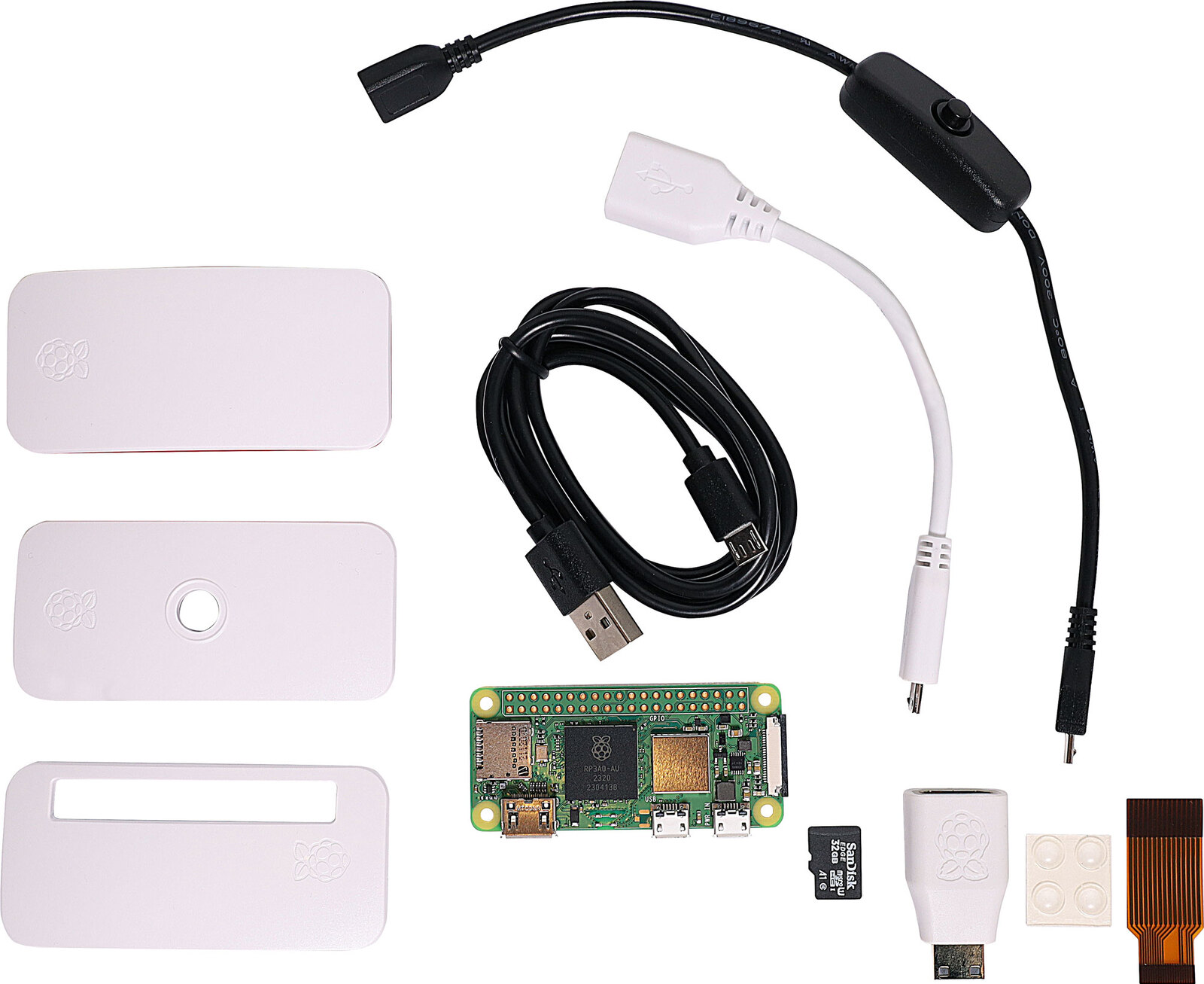

Kit Contents:
Raspberry Pi Zero 2 W Single Board Computer
Pi Zero Micro USB Power Cable
In-line Power Switch Cable for Pi Zero
Raspberry Pi Zero W Case / Enclosure (Official)
Raspberry Pi Zero W Camera Connector
Mini HDMI to Standard HDMI Jack Adapter (for Raspberry Pi Zero)
Micro USB OTG Host Cable (for Raspberry Pi Zero)
32GB MicroSD Card with NOOBS for all Raspberry Pi Boards
SD to USD Adaptor
