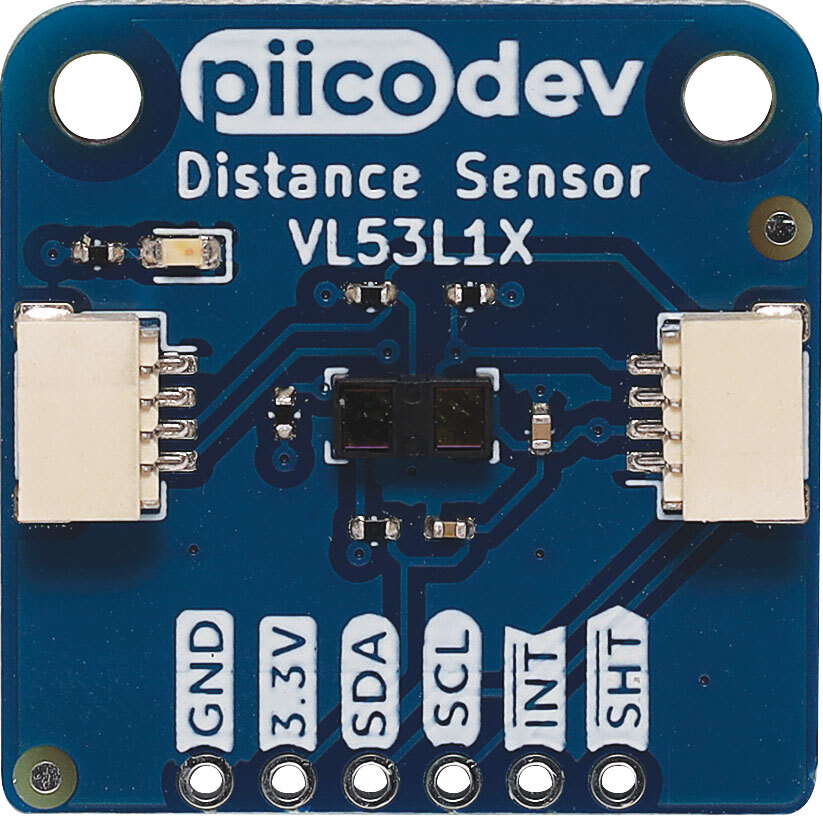

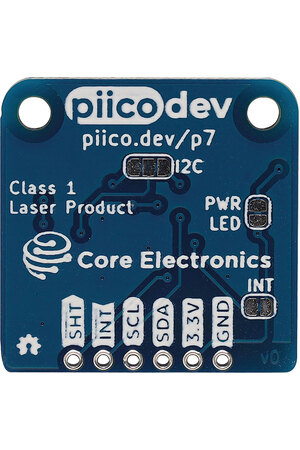

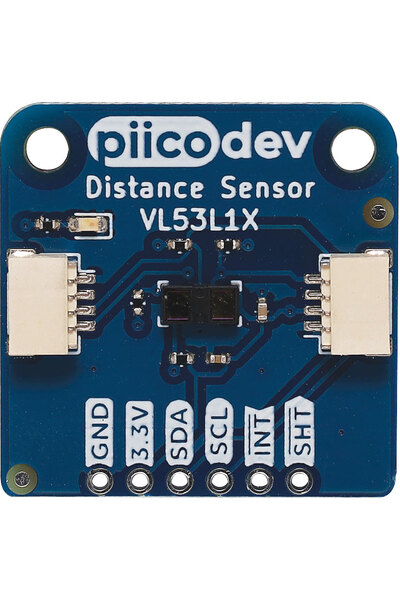

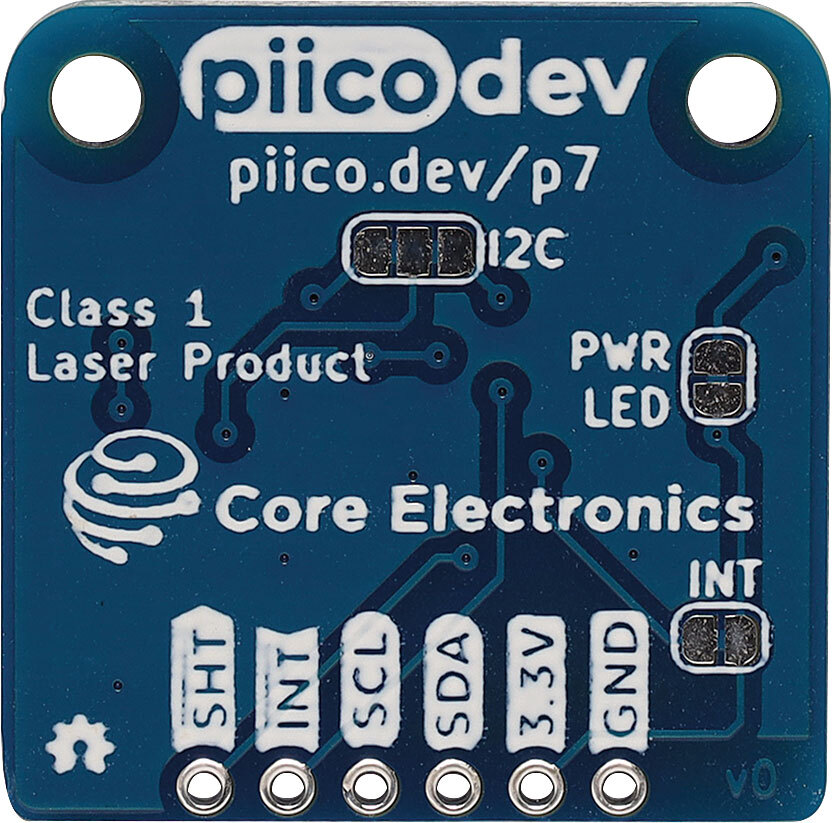

PiicoDev VL53L1X Distance Sensor
$20.95
| Buy in bulk & save! | |
|---|---|
| Buy 1 to 4: | $20.95 each |
| Buy 5 to 9: | $20.45 each |
| Buy 10 or more: | $19.90 each |
Available on orders $80 to $1000
Learn more
Available on orders $80 to $1000
Learn more
The PiicoDev® Distance Sensor is a long-distance laser-ranging sensor that uses Time-of-Flight (ToF) to accurately measure distances up to 4m.
Part of the series Raspberry Pi & Accessories.
View all products in this series
The PiicoDev® Distance Sensor is a long-distance laser-ranging sensor that uses Time-of-Flight (ToF) to accurately measure distances up to 4m. Once you have this sensor dialled-in you can measure distances accurately down to the millimeter. These sensors work best indoors.
Note: This module may arrive with a protective film over the sensor. Carefully remove this film before use for most accurate results.
Features
- Small size, millimetre precision
- Can be protected behind many cover-window materials.
- PiicoDev connector, compatible with Qwiic and STEMMA QT (3.3V only)
- 2.54mm breakout for breadboarding/prototyping
Specifications
- Default I2C address: 0x29
- Typical absolute ranging error ±20mm
- Typical repeatability: ±1%
- Dimensions: 25.4x25.4mm
- Mounting Holes: 2x M2.5
- Operating Voltage: 2.6 to 3.5V
*Specifications are subject to change without notice.
