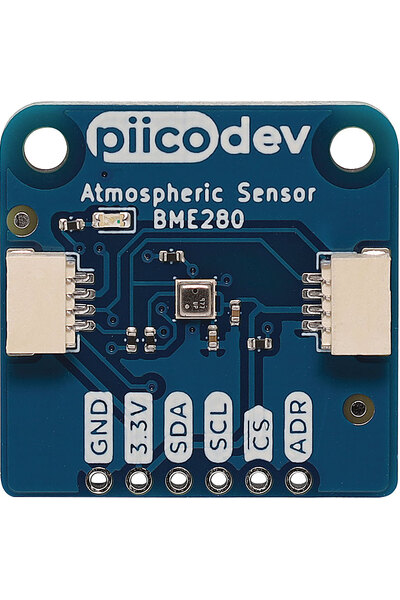

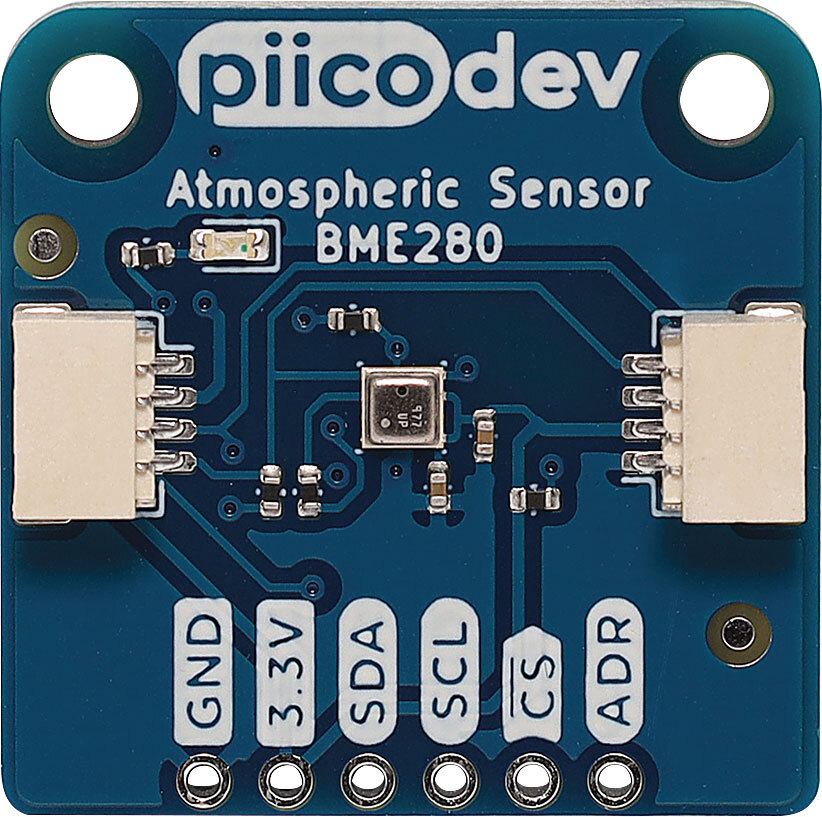

The PiicoDev® Atmospheric Sensor allows you to easily measure barometric pressure, humidity, and temperature. Use it to build your own weather station or perform experiments. Better still, you can connect to this sensor using our PiicoDev system - no soldering is required to connect the PiicoDev Atmospheric Sensor to other devices in the PiicoDev family.
Features
- Measure temperature, pressure and relative humidity
- PiicoDev connector, compatible with Qwiic and STEMMA QT (3.3V only)
- 2.54mm breakout for breadboarding/prototyping
Specifications

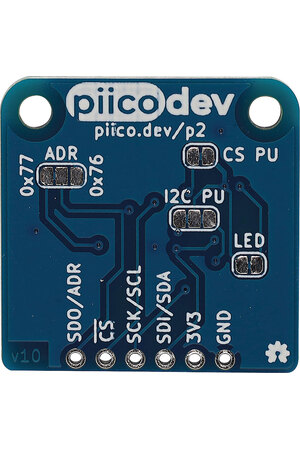

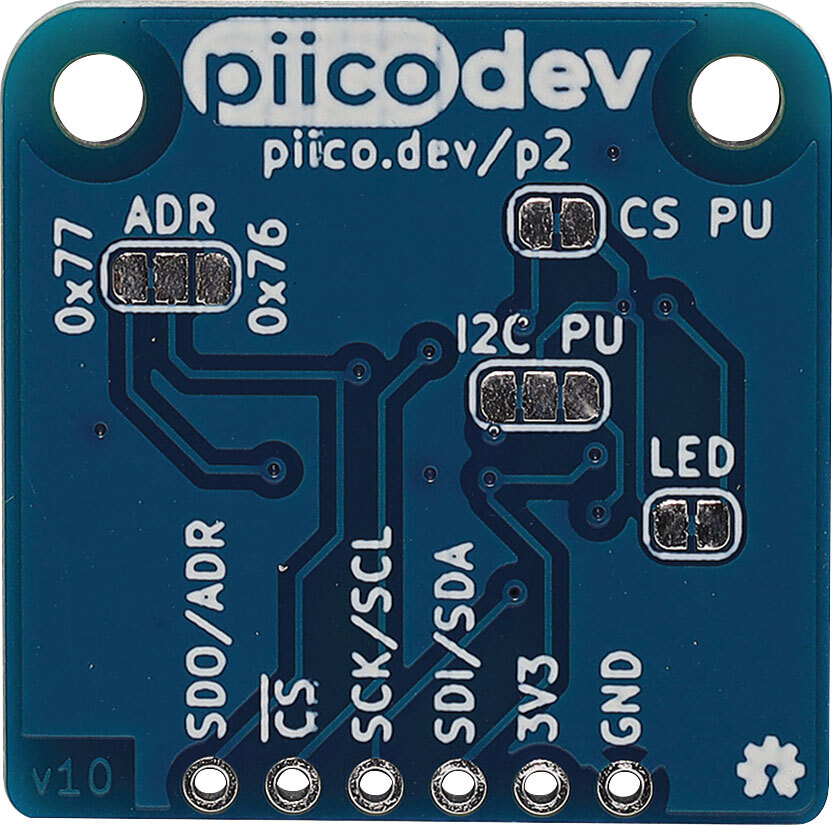

- Default address: 0x77 (jumper-selectable: 0x76)
- The BME280 measures:
- -40 to +85°C
- 0 to 100% Relative Humidity
- 300 to 1100 hPa
- Breakout connector: 3.3V SPI interface, 5V tolerant I2C interface (with pull-up resistors to 3.3V)
*Specifications are subject to change without notice.
