With this new servo driver users will be able to add the power of motion to projects. Users can control up to four RC Servos independently to create angular or continuous rotational motion. Use it to open and close a gate, beat a drum or pluck a string, or even equip your robot army with grabby claws!

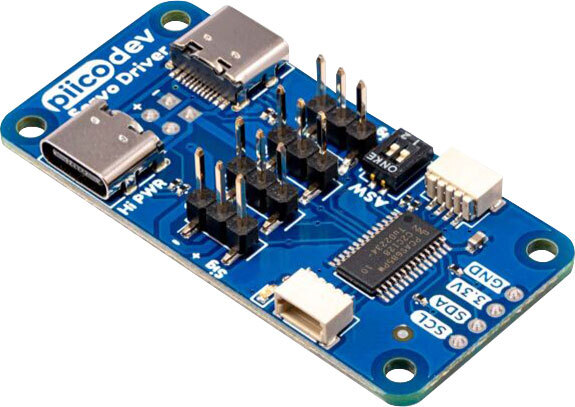

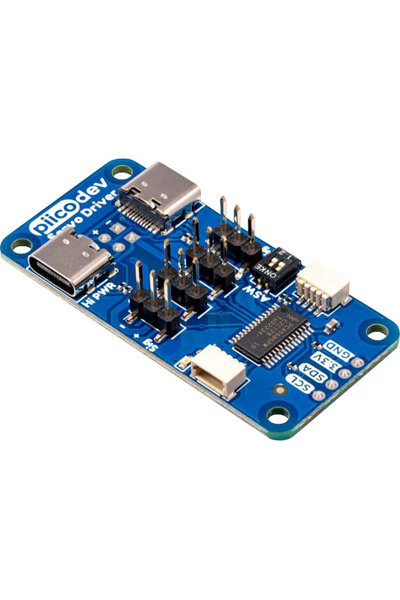

The PiicoDev Servo Driver features a dedicated PWM chip that takes care of generating the servo signals, all you need to do is tell it what angle or speed you want to set your servo. There are the regular daisy-chainable PiicoDev connectors so you can add this module to your project without soldering - and additional USB-C connectors to provide separate, high-current power to your servos. Better still, the Servo Driver has four addressing options set by the Address Switch (ASW) - you can daisy chain up to four Drivers together for a maximum of 16 servos! That ought to be enough for most projects.
Features
- Control up to four servos independently
- Daisy chain up to four Servo Drivers together for more complex projects
- No soldering necessary
- PiicoDev connector, compatible with Qwiic and STEMMA QT (3.3V only)
- 2.54mm breakout for breadboarding/prototyping
Specifications
- I2C Address: 0x44 (default) -> 0x47 (Reference the table on the back of the board)
- Supply Voltage: 3.3 V
- Dimensions: 52 x 25.4mm
- Mounting Holes: 4x M2.5
*Specifications are subject to change without notice.
