Part of the series Amplifier Receivers.
View all products in this series

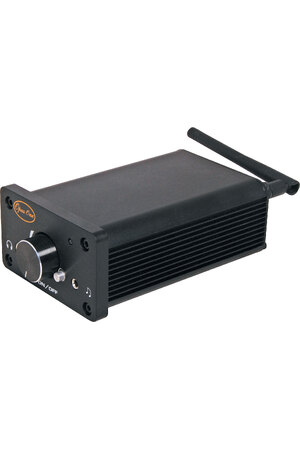

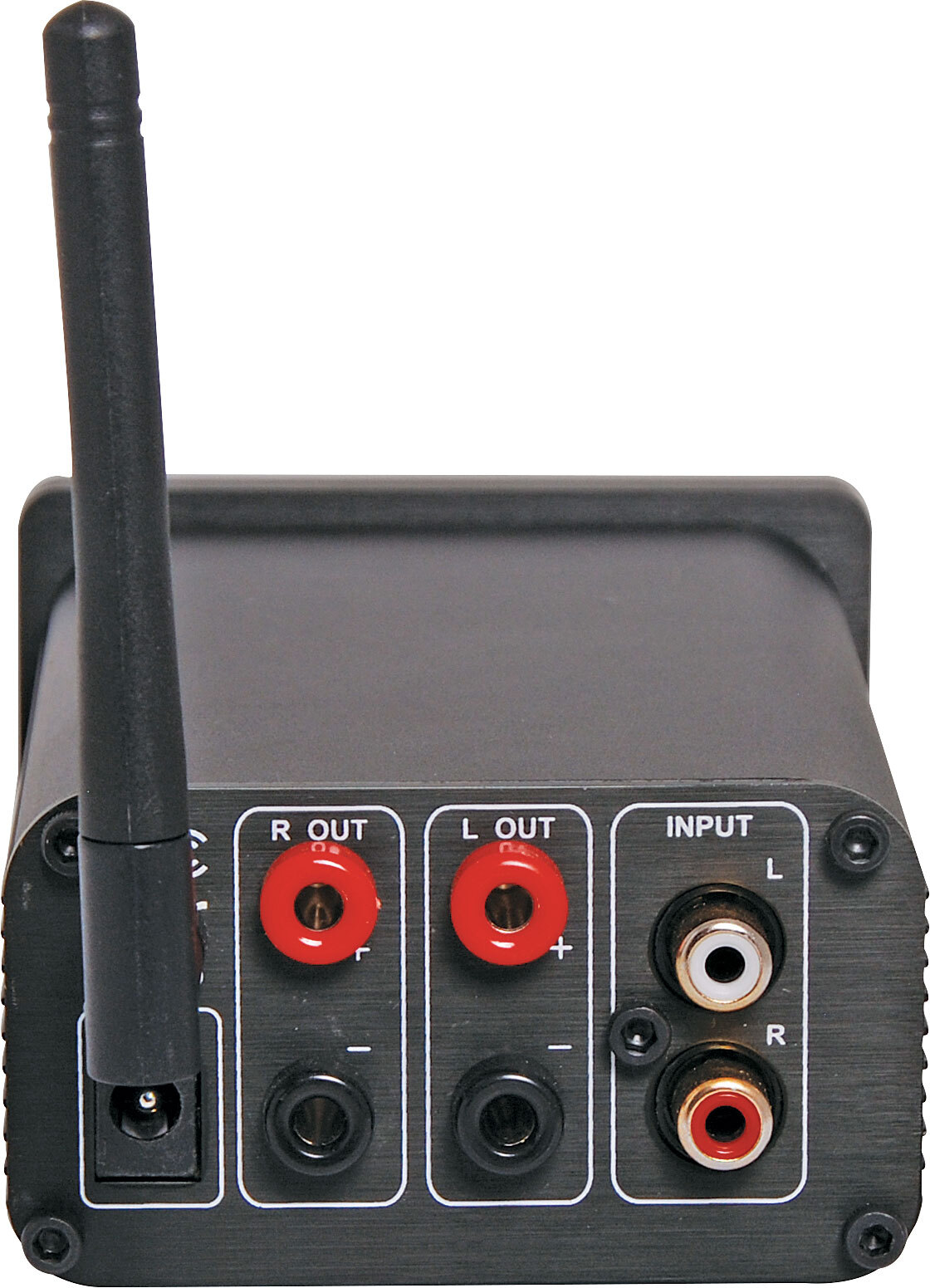

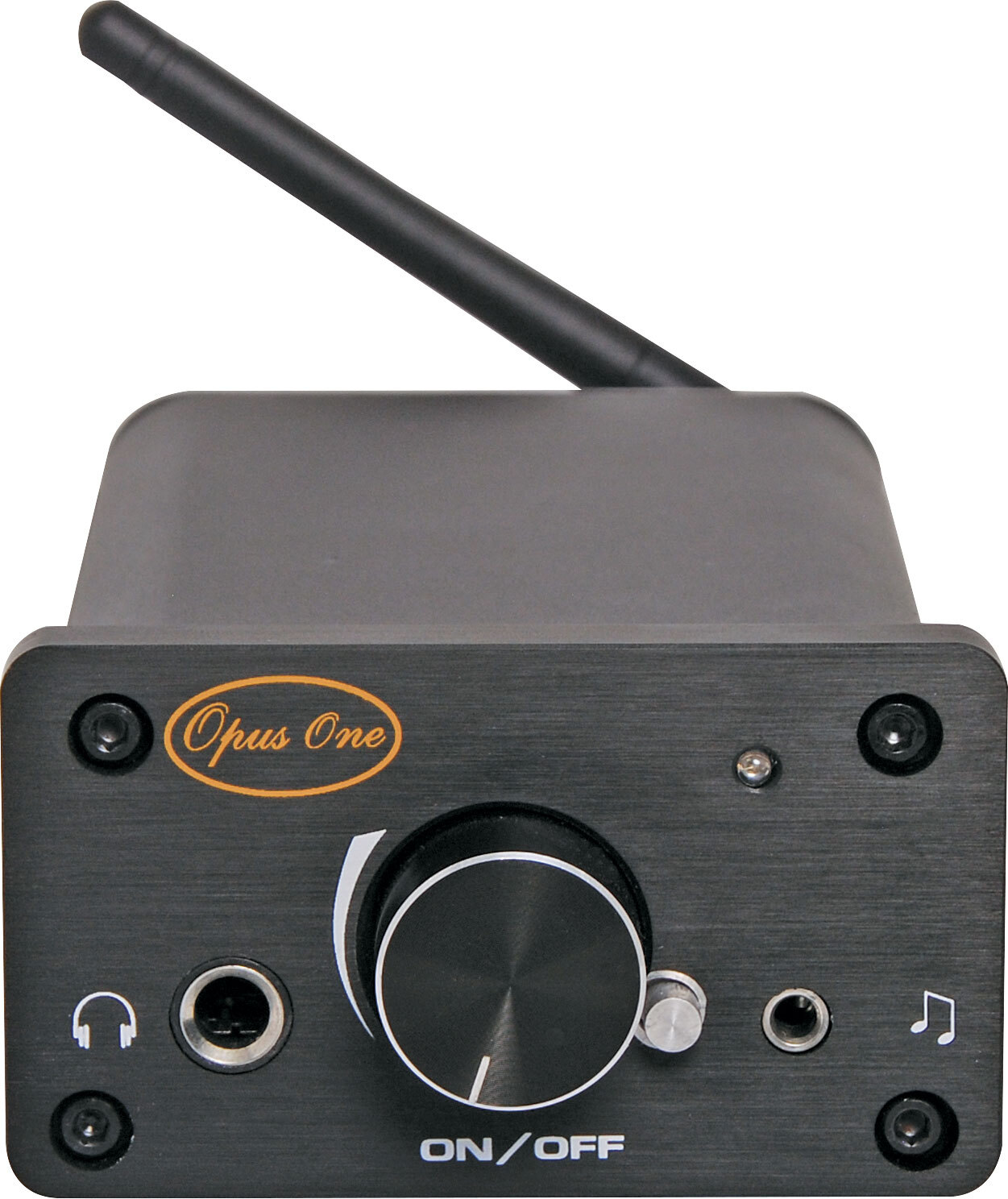

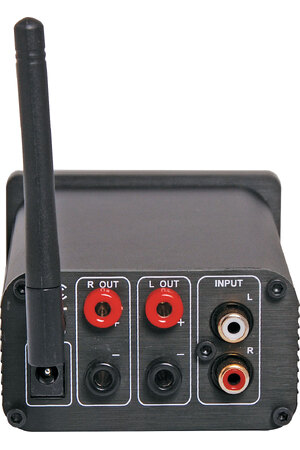

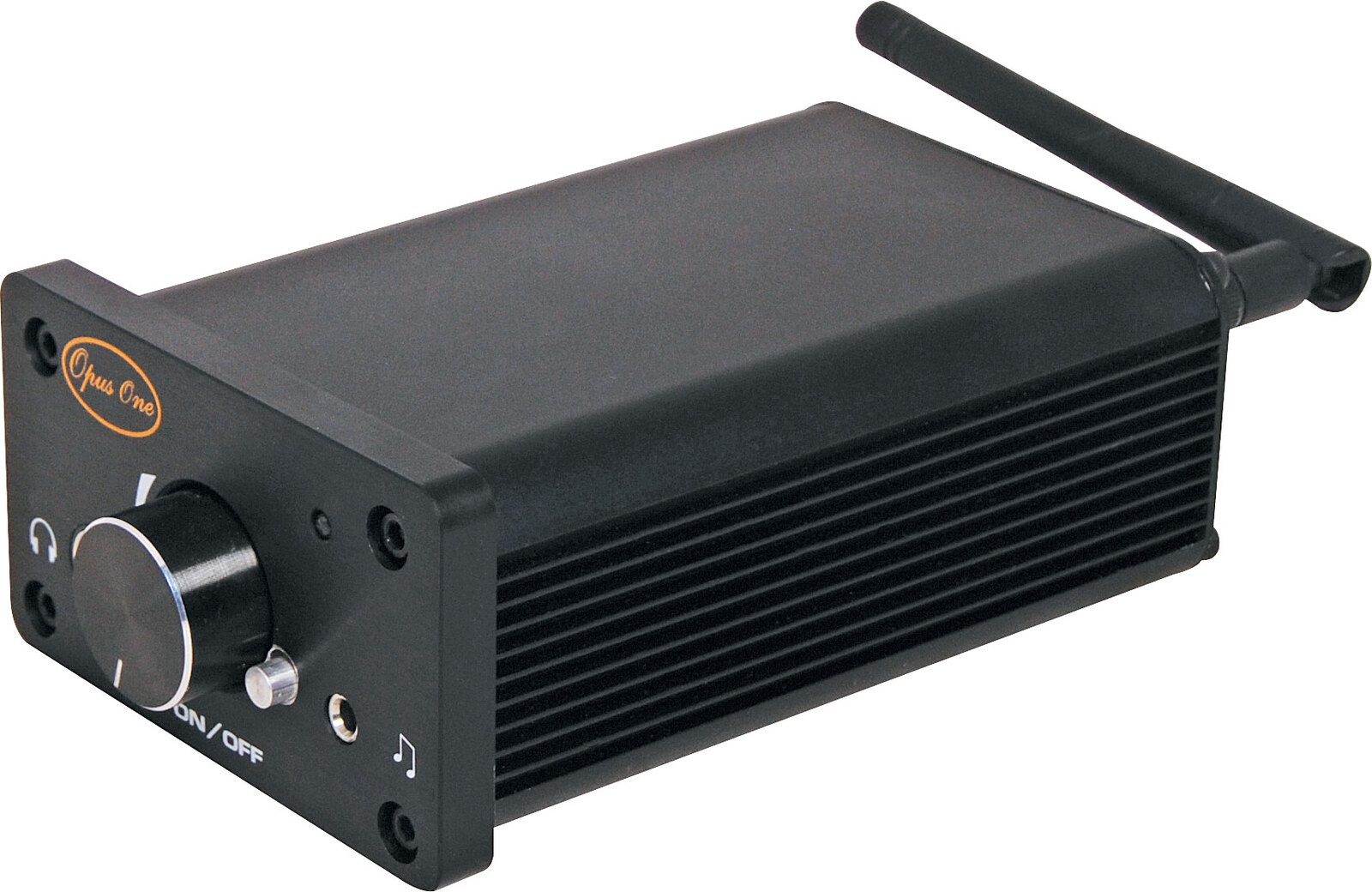

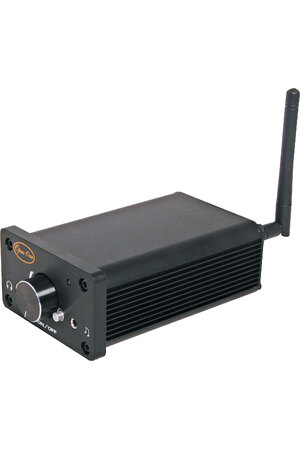

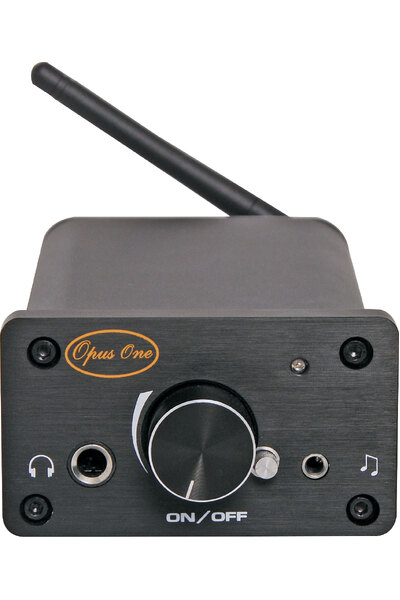

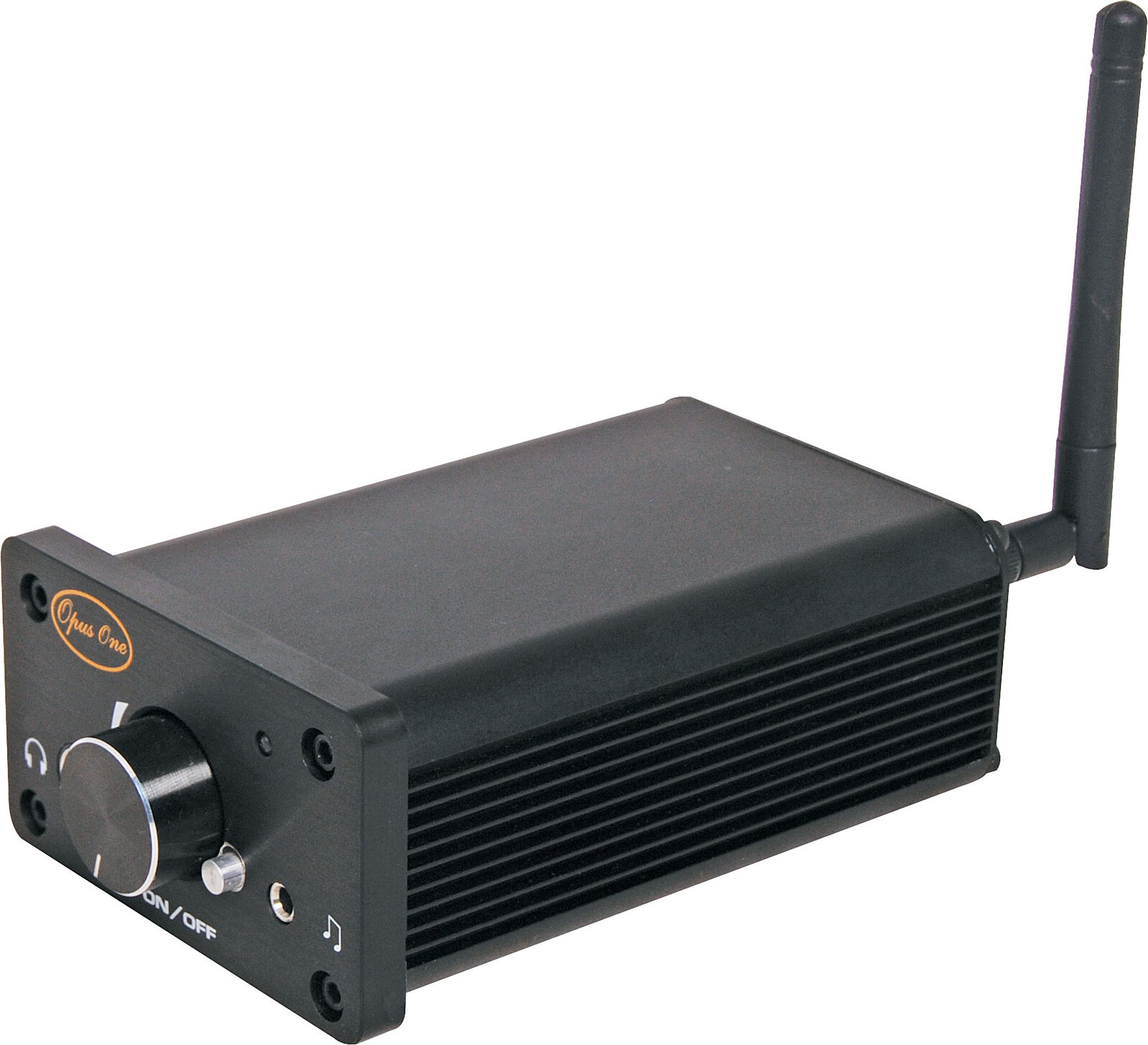

A compact, sturdy 2x50W RMS class-D stereo amplifier with Bluetooth and 3.5mm input on the front and RCA input on the back for easy connection. Features wireless Bluetooth for audio streaming from your phone, tablet or laptop. It offers class-AB performance from an efficient class-D design. Doubles as a headphone amplifier thanks to its front panel mounted 6.35mm jack. Includes power supply, banana plugs for speaker connection, 3.5mm headphone adaptor and 3.5mm to RCA lead. Size: 150D x 78W x 50Hmm (exc. antenna).
Specifications
- SPECIFCATIONS:
- Power Output: 50 Watts RMS x 2 into 8 ohm
- Total Harmonic Distortion: <0.01% @30W; <5.0% @50W
- Minimum Speaker Impedance: 6 ohm
- Signal-to-Noise Ratio: 103 dB, A weighted
- Input Impedance: 2k ohm ± 5%
- Frequency response: 20-20,000 Hz
- Channel Separation: 95 dB
- Efficiency: 85%
- Dynamic Range: >100 dB
- Electrical Requirement: 24V DC @ 5A centre pin positive
- Dimensions: 50H x 86W x 143D mm
- Weight: 455g
- BLUETOOTH SPECIFICATIONS:
- Bluetooth version: BT V5.0
- Analog input sensitivity: 1-2V RMS
- Bluetooth range: 30m (line of sight)
- Decoding: SBC, MP3, AAC
- Output: A2DP, AVRCP
*Specifications are subject to change without notice.
