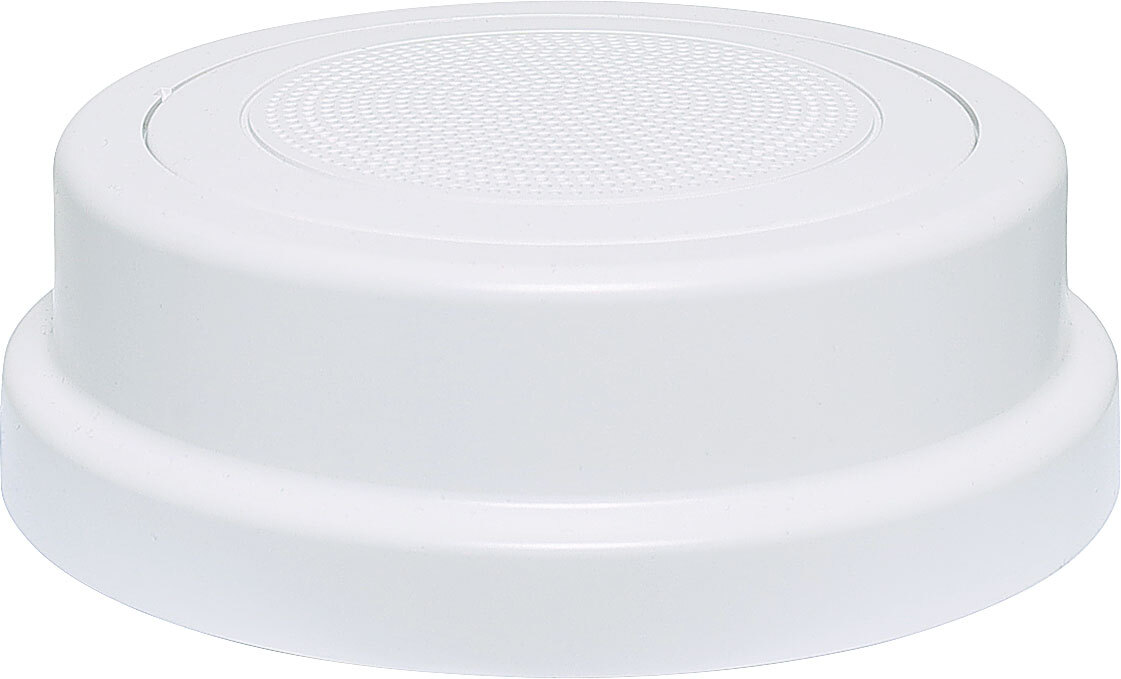

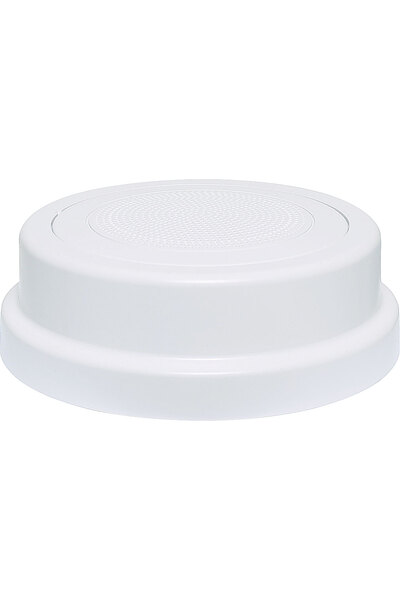

One-Shot 5W 100V 100mm (4") Fire Speaker White AS ISO7240.24

Part of the series PA Speakers.

View all products in this series

---

Designed to meet AS ISO7240.24:2018*. Fire version of our popular One-Shot C 0703 speaker. It features flame retardant housing material and a tuned PA driver to suit the new approval requirements. One-Shot design simply snap-fits in seconds to the surface mounting ring, reducing installation time considerably.

Please Note: An optional accessory for the speaker is the C 0699A adaptor plate which enables the surface mounting ring to be fixed to a standard conduit junction box without the need for drilling into the concrete slab.

*Active equalisation required to meet AS ISO7240.24 standard.


The Labour Saving One-Shot® Mounting System

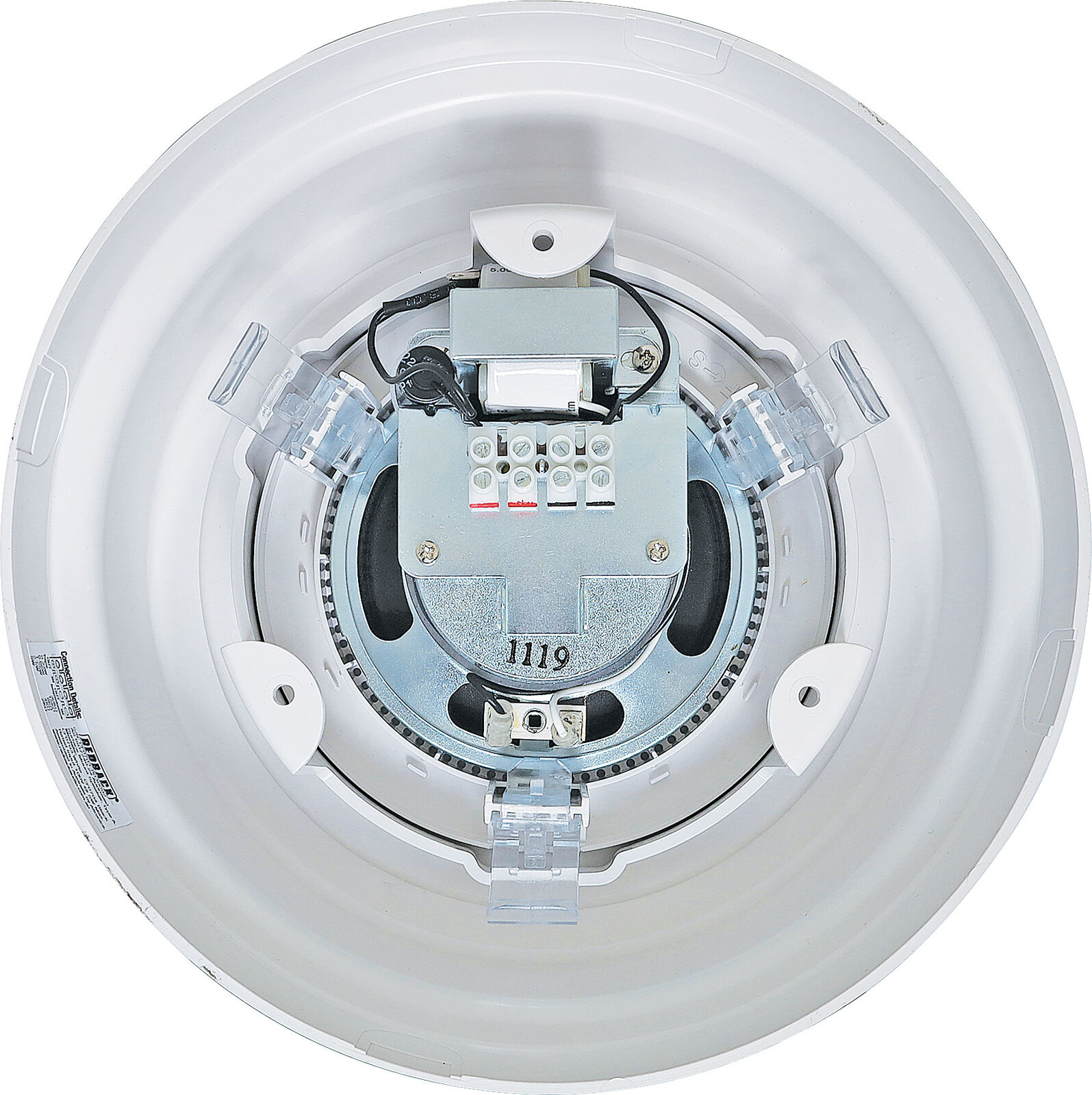

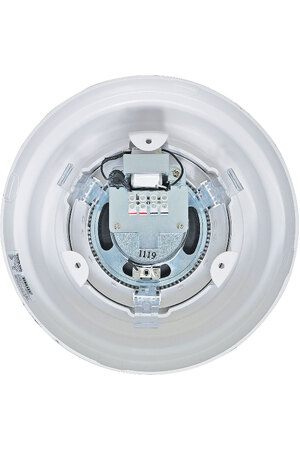

Redback® “One-Shot®” speaker units install in seconds providing substantial labour cost savings for the professional installer compared to traditional mounting methods. They simply snap fit to the outer mounting ring by means of the integral pressure clips. The snap clip material is formulated to retain long service life strength and spring action, ensuring a firm vibration free fit. Speaker cable entry can be either from the rear, or via surface mounted conduit (four 19mm conduit knockouts are provided). The neutral white RAL colour provides an architecturally unobtrusive finish to virtually any installation. The transformer is fitted with a 4 way wire protect screw terminal block. This is suitable for loop in, loop out cabling.

Features

• Designed to meet AS ISO7240.24 standard for fire & evacuation warning systems*
• Excellent speech intelligibility
• High quality speaker driver developed for BGM, paging and emergency warning applications
• Patented 2 way latching system reduces installation time.
• Fitted with 4 way wire protect terminal block for loop in, loop out wiring as required by Australian Standards.
• Fitted with supervisory capacitor for line monitoring.
• High impact enclosure & grille.
• Australian designed & assembled.
• 5 year warranty.

---

Activ-Fire listed product.
This speaker has been tested and certified by the CSIRO under the active fire protection product certification scheme. This is a register of approved fire protection equipment used in fire and evacuation systems.

---

Backed by an industry leading 5 Year Speaker Performance Warranty.
This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.

Specifications

• Electrical
• Rated Noise Power: 5 Watts (100V line)
• Power Taps & Impedance (100V line): 0.33W (30kΩ), 0.66W (15kΩ), 1.25W (8kΩ), 2.5W (4kΩ), 5W (2kΩ)
• Sensitivity: 88dB (1W @ 1m), 76dB (1W @ 4m)
• Maximum Sound Pressure Level: 95dB (5W @ 1m), 83dB (5W @ 4m)
• Frequency Response: 100Hz – 15kHz
• Coverage Angle (-6dB): 1000Hz: 140°, 2000Hz: 105°, 4000Hz 80°
• Environmental Type: A (for indoor applications as per standard)
• Line Monitoring: Yes, 22µF bipolar capacitor
• Applicable Cable: 2.5mm2 (14AWG) max conductor area
• Connection: 4 way screw terminal
• Mechanical
• Speaker Component: 100mm (4”) paper cone speaker
• Material:
• White flame retardant ABS grille and housing (Taitalac 8540T)
• Clear Flame retardant ABS spring clips (Makrolon 6557)
• Mounting Method: Surface Attachment
• IP Rating: IP 21C
• Dimensions: 210Ø x 67mm
• Weight: 0.81kg
• Environmental
• Operating temperature: -25°C to +55°C
• Relative humidity: < 95%
• Additional Installation Accessories
• C 0699 Conduit mounting plate
• *Specifications are subject to change without notice.
