Part of the series PA Speakers.
View all products in this series
Super Fast Installation. Save Time & Money!

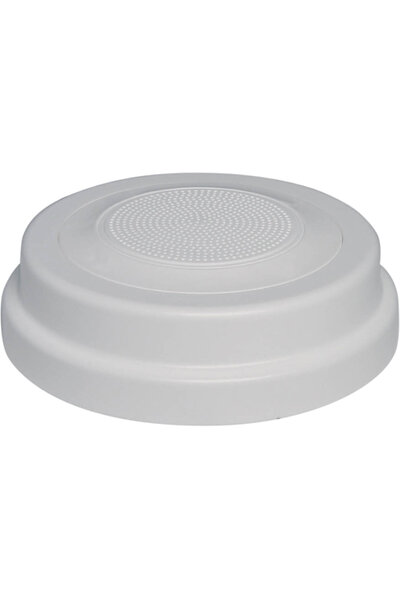

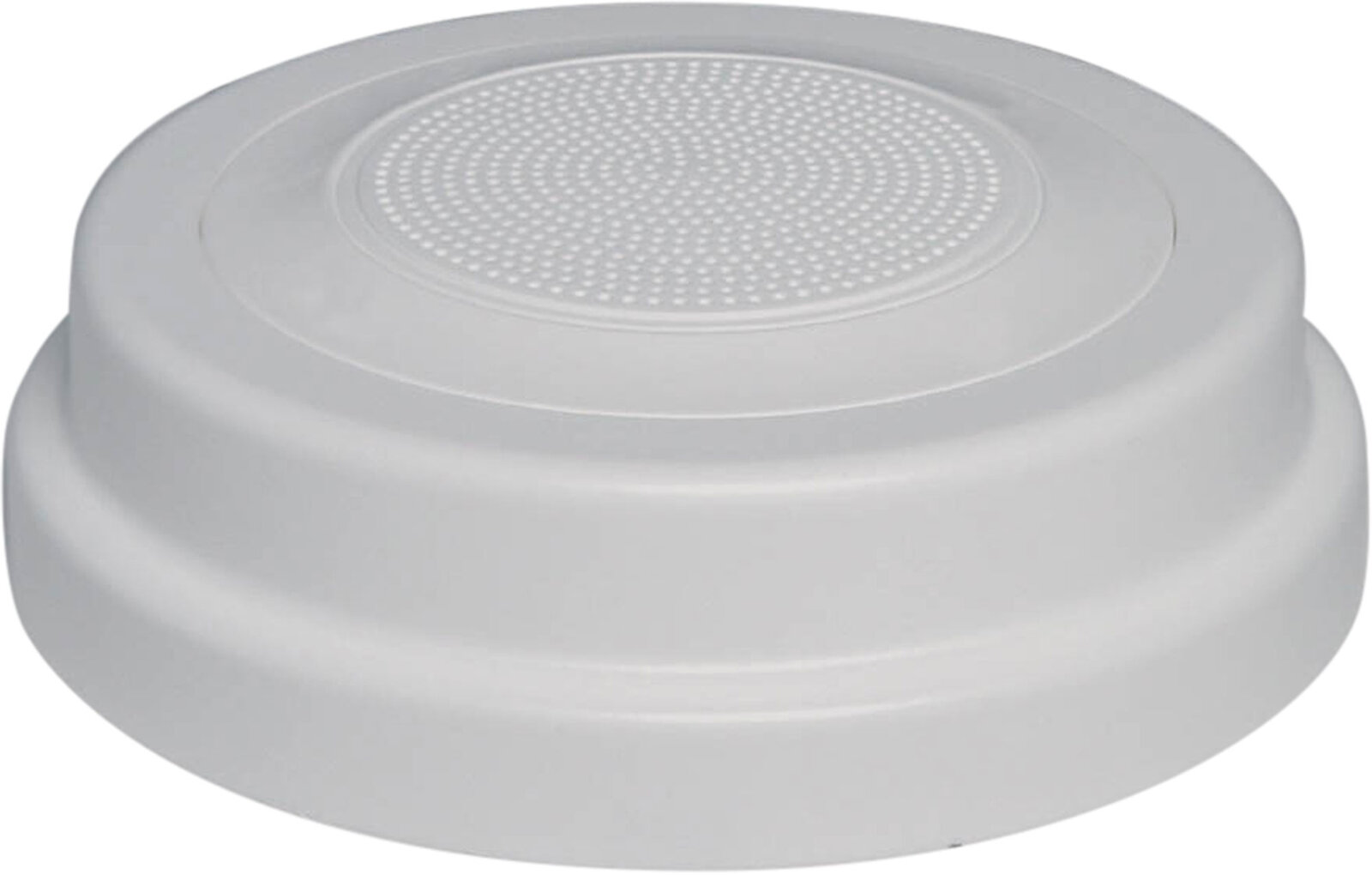

Saving valuable installation time the innovative One-Shot® range is moulded from industrial grade, high impact polystyrene and designed to mount directly to the underside of concrete slabs or inaccessible ceilings.
The housing is surface mounted with concealed internal fixings. Speaker cable entry can be either from the rear, or via surface mounted conduit (four 19mm conduit knockouts are provided).
An excellent choice for use in plant rooms, warehouses, shopping centres, malls etc.
The speaker is fitted with a 100V line multi-taped transformer & 4 way wire protected terminal strip with 22µF bipolar capacitor for line monitoring applications in EWIS systems.
These “One-Shot”® versions simply snap-fit in seconds to the surface mounting ring, reducing installation time considerably.
Please Note: An optional accessory for the speaker is the C 0699A adaptor plate which enables the surface mounting ring to be fixed to a standard conduit junction box without the need for drilling into the concrete slab.
Backed by an industry leading 5 Year Speaker Performance Warranty.
This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.
Specifications
- Power taps: 0.33, 0.66, 1.25, 2.5 and 5W
- SPL 1W @ 1m: 90dB
- Freq. Resp.: 100Hz-20kKz
- Connection: 4 way wire protect terminal + 22uF bipolar cap
- Overall Dimensions: 220mmØ x 72mm high.
- Note: All SPL figures are measured at 1KHz +/- 2dB.
- *Specifications are subject to change without notice.
