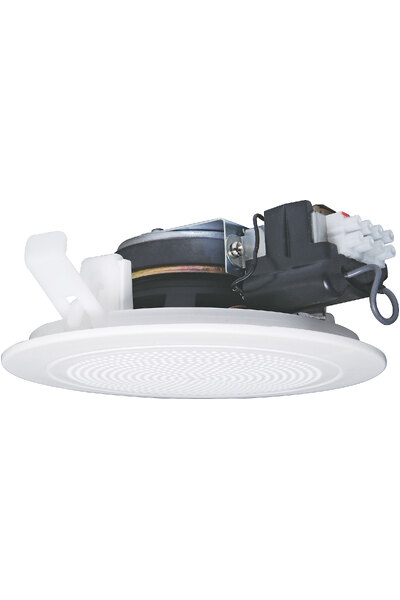

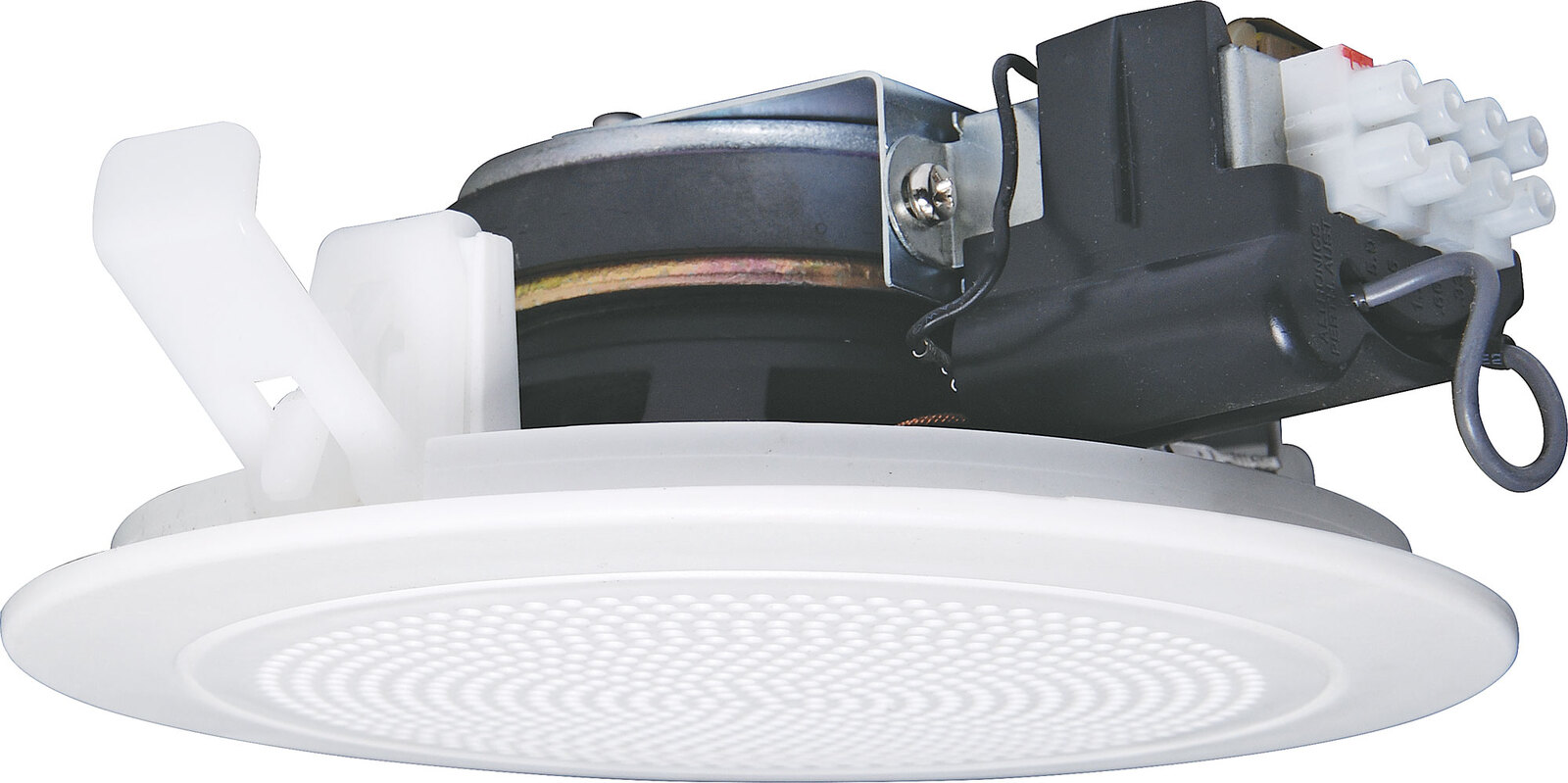

One-Shot 100mm (4") 5W 100V White Low Profile One-Shot Ceiling Speaker

Part of the series PA Speakers.

View all products in this series

---

Super fast installation & excellent speech intelligibility.

Redback® “One-Shot®” speaker units install in seconds. They simply snap fit to any 10-13mm thickness ceiling by means of the integral pressure clips. The labour cost savings for the pro sound installer are both obvious and substantial. The snap clip material is formulated to retain long service life strength and spring action, ensuring a snug vibration free fit to either gyprock tiles, mineral fibre tiles or fixed gyprock ceilings.

Fire Evac Type: Fitted with twin cone 100mm driver with 4 way wire protect terminal block & 22uf bipolar capacitor.

---

Backed by an industry leading 5 Year Speaker Performance Warranty.
This speaker is covered by our 5 Year speaker performance warranty. Engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.

Specifications

• Power taps: 0.33, 0.66, 1.25 , 2.5, 5W
• Frequency response: 100Hz - 15kHz
• SPL 1W@ 1m: 90dB
• Connection: : 4 way terminal block + 22uF bipolar capacitor
• Overall mounting depth: 60mm (less thickness of ceiling).
• Note: All SPL figures are measured at 1KHz +/- 2dB.
• *Specifications are subject to change without notice.
