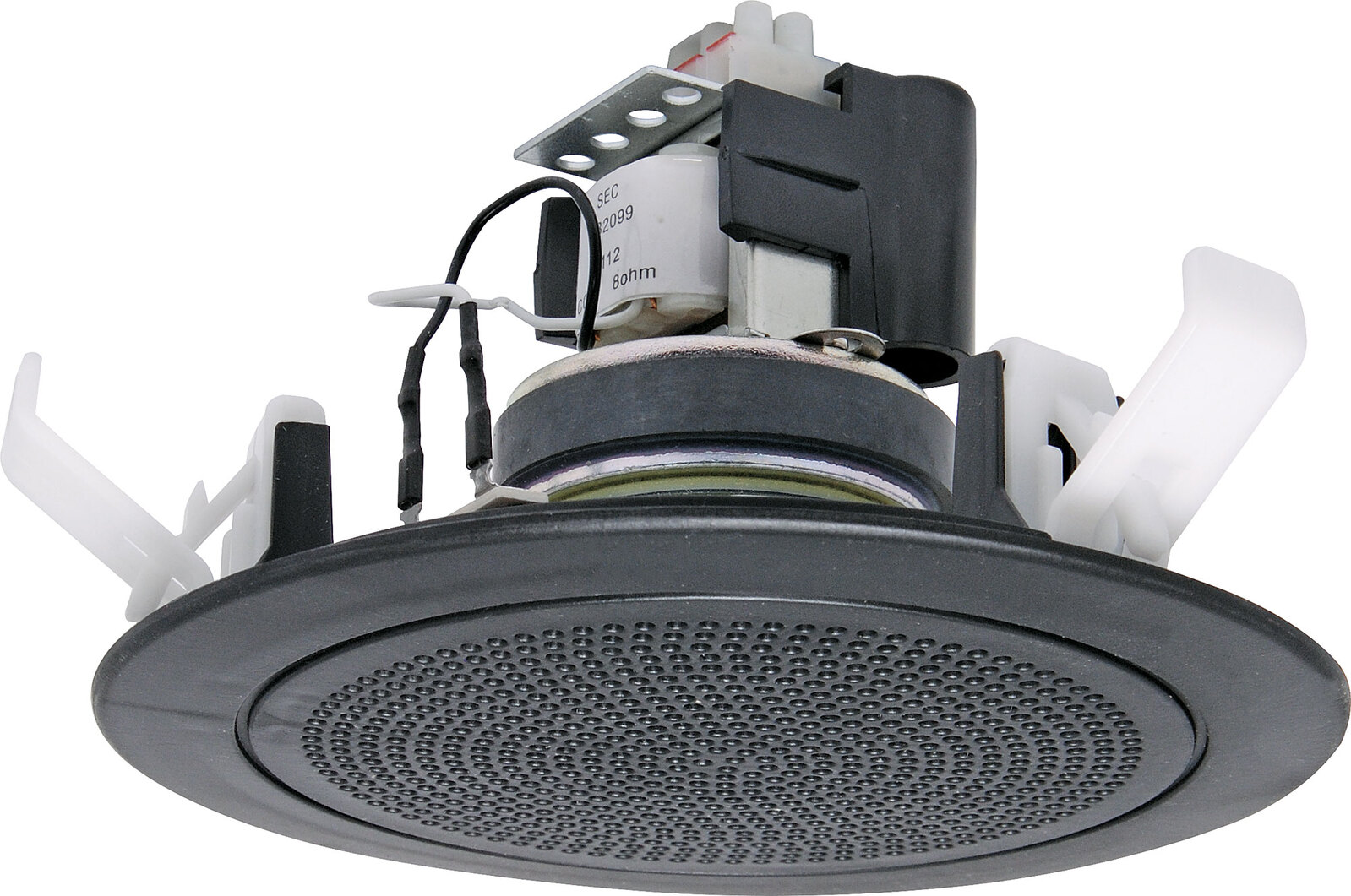

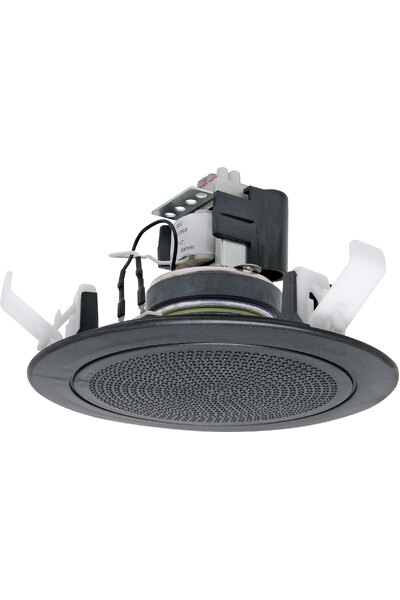

One-Shot 100mm (4") 5W 100V Black One-Shot Ceiling PA Speaker

Part of the series PA Speakers.

View all products in this series

---

This custom designed speaker and transformer combination has been specifically engineered to ensure a wide frequency range and dispersion angle, plus a high sound pressure level (SPL) ensuring excellent music and speech intelligibility; which is highly desirable for emergency paging applications. Modelled on the popular Redback® One-Shot design, the ‘rat trap’ uses an ingenious patented spring mechanism that snaps like a rat trap when activated. Includes three retaining clips ensuring the grille fits snugly to the ceiling without sagging or drooping, even in soft ceilings. For best results we recommend using the T2312A hole saw. Fitted with 4 way wire protect terminal block, 22µF bipolar capacitor, transformer safety cover and cable restraint plate as required by Australian standard.

---

Backed by an industry leading 5 Year Speaker Performance Warranty.
This speaker is covered by our 5 Year speaker performance warranty. Engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.

Specifications

• Power taps: 0.33, 0.66, 1.25 , 2.5, 5W
• SPL 1W @ 1m: 92dB @ 1KHz ±2dB
• Freq response: 100Hz - 15kHz
• Ceiling cutout: 140mm Ø
• Note: All SPL figures are measured at 1KHz +/- 2dB.
• *Specifications are subject to change without notice.
