One-Shot 100mm 100V 5W Ceiling EWIS Speaker White Metal Grille

$94.95
Buy in bulk & save!
Buy 1 to 4: $94.95 each
Buy 5 to 9: $92.60 each
Buy 10 or more: $90.20 each


Available on orders $80 to $1000
Learn more


Available on orders $80 to $1000
Learn more



Approved for AS ISO7240.24 installations.

Availability: Available Usually Dispatched In: 2 - 5 Business Days Product Code: ALT-C2270 Brand/Publisher: One-Shot Categories: Professional Audio
Share

Part of the series PA Speakers.

View all products in this series


Approved for AS ISO7240.24  installations. We’ve refined the One-Shot even further with the new V2 One-Shot fire speaker.  This version eliminates the cable glands entirely, streamlining the cabling process during installation. Plus a pluggable terminal block simplifies the cable termination. It maintains the low profile design of earlier series with just 70mm depth. Steel powdercoated grille offers a premium finish with an ultra thin bevelled edge.

This range of speakers have been engineered to meet the requirements of evacuation and occupant warning paging systems. The high efficiency speaker and transformer combination ensures high SPL, wide frequency response, superior speech intelligibility and reproduction for mission critical applications. All components of the fixture are manufactured from high quality, long lasting, flame retardant material and tested to the rigours of the new standard. On site installation will be simple and straight forward using the pluggable terminal block and cabling channel in the rear housing. Finally the speaker will just ‘snap fit’ into the ceiling. Far easier than competitors models being offered on the market.

The Labour Saving One-Shot® Mounting System
Redback® “One-Shot®” speaker units install in seconds providing substantial labour cost savings for the professional installer compared to traditional mounting methods. The One-Shot system utilises a 3 way spring latching system which retains the speaker in the ceiling hole. Each latch is set like a trap before installation into the speaker hole. When the speaker is pushed into the ceiling, the latches spring open, securing the speaker in place. The snap clip material is formulated to retain long service life strength and spring action, ensuring a firm vibration free fit to either gyprock tiles, mineral fibre tiles or fixed gyprock ceilings. A neutral white RAL colour provides an architecturally unobtrusive finish to virtually any installation.

Pat pending Design Reg pending.

Features

  • Designed to meet Australian Standard AS ISO7240.24
  • Excellent speech intelligibility
  • Stylish finish with powdercoated steel grille.
  • White RAL9003 mesh grille.
  • Low profile design is only 70mm deep (penetrates ceiling by only 58mm with 12mm thickness ceiling tile).
  • Tuned PA driver designed to meet the latest fire standards
  • High quality speaker driver developed for BGM, paging and emergency warning applications
  • Patented 3 way latching ensures a neat, sag free installation.

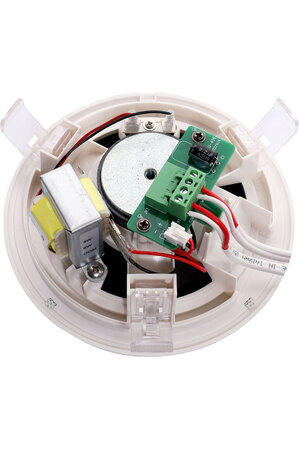

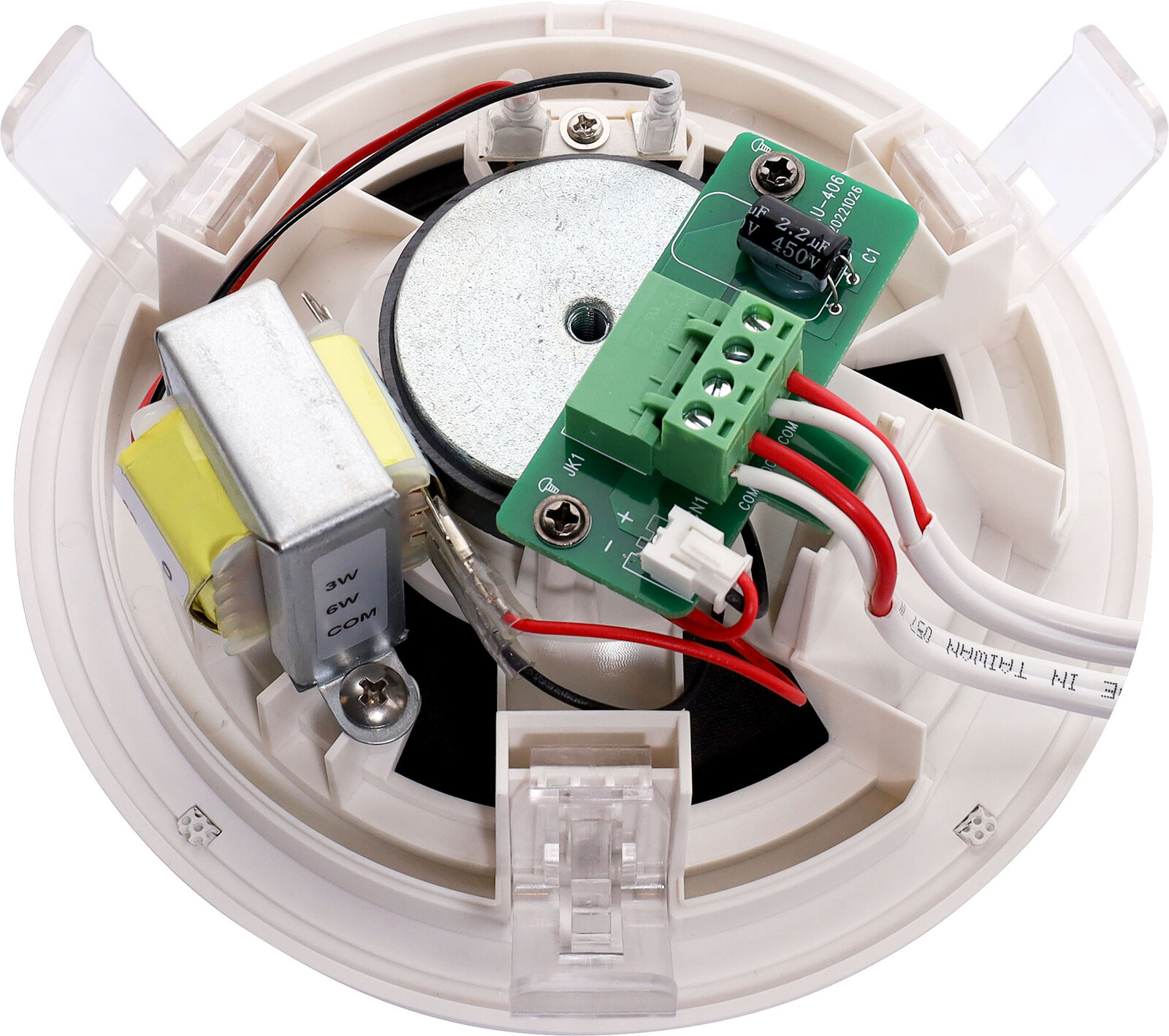

  • Fitted with 4 way pluggable wire protect terminal for loop in, loop out wiring.
  • Integral cable channel in rear housing for easy running of connection cables.

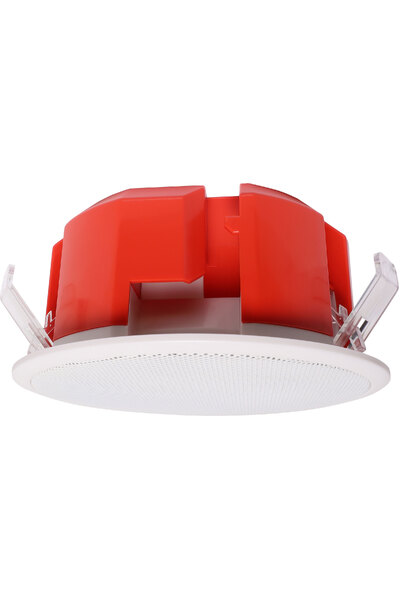

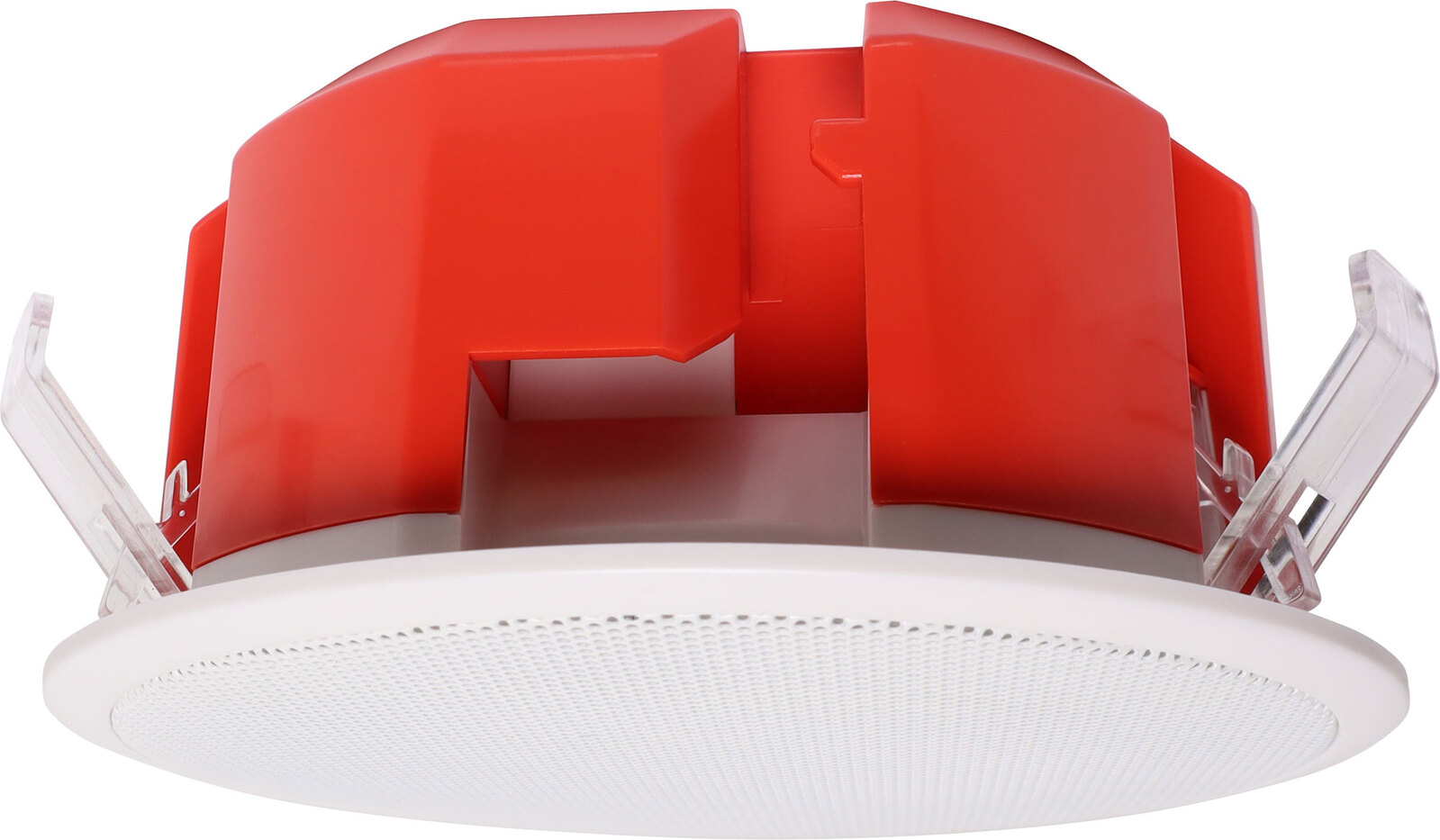

  • Fitted with flame retardant safety cover.
  • Fitted with supervisory capacitor for line monitoring.
  • 5 year warranty.




Activ-Fire listed product.
This speaker has been tested and certified by the CSIRO under the active fire protection product certification scheme. This is a register of approved fire protection equipment used in fire and evacuation systems.



Backed by an industry leading 5 Year Speaker Performance Warranty.
This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.

Specifications

  • Electrical
  • Power taps: 0.375, 0.75, 1.5, 3, 6W
  • Impedance: 26.66kΩ, 13.33kΩ, 6.66kΩ, 3.33kΩ, 1.66kΩ
  • SPL 1W @ 1m: 90dB
  • SPL 1W @ 4m: 78dB
  • SPL 6W @ 1m: 96dB
  • SPL 6W @ 4m: 84dB
  • Frequency response: 100Hz - 15kHz
  • Coverage Angles: 500Hz >180°, 1000Hz: >180°, 2000Hz 160°, 4000Hz 75°
  • Connection: 4 way pluggable terminal block
  • Line Monitoring:  Yes, 2.2µF bipolar capacitor
  • Approval: AS ISO7240.24
  • Environmental Type: A (for indoor applications)
  • Mechanical
  • White flame retardant ABS grille & chassis (LG ABS181)
  • Clear flame retardant ABS spring clips (QM PC110)
  • Red flame retardant ABS transformer dome cover (LG ABS181)
  • Powdercoated steel grille insert (RAL9003)
  • Driver construction: Paper cone
  • Ceiling cutout: 140mmØ
  • Grille diameter: 160mmØ
  • Mounting depth: 70mm (including ceiling tile thickness)
  • Overall weight: 710g
  • Environmental
  • Operating temperature: -25°C to +55°C
  • Relative humidity: < 95%
  • IP Rating: IP21
    • *Specifications are subject to change without notice.
