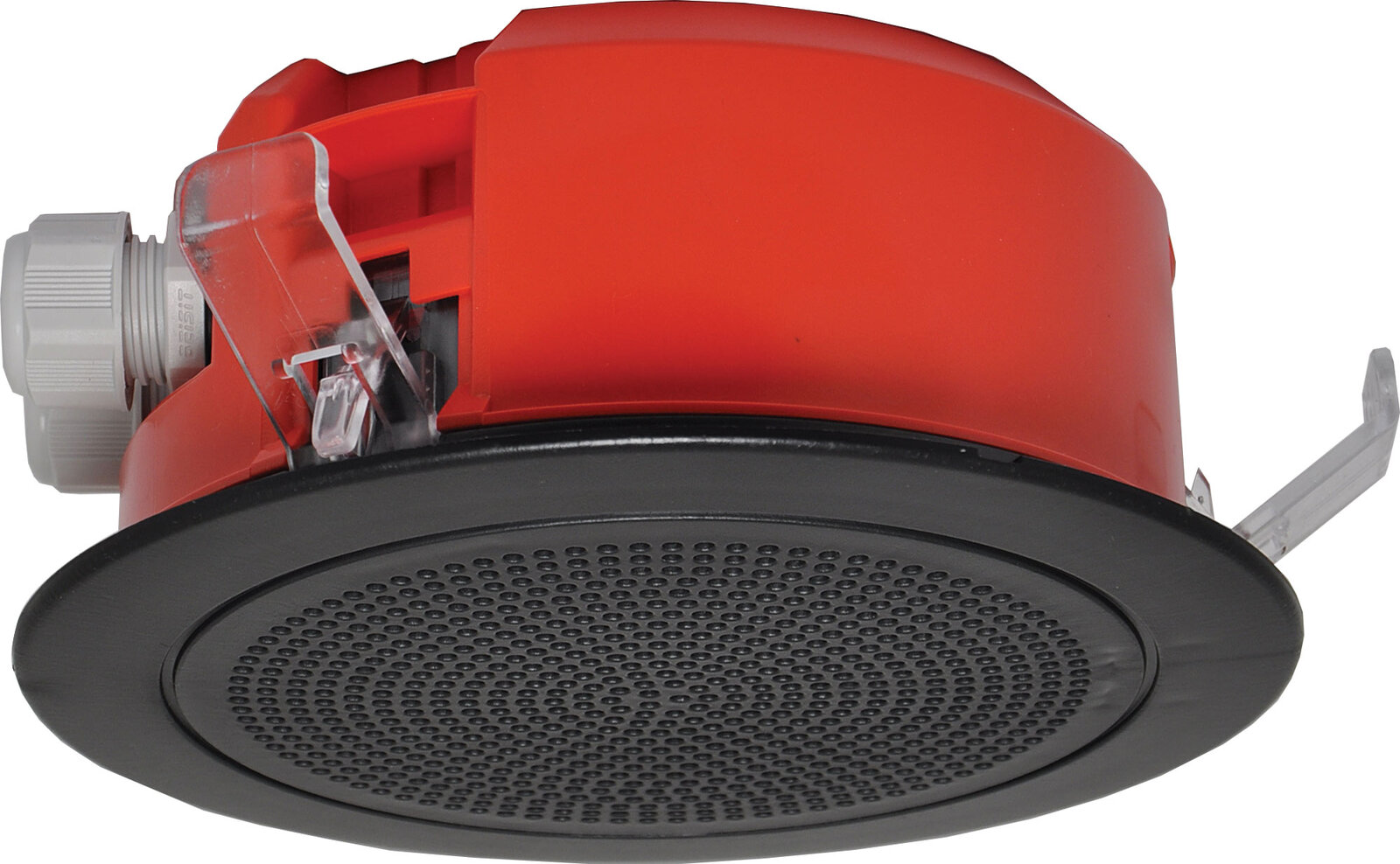

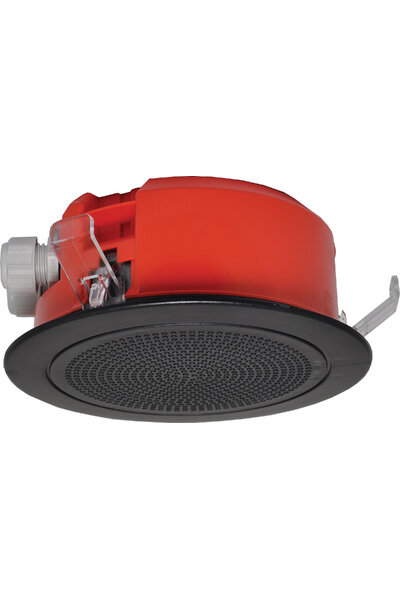

One-Shot 100mm 100V 5W Ceiling EWIS Speaker Black Grille

Part of the series PA Speakers.

View all products in this series

---

Designed to meet AS ISO7240.24:2018. A lower profile version of the C2171. At only 65mm overall height, these models are ideal for low profile ceiling spaces. It features flame retardant housing material, sealed cable gland entries and a tuned PA driver to suit the new approval requirements.

This range of speakers have been engineered to meet the requirements of evacuation and occupant warning paging systems. The high efficiency speaker and transformer combination ensures high SPL, wide frequency response, superior speech intelligibility and reproduction for mission critical applications. All components of the fixture are manufactured from high quality, long lasting, flame retardant material and tested to the rigours of the new standard. On site installation will be simple and straight forward. Oversized cable glands and terminal blocks will make on site termination easier than other competing products. Finally the speaker will just ‘snap fit’ into the ceiling. Far easier than competitors models being offered on the market.

The Labour Saving One-Shot® Mounting System
Redback® “One-Shot®” speaker units install in seconds providing substantial labour cost savings for the professional installer compared to traditional mounting methods. The “Rat-Trap” version is the first “One-Shot®” to utilise a retaining 3 way spring latching system. Each latch is set like a rat trap before installation into the speaker hole. When the speaker is pushed into the ceiling, the latches spring open, securing the speaker in place. The snap clip material is formulated to retain long service life strength and spring action, ensuring a firm vibration free fit to either gyprock tiles, mineral fibre tiles or fixed gyprock ceilings. A neutral white RAL colour provides an architecturally unobtrusive finish to virtually any installation.

Features

• Designed to meet Australian Standard AS ISO7240.24
• Excellent speech intelligibility
• Low profile design is only 65mm deep.
• Tuned PA driver designed to meet the latest fire standards
• High quality speaker driver developed for BGM, paging and emergency warning applications
• Patented 3 way latching ensures a neat, sag free installation.
• Fitted with 4 way wire protect terminal for loop in, loop out wiring.
• Fitted with cable restraint plate and flame retardant safety cover.
• Fitted with supervisory capacitor for line monitoring.
• Assembled in Australia.
• 5 year warranty.

---

Activ-Fire listed product.
This speaker has been tested and certified by the CSIRO under the active fire protection product certification scheme. This is a register of approved fire protection equipment used in fire and evacuation systems.

---

Backed by an industry leading 5 Year Speaker Performance Warranty.
This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.

Specifications

• Electrical
• Rated Noise Power: 5 Watts (100V line)
• Power Taps & Impedance (100V line): 0.33W (30kΩ), 0.66W (15kΩ), 1.25W (8kΩ), 2.5W (4kΩ), 5W (2kΩ)
• Sensitivity: 89dB (1W @ 1m), 77dB (1W @ 4m)
• Maximum Sound Pressure Level: 96dB (5W @ 1m), 84dB (5W @ 4m)
• Frequency Response: 100Hz – 15kHz
• Coverage Angle (-6dB): 1000Hz: 180°, 2000Hz: 160°, 4000Hz 75°
• Environmental Type: A (for indoor applications as per standard)
• Line Monitoring: Yes, 22µF bipolar capacitor
• Applicable Cable: 2.5mm2 (14AWG) max conductor area
• Connection: 4 way screw terminal
• Mechanical
• Material:
• White flame retardant ABS grille (Taitalac 8540T)
• Clear Flame retardant ABS spring clips (Makrolon 6557)
• Red flame retardant ABS transformer dome cover (Starex VH-0800)
• Driver construction: Paper cone
• Ceiling cutout: 140mmØ
• Grille diameter: 159mmØ
• Mounting Method: 3 x plastic spring loaded clip
• Mounting depth: 65mm (including ceiling tile thickness)
• Overall weight: 710g
• Environmental
• Operating temperature: -25°C to +55°C
• Relative humidity: < 95%
• IP Rating: IP21
• *Specifications are subject to change without notice.
