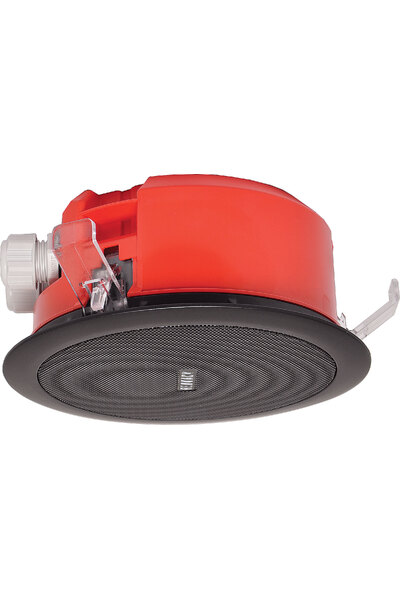

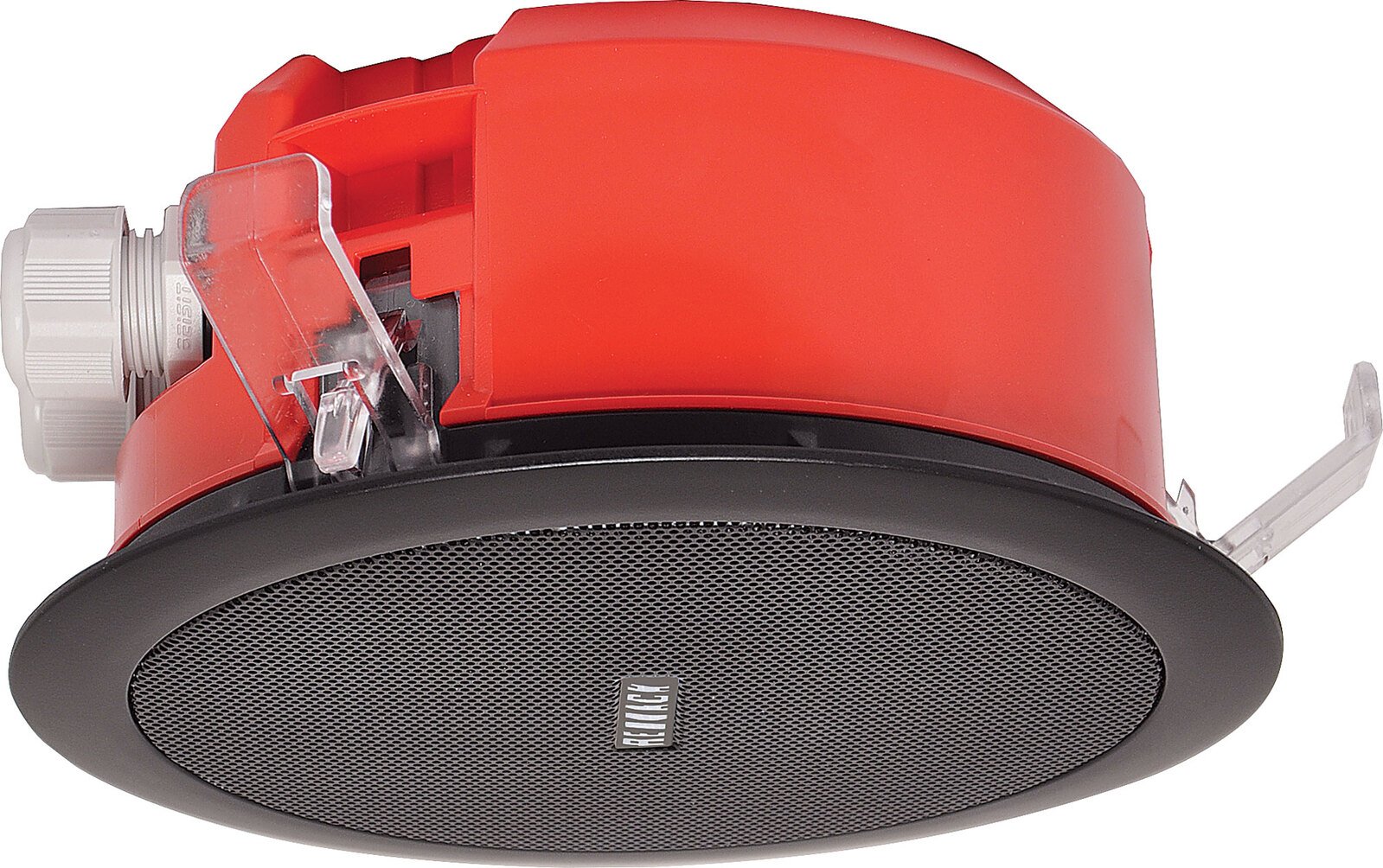

One-Shot 100mm 100V 5W Ceiling EWIS Speaker Black Metal Grille

$104.95
Buy in bulk & save!
Buy 1 to 2: $104.95 each
Buy 3 to 5: $102.35 each
Buy 6 or more: $99.70 each


Available on orders $80 to $1000
Learn more


Available on orders $80 to $1000
Learn more



Designed to meet AS ISO7240.24:2018.

Availability: Available Usually Dispatched In: 2 - 5 Business Days Product Code: ALT-C2261 ISBN: 9321758220665 Brand/Publisher: One-Shot Categories: Professional Audio
Share

Part of the series PA Speakers.

View all products in this series


Designed to meet AS ISO7240.24:2018. Our first One-Shot speaker with a aluminium grille, this model has been designed for installations requiring a premium finish whilst still meeting the required fire standards. It can also be used for standard 100V PA/BGM installations. At only 65mm overall height, these models are ideal for low profile ceiling spaces (penetrates ceiling cavity by only 53mm - with 12mm thickness ceiling tiles). It features flame retardant housing material, sealed cable gland entries and a tuned PA driver to suit the new approval requirements.

This range of speakers have been engineered to meet the requirements of evacuation and occupant warning paging systems. The high efficiency speaker and transformer combination ensures high SPL, wide frequency response, superior speech intelligibility and reproduction for mission critical applications. All components of the fixture are manufactured from high quality, long lasting, flame retardant material and tested to the rigours of the new standard. On site installation will be simple and straight forward. Oversized cable glands and terminal blocks will make on site termination easier than other competing products. Finally the speaker will just ‘snap fit’ into the ceiling. Far easier than competitors models being offered on the market.

The Labour Saving One-Shot® Mounting System
Redback® “One-Shot®” speaker units install in seconds providing substantial labour cost savings for the professional installer compared to traditional mounting methods. The “Rat-Trap” version is the first “One-Shot®” to utilise a retaining 3 way spring latching system. Each latch is set like a rat trap before installation into the speaker hole. When the speaker is pushed into the ceiling, the latches spring open, securing the speaker in place. The snap clip material is formulated to retain long service life strength and spring action, ensuring a firm vibration free fit to either gyprock tiles, mineral fibre tiles or fixed gyprock ceilings. A neutral white RAL colour provides an architecturally unobtrusive finish to virtually any installation.

Features

  • Designed to meet Australian Standard AS ISO7240.24
  • Excellent speech intelligibility
  • Stylish finish with rust free aluminium grille.
  • Black RAL9004 mesh grille.
  • Low profile design is only 65mm deep - penetrates ceiling by only 53mm (with 12mm thickness ceiling tile).
  • Tuned PA driver designed to meet the latest fire standards
  • High quality speaker driver developed for BGM, paging and emergency warning applications
  • Patented 3 way latching ensures a neat, sag free installation.
  • Fitted with 4 way wire protect terminal for loop in, loop out wiring.
  • Fitted with flame retardant safety cover.
  • Fitted with supervisory capacitor for line monitoring.
  • Assembled in Australia.
  • 5 year warranty.




Activ-Fire listed product.
This speaker has been tested and certified by the CSIRO under the active fire protection product certification scheme. This is a register of approved fire protection equipment used in fire and evacuation systems.



Backed by an industry leading 5 Year Speaker Performance Warranty.
This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.





Specifications

  • Electrical
  • Power taps: 0.33, 0.66, 1.25, 2.5, 5W
  • Impedance: 30kΩ, 15kΩ, 8kΩ, 4kΩ, 2kΩ
  • SPL 1W @ 1m: 89dB
  • SPL 1W @ 4m: 77dB
  • SPL 5W @ 1m: 96dB
  • SPL 5W @ 4m: 84dB
  • Frequency response: 100Hz - 15kHz
  • Coverage Angles: 1000Hz 180°, 2000Hz 160°, 4000Hz 75°
  • Connection: 4 way terminal block + 22uF bipolar capacitor
  • Approval: AS ISO7240.24
  • Environmental Type: A (for indoor applications)
  • Mechanical
  • Material:
  • Black flame retardant ABS grille (ABS AF312C)
  • Clear Flame retardant ABS spring clips (Makrolon 6557)
  • Red flame retardant ABS transformer dome cover (Starex VH-0800)
  • Powdercoated aluminium grille insert (RAL9004)
  • Driver construction: Paper cone
  • Ceiling cutout: 140mmØ
  • Grille diameter: 159mmØ
  • Mounting depth: 61mm (including ceiling tile thickness)
  • Overall weight: 650g
  • Environmental
  • Operating temperature: -25°C to +55°C
  • Relative humidity: < 95%
  • IP Rating: IP21
    • *Specifications are subject to change without notice.
