Okayo 120W 520-544MHz Dual UHF Wireless Portable PA System

Part of the series Portable PA Systems.

View all products in this series

---

With an output of 120W, this Okayo® portable PA solution is an excellent choice for addressing large crowds up to 500 or more. It is ideal for marriage celebrants, schools, sports clubs, places of worship, shopping centre presentations & spruiking.

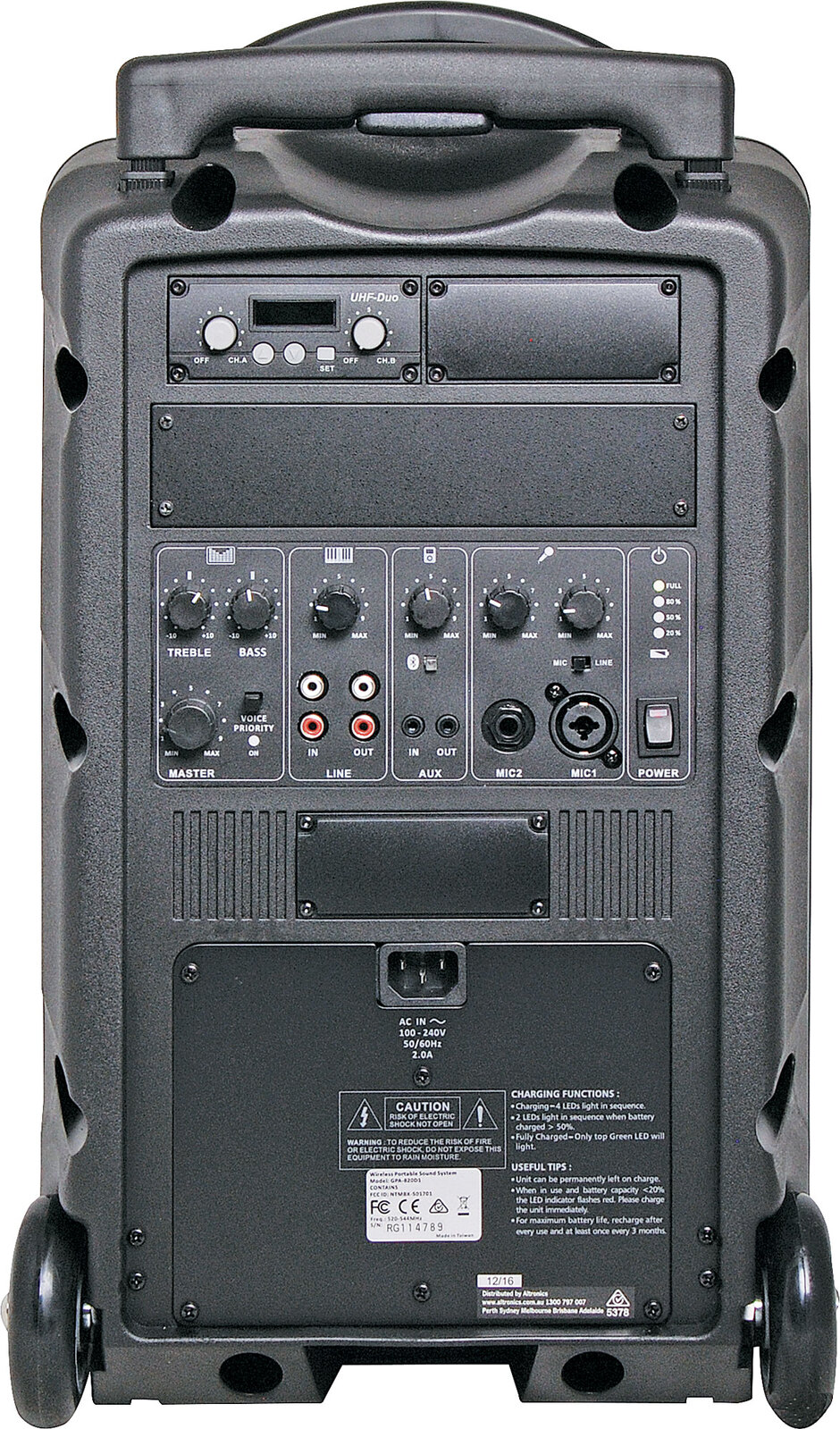

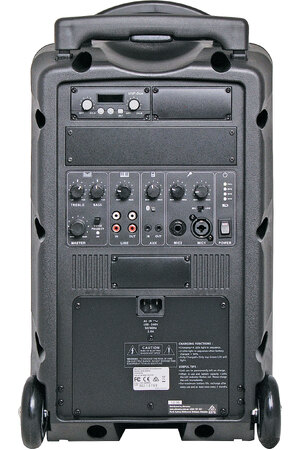

This portable PA model offers superb performance for speech applications as well as music reproduction. Making it the perfect all-rounder PA unit for most needs. It is equipped with two microphone inputs, one aux and one line input - all with individual volume controls (plus bass and treble adjustment). Plus pre-fitted is a dual channel 520-544MHz wireless microphone receiver which can be paired with either handheld or beltpack wireless transmitters. When using microphones a handy voice priority function will mute other sources connected to the portable PA whenever a voice is detected - allowing easy interruption of the music content if required.

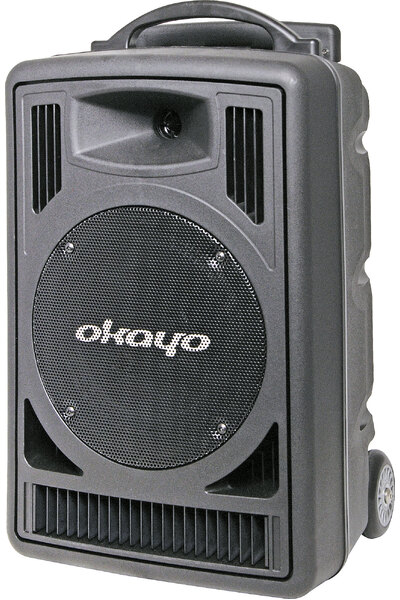

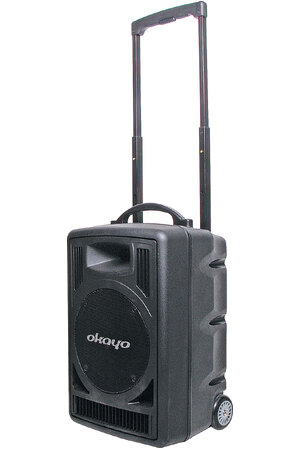

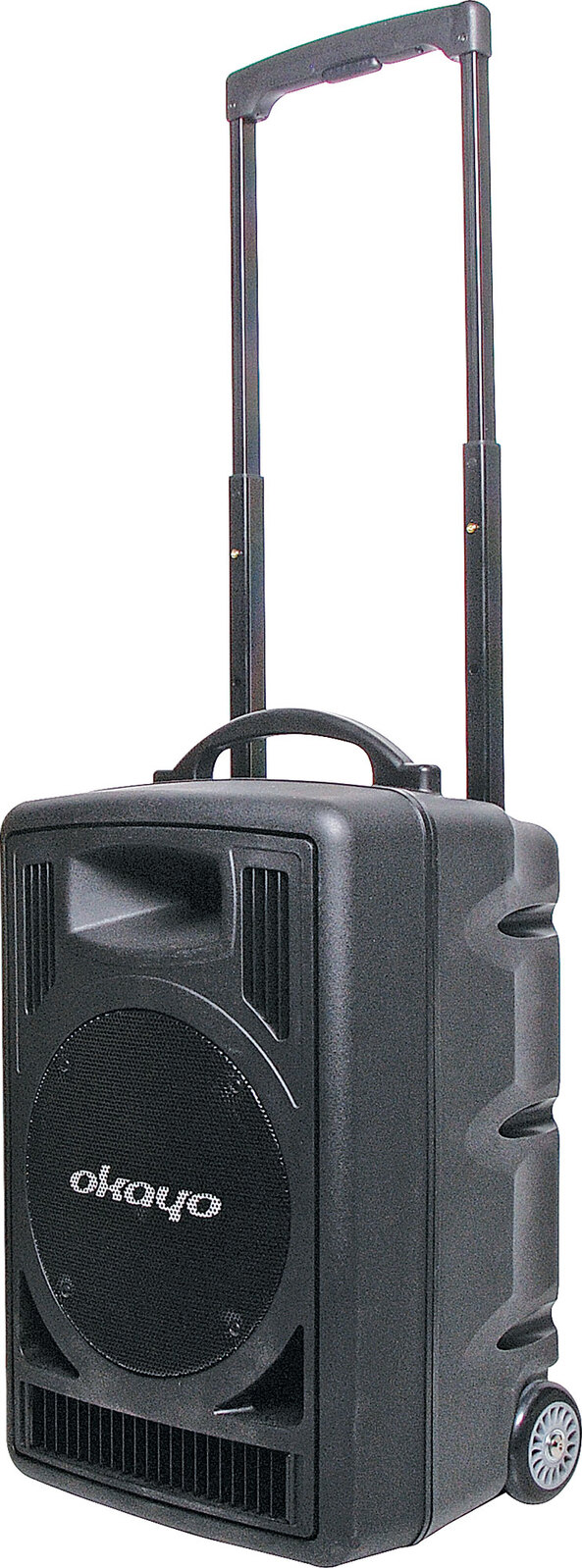

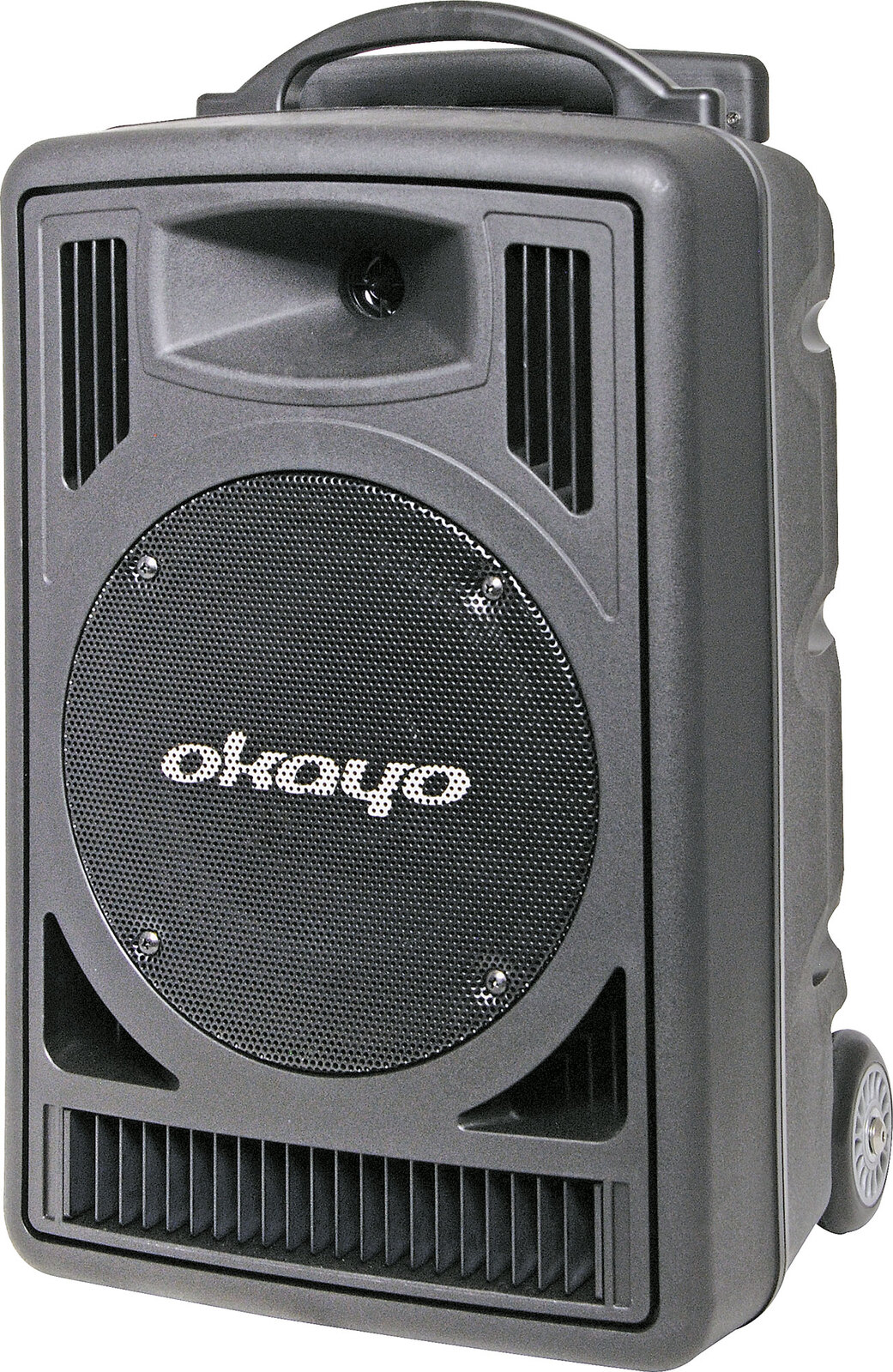

All Okayo portable PA's are moulded from industrial grade ABS plastic, ensuring long life and the ability to absorb day-to-day wear and tear. This PA unit features in-built “luggage" type trolley wheels and extendible handle for easy manoeuvrability - especially around school campuses, allowing easy set up for both students and staff.

Streaming music from the portable PA is simply a matter of pressing the bluetooth button, pairing your device and playing content directly from your phone, whether it be music or pre-recorded introductions or promotional content.

The large capacity in-built battery and high efficiency PA amplifier design provides ≈6 hours of use away from 240V mains power (actual operation time varies depending on level of usage). A battery level indicator provides a handy readout of how much juice you have remaining before a recharge is required. Charging the battery is simply a matter of plugging the unit in for 6-8 hours. This makes the Okayo portable PA system a flexible all-rounder which can even be used for longer events if necessary.

Mounting is simply a matter of sitting the PA on an elevated surface, such as a stage or desk. If necessary it can also be used with a standard speaker stand, with a 35mm recess provided in the base.

Weighing only 20kgs the Okayo PA is truly portable allowing a wide range of use in schools, places of worship, clubs, auctions etc. It sets up in seconds and can be easily operated by anyone - even school students find the Okayo PA easy to use.

The 2-way speaker system delivers a very crisp, clear sound which in our opinion out performs its competitors by a significant margin. This makes it the perfect choice for both voice and music applications.

Overall dimensions: 264 x 301 x 511 (mm).

Features

• Dual channel 96 frequency wireless UHF receiver (Can operate with up to 4 wireless microphones with the addition of a second C 7317C dual channel receiver).
• Bluetooth wireless audio streaming in-built
• Truly portable design
• Battery level indicator
• Compact design sets up in just seconds
• Rugged heavy duty ABS cabinet
• ‘Luggage’ type trolley wheels
• In-built extendible handle
• High performance 120W amplifier (80W RMS)
• Built in backup battery
• Provision for additional radio microphone receiver (520-544MHz)
• Suitable for desk or speaker stand mounting
• Optional wireless link for cable free transmission to additional systems
• RCA line input/output
• Two wired microphone inputs
• 240V AC mains or battery operation

Compatible UHF Transmitters:
C 7195C Wireless Belt Pack 96 Channel 520-544MHz
C 7192C Wireless Handheld Microphone 96 Channel 520-544MHz
C 7193C Wireless Handheld Condenser Microphone 96 Channel 520-544MHz

Backed by a 3 Year Manufacturer Warranty.

All Okayo Portable PA systems are backed by a 3 year manufacturer warranty with Australian local service and support through Altronics, the Okayo authorised service centre. Altronics carries a full range of locally available spares for all models of Okayo portable PA. *Note: excludes normal wear and tear.



First battery replacement is FREE.

For added peace of mind Okayo offers your first replacement battery free of charge over the lifetime of your portable PA system. This is a free service provided via local authorised service centre, Altronics. Conditions apply.

Specifications

• Output Power (RMS): 80W
• Output Power (Max): 120W
• Frequency Response: 20Hz to 20kHz
• Mid Bass Driver: 8" Woofer
• Tweeter: 1" Tweeter
• Operating Life: Up to 4-6 hours (fully charged - depends heavily on amount of use)
• Charge Time: 6-8 hours
• Battery: 2 x 12V 4.5Ah SLA
• Replacement Battery: 2 x 12V 4.5Ah SLA
• Controls: Master volume, treble, bass, mic 1 volume, mic 2 volume, line volume, aux volume
• Inputs: XLR 3 pin, 6.35mm TRS, stereo RCA, 3.5mm stereo aux, bluetooth streaming.
• Outputs: Stereo 3.5mm line out, stereo RCA line out
• Optional Modules: C 7317C UHF receiver, C 7203C Wireless link
• Expansion Slots: 3
• Dimensions: 264D x 301W x 511Hmm
• Weight: 16kg

*Specifications are subject to change without notice.

Downloads

Brochure
Okayo Comparison Guide
