Micron True RMS Autoranging Digital Multimeter (ALT-Q1135) Educational Resources and Supplies

Buy in bulk & save!
Buy 1 to 4:	$88.95 each
Buy 5 to 9:	$86.75 each
Buy 10 or more:	$84.50 each

Available on orders $80 to $1000
Learn more

Availability: Available Usually Dispatched In: 2 - 5 Business Days Product Code: ALT-Q1135 ISBN: 9321758226896 Brand/Publisher: Micron Categories: Technologies, STEM & STEAM,

Part of the series Digital Multimeters & Accessories.

View all products in this series

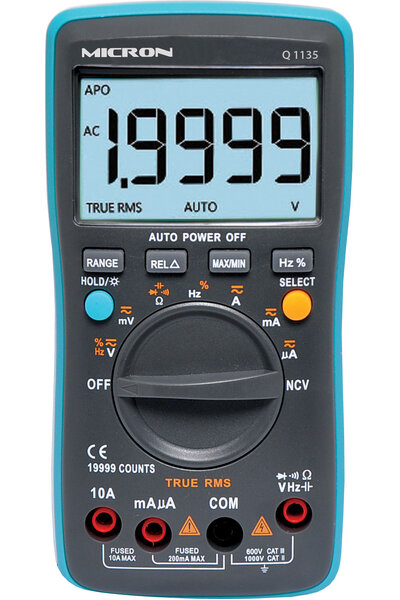

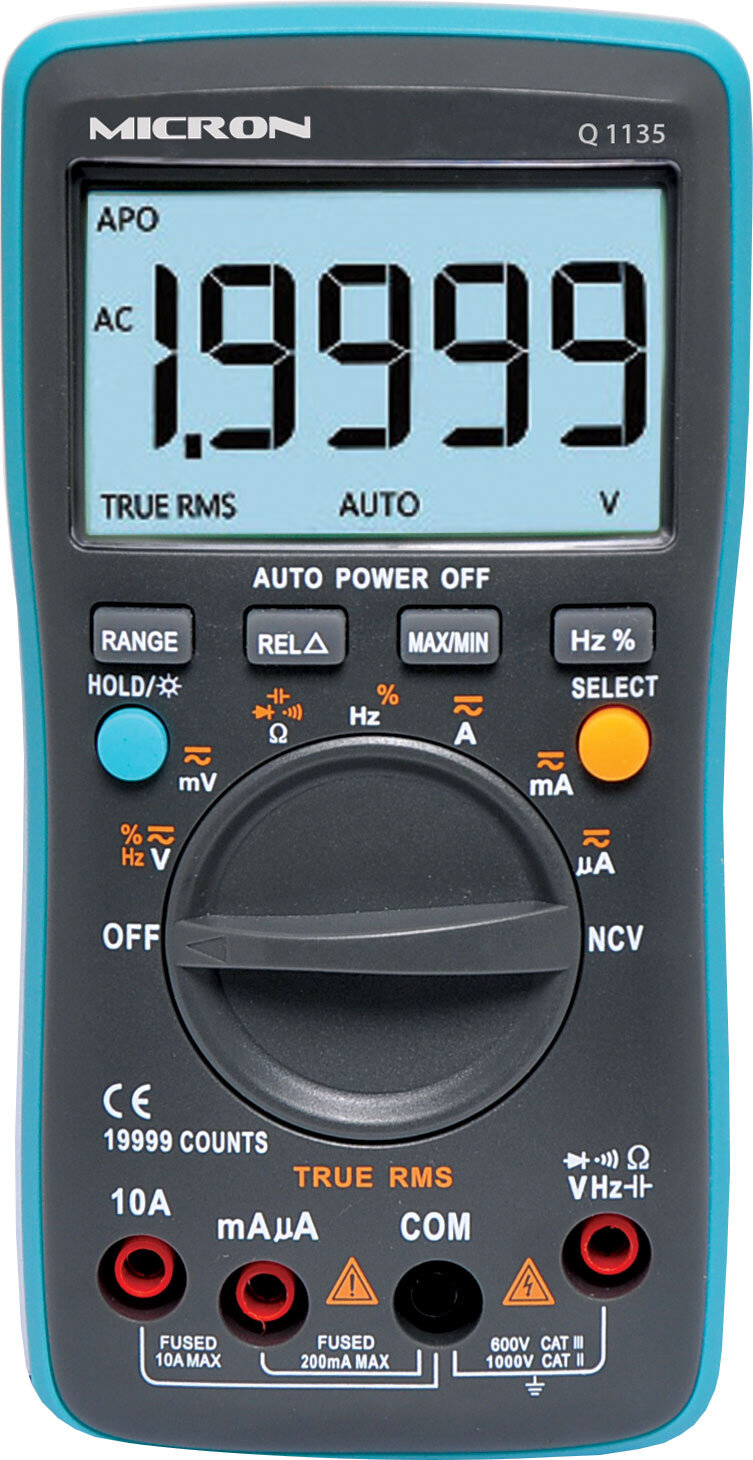

The largest screen in our range with 19999 count! This meter offers everything the serious enthusiast or trades person could need with auto ranging true RMS measurement, min/max & relative modes; frequency, duty cycle and non-contact voltage detection. Plus the standard AC/DC modes commonly found on all multimeters. The larger display offers extended resolution for measurements. Supplied with test probes and carry pouch.

Features

Large easy read 19999 count screen
Auto ranging
True RMS measurement
Data hold, min/max and relative modes
Continuity buzzer
Diode test
Non contact AC voltage detection
2x AA battery included

Specifications

Voltage DC: 19.999mV, 199.99mV, 1.9999V, 19.999V, 199.99V, 1000V (±0.05%+3d)
Voltage AC: 19.999mV, 199.99mV, 1.9999V, 19.999V, 199.99V, 750V (±0.3%+3d)
Current DC: 199.99µA, 1999.9µA, 19.999mA, 199.99mA, 1.9999A, 10.000A (±0.5%+3d)
Current AC: 199.99µA, 1999.9µA, 19.999mA, 199.99mA, 1.9999A, 10.000A (±0.8%+3d)
Capacitance: 9.999nF, 99.99nF, 999.9nF, 9.999µF, 99.99µF, 999.9µF, 9.999mF (±2%+5d)
Ohms: 199.99Ω, 1.9999kΩ, 19.999kΩ, 199.99kΩ, 1.9999MΩ, 19.999MΩ, 199.99MΩ (±1%+3d)
Continuity: 40Ω threshold, audible tone
Diode test: Test current 5mA max
Duty cycle: 1-99% @ 250V RMS max (±0.1%+2d)
Frequency: 99.99Hz - 9.999MHz (±0.1%+2d)
Display: 4.75 digit, 19999 count, backlit
Protection: 200mA M205 fused, 10A input fused
Dimensions: 81W x 39D x 161H mm
