Micron Lead Free Soldering Station 80W

Part of the series Soldering Irons & Stations.

View all products in this series

---

Perfect choice for professionals, manufacturing & production facilities.

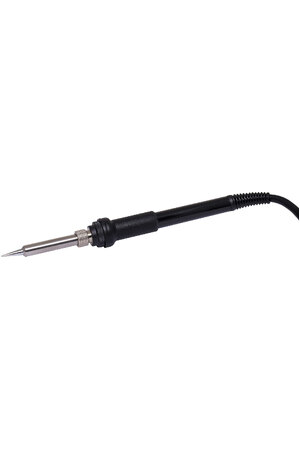

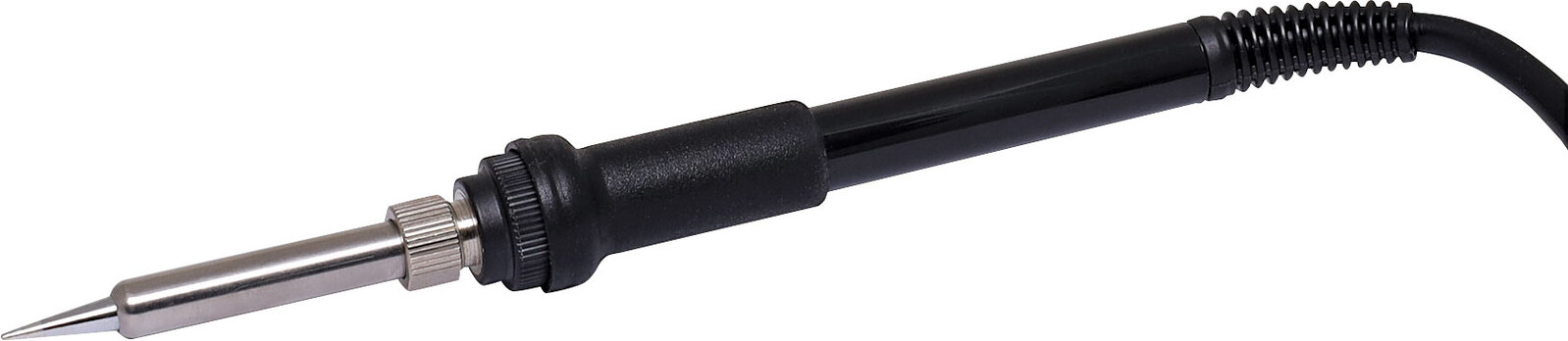

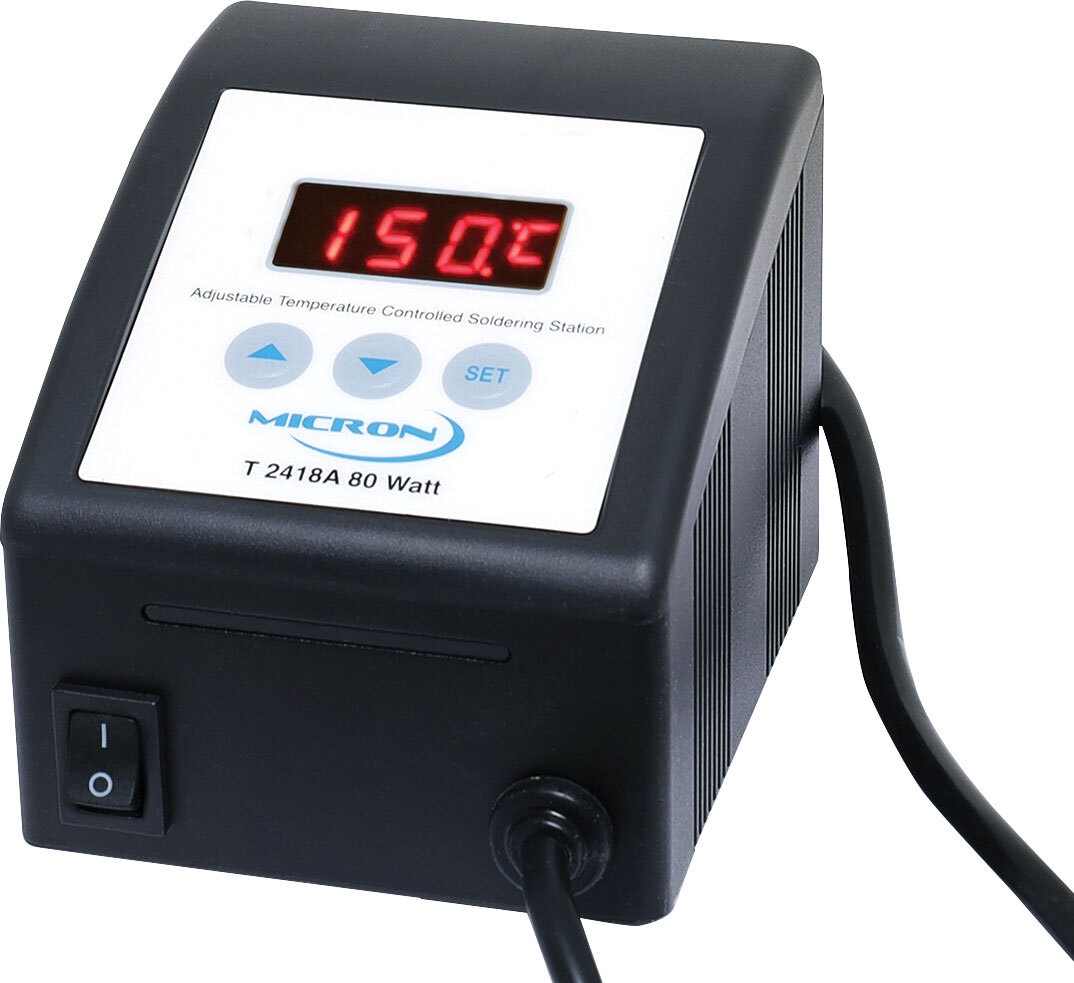

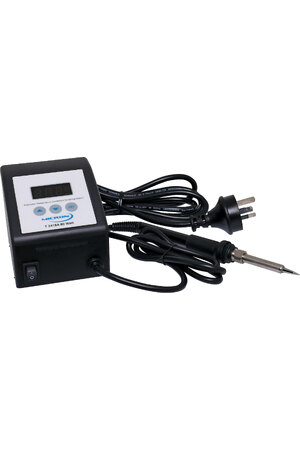

An electronic temperature controlled soldering station, designed to meet the needs of production environments. The increased heating power over the Micron 60W station provides increased temperature stability during extended periods of soldering. It features a slender ‘pencil design’ iron handle with comfortable rubberised grip, connected with a burn-resistant rubber lead. Featuring key pad temperature control from 200°C to 480°C, this soldering station eliminates the need for changing tips to perform different soldering tasks. When set, the iron will maintain tip temperature to ±5°C. RoHS compliant.

Suitable for use with Mini-Wave tips: These fine concave tips allow hand flow soldering of surface mount devices (SMD) such as chip caps, resistors, LEDs, SOIC packages and PLCC chips.

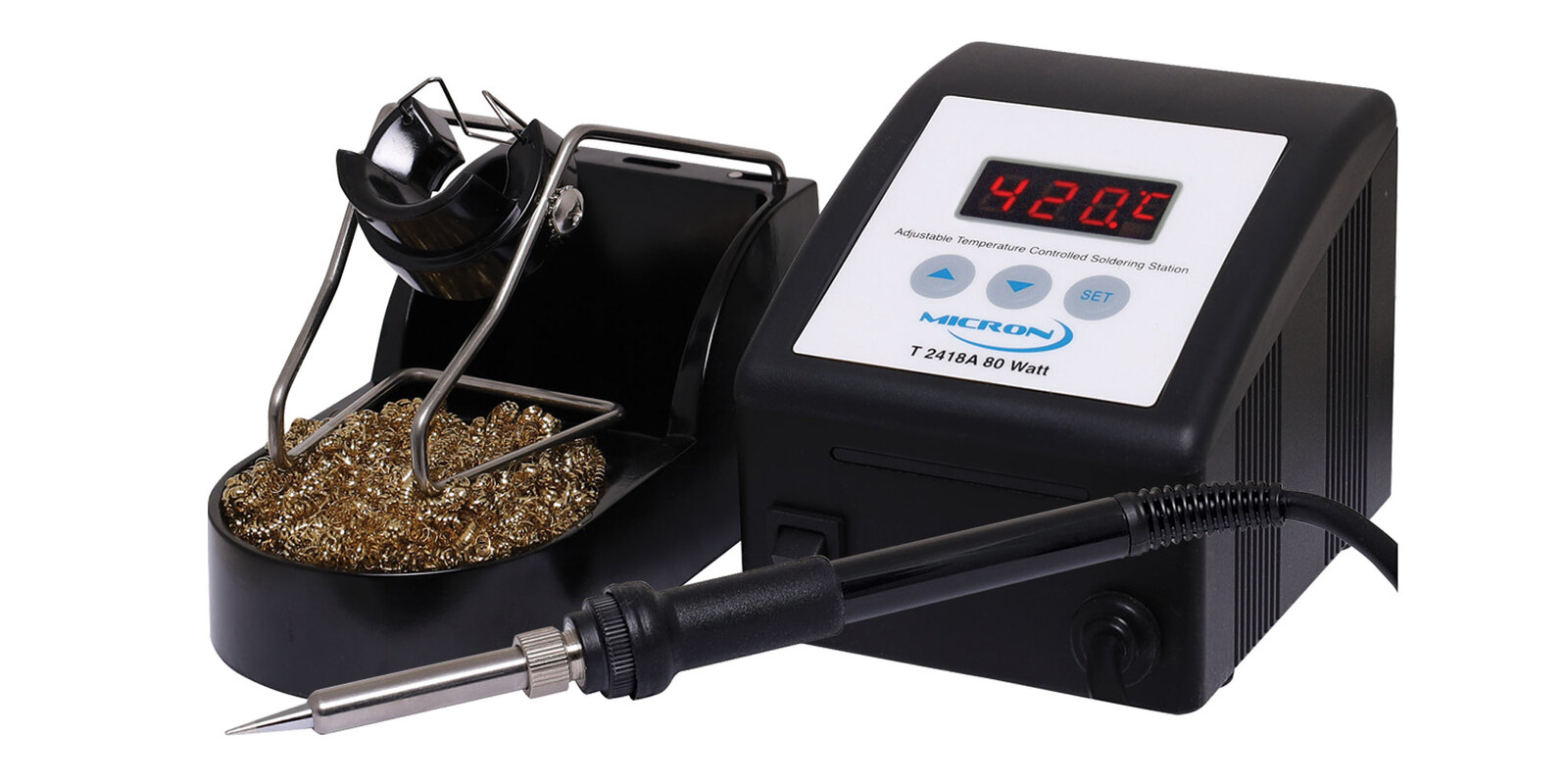

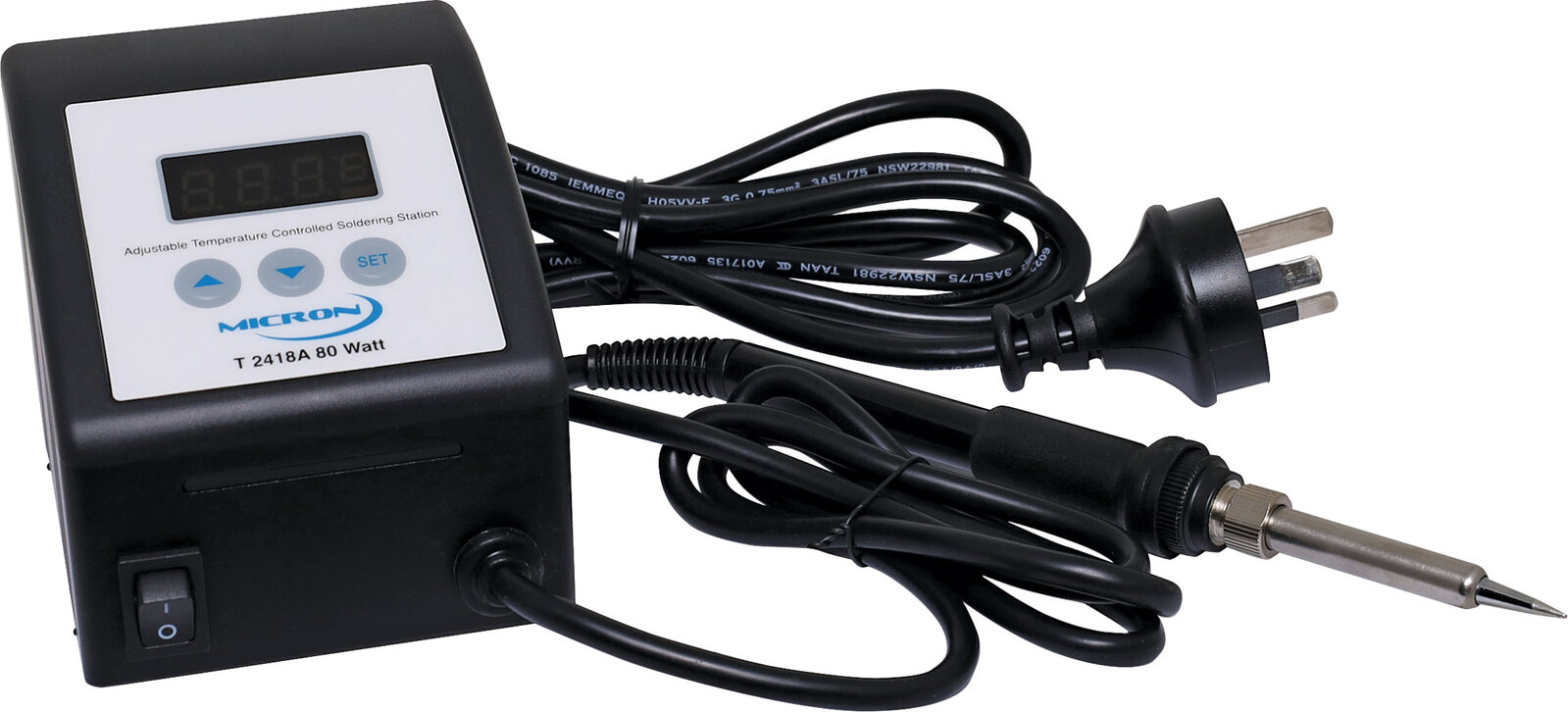

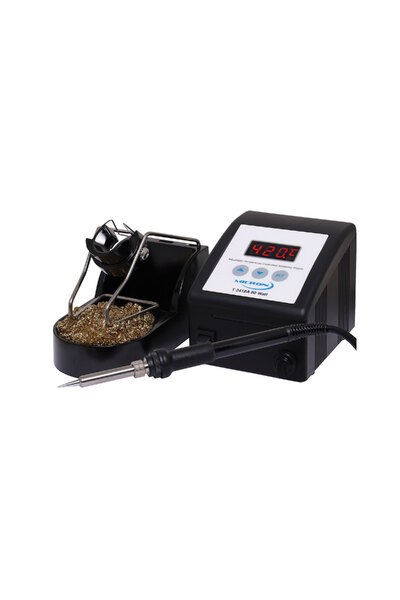

Package Includes:
Soldering Station

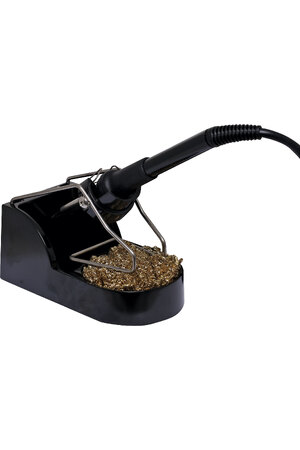

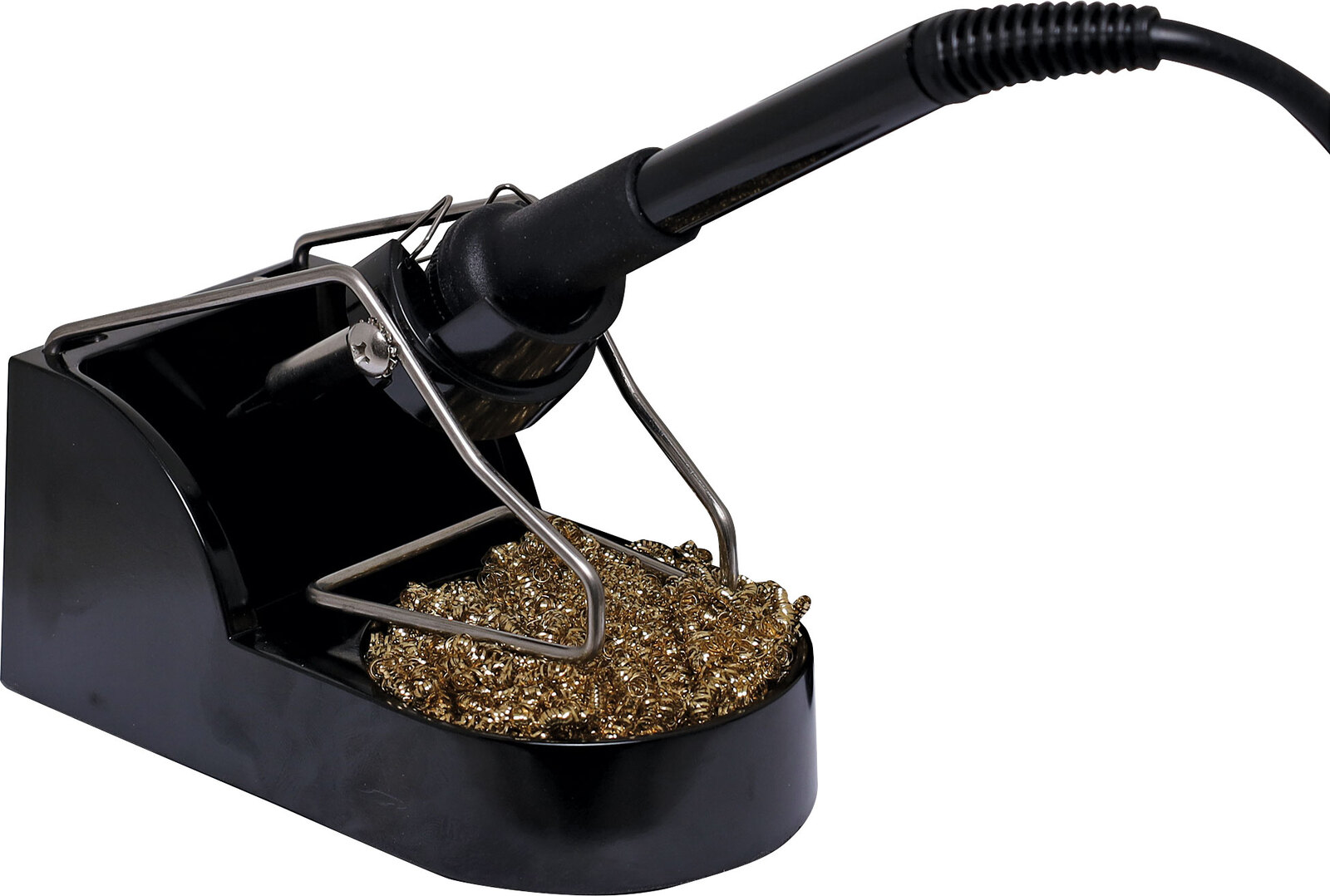

Freestanding iron holder
Tip cleaner
0.8mm tip

Features

• Designed for RoHS lead free soldering

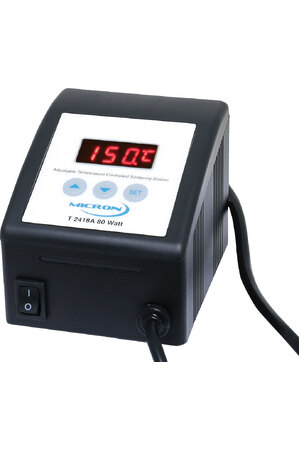

• LED display
• Simple key operation
• Burn proof silicone rubber hand piece lead
• Free standing iron holder with tip cleaner
• Temperature adjustable
• Temperature ‘offset’ for fine calibration
• Temperature lockout
• Suitable for ROHS compliant soldering
• ESD safe and spike free circuitry
• Grounding socket
• High insulation ceramic heating element for rapid heat-up and instant recovery slimline & lightweight hand piece.

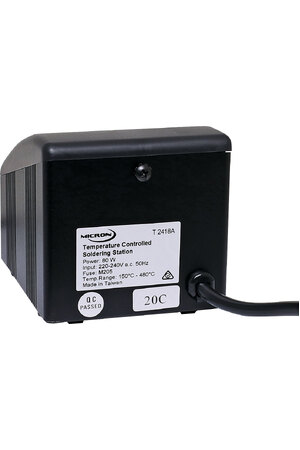

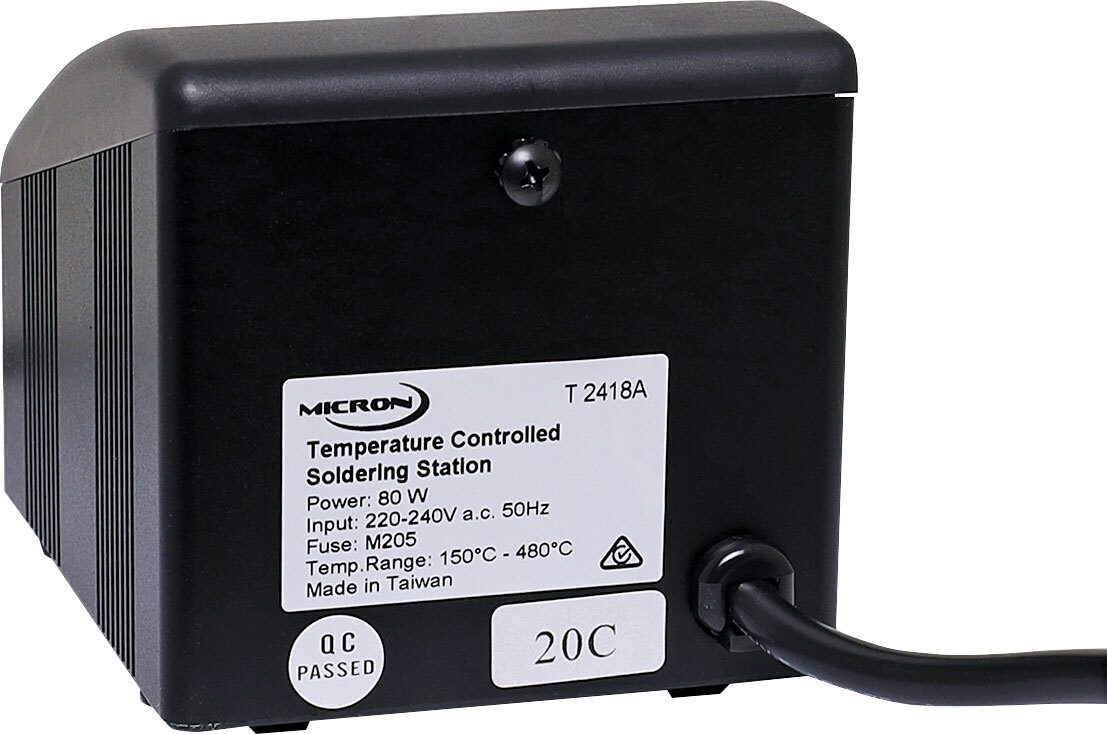

Specifications

• Input: 220 - 240V ac
• Heater: 220V ac ceramic element
• Heater Insulation: <100MΩ
• Nominal Power: 80W
• Temperature Range: 150°C to 480°C
• Temperature Correction Range: +99° to -99°C
• Heat Up Time: <45sec
• Leakage Voltage: <0.4mV
• Weight: 1.7kg
• Tip to Ground Resistance: <0.1Ω

*Specifications are subject to change without notice.
