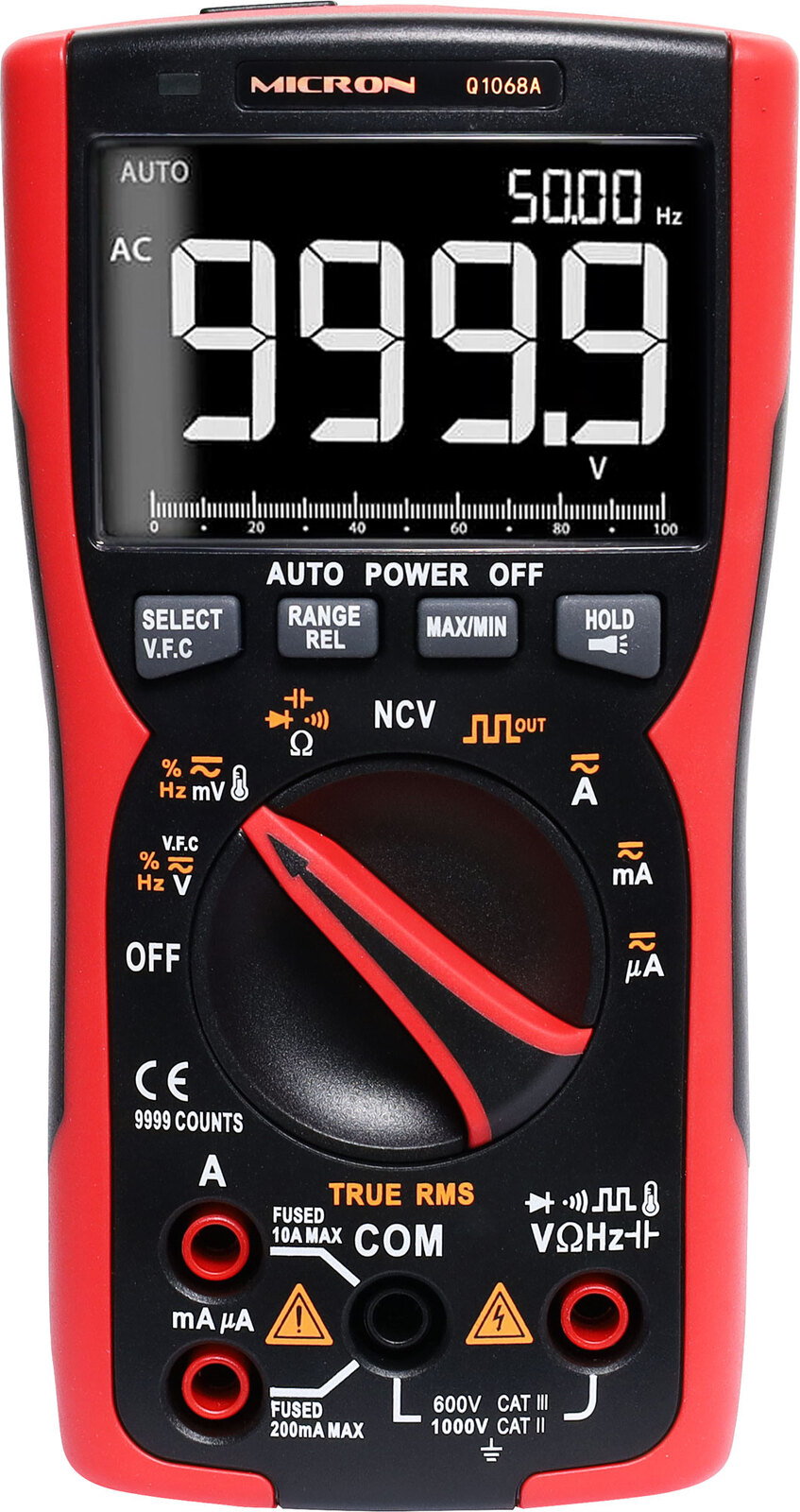

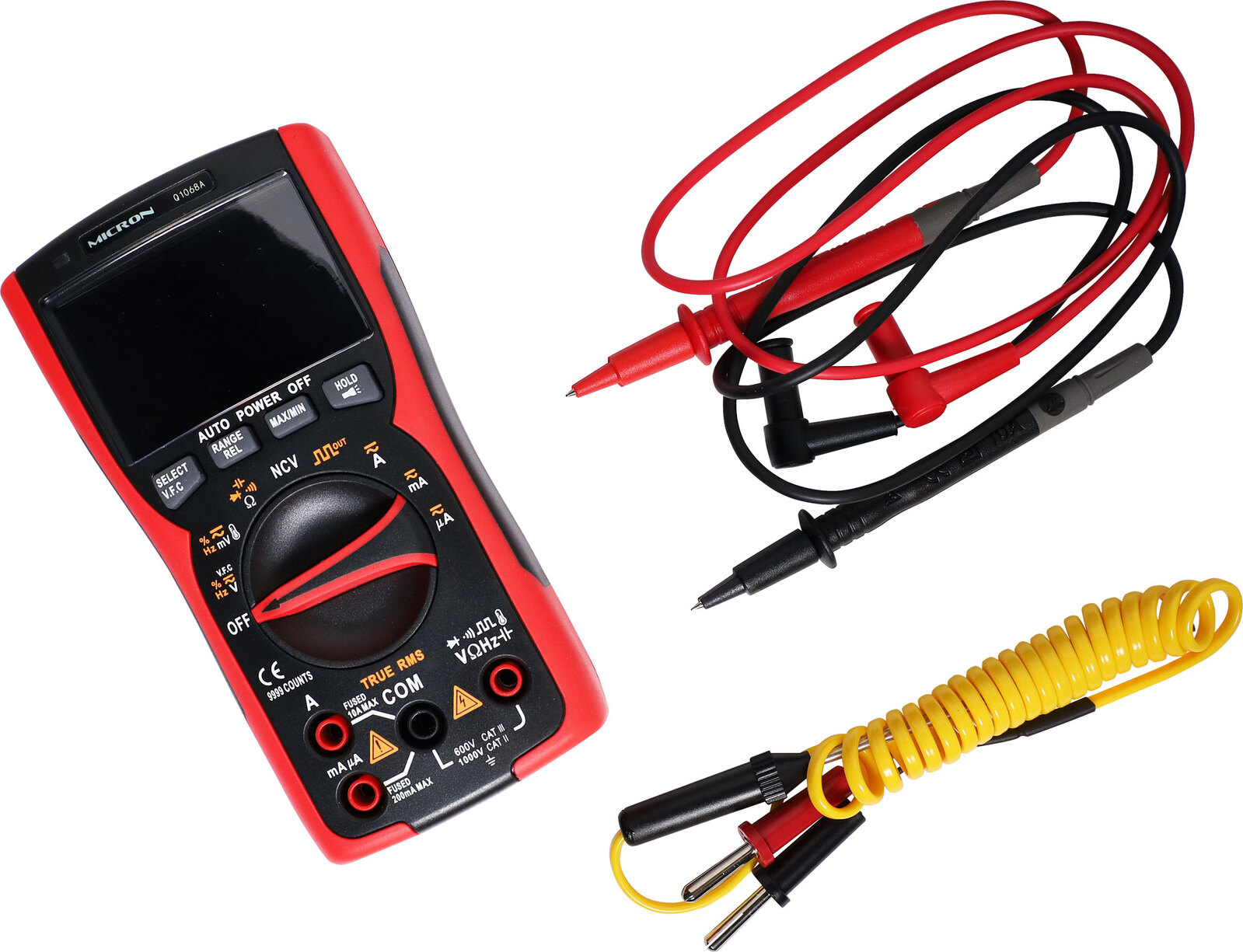

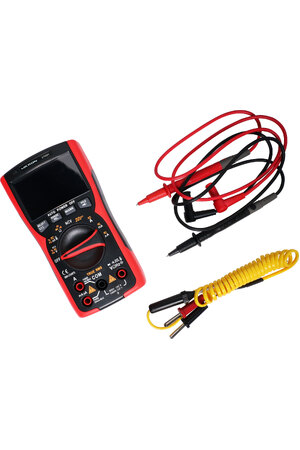

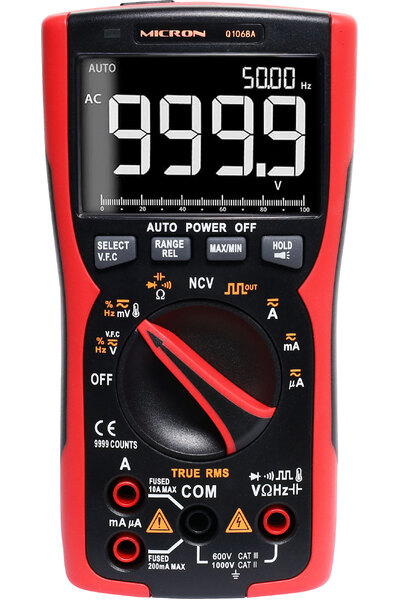

A rugged do-it-all meter is perfect for a serious electronics enthusiast, electrical tradesperson or service tech. The 9999 count 3.75 digit display also features a LCD bargraph and helpful mode indicators. Standard measurement ranges include AC/DC voltage & current, resistance, capacitance, temperature, frequency & duty cycle. In addition, the top of the meter has an AC sensor and flashing LED which enables detection of lethal mains voltages in circuits or wiring. The rubberised case offers excellent physical protection. Includes carry case, temperature probe, high quality rubber insulated test leads and 3 x AAA batteries.
Please refer to the manual for electrical specificiations
Features
- Auto ranging with manual override
- Min/max & data hold
- Non contact AC voltage detector
- Frequency/duty cycle measurement
- Temperature measurement
- Backlit LCD screen with bargraph
- Diode test
- Continuity buzzer
- 3 x AAA Batteries included
- Auto power off
- Cat II 1000V, Cat III 600V
Specifications
- Display( LCD): 9999 count, backlit
- Ranging: Auto/Manual
- Material: ABS+TPE
- Update Rate: 3 Times/Second
- True RMS: Yes
- Data Hold: Yes
- Low battery indication: Yes
- Auto power off: Yes
- Dimensions: ≈ 76W x 37D x 147H
- Weight: 191g (without batteries)
- Battery Type: 1.5V AAA Battery x 3
- Operating Temperature: 0°C to 40°C
- Operating Humidity: <75%
- Storage Temperature: -20°C to 60°C
- Storage Humidity: <80%
- *Specifications are subject to change without notice.
