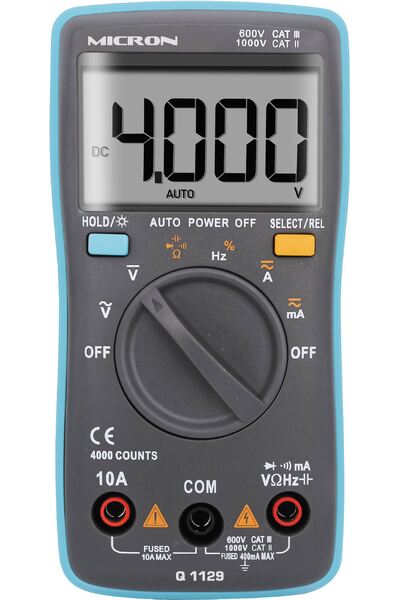

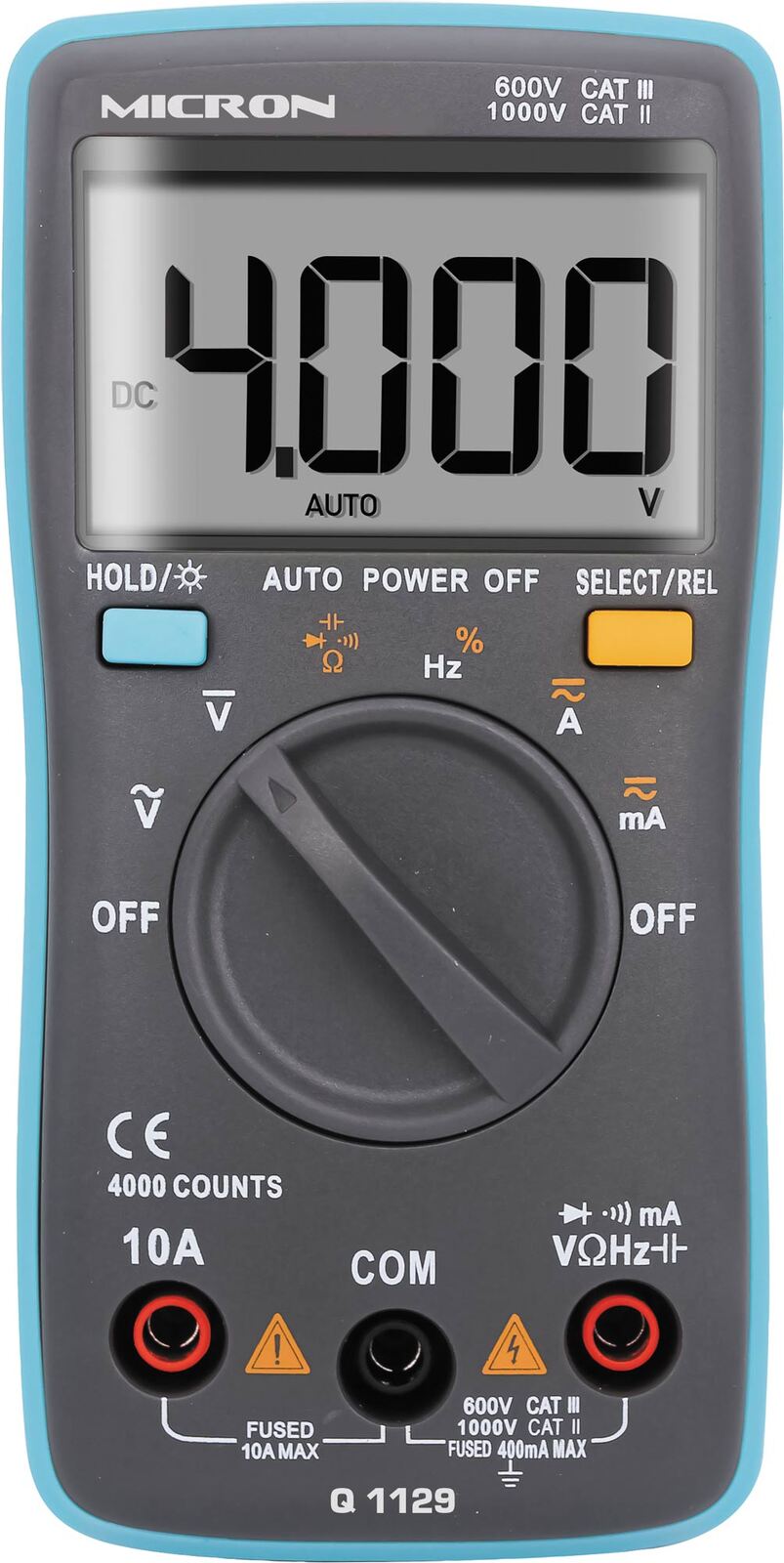

Micron Auto Ranging Digital Multimeter

Part of the series Digital Multimeters & Accessories.

View all products in this series

---

This affordable 4000 count meter with 12 test modes is the perfect accessory for the enthusiast or student. Auto ranging makes testing easier, whilst the large LCD screen with white backlighting makes it easy to read from a distance. Supplied with test leads, rubber holster and built-in bench stand.

Features

• Easy auto ranging design
• Data hold function
• Jumbo LCD with white backlight
• Continuity buzzer
• Diode test
• 10A DC current range
• Includes 2xAA batteries
• Fuses are replaceable (10A 250V, 400mA 250V SFE-6)
• Frequency and duty cycle
• Cat II 1000V / Cat III 600V

Specifications

• Voltage DC: 400mV, 4V, 40V, 400V, 1000V (±0.8%+4d)
• Voltage AC: 400mV, 4V, 40V, 400V, 750V (±1.5%+4d)
• Current DC: 40mA, 400mA, 4A, 10A (±1.5%+4d)
• Current AC: 40mA, 400mA, 4A, 10A (±2%+4d)
• Capacitance: 4nF, 40nF, 400nF, 4μF, 40μF, 200μF (±3.5%+4d)
• Ohms: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (±0.8%+4d)
• Continuity: 40Ω threshold, audible tone
• Diode test: Test current 5mA max
• Duty cycle: 1-99% @ 250V RMS max (±0.1%+2d)
• Frequency: 99Hz - 9.99MHz (±0.1%+2d)
• Display: 3.75 digit, 4000 count, backlit
• Protection: 400mA M205 fused + 10A input fused
• Dimensions: ≈ 65W x 32D x 130H mm
• *Specifications are subject to change without notice.
