Makeblock - Ultimate 2.0 10-in-1 Robot Kit

A Robot with Endless Possibility: The 10-in-1 STEM Educational Robot Kit

Compatible with both Arduino and Raspberry Pi, Ultimate 2.0 is the perfect robot for robotics enthusiasts to learn about mechanical design, electronics and programming. This extraordinary robot kit can be assembled into more than 10 different configurations to explore your creativity. Compatibility, standardization, and systematization make this flagship robot kit smarter and more fun than ever!

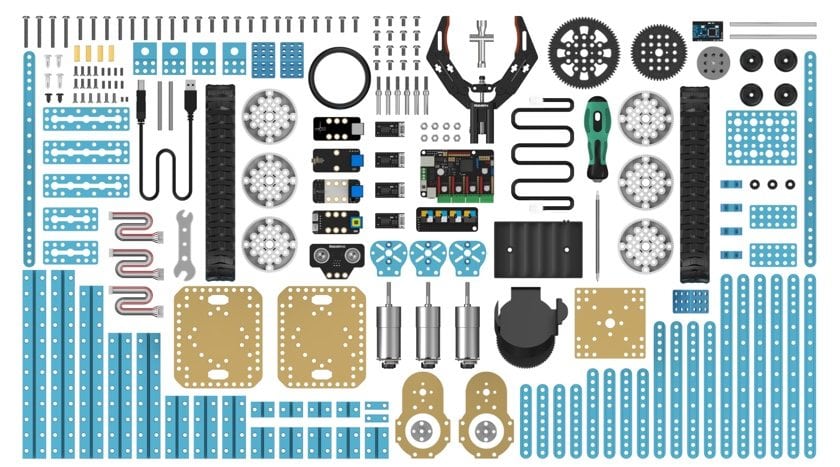

A Powerful Parts Library

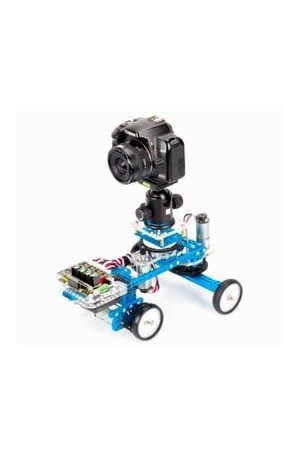

Release your imagination with over 160+ metal parts and 80+ types of electronic modules including our all new powerful MegaPi main controller, 3 encoder motors, 1 robotic arm, 4 DC motors, 3 sensors and 1 Bluetooth module. It also comes with a shutter and phone stand for easy photo taking. From now on, you will have your own parts library.

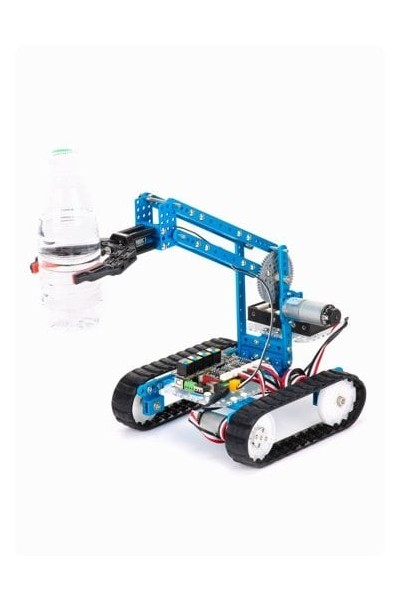

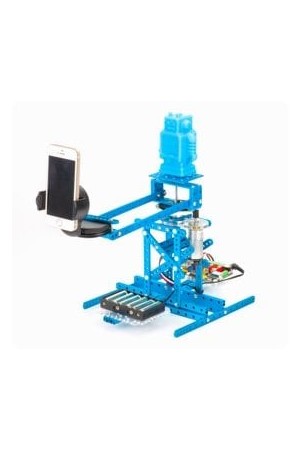

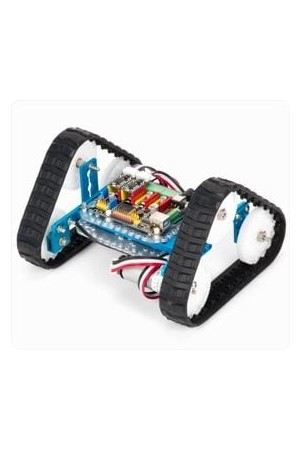

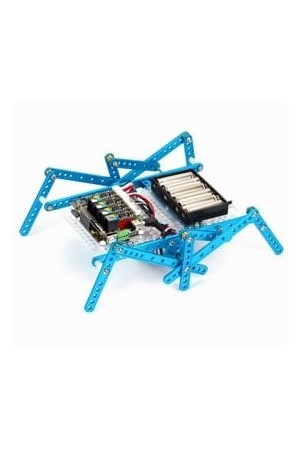

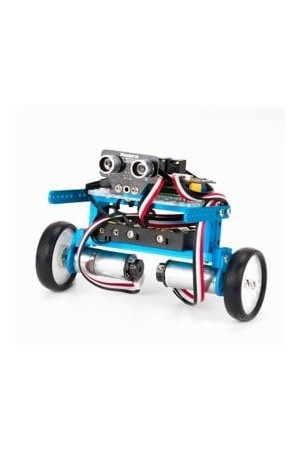

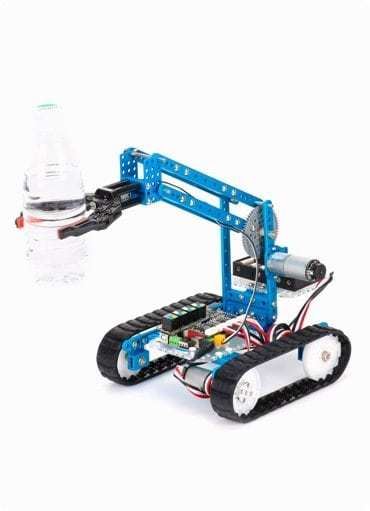

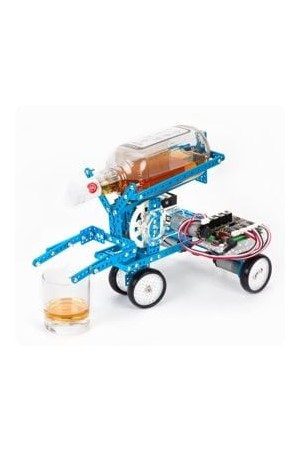

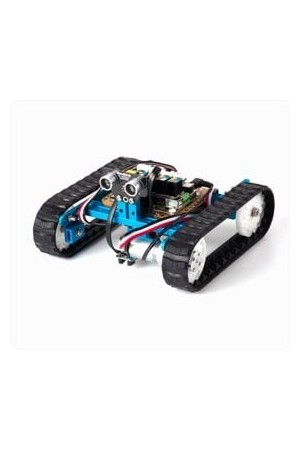

10 Building Examples Inspiring Unlimited Personal Creative Inventions!

Ultimate 2.0 comes packed with a punch. The kit comes with assembly guides for 10 different designs that serve as launch points for your own creations. Alter the designs to suit your own ideas, or make your own design entirely from Scratch!

Compatible with Both Arduino & Raspberry Pi

With a strong motor-driving ability and ease of use, MegaPi is a microcontroller board based on ATmega2560 that can rapidly control and combine different kinds of motors. It is capable of simultaneously driving up to 10 servos, 8 DC motors / 4 stepper motors and have a maximum output current of 10A. Whether you’re an Arduino or Raspberry Pi lover, MegaPi can fit your needs.

Programming for All Experience Levels

The Ultimate 2.0 supports Python programming (by combining with Raspberry Pi), Arduino IDE programming, graphical programming, and Node JS. For beginners, it comes with a specially-designed APP, enabling you to control the robot by simply dragging and dropping blocks.

Technical Specifications:

Mechanical Parts:

• Aluminum Extrusion Parts
• Plastic Timing
• Pulleys 90T
• Plastic Gears
• Tracks and Wheels
• Cables

Electronic Modules:

• 1 x MegaPi
• 1 x MegaPi Shield for RJ25
• 1 x Bluetooth Module
• 4 x Motor Driver
• 3 x Encoder Motor
• 1 x Ultrasonic Sensor
• 1 x Line Follower Sensor
• 1 x 3-Axis Accelerometer and Gyro Sensor
• 1 x RJ25 Adapter
• 1 x Shutter
• 1 x Makeblock Gripper

Building Forms:

• 10 x Building Forms (With paper assembling instruction for three main forms)

Programming:

• Graphical Programming
• Arduino Programming
• Python Programming
• Node JS Programming

Technical Specifications of MegaPi:

• Microcontroller: ATMEGA2560-16AU
• Input Voltage: DC 6V-12V
• Operating Voltage: DC 5V
• I/O Pins: 43
• Serial Ports: 3
• I2C Interface: 1
• SPI Interface: 1
• Analog Input Pins: 15
• DC Current per I/O Pin: 20mA
• Flash Memory: 256KB
• SRAM: 8KB
• EEPROM: 4KB
• Clock Speed: 16 MHz
• Dimension: 85*63mm

MegaPi specialised functions:

• Red Pin: Power output/motor output
• Yellow Pin: I/O pin
• Blue Pin: Wireless communication interface
• Black Pin: Power GND
• Green Interface: Power output/motor output
